The UDF tube making machine is used to manufacture plastic supports. These are used in granular activated carbon filter cartridges. The key question in regard to the tube is: does plastic leave the die? But a purchaser is more interested in the included functions, the tolerance limits of an acceptable tube, and the downstream cartridge processes excluded from the tube line.

This guide follows the material from feed preparation through extrusion, cooling, haul-off, cutting, optional perforation, and recorded inspection. Readers not in need of drawing preparation may go directly to the configured UDF tube making machine solution. The remaining items to address are processing-condition qualification with the production resin, drawing revision, utilities, and the customer’s acceptance method.

What a UDF Tube Making Machine Actually Produces

A UDF tube making machine produces a formed plastic support tube, not automatically a finished water-filter cartridge. Its processes include material feeding, plastic extrusion, tube shaping, cooling, haul-off, cutting, and any perforation or cleaning stated in the written scope. Tube finishing may include perforations or cleanings when the written scope includes them. The quoted operations must state whether fusing cartridge end caps and testing the completed product are included.

The distinction is important because “UDF line” isn’t specific. The US Environmental Protection Agency overview of drinking-water treatment technologies states that granular activated carbon is treatment media. The tube line would be the supporting framework that houses or directs treatment media. It wouldn’t be considered a barrier or reduction media and wouldn’t substantiate the finished system’s treatment claims.

Tubular water-filter blocks described in US Patent 8,167,141 B2 define inner and outer dimensions, end surfaces and a flow path characterized by a perforated wall. That teaches the component boundaries, not UDF recipe or tolerance limits. The patent, however, doesn’t disclose a UDF tube-machine recipe or buyer tolerance limits.

A seller’s statement that a line can run for 24 h is still an operating claim, not proof that the quotation includes carbon filling, assembly, or 24 h of accepted output. As such, the quotation must include a statement on carbon filling, assembly, 24 hours of run time, and the acceptance basis. The purchaser’s document must identify each of the operations, interfaces, acceptances, inspections and transitions in the process, rather than using the term “line.”

The Five-Stage UDF Tube Manufacturing and Extrusion Sequence

The sequence describes control rather than counts of physical stations. That control sequence starts at the tube-line boundary defined above and excludes carbon filling and cartridge assembly; the extrusion production line workflow ties raw material identity and quality control records to accepted tube output. It consists of preparing the material, extruding it, calibrating and cooling it, haul-off, and cutting or perforating it. In reality, the various functions of an extrusion process may be subdivided into many stations. Conversely, two functions may be combined in one station.

An open-access Production Engineering study gives insight on the extrusion of thermoplastic granules. The study outlines how the granules are melted, passed through a die, calibrated, and then cooled and cut to the desired length. The study acknowledges that modularity of industrial extrusion lines allows for varied arrangements of the various components of the lines, and as such, a checklist of the components of an extrusion line does not necessarily specify the physical layout of the line.

1. Verify the feed — match the resin grade, lot, additives, drying or conditioning state, and approved regrind rule to the trial record.
2. Form the melt — stabilize feeding, melting, pressure, and die or mandrel alignment without treating one temperature as a universal recipe.
3. Calibrate and cool — hold the tube geometry while removing heat, then record where collapse, ovality, or surface marks first appear.
4. Synchronize haul-off — coordinate puller speed with extrusion output because drawdown can change bore, wall distribution, and final diameter.
5. Cut and hand off — control length and edge condition, then assign perforation, cleaning, inspection, or downstream assembly to a named owner.

One documented oriented-PVC line in a separate Journal of Intelligent Manufacturing study included drawing, inline measurement, a cutter, and nine cooling or conditioning steps. It is not a UDF specification, but it is strong counter-evidence to any claim that all plastic tube lines share five physical stations.

Results cross-link this equipment with pipe making machine, UPVC drainage lines, and PVC double wall corrugated pipe machinery. Those are adjacent plastic machinery categories, not substitutes for a UDF plastic tube production line. Continuous extrusion of plastic tubes is the shared process family. Tooling and downstream uses, in combination with material characteristics, dimensions and quality, define the final product.

The studied industrial line was about 55 m long and reported a material-input-to-cutter lead time of 15-100 min, depending on pipe dimensions. Those values cannot be transferred to a UDF tube line; they show why station count, residence time, and response delay must be confirmed on the configured machinery before an operator changes a second variable.

Plastic Material and Melt-Window Controls

A processing recipe can’t be expressed in terms of just a PVC or PP resin. Those five process functions only become reproducible when the approved material identity and condition are fixed. Resin grade, supplier, lot, and the molecular and flow properties of the material can affect how the resin is processed. So can the method and state of conditioning of the resin, recycling and regrind rules, colorants, fillers, and thermal history.

The final plastic tube dimension is also not the die-channel dimension. A PlasticsToday die-design review explains that drawdown, cooling, and non-uniform thermal response alter the extrudate after it leaves the tooling. US Patent 4,882,104 likewise ties measured wall thickness to controlled adjustments, supporting feedback-based control without proving that every UDF machine uses that patented arrangement.

An illustrative development record might hold one material lot, change one controlled variable, allow a buyer-defined 30 min observation window, and retain samples at 10 min intervals after a separately recorded 2 h warm-up. Those times are documentation examples, not recommended settings. The actual recommended waiting period depends on the tested line’s residence time and thermal response, not a generic heat-sink condition.

The 3-Part Bore-Wall-Edge Triangle Framework

The Bore-Wall-Edge Triangle is an acceptance model made up of three aspects. Assembly clearance is governed by bore fit. Uniform wall thickness depends on verified distribution, not precision at one point. Edges governed by cut or perforation need to be clean. One final outside diameter (OD) measurement can’t represent all aspects of the triangle. Nominal tooling dimensions can’t replace measurements on conditioned samples.

ISO 3126 provides a general method context for measuring plastics piping components, while ASTM D2122-22 publicly identifies diameter, out-of-roundness, wall thickness, length, and straightness among its measured properties. Neither public scope creates a UDF-specific tolerance; acceptance values still belong in the buyer-supplier drawing or product specification.

ISO 1:2022 defines 20 °C as the standard reference temperature for geometrical product specifications and verification. That reference does not mean every UDF sample must be accepted at one universal condition; the drawing and agreed method must state the actual conditioning and reference basis used for comparison.

Perforation, Open Area, and Edge Quality

Quality of a perforated element is determined by a number of factors including shape of the hole or slot, ligament width, pattern of the element, condition of the wall, burrs, chips, cleaning, and support. This extends the Bore-Wall-Edge check from measured dimensions to the cut and perforated edge. Consequently, two perforated elements may have the same open area, but the component having the more useful function may not be apparent.

EP0873171B1 shows how a center support tube resists collapse in a cartridge architecture. This patent considers another type of filter, and thus defines the mechanical function of a support tube, but does not define a UDF material, pattern, or limits. NSF’s public overview of NSF/ANSI 42 also applies to finished filtration systems, not to certification of the tube-making machinery.

No primary UDF study in this run has supported a universal open area target. Customers should consider perforation a drawing-controlled work operation and evaluate whether the quoted machinery covers chips, tooling, post-perforation cleaning, and inspection. Also, finished filtration claims should be supported by completed finished-system documentation, not a machine certificate.

The 12-Row Symptom-Cause-Check Trace Matrix

The Symptom-Cause-Check Trace rule allows an initial assessment of a defect by identifying the first location where the defect occurs, assigning a potential cause to the defect, and reviewing process records, and performing a check before adjusting process settings. That check begins where the preceding section ends, with an observed edge or perforation symptom rather than an assumed cause. Defects can occur due to material, tooling, process cooling, haul-off, cutting, perforating, measurement, and handling.

The BYU-Idaho extrusion troubleshooting text also uses process causes to classify defects. A Plastics Technology tubing-control article supports process adjustment based on measurement and explains the relationship between process variables and process controls.

A practitioner thread describes a thin-wall HDPE example with a 6 mm outside diameter and 5 mm inside diameter collapsing in a cold-water bath. Collapsing starts in a particular zone of the tube, so that location should be recorded. The example’s collapse zone, dimension, and suggested remedies aren’t provided as UDF settings. The example suggests checking tooling, internal support, process temperature, cooling, and haul-off before assigning a cause.

Build a Measurement Plan That Can Be Repeated

The measurand, sample, instrument, resolution, fixture, location, frequency, calculation, decision limit, nonconformance, and process adjustment are defined in a measurement plan. Two suppliers using the same material can still differ when process conditioning, positioning, and handling differ. Measurement, process adjustments, and nonconformance treatment should be performed according to a defined process plan.

According to the NIST process-monitoring handbook, samples should be defined by what’s measured, when and from what sample, how, and who performs the measurement. NIST identifies measurement-system effects from bias, repeatability, short-term and long-term variability, and other sources of variation, together with uncertainty, when evaluating a measurement system. Sophisticated display devices may give the illusion of a well-defined measurement process, due to the effects identified above.

The examples included in this document do not indicate any sampling plans or tolerance limits. Measurement uncertainty should be evaluated with respect to the tolerances. ASTM D2122-22 and ISO 3126 are measurement-method references; the applicable drawing or product specification supplies the dimensional limits. Dimensional limits for measurements are provided in the product/drawing specification.

A 20 °C reference state, a 0.01 mm display, and a 20-piece sample describe three different things: sample condition, instrument resolution, and sampling extent. All three describe parts of the method, but they don’t by themselves show that a measurement system is valid and capable.

How to Compare Supplier Trial Data Without Trusting a Headline Rate

When the same product, process and operating conditions are compared, methods align and ‘capacities’ become meaningful.

Listings report incompatible estimates for this machine’s output. One lists approximately 50 kg/h. One market listing cites about 50 kg/h, while another seller snippet cites 0.6-0.8 m/min and 34 kW. These values aren’t directly comparable, as throughput, speed, and power are different values. The NIST acceptance sampling handbook notes the distinction of making a sampling decision versus estimating the true quality of the sampled lot.

ISO 2859-4:2020 covers procedures for assessing whether an audit population conforms to a declared quality level. Its public scope does not turn an accepted sample into a measured yield. A trial report should state whether every piece was inspected, a sample was used for lot disposition, or part of the output remained unmeasured.

Marketing labels such as “high efficiency,” “high efficiency UDF tube production,” and “efficiency UDF tube production line” don’t define a denominator or acceptance method. Therefore, a supplier can use those labels to describe production in terms of gross speed, mass rate, or by sample. Buyers should request labels be changed to witnessed quantities and an explanation of the inspection basis.

Comparison can be made between units of measurement that are observable to both parties. An example of this is expressing linear output as 240 m of fully inspected accepted tube over a period of 7.28 hours. This expression shouldn’t be used to predict the same output from another material, geometric configuration, or perforation pattern.

Integration and Safety Boundaries

Integration limits define the responsibilities for power, cooling, controls, haul-off, synchronization of cutters, guarding, isolation, finishing, and downstream carbon control. The trial-data boundary above becomes an interface boundary here, so each claimed rate must be tied to the actual utilities, controls, guarding, and downstream scope. Tube extrusion introduces concerns involving heat, motion, rotary equipment, nip points, cutting, electrical energy, and stored energy that must be addressed. Plastic finishing particles and combustible carbon dust require separate, process-specific assessments.

For US workplaces, 29 CFR 1910.212 addresses machine guarding, while 29 CFR 1910.147 addresses unexpected energization, start-up, and stored-energy release during covered servicing. Applicability and implementation belong to the employer and qualified site professionals in the actual jurisdiction.

“One or more methods of machine guarding shall be provided to protect the operator and other employees.”

A NIOSH workplace bulletin on microplastics notes that machining polymer products can generate dust and that high-energy or high-heat processes may release fine plastic particles. This 2020 bulletin is used here as dated screening evidence, not as a current exposure limit or a substitute for a site-specific industrial-hygiene review. Its finding does not prove exposure on every tube line, but it prevents perforation, drilling, trimming, or grinding from being dismissed without reviewing the actual method and controls.

An automatic machine label does not guarantee a complete site-ready system. Ask the manufacturer to customize only against a controlled drawing and interface list, then separate the CE marking evidence, warranty terms, after-sales service, and spare parts commitment from the technical trial result. Those commercial records matter, but none proves that the line can extrude the approved tube at an accepted rate.

Downstream carbon handling is a different boundary. OSHA’s combustible-dust guidance makes the concern conditional on the material and how dust is dispersed. NFPA 660 is listed as an active 2025 standard, but the need and method for a facility assessment depend on the carbon media, quantity, process, housekeeping, ignition sources, and local requirements.

A seller-stated 34 kW connected load is only a quotation input. It does not establish running demand, local supply suitability, protective-device selection, or the employer’s guarding and isolation duties. A configured interface schedule must replace the example before installation or site release.

Choose the Next UDF Manufacturing Conversation

The following discussion will cover the unresolved decision. Those routes follow directly from the unresolved line, safety, and downstream responsibilities documented above. This includes troubleshooting an existing tube defect, setting up a new tube production line, or assessing cartridge assembly downstream. Keeping those routes separate avoids asking an extruder quotation to answer a measurement problem, or expecting a tube machine to prove finished-cartridge performance.

1. Diagnose an existing process: bring the approved material identity, drawing, time-aligned settings, sample locations, and the Symptom-Cause-Check Trace.
2. Configure a tube line: bring the tube drawing, resin grade, required operations, utilities, interface list, inspection method, and witnessed trial basis to the UDF tube making machine page.
3. Scope cartridge assembly: map carbon filling, separators, end caps, joining, and final testing through the filter cartridge assembly process.

Buyers who review multiple competing technologies can also consider the CTO carbon-block forming process. Even though both process options produce activated carbon cartridges, a CTO block extrusion process and a plastic tube support extrusion process are different production routes.

Frequently Asked Questions

Updated September 2026

Filter cartridge production planning is the sequence of decisions a buyer makes between forecast demand and full-rate output from a new line. These decisions aren’t made in isolation for the purchase of one piece of equipment. Some equipment discussions end here, after the specification sheet. This planning guide starts at this point because projects can stall on unchecked capacity math, an unscheduled utility survey, an unwritten staffing plan, and a factory acceptance test that everyone assumed meant more than it did.

Users can find our side-by-side specifications for machine families on UDTECH’s own production line solutions page. This guide shows each of the eight decision-making gates that a prospective buyer will visit prior to, during, and after equipment selection.

What “Production Planning” Actually Means (and What It Doesn’t)

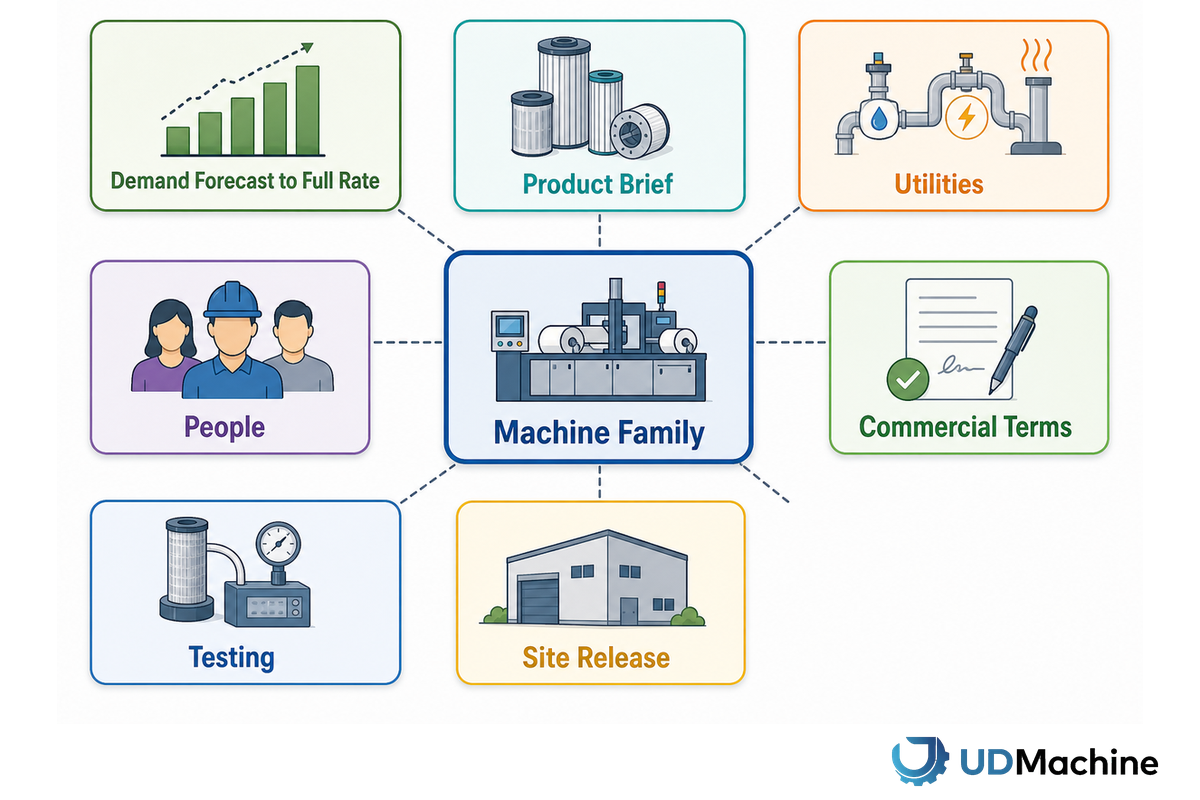

For this guide, production planning of the filter cartridge line is a series of eight buyer steps from demand forecast to full rate; it isn’t an industry standard or just the selection of a machine. Of the eight, selecting a PP melt-blown, string-wound, or CTO activated-carbon line is one step, while the other seven cover the product brief, utilities, people, commercial terms, testing, and site release.

According to US Patent 6,942,106 B1, the quantity of yarn, winding tension, lateral displacement per traverse, filament diameter, and loop structure are stated yarn-construction variables on a string-wound line that affect the size of a particle retained. A process that stops at “which machine” and never reaches “what product, settings, utility hookup, staff, and acceptance test” stops before those planning decisions are resolved.

UDTECH publishes three machine families for this guide: PP melt-blown, string-wound, and CTO activated-carbon. Each has a seller-stated micron range and output profile, and the full specification comparison — filtration accuracy, connected power, and cartridge length options — lives on UDTECH’s equipment pages; those figures require a product-specific quotation and test basis. What follows assumes that choice is either already made or running in parallel only where project dependencies permit, and focuses on the seven gates around it.

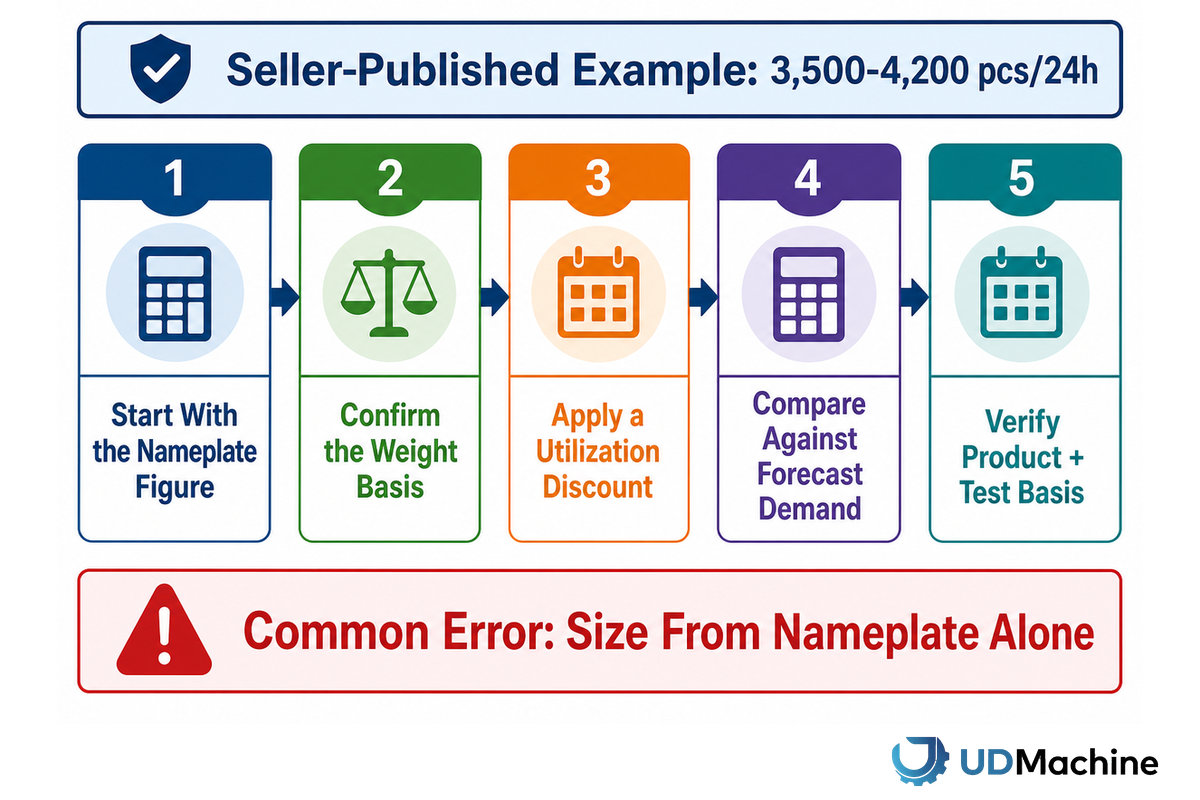

Phase 1: Turning a Sales Forecast Into a Capacity Number

Capacity planning uses demand forecasts to identify the goal output for each day. It isn’t about putting the vendor’s ‘pcs/24h’ number on a spreadsheet. A nameplate rating is what a vendor states that a line gets done for a declared product and test condition, not what it always gets done with no issues. The planning number is what the line is expected to get done during a stated calendar after the buyer’s utilization, downtime, yield, and accepted-output assumptions.

The sample uses a real published line spec to provide a worked comparison instead of a generic formula.

Phase 2: Choosing a Line Family Without Re-Deriving the Specs

Having a capacity number makes finding the corresponding machine family a shortlist exercise, not a final product-engineering decision. UDTECH states that PP melt-blown lines cover roughly 1 to 100 micron filtration accuracy at outputs in the low thousands of pieces per 24 hours per line; that string-wound lines use winding geometry; and that CTO activated-carbon lines add bore-sizing and dust-handling steps, but these are seller statements requiring a product-specific quotation and test basis. The complete comparative data, power ratings, and option lengths for the three families are published on UDTECH’s production line solutions; buyers should bind each stated range to the product drawing and witnessed test conditions. What should be in the planning guide are the items the buyer must resolve around and after selection of the family: later site, commercial, staffing, testing, and release decisions.

Phase 3: Site and Utility Readiness Before the Line Arrives

Utility readiness is the documented confirmation of power, floor space, material-flow paths, and access clearances by the buyer and qualified site professionals prior to a shipment. Without this readiness, a production line may not draw its required power or fit through the receiving door on the day of delivery, and the shipment can become a storage problem.

Four things must be present on the shipment checklist before a ship date is arranged:

• ✓ Connected power confirmed against the machine’s rated draw and exact site supply (UDTECH’s cited melt-blown line range publishes 70-100 kW connected power; running power, energy consumption, voltage, and frequency must be confirmed in the configured proposal)
• The complete floor space envelope includes service clearances for all sides of the machine, not just the footprint.
• ✓ The speed of the downstream and upstream processes should be checked for synchronization. Therefore, the buyer must test whether the packing step blocks the new line or the feeding step slows accepted output.
• Separating permitting and inspection lead time from transport lead time keeps both clocks visible before shipment scheduling. In some cases, these activities may not overlap; the project must decide from its jurisdiction and sequence.

For covered US installations, 29 CFR 1910.303(a) requires electrical equipment to be approved; that rule does not establish that a particular imported line or site installation is compliant. The gap should be identified during the site survey rather than delivery, including the applicable approval path, voltage, frequency, load, disconnect, and contractor scope. At delivery, unresolved electrical requirements become an electrical-contractor and scheduling problem, so qualified local professionals should verify them.

Phase 4: Budgeting for When the Money Actually Moves

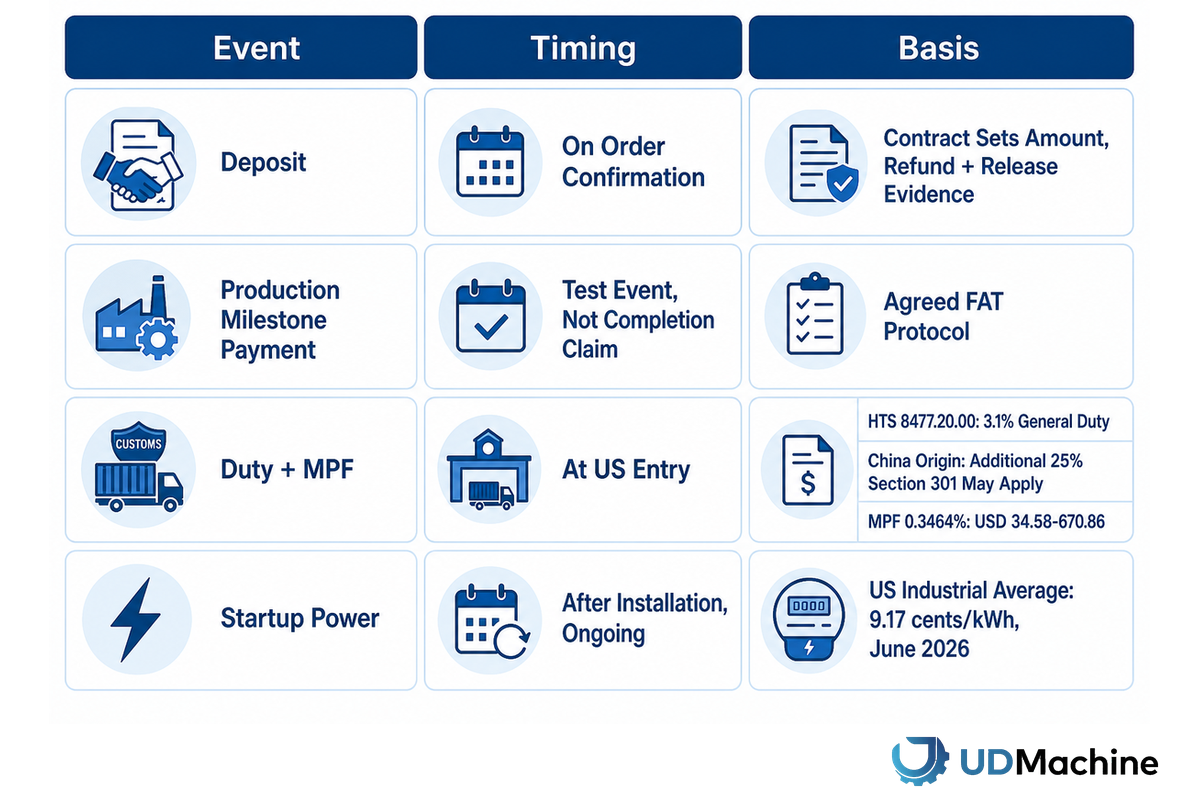

A production-line budget may have at least four separate payment events on different dates, not one lump equipment cost. Treating it as a single capex line can cause landed-cost surprises; the exact payment structure and remedies come from the contract and destination-country rules.

The 3.1% is only the general rate: for China-origin goods classified at 8477.20.00, USTR lists 84772000 in List 1 and an additional 25% Section 301 duty may apply, subject to the exact 10-digit classification, origin, exclusions, and other current measures; verify the current treatment with a customs broker (USTR product search; USTR List 1; USTR fact sheet).

Of the four example events, some may be provided in the sales discussion and the others may not be. An estimate of landed cost can be low when the budget includes only the provided events; mark each row supplier-included, buyer-paid, estimated, or open.

Phase 5: Staffing and Training, the Step Most Timelines Skip

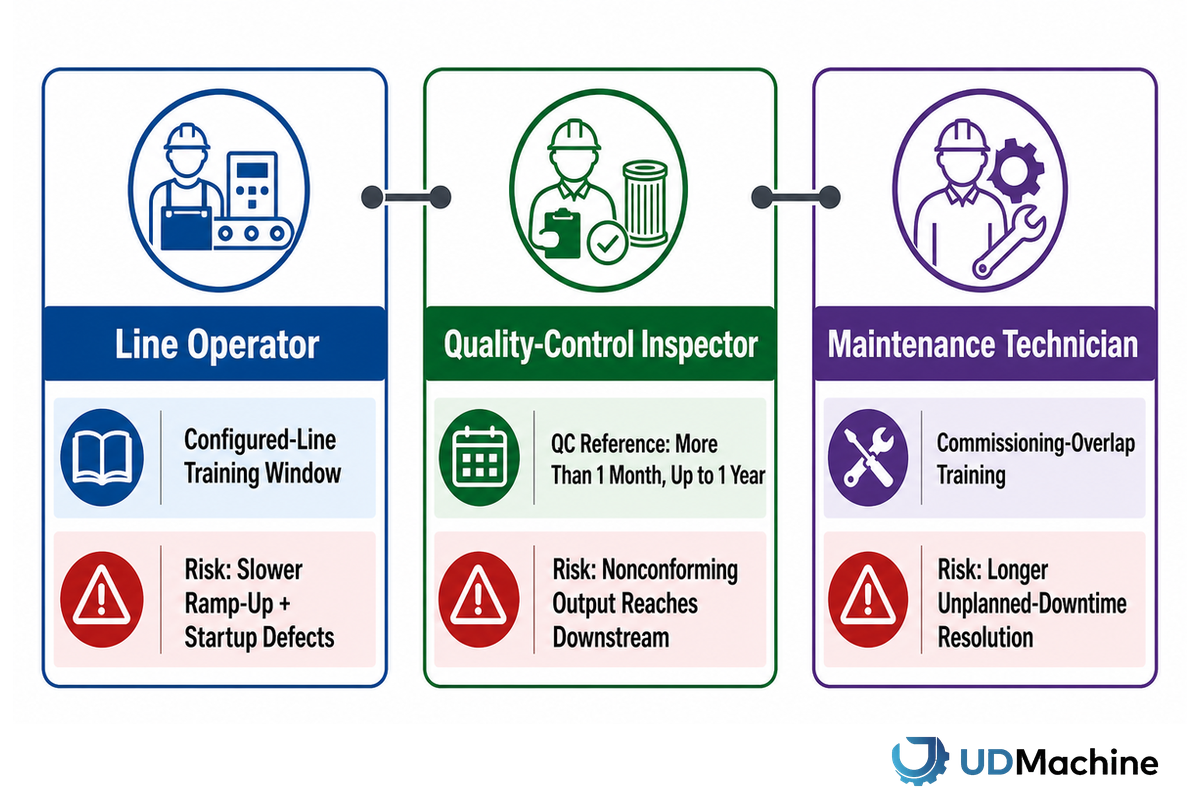

A new production line requires relevant staff competence and sign-off to be in place prior to each activity. Quality-control staffing and operator training lead times should be planned in project timelines built around equipment delivery dates.

The cited production-ramp-up study reports earlier cross-enterprise research that estimated direct ramp-up costs at about 20 percent of building-and-equipment investment, including training for new employees. In the study’s own case, worker qualification began during commissioning and process analysis and was followed by a lower later error rate, but the study did not isolate a shorter-ramp cause or establish a universal filter-line ratio. The same case records supplier-part unavailability as one cause of delay, so training belongs in the project estimate without being described as the single biggest risk on every filter-line project.

Quality-control staffing has its own lead time separate from operator training. In the United States, quality-control inspectors typically receive more than 1 month and up to 1 year of on-the-job training, while manufacturing accounted for 64 percent of their jobs in the cited period, according to the US Bureau of Labor Statistics. A project timeline that assumes QC coverage appears the day the line is installed is assuming away an occupational training window, but this data is not a filter-line proficiency guarantee and does not set the buyer’s competence date.

Phase 6: Vetting the Supplier and Defining What FAT Actually Proves

A Factory Acceptance Test confirms only the machine items, conditions, samples, measurements, and acceptance criteria written into the agreed test protocol, not automatically every published specification. It doesn’t by itself confirm the finished product or system’s certification status or performance claims. This is a scope question.

The cited standard in United States drinking-water practice has a scope that does not reach production machinery. Certification evidence attaches to the finished product or system covered by the applicable standard and claim, not automatically to the line that made it. NSF/ANSI 53-2025, with an official July 2026 errata notice, is scoped to point-of-use and point-of-entry finished treatment systems, not to the equipment that manufactures the cartridge inside them. A machine can be sold as capable of producing cartridges for a certification route, but that claim is not proof that a finished treatment system holds the certification.

A due-diligence checklist for the purchase order, drawn from a published seven-question framework for sourcing capital equipment from China:

• ✓ Confirm the identity of the counterparty prior to any deposit, not afterwards.
• ✓ Associate the payment for production with a supplier-site acceptance test, independently witnessed where agreed, rather than with the seller’s statement of “production complete”.
• ✓ Confirm formally, in writing, what remedy is available in case the seller fails to perform, prior to deposit.
• ✓ Don’t treat a marketplace refund window as a substitute for FAT: platform coverage and deadlines may differ from the real installation and commissioning timeline, so verify the current terms directly and define the factory test and contract remedy separately.

Phase 7: Commissioning and Pilot Run, the Safety and Quality Checks FAT Doesn’t Cover

A pilot-run quality plan turns the approved product brief into release controls for the actual build. The same framework can cover PP melt-blown depth filters, string-wound cartridges, pleated PES (polyethersulfone) membrane filters, high-flow surface filters, or another approved cartridge type; if bag filters provide pre-filtration, that interface belongs in the brief. It does not choose a filter for the end user or supply universal acceptance values.

Where relevant, the approved brief should state whether a cylindrical polypropylene build is the selected type of filter, how its filter type interfaces with the filtration system, the liquid process duty, and the pressure differential used for the recorded test.

Choosing the right filter for a specific process remains an application-design decision; this matrix starts only after that choice. When a buyer compares types of filter cartridges for water applications or other process environments, evidence from different industries is not automatically transferable.

Hazardous-energy controls and training are employer-side obligations for covered US servicing and maintenance, separate from the supplier’s factory acceptance test (FAT). When a new line is installed, the employer must determine the applicable lockout-tagout procedure, employee training, and contractor coordination for electrical and utility tie-ins before covered servicing or maintenance; a passed supplier-site FAT does not complete those site obligations.

After the buyer-authorized return-to-service process, and not while the line is locked out, the pilot run raises a second question a FAT can’t address: does output meet the buyer-approved release basis, not just quantity? All metrics, including overall equipment effectiveness and piece counts, could appear healthy while inspection bias or an unvalidated acceptance criterion lets nonconforming cartridges through. A pilot run must undergo its own quality and process capability check, meaning the pilot run cartridges must be inspected against the same acceptance criteria to which the final product is held before its output is considered released under the buyer’s product-release procedure.

Pilot-Run Quality Plan for Industrial Filter Cartridges

The matrix doesn’t choose the right cartridge filter for an end user, rank filtration solutions, or prescribe a universal water-quality or microbiological limit. It serves a more limited purpose: convert the selected product design into a repeatable, buyer-approved pilot-run test plan before the line is treated as production-ready.

As a within-operation diagnostic, overall equipment effectiveness (OEE) should compare a line against its own earlier weeks and a buyer-defined ramp-up target, not treat a universal 85 percent “world-class” headline as a contractual acceptance benchmark.

In its automotive case, the study used overall equipment effectiveness as a monitoring metric, observed many process errors during pre-acceptance, and reported a lower later error rate after early worker qualification.

Automation decisions in this phase also require caution. Assuming dedicated automation is always the lowest-cost option for cartridge assembly and finishing is not supported as a universal rule in high-mix, low-volume production. The real economics are configuration-specific and not fixed by production volume alone, according to peer-reviewed research on high-mix low-volume manufacturing and a separate academic review of the same manufacturing category ; neither source is a filter-cartridge cost model. Automating a production line for multiple cartridge formats using a low-volume, high-mix approach is very different from automating a production line for cartridge formats at high volume a year later.

Phases 5 through 7 need not run one after the other in the order described in every real project. Staffing, supplier acceptance testing, and commissioning may overlap and iterate where safety, the contract, and project sequencing permit — an operator hired during Phase 5 may finish training during Phase 7’s commissioning window, and a FAT deficiency found in Phase 6 can send the project back to a supplier conversation while safely independent site work continues.

The Utilization Paradox: Why Growing Demand Doesn’t Mean You Should Over-Build Capacity

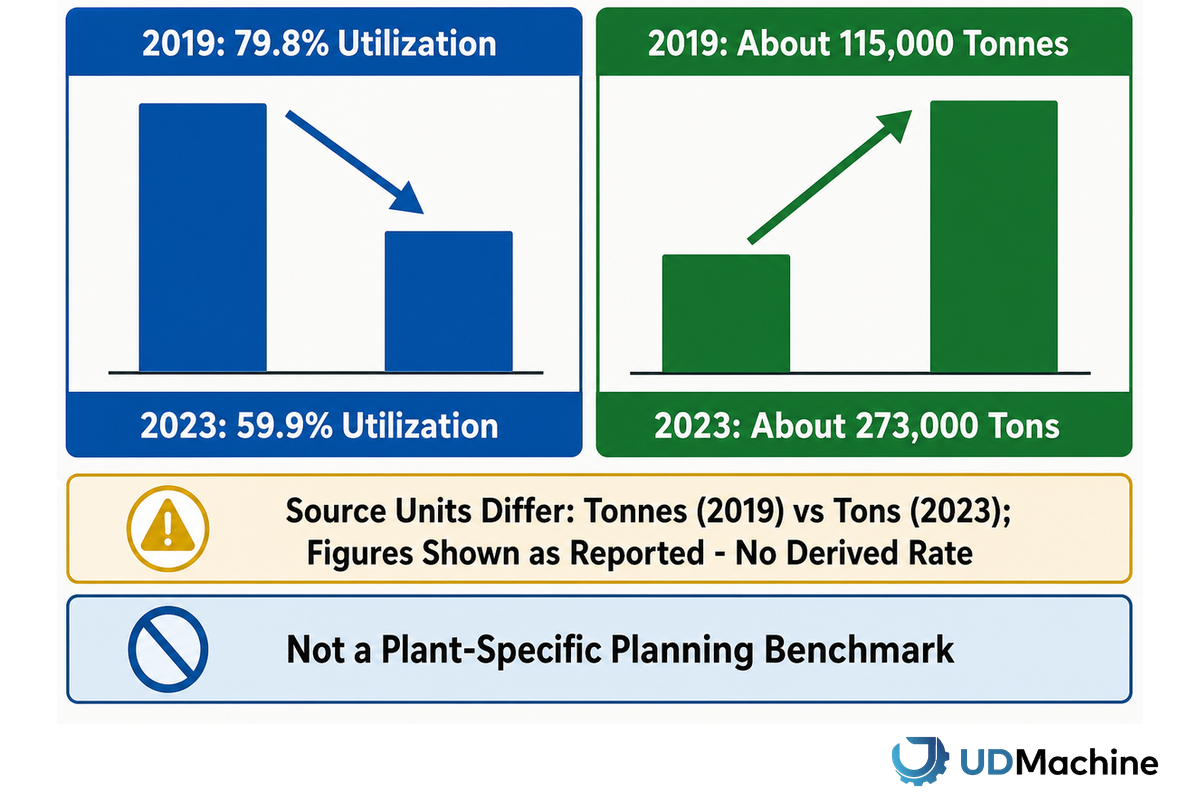

A trade-press analysis estimated that global stand-alone meltblown nonwoven capacity utilization fell from 79.8 percent in 2019 to 59.9 percent in 2023. Concurrently, capacity and dollar value growth can occur within the industry at the same time as unused capacity, which is why a headline market growth percentage is not a plant-specific planning benchmark.

Global nameplate capacity for stand-alone meltblown production grew from about 115,000 tonnes in 2019 to about 273,000 tons in 2023, with full utilization of that global capacity not expected until 2031 on the same data set. One point is worth noting rather than smoothing over: the source’s tonnage and utilization figures don’t reconcile into a single clean calculation. Therefore, the data is reported as provided rather than synthesized to create a derived figure that the data wouldn’t support.

The overall industrial filtration market is expected to grow from approximately USD 43.38 billion in 2025 to USD 45.64 billion in 2026, according to market-research estimates. While these numbers provide background context, they aren’t the planning basis. The planning basis is the buyer’s own demand forecast, product mix, accepted output, current capacity, and utilization assumptions. It’s possible to expand a market in terms of dollars while having unused capacity. Therefore, a potential buyer making a line size calculation based solely on the market growth percentage is making a planning mistake.

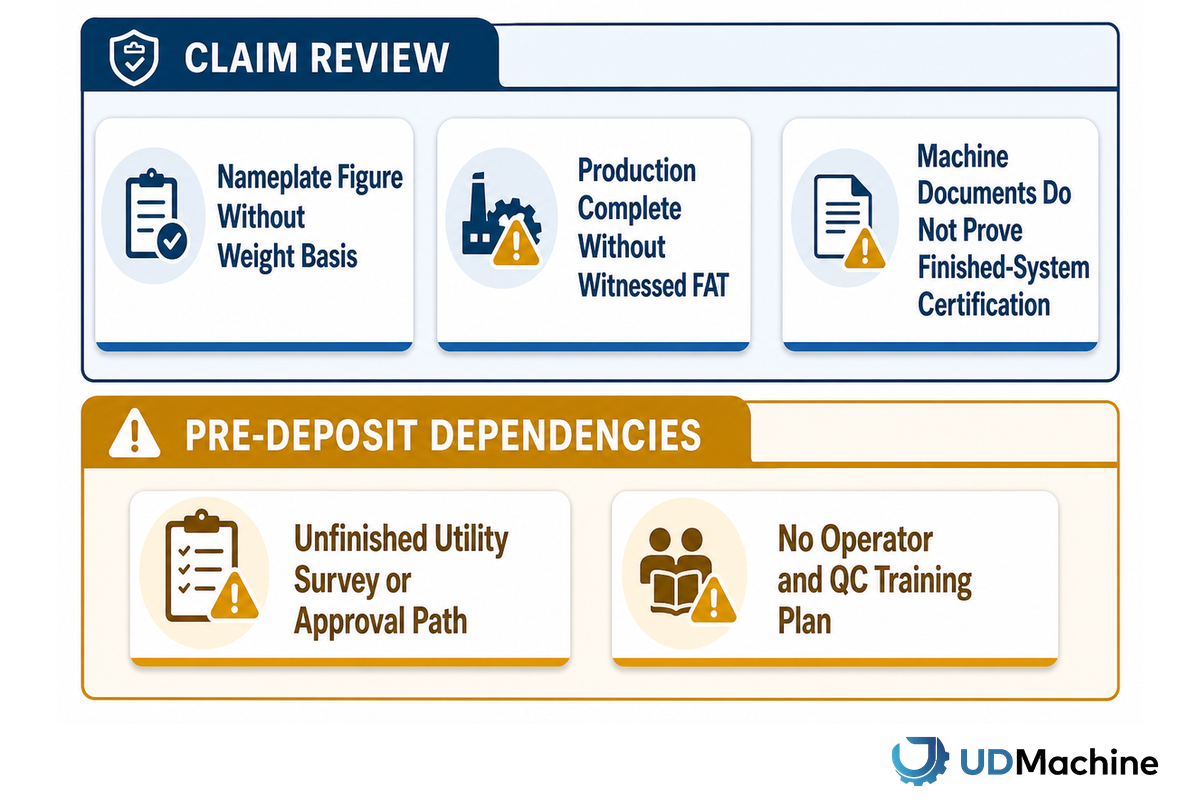

Common Planning Mistakes and When to Delay Your Purchase

Failures in planning on a filter cartridge line can be timing and scope errors, not equipment failures. The machine may do what it should per the written spec while a failure remains in one of the decisions surrounding the machine; this guide does not claim that pattern is the most frequent.

What to discount from a vendor’s claims:

• ⚠️ A nameplate pcs/24h figure quoted without its cartridge-weight basis
• An offer of “production complete” in lieu of a supplier-site acceptance test, independently witnessed where agreed.
• Any statement that a machine certificate or document proves the finished cartridge or treatment system meets its drinking-water certification standard.

When to ask the commercial and legal team whether to withhold a deposit rather than commit to a date:

• The indicated lead time is being fixed while the site utility survey, access route, or locally required approval path remains unfinished.
• No staffing or training plan is in place for operators and QC prior to commissioning.

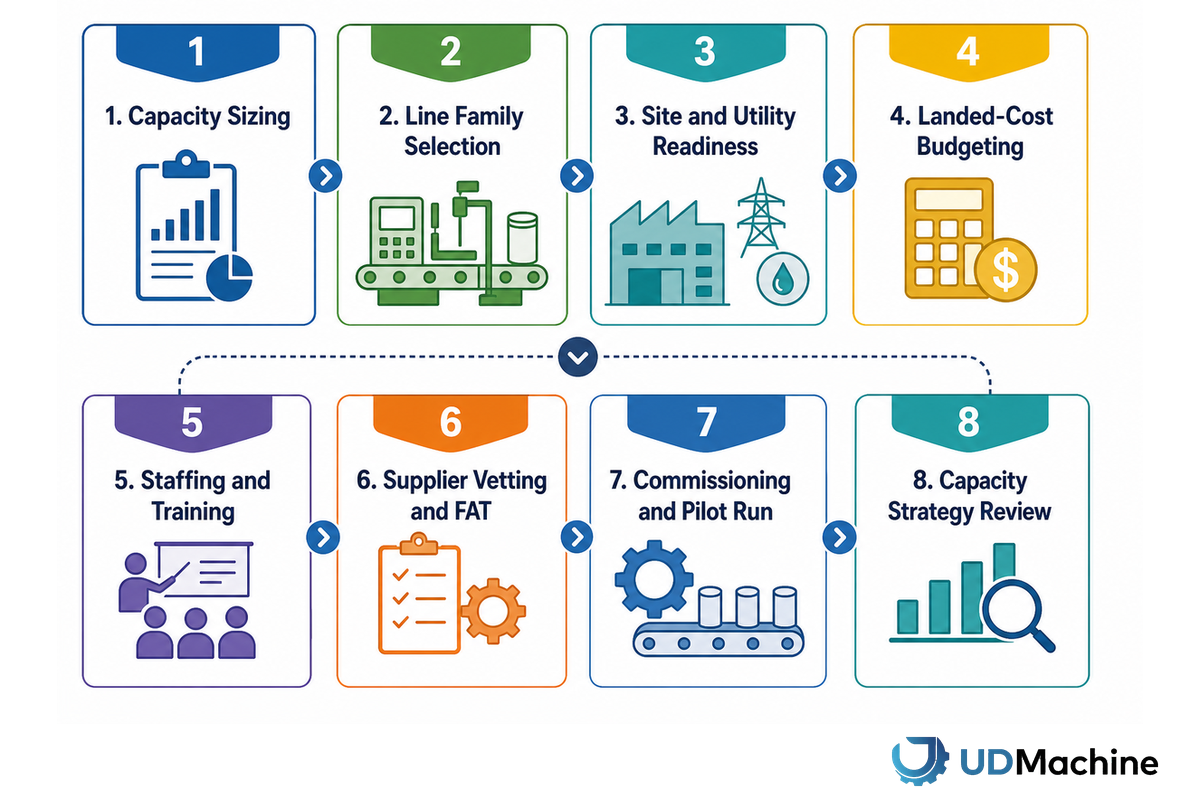

The Eight-Phase Planning Clock

One page to update throughout the whole project, from the capacity worksheet in Phase 1 to the ramp-up review in Phase 7 before any example window becomes a schedule:

Frequently Asked Questions

Filter cartridge assembly & finishing equipment includes machinery for joining a filter cartridge media, end cap sealing, trimming to length, seal verification, and sealing the cartridge into a shippable package. Assembly & Finishing Equipment describes the machinery that joins, seals, and finishes a filter cartridge after the media itself has been formed. This equipment is used after media forming (melt-blowing, string-winding, carbon-block extrusion) and before the cartridge leaves the facility. If you’re searching for this type of equipment in the USA, you’re searching for “filter cartridge making machine” or “filter making machine.” In India and the Gulf, the same type of equipment is searched as “pp spun filter making machine” or “ro spun filter manufacturing machine.” This is worth knowing when comparing quotes across regions. Assuming you know the configuration needed, UDMachine’s assembly & finishing equipment configuration page goes through a 14-field RFQ matrix. This guide comes before that one; it discusses the function of the equipment, the different ways to join media, where certifications end, and what the purchase order must include. Many readers find this guide while researching cartridge filter replacement programs or broader filtration systems; this equipment sits upstream of that replacement-parts market, and the vocabulary overlap is worth sorting out first.

Readers searching for air intake filters or engine intake filters in an industrial environment should note that those are a separate product category from the cartridge filter replacement parts this equipment assembles, though both rely on similar airflow and media-pleating principles. A reliable distributor or OEM buyer typically wants this production process running on automated machines that hold optimal, repeatable tolerances batch after batch, so every finished cartridge that leaves the line is high-quality and interchangeable with the last one.

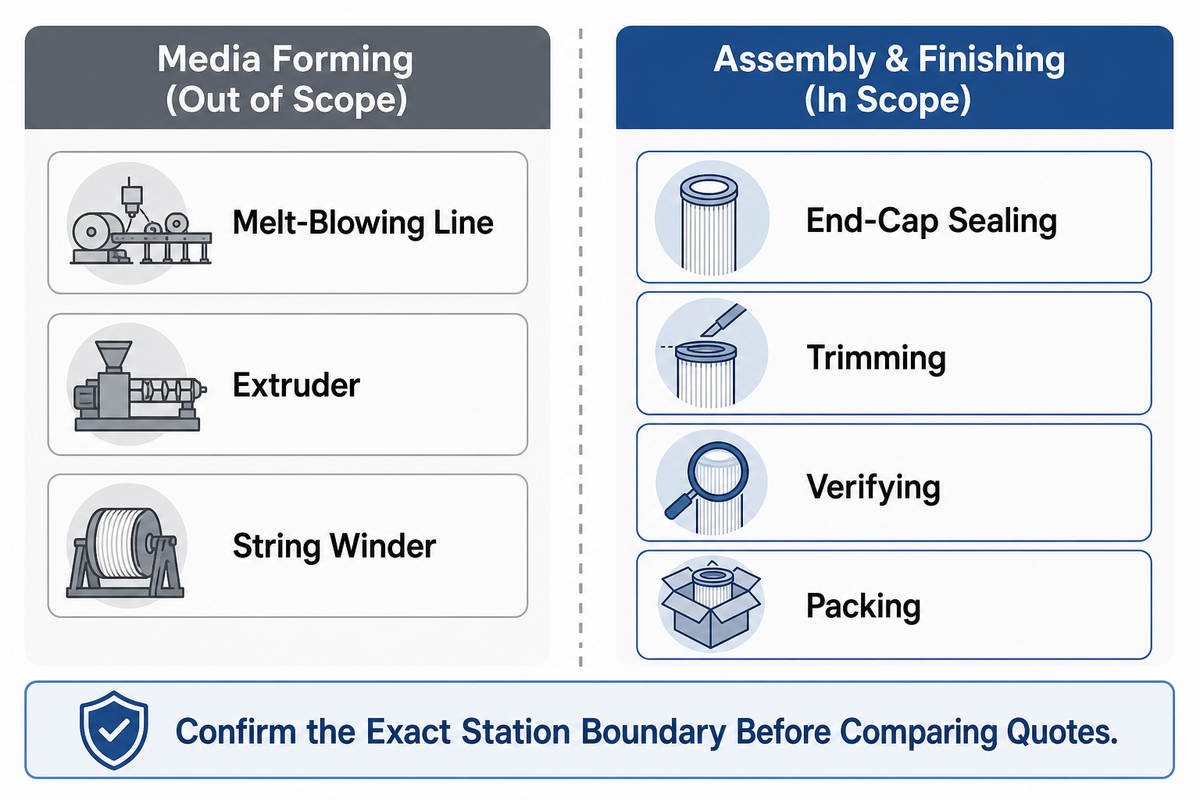

What Counts as Filter Cartridge Assembly & Finishing Equipment

Assembly and finishing equipment describes the equipment utilized after the media is formed and before the finished cartridge leaves the plant. Middle seam joining, end-cap sealing, trimming, verifying, and packing make up this equipment category. Assembly and finishing equipment doesn’t include machines used to form the media.

Machines used to form the media include a melt-blowing line, an extruder, and a string winder, and each has its own process and equipment boundary. One supplier’s “assembly module” quote may include the finishing equipment described here while another may not. Confirm the exact station boundary, infeed, and outfeed when comparing suppliers’ quotes line by line.

The machine safety framework that applies across this whole equipment class is ISO 12100:2010, Safety of Machinery — General Principles for Design, Risk Assessment and Risk Reduction, which sets out the terminology and methodology for identifying a machine’s intended-use boundary before risk assessment starts. That boundary question — what this station is actually built to do — is the right first question for any assembly or finishing machine, not just a legal formality.

“ISO 12100:2010 specifies basic terminology, principles and a methodology for achieving safety in the design of machinery.” — ISO 12100:2010 Abstract, International Organization for Standardization

Once specified for media and micron ratings, pleated filters, depth cartridges and other designs involving mesh reinforcement share the same end-of-line joining and finishing stations, although the assembly equipment depends on the end cap and joining method, not on the micron ratings.

The true boundary of an assembly or finishing station is defined by the input and the output, not the name in the catalog.

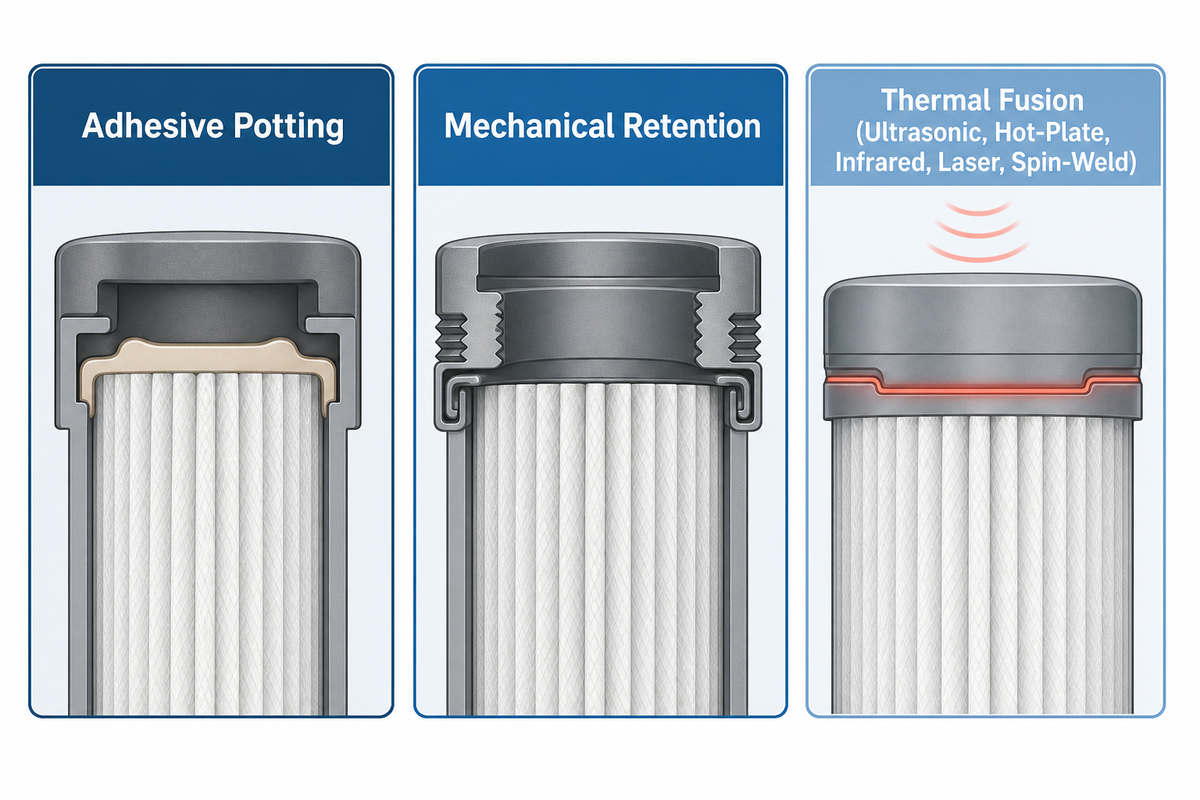

How End Caps Are Sealed to the Filter Media

Division of end cap joiners into three families–adhesive potting, mechanical retention, and thermal fusion– is clear, and they aren’t substitutable on the same tooling. That input/output boundary from the previous section is exactly what decides which of the three families applies to a given joint.

Thermal fusion of end cap joins can further be divided by means of heat generation: internal friction or vibration heating used in ultrasonic and spin welding, and outside heating by means of hot plate, infrared and laser, as distinguished by the American Welding Society’s G1.1M thermoplastics welding guide.

The clearest documented example of a spin-weld set point comes from patent literature. US Patent 5,472,537, “End Capped Fibrous Filter Making,” assigned to Pall Corporation and granted December 5, 1995, describes a spin-welding example running at 500 rpm to 4,000 rpm, with 1,725 rpm given as the preferred speed, holding contact for 20 to 35 revolutions under an applied pressure the patent states should range from 20 psi to 100 psi, with 50 psi to 90 psi given as the preferred sub-range. That is a mechanism envelope, not a universal setting: the ratios of rpm, pressure, and contact time can be extrapolated to compatible thermoplastics, however, the actual numbers for a different polymer pair have to be determined by a trial weld.

Laser-based welding is the one case where the machine, not just the cartridge, can fall under a separate certification regime: equipment that emits laser radiation is a radiation-emitting product under FDA’s radiation-emitting product rules, which require the manufacturer to certify compliance against federal performance standards, supported by its own quality-control and testing program. That is a certification track on the welding system itself, entirely separate from whether the finished cartridge holds an NSF or FDA listing, covered next.

Choose your joining route based on the material pair and service conditions first; let the certification question follow the technology, not the other way around.

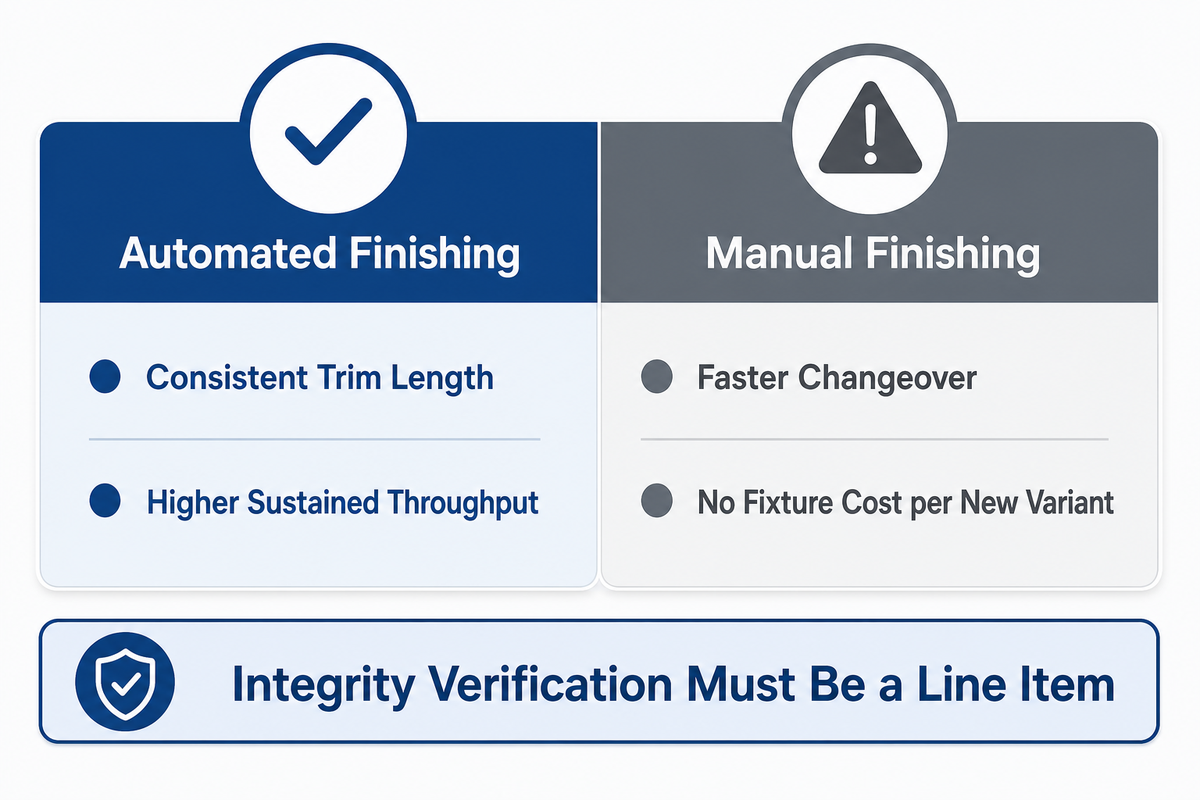

Finishing Operations After the End Caps Are Sealed

Finishing covers trimming to length, integrity verification, visual and dimensional inspection, reject handling, and packing. Once the joining route from the previous section is locked in, finishing is the next station on the same line. Integrity Verification must be a line item and not a footnote under “inspect.” Bubble-point or pressure hold testing, the method described by ASTM F316-03(2019) for membrane integrity, can detect a leak which would otherwise be invisible. Skipping this testing to save a station in the process trades an inexpensive internal catch for a costly external return.

If a plant performs six small batch runs of cartridge families, whether automating finishing is worthwhile is a question of transition time, which is resolved in the automation section below. The point here is what finishing verifies — dimension, appearance, seal integrity — not whether a machine should do that verification.

Finishing stations built well keep product quality reliable from the first unit through the last. Automated machines hold the process steady shift after shift, but a technician still bears the burden of downtime resulting from changeover to different families, as well as the subsequent packaging operations.

Manual, Semi-Automatic and Fully Automatic Assembly Lines

Three automation tiers are defined by what stays in an operator’s hands: manual lines where a person loads, joins and unloads every cartridge; semi-automatic lines where the machine joins but a person still loads or unloads; and fully automatic lines where loading, joining, and discharge all run without touching each cartridge. The right tier is less about raw throughput and more about the number of families of products that a single station must run and the cost of switching between those families. UDMachine’s assembly & finishing equipment configuration page lets you weigh these three tiers against your own product-family count before requesting a quote.

That “5,000 pieces/day” brochure figure assumes zero changeover and zero rejects — it’s a nameplate rate, not a measured output. The standard way to check a real production line against itself is Overall Equipment Effectiveness, OEE, defined by the University of Tennessee’s Manufacturing Extension Partnership as Availability multiplied by Performance multiplied by Quality. Here’s a worked example: a shift runs 480 minutes, with a 30-minute planned changeover, leaving 450 run minutes. A production line that can complete a cycle in 6 seconds would generate 4,500 cycles in the allotted time. If the line actually produces 3,420 good units, out of 3,600 attempted, the three factors work out to Availability of 93.75% (450 of 480 minutes), Performance of 80% (an ideal 6-second cycle against an actual 7.5-second average), and Quality of 95% (3,420 accepted of 3,600 attempted). Multiplying those three gives an OEE of roughly 71.25%.

Consider that number as a diagnostic, not a pass/fail on that particular external metric. The commonly cited “85% is world class” benchmark is itself built from 90% availability, 95% performance and 99% quality — three component targets, not a property of your specific process. One 2023 peer-reviewed study of the human-factor side of OEE, published in the International Journal of Engineering Business Management, treats OEE against the ISO 22400 framework rather than as a single pass-fail number across dissimilar processes — a caution worth taking seriously before comparing a manual station’s OEE directly against an automated one’s. Think more about how this metric compares against itself from last month.

As compared to the fixed automation line, building a line in stages, on a modular construction, lets a plant add automation later without disassembling what already runs efficiently. The high-efficiency and high-performance language in a brochure is only as useful as the OEE method above describes for your own shop floor; a value conveyed by an intermediary is less valuable than the same number documented directly and, ideally, by the builder of the equipment as well.

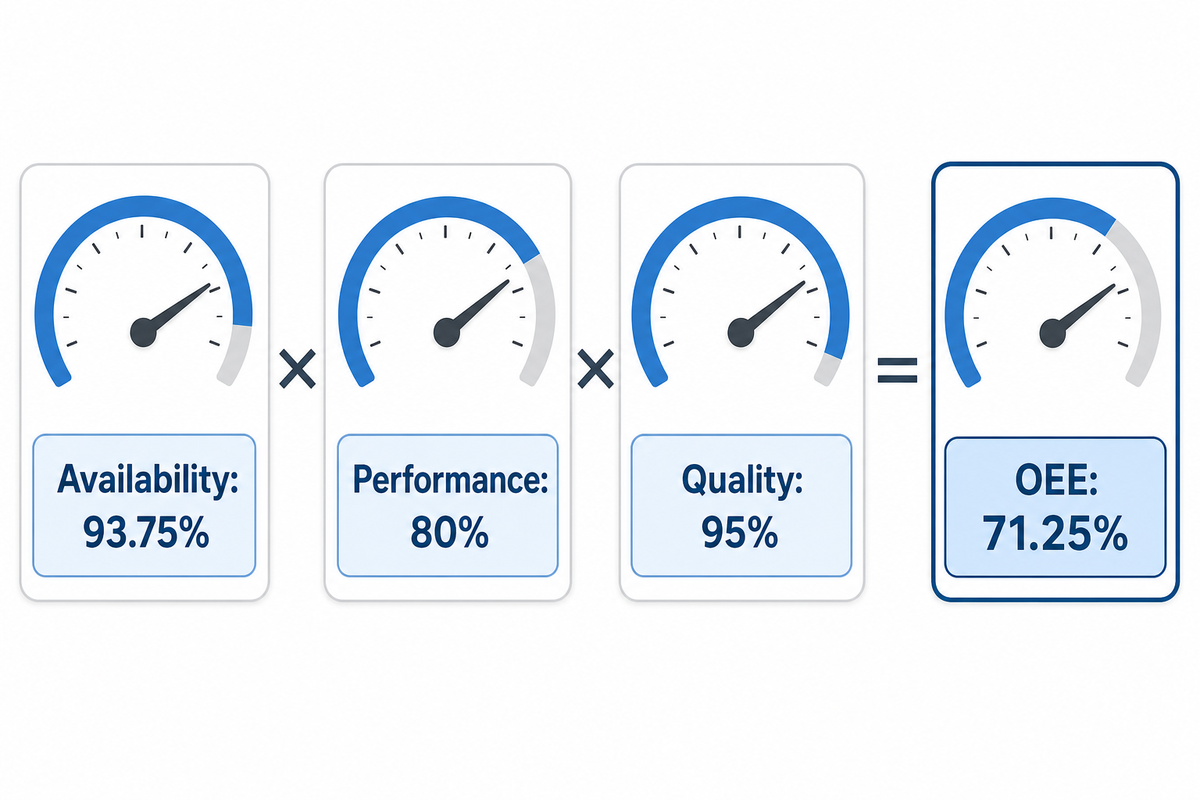

A nameplate rate assumes nothing goes wrong; your OEE tells you what actually occurred.

Why Your Machine Supplier Cannot Certify the Cartridge

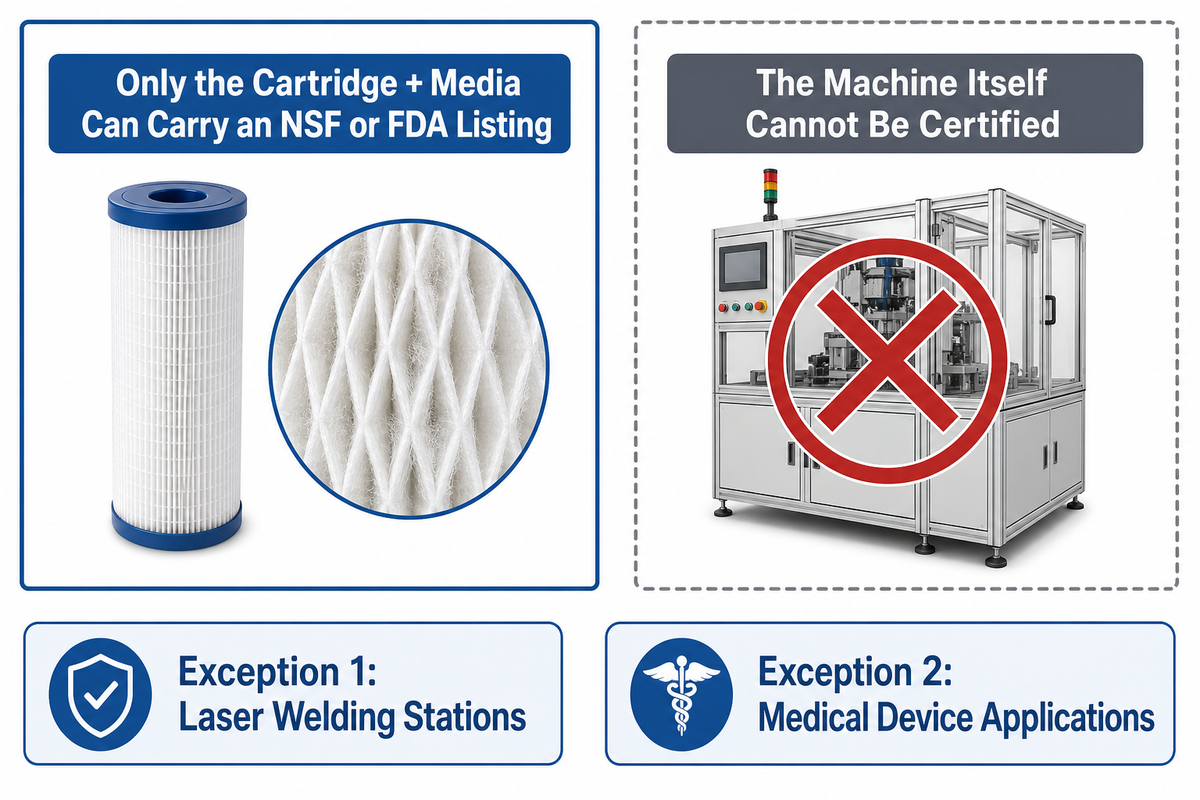

Certification for drinking-water and general filtration applications attaches to the finished cartridge and the media inside it, never to the machine that assembled it. That OEE figure from the previous section describes how the machine runs; it says nothing about whether the machine itself can carry that certification.

This certification boundary is explained in more depth on UDMachine’s CTO activated-carbon line page: a cartridge machine can be sold as capable of producing certifiable cartridges, but it cannot itself hold an NSF or FDA listing. Two further details matter here: NSF is not the only certifier — any accredited body may certify to an NSF/ANSI standard — and certified particulate-reduction claims commonly use the word “nominal,” which is a defined term, not a marketing qualifier.

General comment: two exceptions. The first is laser welding stations. As noted, these can be regulated products under the FDA’s rules on radiation-emitting products — this is a separate certification track from cartridge-filtration certification. The second is medical device and pharmaceutical filter applications. In this case, installation qualification and process validation may be required for the assembly machine, irrespective of whether the cartridge has filtration certification. This is a regulated end-use case that falls outside the general industrial and water filtration scope of this document and would have to be assessed separately.

OSHA and the US food equipment rules add another, related, separate aspect. They impose specific requirements for guards, dust, and cleanability of equipment, yet meeting these requirements doesn’t certify the equipment as meeting the requirements for filtration, and thus doesn’t qualify. It’s a safety and sanitation requirement, not a filtration requirement.

US Import and Installation Compliance Checklist

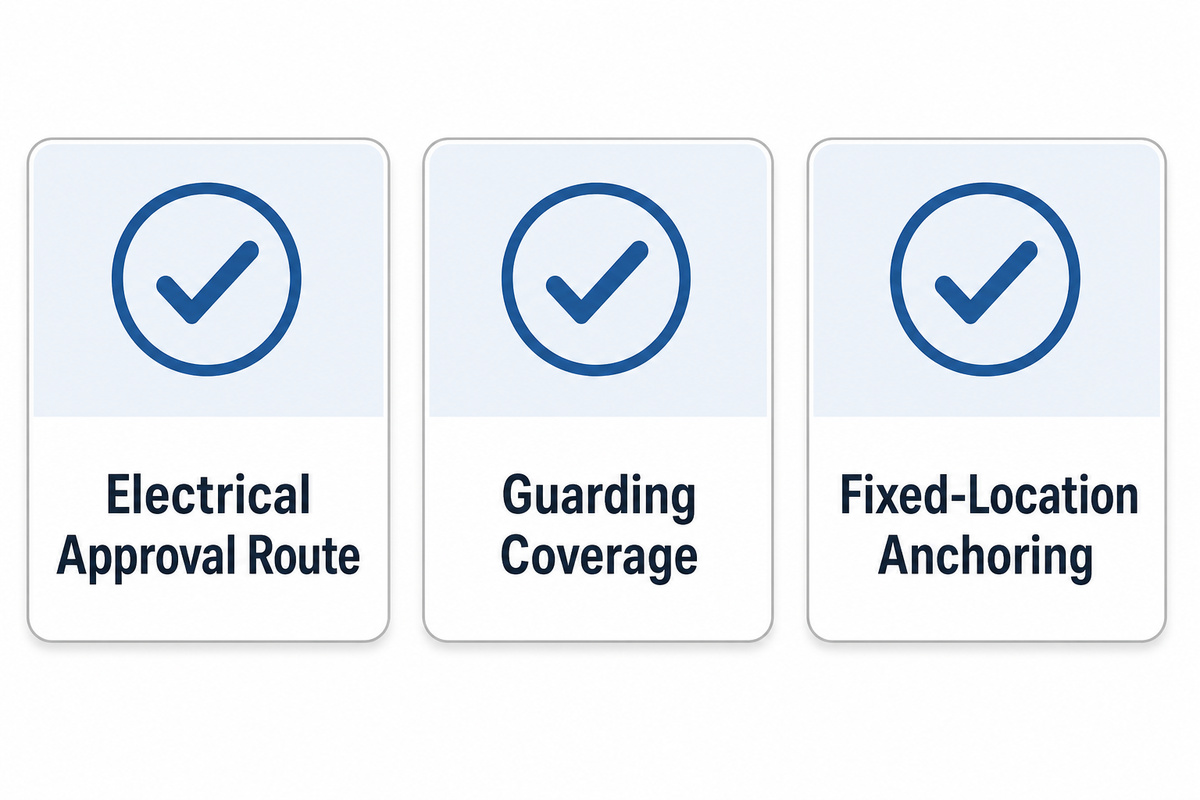

Three items are needed on a purchase order for equipment brought to a US workplace and aren’t found in a typical inspection report of a factory. Acceptable electrical equipment under general industry electrical rules is approved as defined in 29 CFR 1910.399, which in practice resolves to listing by a nationally recognized testing laboratory (NRTL). Hazard guards are required for point of operation, nip point, rotating, and chip and spark hazards as described in 29 CFR 1910.212, and machines intended for a fixed location must be anchored to prevent movement. Whenever a new machine is installed, its energy-isolating devices must be capable of accepting a lockout device.

A CE mark doesn’t satisfy any of this. 29 CFR 1910.303(a) sets the approval requirement, and federal regulation defines acceptable equipment three ways: listed by an NRTL, inspected by an authority enforcing the national electrical code, or — the route most imported custom machinery actually travels — determined safe by the manufacturer on the basis of test data that the employer keeps on file and makes available on inspection. That third route turns what looks like a technical problem into a paperwork problem: get the retained test data in writing before the machine ships, not after an inspector asks for it.

CE is an EU instrument; the US electrical acceptance question has its own three routes, and only one of them is usually realistic for custom import machinery.

What to Put in the Purchase Order Before You Pay

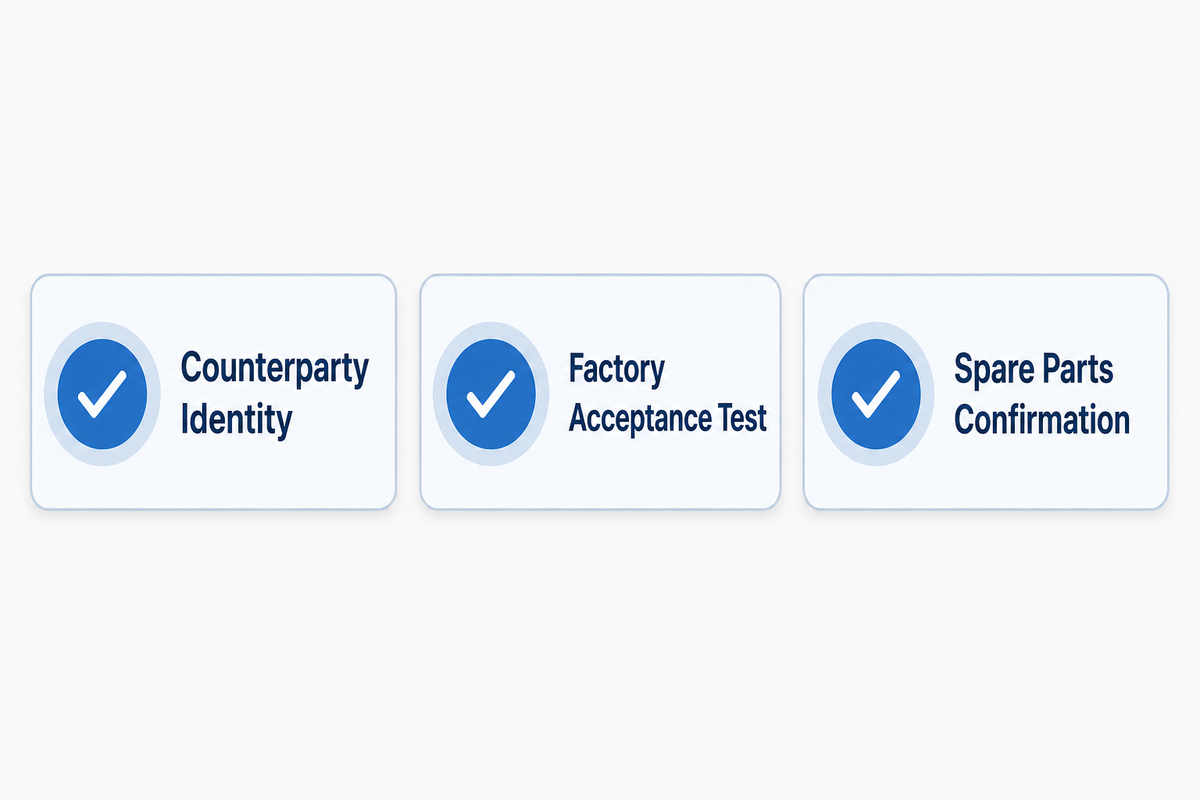

A US international law firm advises that the first consideration when considering a payment to source capital equipment from China is identity of the counterparty. Resolve the deal legal entity and determine if it’s a manufacturer or its related export company. Don’t engage with an intermediary that has limited if any control over production.

Other considerations the firm names, in order, include: testable specifications; demanding that the equipment remain on the factory premises until a Factory Acceptance Test; reserving payment to the manufacturer until after the tested equipment ships; arranging import and installation requirements before production of the equipment begins; confirming which spare parts, software, and documentation will keep the equipment running later; and agreeing what happens if the manufacturer defaults.

First, contact the brand directly on which parts they consider routine replacements (seals, welding tips, and sensors) and ask for written confirmation of replacement cartridge parts. The same consideration should be taken in the case of the filters that the line itself manufactures: know the list of items which will eventually wear out (and not fail) to ensure spares are stocked prior to failure. The same 14-field RFQ matrix used to configure the line also documents which parts the supplier classifies as routine wear items.

You should know the limitations of platforms’ protections. For example, with Alibaba’s Trade Assurance policy, standard accounts have 30 days from delivery to submit a refund request, while Enterprise and Enterprise Pro accounts get 60 days. Thirty days can quickly pass when you consider a piece of equipment that still has to be installed, and put into service under operational conditions to gauge its performance before a defect surfaces.

Lead time is its own risk category, and is documented in a Georgia Tech industrial engineering capstone on the delivery of built-to-order machines: for 264 machines made by one manufacturer since the end of 2022, 45% were delivered late, with an average delay of 25 days. The same capstone states its breakdown of delay causes twice, and the two sections contradict each other in terms of the ranking of causes. That discrepancy is worth flagging: treat these percentage breakdowns as an ordering of likely causes, not exact figures, and build a margin of safety into your schedule regardless of which number you started with.

One more line item belongs in the cost side of the purchase order, separate from the equipment price: the US Merchandise Processing Fee stays at an ad valorem rate of 0.3464%, with an FY2027 band running from a minimum of $34.58 to a maximum of $670.86, effective October 1, 2026, per US Customs and Border Protection’s published notice.

The purchase price represents the cost to obtain the machine, and doesn’t represent the cost to own the machine.

The Dedication Test: When a Dedicated Line Is Not Worth It

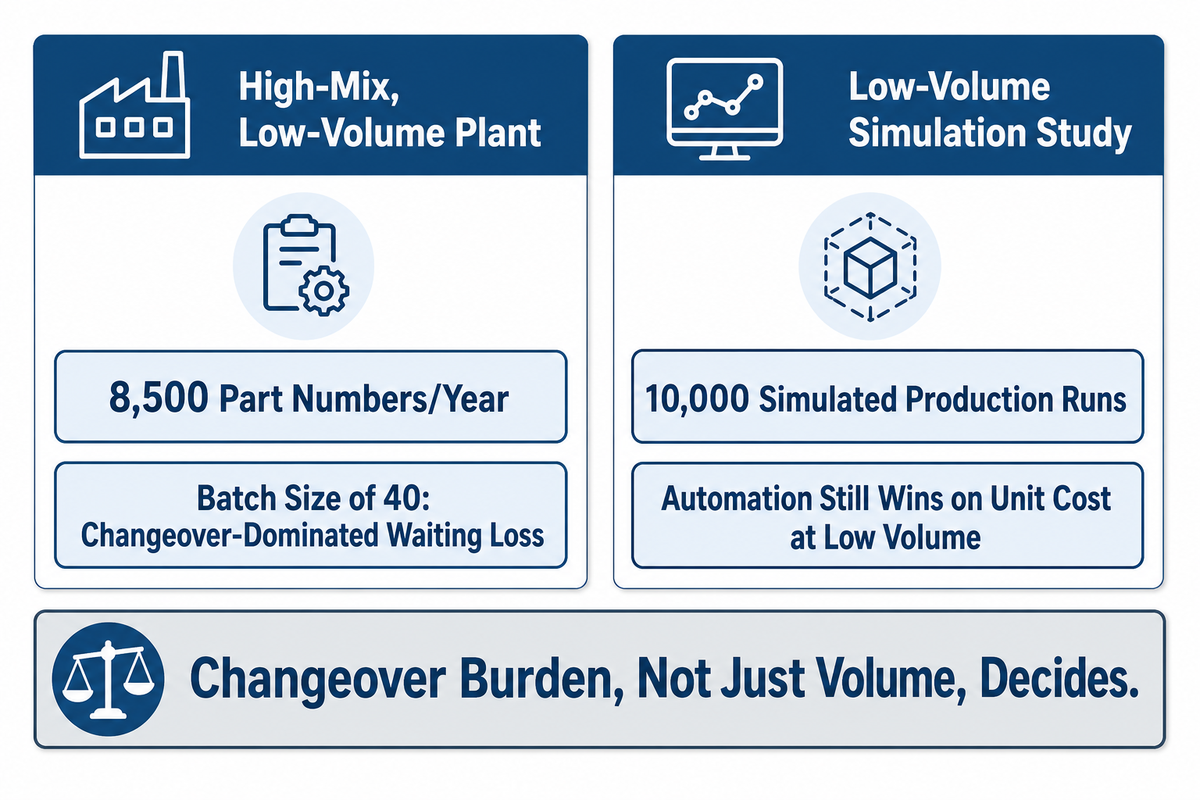

Changeover burden is what makes dedicated automation a poor choice for some plants, not just high volume. That ownership cost from the purchase-order math in the previous section shows up most directly in changeover time, which is exactly what this gate weighs. NIST’s own workshop report on manufacturing automation notes that small batches, including single batches, mean quick turnaround and reprogramming, and that a number of product variants against limited capital can make dedicated automation financially and structurally unsound. One 2024 peer-reviewed study at an operating high-mix, low-volume plant running roughly 8,500 part numbers a year at an average batch size of 40 found the same pattern directly: product variation made changeovers the primary source of waiting loss, and cellular, flexible processing outperformed a single dedicated machine on that specific shop floor.

This isn’t always the case. Saying it is would be misrepresenting the data. However, a separate 2024 simulation study, which looked at 10,000 production runs, showed that, even for low production runs, most of the automation choices would still result in lower unit costs compared to manual production. In the end, the economics are specific to the situation. There’s no point in setting a universal volume threshold. The factors that define the best approach are specific to your situation due to product-family count, tooling reuse, and the cost of labor. Run the OEE method on your numbers from the automation section before making your decision.

The Dedication Test. To receive a formal quote for automated dedicated equipment, answer these three questions: how many product families must one station run without a hardware change; what’s the changeover burden compared to total run time in your actual batch size; and what’s the binding constraint, availability of capital or flexibility of production? One published two-station infrared end-cap welder datasheet lists 15kW connected load on a 380V, 50Hz three-phase supply — supply voltage and connected load vary by builder and by destination, so state your site’s actual voltage and frequency in the purchase order line item (see the compliance table above) rather than assuming that figure. The growth in low-volume lines doesn’t automatically represent a “Stay Manual” case as noted in the simulation above. Size your line based on today’s output and reassess when the actual volume changes.

Reviewed by the engineering team of Suzhou UDTECH Technology Co., Ltd.

Updated September 2026

Treat a filter cartridge production line as a controlled manufacturing system rather than a machine list. Analyze it from a finished cartridge backward to establish process settings, test results, conditions, and accountability for discrepancies.

What Should a Filter Cartridge Production Line Prove Before You Buy?

Before commitment, a filter cartridge production-line purchase case should prove five things. First, the line fits the specified cartridge route. Second, its quoted scope includes every required production station. Third, it can produce accepted-good output under stated conditions. Fourth, the installed system can be commissioned safely at the buyer’s site. Fifth, representative cartridges pass the agreed product test. One supplier brochure seldom proves all five.

Machines form shapes; buyers sell cartridges for applications. Material, end format, joining, testing, and downstream scope sit between them. Define those boundaries before comparing quotations, then verify them again during factory and site acceptance.

For a commercial configuration, use UDTECH’s filter cartridge production line page. This guide remains on the evidence layer and refrains from replicating its quotation tools.

The published 5,800 pcs/24h ceiling for one PP model family is not shown to apply to every length, 70–200 g weight, end format, or finishing limit. The witnessed production condition should be bought; the upper published limit shouldn’t be.

Start With the Finished-Cartridge Acceptance Specification

Before a machine is chosen, the finished-cartridge acceptance specification should provide the application, contaminant, media, geometry, end format, rating basis, test assembly, pass record, and evidence owner. The label “10-inch, 5-micron cartridge” will leave too much ambiguous for comparing proposals and approving samples.

An individual micron figure becomes operable only in concert with a testing method. An industry explainer describes historical nominal and absolute conventions using 85% and 99.9% rejection, mentioning that the methods didn’t unify the industry. Those percentages aren’t universal acceptance limits.

Define the regulated object and the market (i.e., pharmaceutical, beverage, food-contact, or drinking-water use) for each. Rules for resins, standards for systems, and declarations for machines address distinct objects, so evidence stays within its stated scope. Evidence can’t freely move between the three.

A 5 μm, 10 in code does not define a test. ISO 16889:2022 covers hydraulic filter elements under stated multi-pass conditions; a water-cartridge buyer needs an application-matched method, assembly, and pass rule.

How PP, String-Wound, Carbon-Block, and Pleated Filter Cartridge Production Routes Differ

Four common routes of cartridge use different line functions. Melt blown PP is a distinct equipment family; string-wound uses yarn tension and traverse; carbon block uses compaction or extrusion tooling; and pleated construction uses fold geometry, seams, and end joining. Their controls, stations, and failure evidence can’t be substituted. Those method and assembly choices have narrowed the routes; a 28 mm bore still requires route-matched tooling.

For a pleated filter cartridge, the pleating machine sets filter membrane geometry, but the broader pleated cartridge filter production process still extends through media folding, seam control, ultrasonic welding or another validated joining method, and inspection. In filter manufacturing, comparing filter cartridge manufacturing equipment means fixing the route, the selected adhesive or weld method, and every handoff. A filter cartridge machine is a single boundary in filter making; a published 28 mm bore remains a configuration field, and water filter acceptance is an application-specific problem.

Route labels must be specific. Output from a PP melt blown filter cartridge machine isn’t a sediment filter by default; pleated cartridges aren’t a single geometry, so a high-flow label needs the filter paper, pleated media, surface area, and drawing before it proves anything.

Use route pages to identify each equipment family: PP melt-blown, string-wound, or CTO carbon-block. The broader machine-family page shows commercial categories.

Output from a string wound filter cartridge machine and a PP element can share a 20 in length but not forming controls. Patent evidence ties wound retention to yarn quantity, tension, traverse, and filament structure.

Turn the Product Brief Into Station-Level Requirements

Station-level requirements convert each finished-cartridge need into an upstream input, forming operation, downstream operation, inspection point, utility interface, and responsible party. OEM quotations labeled “complete line” remain incomplete until the vendor, buyer, and third-party boundaries are visible for every operation needed to release the intended cartridge. These route controls become station-level inputs prior to any supplier boundary being accepted.

Work backwards from the saleable unit. Capped cartridges need cap joining; an outer cage needs supply, cut, fit, and assembly boundaries. Cameras need defect classes, lighting, samples, false-reject handling, and retrievable records.

Describe how an assembly line differs from a single welder. Depending on the materials and validation plan, end-cap joining may use hot-melt, ultrasonic, or infrared welding. The inner core, filter sizes, and the longer cartridge option each require their own tools, checks, and change control.

For acceptance, treat hot-melt, ultrasonic, and infrared joining as material- and method-specific until the intended material pair is validated.

If the former makes a double-open-end element but the sales drawing shows a single-open-end assembly, the unpriced gap, not necessarily the quotation, is the problem. Assign the incomplete work prior to considering the total price.

The assembly and finishing section of UDTECH identifies separate joining operations; confirm each included station in the quotation.

The Spec-to-Sample Loop

The Spec-to-Sample Loop is a six-link control method that documents each product requirement through process settings, trials, measurements, retained records, deviations, and commercial actions. Those quoted joining operations define the loop’s station boundaries.

Signing alone doesn’t connect a sample to the agreed material, recipe, gauge, or counted production period. The loop makes those handoffs traceable before the trial.

1. Freeze the requirement: name the product value, tolerance, method, and application boundary.
2. Bind the process variable: identify the recipe, tool, material lot, station, and owner that can change the result.
3. Run the agreed condition: use the stated setup, exclusions, duration, and sampling rule.
4. Measure with traceability: record instrument identity, resolution, calibration status, operator, and raw reading.
5. Retain the evidence: keep sample IDs, photos where useful, data, signatures, and approved deviations.
6. Apply the response: follow the agreed rerun, correction, concession, hold, or payment action.

If a sample passes the diameter test but doesn’t include the resin lot and the startup condition, the buyer’s quality plan should not release it on that evidence alone. Mark the requirement open and request a controlled rerun. Don’t make a capability determination without evidence.

Record the deviation, affected sample, approver, expiry, and commercial impact whenever a temporary result falls outside the drawing. A casual “acceptable” email does not create the control needed to move the system into commissioning.

For the published window, a trial sheet may record a 28 mm bore, a 10–150 mm matched-mandrel range, a 38–120 mm outside-diameter range, a 1–100 μm rating range, 380 V at 50 Hz supply, and a 70 kW or 100 kW connected field. These are configuration inputs, not performance proof.

Compare Filter Cartridge Production Capacity With a Same-Basis Trial

One trial run on a controlled basis can show whether a line produces conforming cartridges under those conditions, and it can discredit an incompatible nameplate claim. Sustained capacity requires more evidence: stable behavior over an agreed period, independent samples, an appropriate measurement system, and clear criteria for treating startup, downtime, rejects, changeovers, and tool wear. The trial sheet defines the controlled basis for that first run.

“We cannot begin to talk about process capability until we have demonstrated stability in our process.”

The first-party page lists 3,500–4,200 pcs/24h for 2E&2M and 5,000–5,800 pcs/24h for 3E&3M, with 70KW/100KW connected and 28–32KW/H/38–40KW/H running fields. Runtime, uptime, rejects, and changeover handling aren’t reported; geometry and mass windows are reported but not mapped to each output, so these values remain attributed and unadjusted.

A same-basis worksheet could, for example, freeze a 10 in length, 28 mm bore, 70 g finished mass, 380 V supply at 50 Hz, and a 60 min witnessed window. Those values aren’t defaults: the signed order must replace every example with the exact cartridge, site, and test condition being purchased.

NIST’s gauge-study overview covers repeatability, reproducibility, stability, bias, resolution, operators, and configuration. It describes why each acceptance instrument requires an agreed-upon adequacy check. It doesn’t provide a universal study design for every plant.

When fixtures and/or resolutions differ, vendor and customer readings may vary. Freeze the class of instrument, fixture, method, operator rule, calibration status, and rounding before either party views the results.

The same-basis trial may challenge a “24-hour” claim, but its extrapolated rate remains preliminary evidence. Sustained acceptance also requires stability and independent samples, adequate measurement evidence, and loss provisions.

Factory Acceptance, Site Acceptance, and Finished-Cartridge Validation Are Different Proofs

Factory acceptance testing, site acceptance testing, and finished-cartridge validation answer different questions. Factory testing observes the supplier’s package under stated conditions. Site testing observes installed interfaces and safeguards. Product validation tests the cartridge against its application method. Passing one layer does not transfer the same result to the other two. Stability and measurement limits keep factory evidence separate from site proof.

What Does a Passed Factory Acceptance Test Not Prove?

Passing factory acceptance testing doesn’t confirm site readiness for utilities, ventilation, networking, feeding, packing, procedures, or market-specific cartridge claims. Each layer requires its own owner and record. It also cannot prove installed safeguards, servicing isolation, or finished-cartridge performance under the buyer’s application method.

Within its United States workplace scope, OSHA 1910.147 addresses hazardous energy during servicing. Guarding for normal production and servicing isolation are two separate actions; other jurisdictions require their own standards and competent assessment.

Factory jam-clearing habits don’t transfer to a site procedure. Observe cleaning, setup, unjamming, and maintenance separately; identify energy sources and validate site procedures before handover.

A factory test at 380V/50Hz can confirm the agreed supplier setup, but not site wiring, guarding, servicing, training, or cartridge results and claims. Each requires an owner, record, exception path, and applicable jurisdiction.

Which Standards Attach to the Machine, Filter Media, and Finished Cartridge?

Regulatory citations only become useful after the buyer provides identifying information, including the tested object, the intended application, the test assembly, the method conditions, the edition, the claimed result, and the jurisdiction. These criteria belong to separate evidence scopes: material compliance, claims on finished filtration systems, tests of hydraulic elements, machinery acceptance, and workplace rules. A certification logo does not automatically cross those evidence boundaries.

Material declarations and finished-system listings cover different evidence objects. After a resin lot, recipe, or line process changes, check the listing’s stated scope and applicable change-control requirements instead of assuming that earlier evidence still applies. Map each claim to the relevant evidence and change-control rule.

Material declarations, the filtration process, and product claims remain discrete for water-filter production and food processing. The same applies to filter-membrane selection, quality control, and lifespan claims. Name the object, process, and conditions for each claim.

A machine page may publish a 1–100 μm range, but that range does not select ISO 16889 or any other method. The test scope starts with the cartridge’s application, test assembly, fluid, challenge, flow, edition, and claimed result. A standard number comes after these choices and does not replace them.

Hydraulic test references must also have method-level separation. ISO 16889:2022 addresses steady-state multi-pass performance, ISO 23369:2022 addresses cyclic-flow performance, and ISO 2942:2018 addresses fabrication integrity and the first bubble point. These methods do not provide substitute evidence and the hydraulic scope of these methods does not automatically qualify them as acceptance methods for a water filter cartridge.

Build an Acceptance Proof Map Before Linking Evidence to Payment

The Acceptance Proof Map provides a connection from each commercial milestone to a single test, a record, a witness, a pass criterion, a hold point, an owner, and the agreed-upon response in the absence of evidence or nonconforming evidence. That test scope is a commercial hold point when its record and response are named.

A passed certificate is of little value while omitting important information, such as the approved test revision, sample identity, raw measurements, open items, and the signer’s name. The map should be prepared by procurement prior to the release of the purchase order so the remedies can be specified both technically and commercially.

The 10-Record Acceptance Proof Map

A public contract template from the United Kingdom includes a drafting example that includes an agreed test plan, issue log, test certificate, satisfaction certificate, and milestone payment, among others that are inter-connected. Similarly, documented surveillance and nonconformance decisions are indicated in the United States federal acquisition provisions. These examples aren’t intended to provide a general framework for a private filter machine purchase.

The governing law and agreement of the parties can determine the mechanics of inspection and payment. To illustrate, the Cornell edition of the UCC text places inspection rights within an “unless otherwise agreed” provision. The buyer should retain qualified legal and commercial reviewers to draft the map from the actual contract and review its commercial terms, rather than integrating public standard terms into an international purchase order.

When Fully Automatic Filter Cartridge Equipment Is the Wrong First Purchase

The task to be automated should govern the automation decision rather than the name of the process. After the proof map exposes the task and changeover evidence, a stable and repetitive process may suit fixed automation, whereas modular, reconfigurable, collaborative, semi-automatic, or staged automation systems may be more suitable for changing work. Volume and product mix both influence which automation system presents the lower operating risk.

Can Filter Cartridge Production Lines Be Customized Without Full Automation?

Customization may cover tooling, stations, controls, handling, inspection, and data transfer without converting every operation into a fully fixed automation process. In fact, it isn’t necessary to label the process as fixed automation; define the design from task evidence instead. Use evidence for feeding, processing, inspection, changeover, and fault recovery to select the automation design.

Performance factors in NIST’s robotic-systems framework include perception, dexterity, safety, fixturing, tooling, investment, and flexibility. Another publication by NIST focuses on reconfiguration and simpler programming for low-volume, high-mix, small-parts assembly.

Common Failure Modes When Automation Depth Is Chosen Too Early

The first is constraint migration. A faster former can fill a manual trimming, welding, inspection, or packing queue while the rate of accepted goods shipped stays unchanged. The second is recovery labor: variable feeding can create stops that require skilled intervention before restart. The third is change-control debt: revisions to a recipe, fixture, vision rule, or controller need an owner and evidence. None of these outcomes proves that automation was the wrong choice. They show that the automation label was chosen before the tasks and boundaries were measured.

A product range of 10 inches or 40 inches does not determine automation depth on its own. Evidence from the tasks will make that determination. NIST’s low-volume/high-mix work supports reconfiguration as a real direction for automation, while its performance framework keeps feeding, fixturing, perception, dexterity, safety, investment, and flexibility as part of the problem definition.

Demand Outlook: Use Orders and Utilization, Not Market Headlines

No media article headline or search-volume series used in this study provides a valid denominator for plant sizing. The 2026 equipment decision should start with qualified orders, cartridge mix, good yield, changeover loss, uptime evidence, and the acceptance rate the plant can actually sustain. Industry growth is more useful as a demand background check than as proof of the capacity this plant should buy. Media and search-volume signals alone still cannot supply the demand denominator.

High-speed, fully automated, customizable filter equipment still requires evaluation of the manufacturing process, cylindrical-component limits, manufacturing precision, and accepted-good output under the proposed conditions.

“High-quality” and “various industrial applications” don’t mean this will be accepted. They’re just descriptions.

Current-run Google Ads data did not return a usable series for the exact phrase. Among the retained equipment terms, “filter cartridge making machine” carried a search-volume field of 10; the other named production-line variants were null. The eight keywords in the different AI channel had a total search volume of 0 across the 12 months. These sparse signals can’t estimate orders or justify capacity.

A trade-publication series provides a more useful warning than a growth forecast. It shows growth in stand-alone meltblown nameplate capacity globally from 115,000 tonnes in 2019 to 273,000 tonnes in 2023 with a corresponding decline in utilization from 79.8% to 59.9%. These data cover global meltblown media rather than filter-cartridge output. This is a single-source historical series.

There may be a gap between installed and utilized capacity. Model confirmed demand by product family against observed good output, changeover loss, release delays, and a worst-case scenario. The commercial forecasts reviewed didn’t make this cut.

Filter Cartridge Production Line FAQ

Filter cartridge making machines are the production equipment that turns raw polypropylene, yarn, or activated-carbon media into finished cartridges, melt-blown extrusion lines, string-wound winders, and pleated/carbon-block assembly lines are the three families in commercial use today. Before comparing specific production-line specifications, most buyers need answers to a different set of questions first: what makes a “1 micron” rating mean five different things depending on who prints it, what a certification actually proves, and what a machine really costs to run once duty, processing fees, and electricity are added to the invoice. This guide addresses those questions. Buyers who already know which production line they want can go directly to our filter cartridge making machine production-line comparison and quote page, which provides specification and pricing information for each production line.

Most modern lines in this category, whether a melt blown filter cartridge machine, a string wound filter winder, or a pleated/activated-carbon assembly line, run on fully automatic control systems that meter resin or yarn feed, wind or extrude the media, and weld the end cap onto the core without an operator touching the cartridge until it exits the line. Suppliers can typically customize core diameter, cartridge length, and end-cap style to match a buyer’s existing filter housings. Readers searching more broadly for a filter making machine or filter machine will find that this terminology covers the same three production families described throughout this guide.

Why “1 Micron” From One Supplier Isn’t “1 Micron” From Another

A cartridge rated 1 micron by one manufacturer may perform at 20% efficiency, while a cartridge carrying the identical printed rating from a different manufacturer may perform at 98% efficiency. The gap exists because the filtration industry has never settled on one rule for what “1 micron” measures, some suppliers print a nominal rating, others print an absolute rating, and the label rarely says which.

Some suppliers print a nominal rating (the pore size the media was designed around) and others print an absolute rating (the largest particle that reliably passes through under third-party test conditions), and nothing on the cartridge label tells the buyer which convention was used.

This ambiguity results in more than just a minor inconvenience. A cartridge specified at 1 micron nominal can, under the same test protocol, sit anywhere across roughly a 78-point efficiency spread compared with a cartridge specified at 1 micron absolute from a different line, call it The 78-Point Spread: the gap between the best- and worst-performing cartridges carrying the identical printed rating. When buyers specify equipment from filtration based on the printed rating, without inquiring about the rating convention and the test standard, they’re potentially buying a number that could truly mean anything.

The actionable step is straightforward and costs nothing beyond a follow-up email: before committing to a production line based on the micron ratings its sample cartridges carry, ask the supplier for the specific third-party test method behind the number (ISO 16889 multi-pass testing is the most widely recognized standard for absolute ratings) rather than accepting the printed figure at face value. Suppliers producing genuinely absolute-rated media will have that report on hand; suppliers who cannot produce one are effectively confirming that their number is nominal, whatever the label says.

Inside the Melt-Blowing Process: What Actually Sets Fiber Fineness

Melt-blown technology extrudes polypropylene and shapes the material into widely used, continuous fibers approximately 1-5 micrometers in length, diameter, using simultaneous high temperature and high velocity jets of air alongside the melt, which are self-bonded on a moving belt to create a graded-density depth filter. The two variables to define diameter in this process are the flow index of the polymer, melt, and the design of the blowing unit, specifically the die pressure and the distance between the die and the collector.

There’s a documented tradeoff at the heart of this: a higher melt flow index resin flows more easily and spins into finer fiber, but that same higher-fluidity resin has a lower molecular weight and produces mechanically weaker fiber, so producers running fine, low-micron media are trading some tensile strength for filtration fineness. Research on polypropylene-based melt-blown nonwoven materials also documents a plateau effect in the process geometry: fiber diameter continues to shrink as die air pressure and die-to-collector distance increase, but that sensitivity flattens out past a certain point (one study puts it near 35 kPa and 35 cm, though other published research on different equipment reports a plateau closer to 12 cm, so treat either number as a starting point rather than a fixed target), and pushing either variable further past that point buys very little additional fineness for the added energy and equipment stress it costs.

When considering a melt-blow production line purchase, a client is justified in requesting an explanation of a supplier’s fiber-diameter claim, as the claim is of little value without a resin’s melt flow index and the die’s operational pressure. A finer-fiber claim built on a higher MFI resin should result in a request for clarification on the media’s burst strength and dirt retention, as this tradeoff is a documented feature of the process, not a defect of a particular supplier.

According to a 2025 review of polypropylene-based melt-blown nonwoven materials published in Polymers and hosted on the National Institutes of Health’s PubMed Central archive, fiber diameter is refined “to 1–5 μm” by the high-velocity air jets, and researchers who systematically varied die temperature, air pressure and die-to-collector distance found that “fiber diameter decreases with increasing air pressure and DCD until reaching plateaus at 35 kPa and 35 cm, respectively, beyond which, sensitivity diminishes”, see Advancements in Research and Applications of PP-Based Materials Utilizing Melt-Blown Nonwoven Technology, Polymers (2025).

Inside String-Wound Winding: Why Density Grading Needs More Than a Cam

The size of the particles captured in the finished cartridge is set predominantly by how yarn is wound in the string-wound cartridge. Winding tension, lateral displacement between passes of the traverse, and the pattern density of bundled filaments all influence the pore size of the media. Two cartridges wound from the same yarn can have substantially different effective micron ratings if the winding geometry varies.

US Patent 6,942,106, assigned to Syntech Fibres and covering a spin-finish-free polypropylene yarn filter cartridge, documents this concretely in its working example: a precision winding machine with a 10-inch traverse wound two strands of air-textured yarn onto the filter core at a combined tension of 100 grams, with the winding pattern adjusted so that each successive layer was displaced by approximately 0.06 inch from the layer beneath it, using roughly 150 grams of yarn per finished cartridge. The patent’s description states that “the size of the particles that the filter will retain will depend upon the quantity of yarn wound, the tension at which the yarn is wound, the lateral displacement between corresponding yarns on each successive traverse of the winding, [and] the diameter of the individual filaments.” The selection of the material is a superadded variable, pertaining to the winding geometry, and not a subordinate variable to it.

The relevant question for a buyer considering string-wound winding machines isn’t “what yarn does this machine use?” Rather, it’s “what winding-tension and traverse-displacement control does this machine possess, and how repeatable?” A machine which lacks both of these controls will yield cartridges with micron rating drift across a full production run, even if every spool of yarn fed into it is identical.

“The size of the particles which the filter will retain will depend on the amount of yarn wound, the tension at which yarn is wound, the lateral displacement between corresponding yarns on each subsequent traverse of the winding, the diameter of the individual filaments, and the air texturing structure and loop formation.”

US Patent 6,942,106 B1, “Wound Polypropylene Yarn Filter Cartridge and Method for Making Same,” 2005

The Landed Cost Buyers Forget: Duty, Processing Fees and Electricity

The price of a filter cartridge making machine isn’t the price quoted on the invoice. The import of the equipment to the USA incurs a customs fee that’s charged to the importer. There’s an additional cost of electricity to run the equipment that’s charged on a monthly basis. These costs are generally not included in the supplier’s quote, but they’re known costs, and can be predicted, and they scale with which full production-line configuration a buyer selects, not just the core machine.

US Customs and Border Protection imposes Merchandise Processing Fees on formal machinery entries at an ad valorem rate of 0.3464% of the goods’ value (excluding duty, freight and insurance) with a statutory floor of $33.58 and a ceiling of $651.50 per formal entry for fiscal year 2026, plus a $4.03 surcharge if the entry is filed manually rather than electronically. Filter cartridge making machines are classified in the Harmonized Tariff Schedule under heading 8477.20.00, “Extruders for Working Rubber or Plastics”; therefore, the current column-1 general duty rate should be looked up directly on the US International Trade Commission’s HTS search tool by each buyer at the time of order, as rates are changed periodically and trade-action surcharges can’t be captured accurately by a static article.

On the operating side, the US Energy Information Administration reported average industrial electricity revenue of 9.17 cents per kilowatt-hour nationally as of June 2026. Running the calculation through for a representative 70 kW melt-blown line operating two shifts (16 hours per day, 300 production days per year): 70 kW × 16 hours × 300 days = 336,000 kWh per year, which at 9.17 cents per kWh works out to roughly $30,811 in annual electricity cost for that single line, before accounting for auxiliary equipment such as chillers, compressed air, and material handling, which typically add another 15–25% on top of the core extrusion load.

What Certification Actually Proves, and What Any Machine Cannot Prove

A certification such as NSF/ANSI 42 or NSF/ANSI 53 attaches to a specific finished cartridge model, tested under that standard’s protocol. It does not, and cannot, attach to the machine that produced it. A production-line certificate cannot be transferred to every cartridge the line will manufacture, because the certification test assesses a sample of the product against a specific version of the standard at a specific time, rather than an abstract manufacturing process.

NSF/ANSI 53, “Drinking Water Treatment Units (Health Effects),” was revised in 2025 to add PFOA/PFOS reduction claims and a new asbestos-reduction protocol, a reminder that certification is not a one-time event: a cartridge certified against an earlier revision of the standard is not automatically certified against the current one, and a buyer relying on a certification claim should confirm which revision year the certificate covers.

Three checks separate a verifiable certification claim from an unverifiable one: first, confirm the certifying body, NSF, IAPMO, or WQA, actually lists the specific product on its own public database, rather than accepting a supplier’s PDF at face value; second, confirm the certificate names the exact cartridge model and dimensions being purchased, not a “family” or “series” claim that could cover a different SKU; third, confirm the certificate’s date and standard revision cover the batch currently being produced, not a batch certified years earlier under an older version of the standard.

Reading Global Demand Right: Is This a Growing or Maturing Category?

Global stand-alone melt-blown nonwoven production capacity utilization fell from an estimated 79.8% in 2019 to an estimated 59.9% in 2023, according to industry analyst David Price of Price Hanna Associates, writing in Nonwovens Industry, the drop reflects the surge of new melt-blown line installations triggered by pandemic-era face-mask demand, which more than doubled the number of stand-alone melt-blown machines installed worldwide between 2019 and 2023, followed by demand normalizing back toward pre-pandemic levels once that surge passed.

This is a market-context figure, not a forecast specific to filter-grade melt-blown lines, Price Hanna’s analysis covers stand-alone melt-blown capacity across all end uses (absorbents, insulation, wipes, hygiene and face masks, in addition to filtration), and the source itself projects that global capacity utilization across all these markets is unlikely to normalize before roughly 2031 under a moderate demand-growth assumption. For a buyer, the useful takeaway isn’t a growth percentage to quote in a pitch deck, it’s that global melt-blown capacity currently has meaningful headroom, and installed-base oversupply in adjacent nonwoven markets can put downward pressure on machine resale values and used-equipment pricing for melt-blown lines more broadly, even though filter-grade demand specifically hasn’t been the segment driving the oversupply.

Since there’s considerable capacity and potential, the relevant question when placing an order for a melt-blown production line isn’t, “Is this a growing category,” but, “Does the line I’m purchasing serve an end use, filtration, in this case, where demand is structurally different from the segment that created the current oversupply, namely face masks.” Historically, demand for filtration end uses (water treatment, industrial process filtration, and beverage filtration) has been more predictable and stable compared with mask media, and, hence, melt-blown filter cartridge lines haven’t seen the same idle-capacity pattern as general-purpose stand-alone melt-blown lines built primarily for mask media.

Unit Economics: Why Your Feedstock Supplier Decides Your Margin

The cost that actually dictates margin for one filter cartridge production line is cost per one thousand good cartridges produced, compared to real daily output and real yield, not machine’s rated nameplate capacity, which refers to a theoretical maximum under ideal conditions that a production floor rarely sustains shift after shift.

Nameplate numbers allow some machine comparisons on paper, but they won’t provide insight into the yield someone will receive with a particular feedstock as it’s processed by different operators and is maintained at different levels. Machines that are rated for a certain daily output and operate at 90% yield will produce different unit economics compared to machines that operate at 70% yield due to inconsistencies in the feedstock polypropylene, or poorly maintained dies, and more times than not, the machine’s rated speed means very little, as feedstock supplier consistency will usually mean the bigger yield gap.

The valid question buyers should ask when evaluating a production line’s economics is to ask prospective machine, or feedstock, suppliers for real good-unit yield numbers obtained on said equipment, rather than asking for a rated capacity number. A supplier that’s able to provide a first-pass yield percentage, and is able to explain what drives yield variance, is providing a much better number than a nameplate number.

Supplier Due-Diligence Checklist Before You Wire a Deposit

The checklist below is designed to be generic, so it can be used to evaluate all filter cartridge making machine numbers provided by all potential suppliers, rather than evaluating one vendor at a time, including the third-party test report needed to confirm which side of The 78-Point Spread a supplier’s cartridges actually fall on.

Frequently Asked Questions
