The string wound filter cartridge manufacturing process is a six-stage route that begins with specified yarn and a support core, then continues through preparation, winding, finishing, testing and packing. The practical challenge is carrying the right material and product identity through all the process stages while keeping performance tests and a machine’s winding settings separate.

In brief: Wind approved yarn around a prepared core, finish the specified ends, verify the product and pack released pieces. The winding recipe forms the media structure; tests establish what that structure can remove.

• Choose the yarn and core as a complete liquid-contact assembly.
• Separate linear yarn speed from finished-piece output.
• Account for trial samples and trim before calculating yarn cost.
• Include finishing and packing in the equipment scope.

String Wound Filter Cartridge Manufacturing Process: The Route

Wound-Cartridge-Line: Prepared yarns and cores are processed through six integrated stages, to create a traceable filtration Product. Winding creates the filter media, and finishing establishes the required end geometry. The final handoff and test protect the product. Yarn and core production occur in separate upstream operations, unless specifically integrated for the project. NIST IR 8536 describes manufacturing traceability as a continuous, time-ordered chain of provenance, a useful model for recording each handoff in this route.

6-Station Material-to-Cartridge Map

The 6-Station Material-to-Cartridge Map sets and defines the structure of the handoffs to prevent downstream rework, and assigns the next operation for each input.

How are filters manufactured?

Filter manufacturing is dependent on the media structure. Wound cartridges use yarn laid around a porous core; melt-blown polypropylene cartridges form fibers from molten polymer; pleated filters fold sheet media before assembly. Different input preparation and forming equipment are required for each route. Select the route for the required cartridge structure, and include its finishing and tests in the line.

When assessing quotes, consider differences in material. A pleated filter’s greater surface area comes from its folded geometry, while a wound product develops depth through its layers of yarn. Surface filters and depth filters also load differently. Comparing a winding unit with a unit for melt-blown or spun filters means comparing the complete production process, as the operations to prepare the input and give it a final shape before either route reaches its finished product checks differ.

Define the starting inventory as polymer, yarn or prepared cores when comparing quotes for a 10-inch cartridge line. In the case of purchasing yarn, many checks will remain, and the costs will need to be assessed. Procurement can then compare the same starting inputs and the same packed output across offers.

Step 1: Match Yarn and Cores to the Cartridge Specification

The selection of yarns and cores is dependent on the intended liquid, the temperature, the flow and the requirement for the removal of particles. A polypropylene string wound cartridge still requires a defined construction of yarns and support geometry. Compatibility can’t be determined by the naming of materials alone. Purchasing should work from the complete product specification before releasing inputs to the winding station. The University of Nebraska-Lincoln sediment-filtration guide explains why a micron rating and its stated removal efficiency need to be read together when selecting a cartridge filter.

If a buyer wants to know whether polypropylene filters or string wound is better, the buyer may be mixing construction with material. A polypropylene filter cartridge can be string wound. For industrial filtration, record the yarn’s polymer and construction separately from the cartridge’s form; color and a nominal micron label leave both questions unresolved when procurement compares proposed filtration solutions for different industrial processes.

Hypothetical startup: A small manufacturer plans 10-inch and 20-inch cartridges for process water. The owner initially asks for a complete factory, while procurement already has quotations for finished cores and polypropylene yarn. Procurement has already received quotes for finished cores. Purchasing those inputs allows the team to take on a more defined project for winding and finishing. Quality still needs to review and approve the grade of the yarn and the dimensions of the incoming core. Supplier availability does not establish filtration performance. The plant manager is able to run both lengths and decide if upstream equipment is warranted. Finance should compare the purchased-input cost with the full cost of making inputs, including inspection and handling. The useful first purchase is the equipment needed for the agreed route, with responsibility for every handoff written into its scope.

Purchased inputs aren’t interchangeable merely because they fit a 28 mm bore. UDTECH specifies bore as standard, but an actual core drawing and an approved yarn grade are to be provided to the buyer. A change of core material or yarn construction needs to be included in the product specification prior to production restart.

Step 2: Prepare the Core and Feed the Yarn

Inspect the core against its drawing and check the perforations and end condition. Inspect the end condition of the core and mount it in the specified fixture. Feed the approved yarn package through the machine’s guides and tensioning path before securing the yarn for winding. NIST’s manufacturing traceability framework supports linking incoming material identity to the events in its provenance chain, which is why the core and yarn lot should be recorded before winding.

What Types of Cores are Used in String Wound Filter Cartridges?

For UDTECH’s string-wound equipment, the options given for the cores are Polypropylene and stainless-steel. The core supports the wound media and provides passages for filtered liquid. Selection therefore depends on dimensions, the liquid-contact material and service conditions. A stainless-steel core cannot make polypropylene fibers suitable for temperatures or chemicals beyond the qualified limits of the finished assembly.

Damaged or contaminated cores in the feed area must be removed. Ensure that the fixture supports the intended length without blocking the yarn path. An uneven start can lead to an irregular end region which becomes difficult to control after the wall has been built. This is why the approved setup determines where the starting yarn is secured and how the first layers are placed.

A 20-inch product cannot be specified by doubling a 10-inch program and assuming the rest will fit. For example, core support, travel of the traverse, and the actual sealing length all need to correspond to the drawing. The buyer’s useful acceptance item is a finished sample of each intended length, including its end geometry.

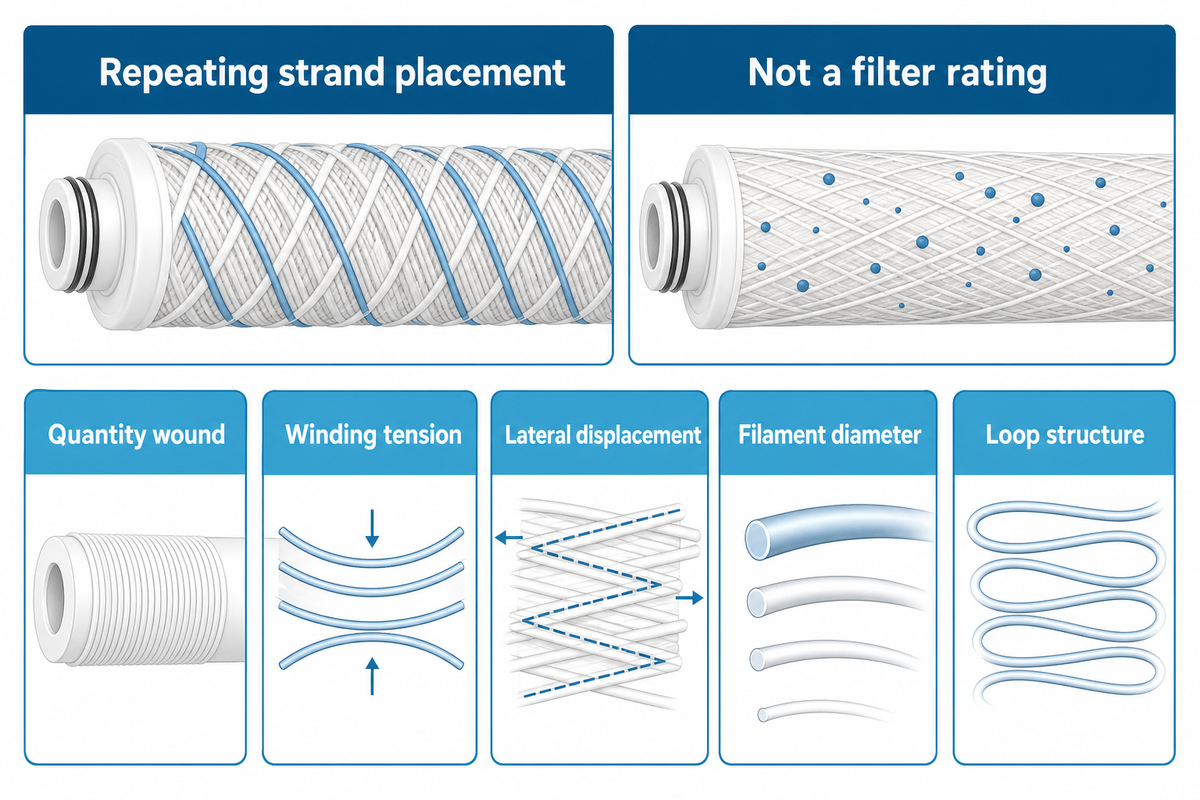

Step 3: Wind the Filter Matrix Around the Core

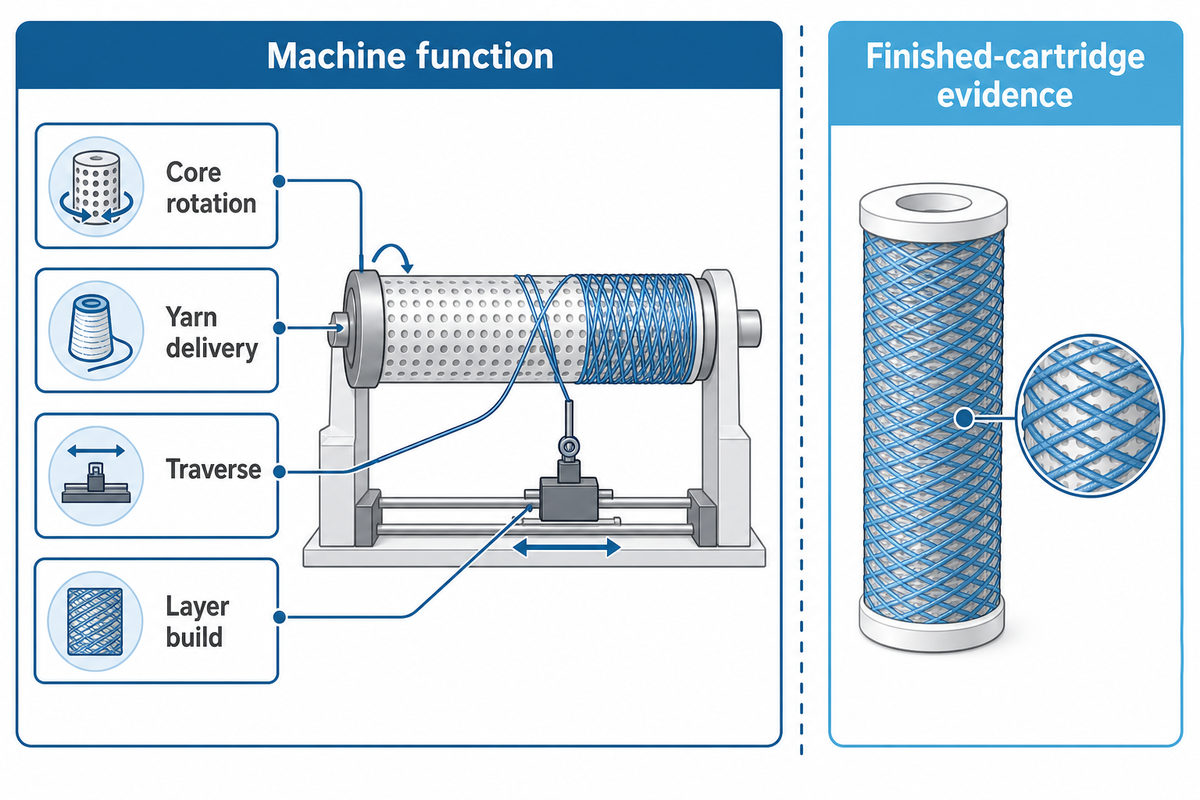

String winding combines core rotation with an axial yarn traverse to build crossed layers around the support. Varying the placement of yarn, tension and diameter of the growing structure affects the spaces within the filter matrix. The machine forms the structure; a finished cartridge test determines if the filtration performance meets the intended service.

Wrapping yarn around a core creates a winding path rather than a uniform, drilled pore. Therefore, the spaces between layers of wound string need to be considered as part of the complete cartridge structure. Liquid flows through interconnecting pores within the media. A denser build alters the resistance and affects the capture of particles. Therefore, adding more yarn doesn’t guarantee high filtration efficiency or dirt-holding capacity.

“Increasing the coil angle at which the wound filters are built resulted in lower yarn content”

The study reported a specific arrangement of polypropylene yarn and winding. The reported values for setting up the study were 55 g yarn tension and 225 rpm with filtration tests at 400 L/h. These values describe the study, not the conditions for the production of every cartridge. Transfer the lesson about interacting variables; establish the actual recipe with the chosen materials.

The way a yarn is constructed also matters. A 2024 comparison by Kanade and Pratihar covers various types of filtration results from DREF yarn and doubled roving. The comparison supports testing the yarn structure rather than assuming that every yarn made of polypropylene behaves alike.

For equipment range, check UDTECH’s string-wound machine configurations. Detailed tension and traverse adjustments belong in the winding setup and process-control guide; this route follows what happens to the product between stations.

A specification of a winding speed of 60-320 m/min describes the speed of yarn travel. Accepted output also includes starting, unloading and any interrupted cycles, followed by downstream work. Buyers should measure completed pieces for their actual yarn and dimensions rather than convert the highest linear speed directly into a cartridge-per-hour promise.

Step 4: Finish the Ends and Remove Loose Material

The finished product is a cartridge assembly when the yarn is terminated and trimmed and the removed material is no longer on the assembly. Seals and caps should be added to the assembly only when required by the drawing. Washing, drying and adhesive bonding aren’t universal operations for every wound construction.

The end treatment must preserve the housing interface, and loose yarn shouldn’t enter the fluid path. The approved assembly drawing should identify which surfaces seal against the housing and which features merely support the wound body. Visible unevenness of a piece indicates that the piece is to be inspected. However, appearance alone doesn’t identify a unique cause or establish removal performance. Trace the yarn lot and recorded setup before changing several settings at once.

A historical case illustrates the need for a defined scope for finishing: in US6942106B1, a continuous-filament process with water-related processing and drying prior to packaging is described. This record identifies Ahmad and Hamid Omar, and mentions Syntech Fibres. This patented process doesn’t belong to UDTECH and doesn’t prove all wound cartridges require drying.

Finishing and assembly of cartridges should be covered when a buyer requests end caps. A supplier trial on a plain wound cylinder leaves the joining operation untested, even if the cylinder dimensions are correct.

Step 5: Test the Finished Wound Filter Cartridges

Dimensional conformity of finished cartridges is verified by inspections and measurements; specified flow and particle challenges determine filtration performance. Length, diameter and appearance inspections confirm physical features; specified flow and particle challenges assess filtration efficiency and loading behavior. The acceptance plan must identify the test conditions, sampling and disposition of tested pieces before an accepted lot proceeds to packing.

For a 5 micron string-wound sediment filter, the rating requires an efficiency measure and defined test conditions. The University of Nebraska, Lincoln sediment-filtration guide illustrates the importance of filter selection in consideration of particle removal and flow resistance. A cartridge that can effectively remove sand and rust in well water, doesn’t prove chemical purification: larger particles and a dissolved impurity pose different removal questions.

Product claims for Water pretreatment and pre-filtration upstream of reverse osmosis (RO) differ from a final pure water system.

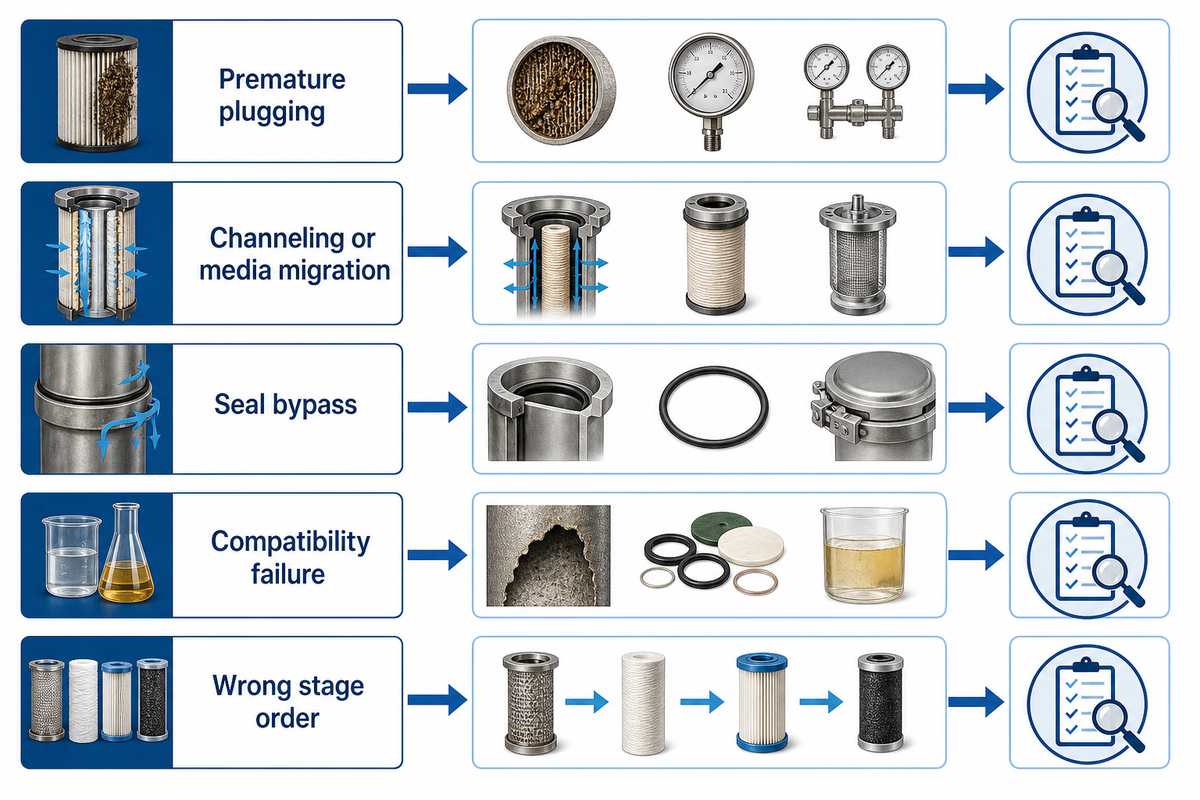

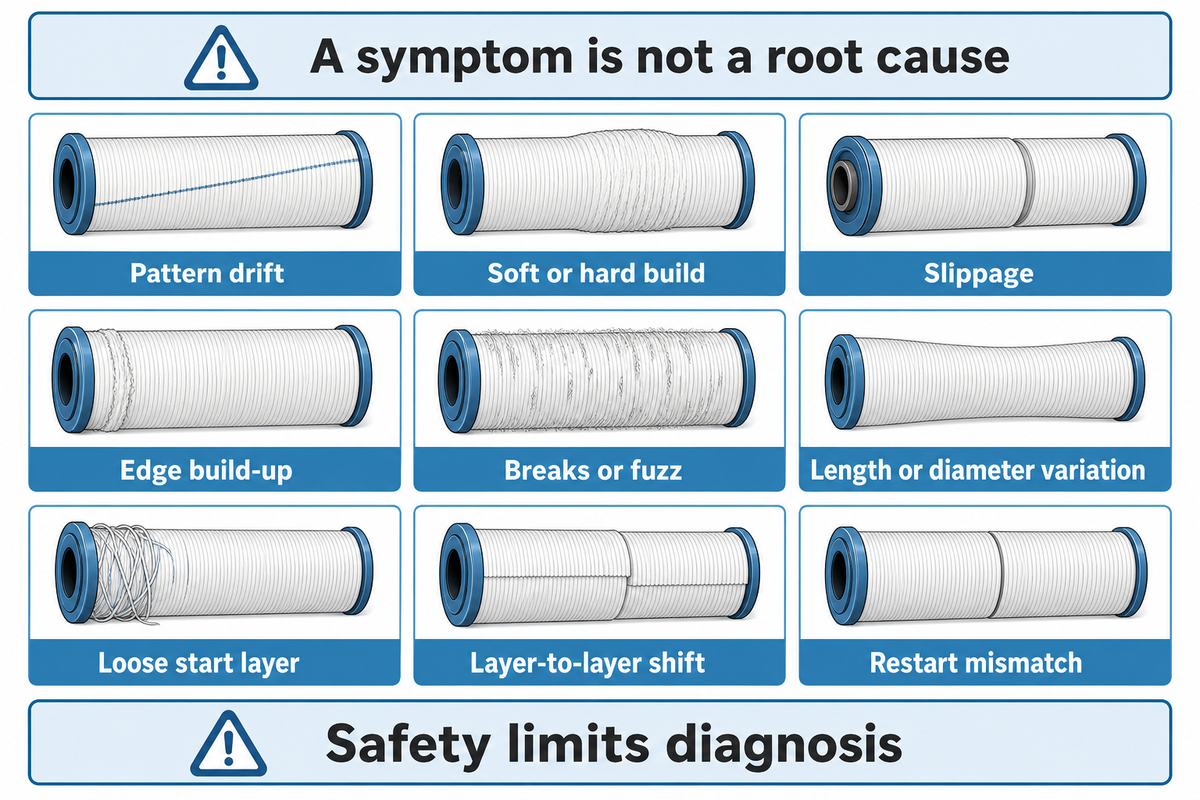

Common failure modes and test limits

Don’t choose a wound cartridge only because its label claims finer filtration accuracy. Tightening the winding can change pressure drop without proving the required removal efficiency. A product with high dirt-holding capacity under one challenge may behave differently with another contaminant, viscosity or flow rate. Qualification requires both the expected benefit and the operating conditions.

Integrity and efficiency tests answer different questions. The public scope of ISO 2942:2018 covers hydraulic-filter fabrication integrity and first bubble point, and expressly excludes using the result to estimate rating, efficiency or retention capacity. ISO 16889:2022 addresses hydraulic multi-pass testing; it is not a universal drinking-water approval.

Performance-test samples exposed to contaminants must be segregated. Their yarn consumption belongs in the trial record; passing a test doesn’t automatically make the tested piece saleable. Define sample disposition in the quality plan. The NSF standards overview also distinguishes specific reduction claims: a company quality-system certificate or machinery conformity statement doesn’t certify the finished cartridge for every water treatment use.

Hypothetical viscous duty: A processor requests a cartridge for syrup after seeing a water-filtration sample. Procurement wants to reuse the same product to reduce the number of stock items, but quality has no evidence that the water test represents the syrup duty. The next step is to define the actual fluid temperature, flow and particle removal target, and agree on a suitable evaluation. Increasing the media density of the filter first would change more than one of the unknowns. The manufacturer should hold the identity of the proposed yarn and core while comparing results. If the target flow causes unacceptable resistance, the team can reassess the element construction and system arrangement. The water result remains useful background, not the acceptance result, for syrup.

A nominal 5 μm designation becomes useful only when the stated performance is tied to a method and operating conditions. Neither a finished-weight check nor a bubble-point result supplies that missing definition. Buyers can review how cartridge micron ratings are defined before agreeing the trial.

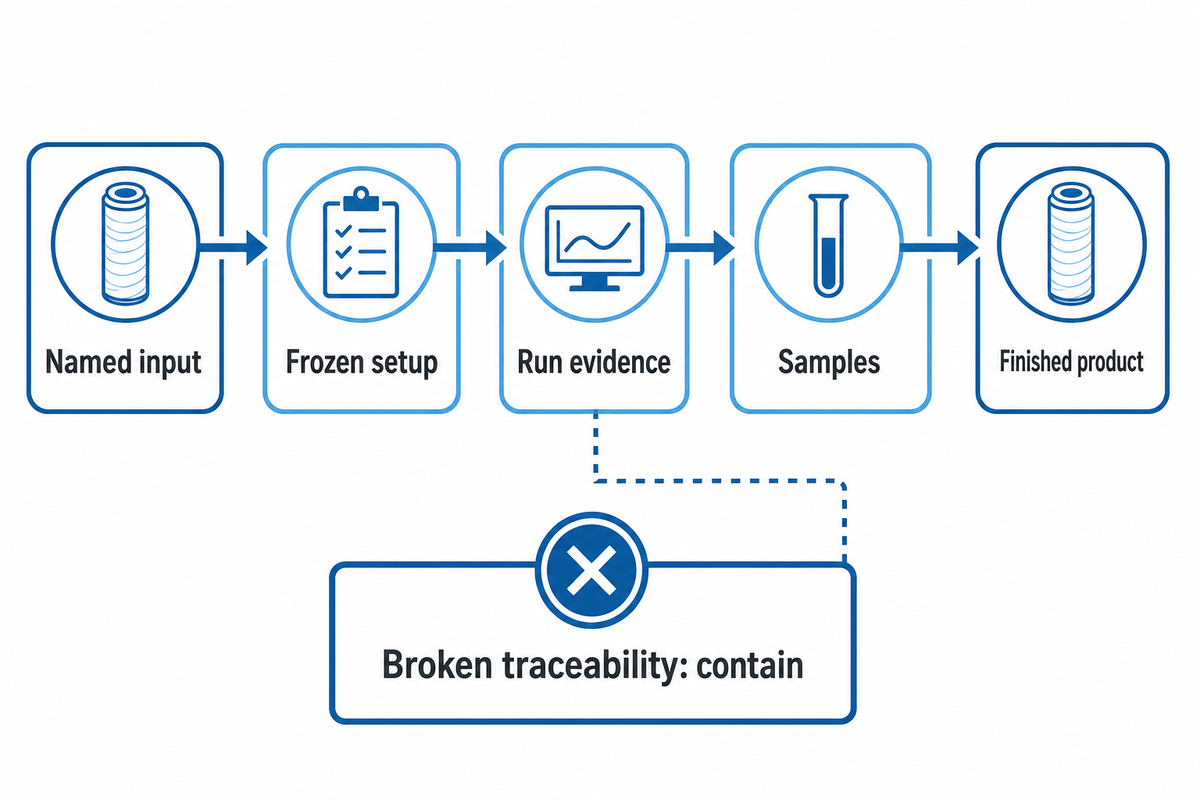

Step 6: Identify, Protect and Pack Each Released Lot

Packing retains an accepted cartridge and links it to its production documentation. Identify the product and lot, confirm the quantity released, and use appropriate packaging to meet the agreed cleanliness level and conditions of transport. Wet or challenged samples require special dispositions and packaging shouldn’t mask unresolved inspection or drying work. ISO 22742 sets minimum requirements for labels carrying linear bar codes and two-dimensional symbols on product packages, which is relevant when defining lot and package data.

The description of the packaged cartridge should identify the yarn/core, and include dimensions and any qualified claim. Packaging should provide sufficient information to trace a complaint to its input lots and production run. A clean wrapper cannot correct media damage, and a carton label cannot substitute for an agreed cartridge specification, so pieces awaiting inspection or drying should remain clearly separate from the released quantity that packing is allowed to count.

For orders containing cartridges of different lengths, reconcile each product code separately. Keeping the counts separate gives finance a meaningful denominator when calculating the consumption of yarn per unit accepted.

Where Material and Production Time Are Lost

Material loss occurs when yarn used in the process exceeds the yarn in the products accepted by Quality. Time loss occurs when the process spends time outside productive, accepted cycles. Measure both types of loss separately. The EPA’s material-line method relates consumption to the product content and measures process time rather than rely solely on machine speed to gauge productivity of the process.

4-Bucket Yarn Reconciliation

The 4-Bucket Yarn Reconciliation distinguishes issued yarn, usable returns, accepted media, and non-saleable consumption, within a defined measurement period.

The hypothetical run consumes 11 kg of yarn even though accepted cartridges contain only 10 kg. Finance would understate yarn consumption by using 50 g per piece instead of 55 g. Production has a different question: how much of the 1 kg non-saleable quantity came from setup, trimmed ends and/or rejected cylinders? Separating these streams and measuring them individually would answer that question and help make the next improvement decision more precise.

The example assumes no consumed test samples and no unrecorded inventory change. If samples consume yarn, include them in non-saleable consumption and identify that amount separately; do not call it trim. Use comparable weighing conditions and account for measurement uncertainty, particularly when a small difference between two larger measured quantities is being treated as the entire non-saleable yarn stream. In measuring non-saleable yarn, total cartridge weight shouldn’t be used to represent media weight because it includes the core and other components. Core and other components of the cartridge should be excluded when determining media weight.

Hypothetical length mix: A plant runs 10-inch cartridges in the morning and 20-inch cartridges in the afternoon. The owner compares machine speeds across the two shifts. The supervisor observes longer set up times to change fixtures and move the longer pieces. Finance also notices a change in yarn cost per accepted unit. Neither observation proves that the longer product is poorly made. Separate the two runs, record accepted counts and consumed yarn, then time preparation, winding and downstream handling. If a backlog of work is caused by packing that leaves work unfinished, a faster winding setting won’t resolve the backlog. The next equipment decision should address the measured constraint, using the same finished-product mix that the customer intends to order.

Maintain visibility for setup, running, interrupted and packing times in production planning across the line. The 55g example is a yarn consumption example, not a labor cost example, or an expected industry loss rate. A plant needs its own accepted counts and observed times before pricing output.

Integration and Utility Requirements for the Complete Route

A complete line scope includes winding equipment along with the input, finishing, inspection and packing. Utilities follow that agreed equipment list. UDTECH published a winding envelope and drive ratings, but planners still need the total connected requirements of the supplied equipment along with the demand for any auxiliaries for planning the factory layout.

The public abstract of IEC 60204-1 draws the boundary of the electrical equipment at its supply point. This example keeps the rating of a drive motor separate from a site supply planning example. Confirm the total electrical load and servicing space; other utilities like compressed air or washing/drying, should be drawn into scope only if the chosen equipment and product route require them.

The 0.18–0.55 kW listed drive ratings can’t price a factory’s electricity bill. The entire equipment list, along with the actual operating time and measured demand for the proposed duty must be provided. Use UDTECH’s complete filter cartridge production route to discuss that scope with finished-product drawings and samples.

Industry Outlook: What the 2025 Standard Revision Changes

For projects seeking NSF/ANSI 42 evaluation, the 2025 revision makes the current test instructions part of product planning. It does not prescribe a new winding recipe or certify a generic wound cartridge. Manufacturers should agree the applicable edition and claimed reductions with their test organization before fixing the sample and preparation plan.

ANSI’s summary of NSF/ANSI 42-2025 describes changes from the 2023 edition concerning initial preparation, collection for pour-through products and extraction reporting. One change pertains to products for which the initial flushing instructions are longer than four hours. That condition does not mean every filter needs a four-hour flush. The product type and the selected evaluation determine which provisions matter for particular water filtration applications; a change to preparation instructions cannot by itself establish an improvement in delivered water quality.

Generally speaking, a manufacturing organization must make a plan for which finished products and instructions for preparation will be sent to the laboratory. A cartridge tested without the intended caps and/or seals may not represent the product that was sold. Likewise, claims for the purification of drinking water shouldn’t be generalized to other chemical processing or industrial water duties.

For a new project in 2026, confirm the applicable test scope before ordering sample quantities or promising a launch date. Make enough production time available for the sample to be prepared as agreed and determine which pieces, if any, can return to being sold. The planned substitution of one raw material with another should be reviewed to determine if the new material changes the product evaluated. Those decisions belong before the routine packing schedule is fixed.

There isn’t enough research to support an industry-wide output gain, cost reduction or migration to one yarn technology. Reliable filtration and efficient filtration remain claims to demonstrate under stated conditions. The more relevant change, however, is that a named standard has been revised. Projects using the named standard should review the applicable edition. Other projects, outside the named standard, should select filtration standards appropriate to their applications and important claims. In doing so, the evaluation would address the customer’s actual request, rather than cite an unrelated standard.

Frequently Asked Questions

Related Articles

• UDTECH guide to winding process control
• Filter cartridge assembly process
• Filter cartridge micron rating
• Filter cartridge production planning

Filter cartridge micron rating identifies a particle-size reference, but the number alone doesn’t prove efficiency, pressure performance, service life, or suitability for a fluid. Defensible specifications relate particle size to efficiency, a test method, and stated operating conditions.

Updated October 2026.

Selecting a filter begins with what you want to filter and the proof the outlet needs. The right filter is not automatically the lowest micron rated product. Choosing the right micron rating means matching the filter’s micron rating to the duty instead of treating different micron labels as a quality ladder.

A micron is a unit equal to 0.001 mm. The filter is rated by a supplier’s stated convention, and its micron rating indicates size rather than complete performance. Various micron bands can be useful, but the right micron filter depends on the feed, target, and test basis.

Each filter micron rating needs a stated basis to be able to support a purchasing decision.

What does a filter cartridge micron rating actually tell you?

Filter cartridge micron rating refers to the particle size used in a retention statement. It doesn’t identify how many particles pass through the filter, how the particles were measured, or whether the cartridge can maintain that result at the required flow and terminal differential pressure.

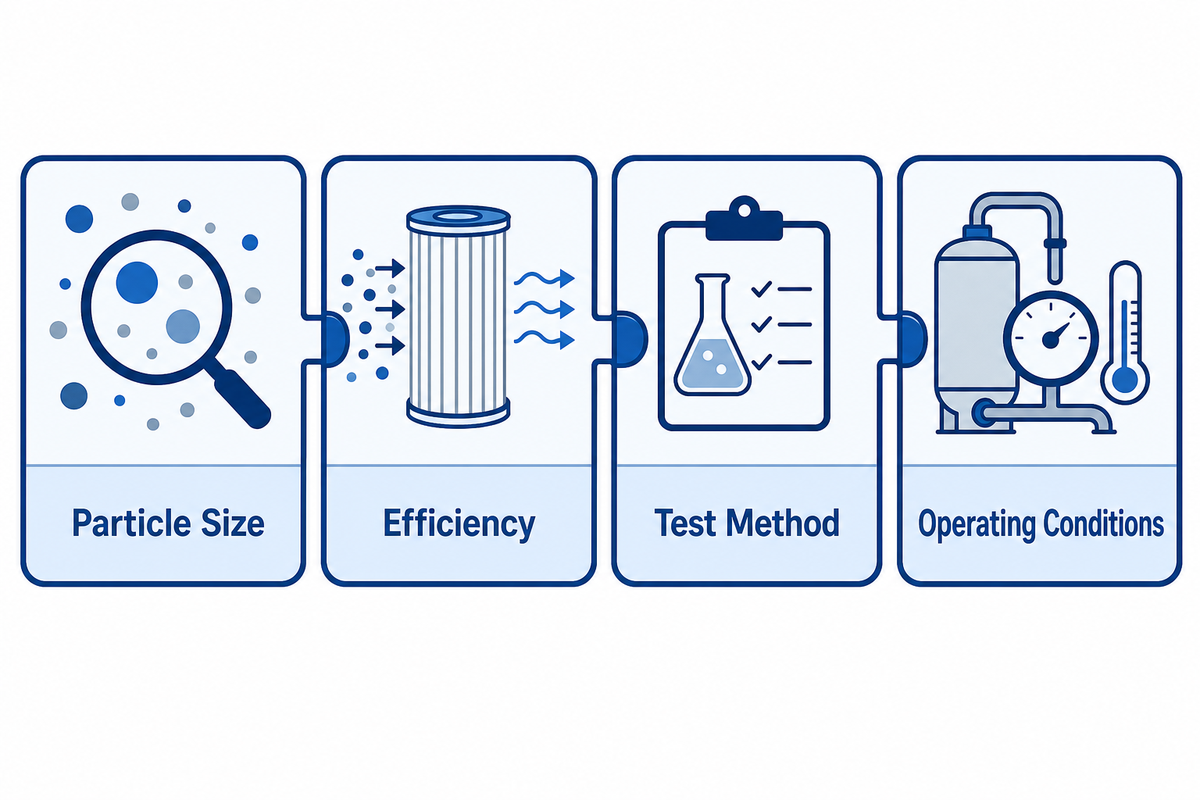

Four-Part Micron Performance Statement

The Four-Part Micron Performance Statement joins particle size, efficiency, test method, and operating conditions in one claim. For example: “10 µm(c), β200 under ISO 16889 conditions at the documented flow and differential-pressure range.” Preserve notation such as µm(c) when the report uses it; plain µm is not automatically interchangeable. Reference the ISO 16889:2022 multi-pass method scope for hydraulic fluid power filter elements when that method is specified.

For a water duty, the rating refers to the size of particles a filter is built to retain. It doesn’t identify every class of particles from water, and it can’t state the final water quality without a measured outlet result.

Efficiency and test basis remain unknown when a water filter micron rating is written as microns in size.

Nominal vs absolute micron rating: the efficiency is the missing number

Nominal and absolute are rating conventions, as opposed to universal percentages. Suppliers should define both terms, while a beta ratio states an upstream-to-downstream particle-count relationship at a named size. The arithmetic is useful only when particle measurement, challenge concentration, detection capability, and test conditions are valid. The ISO 16889:2022 overview is an official example of a named multi-pass test basis for hydraulic fluid power filter elements.

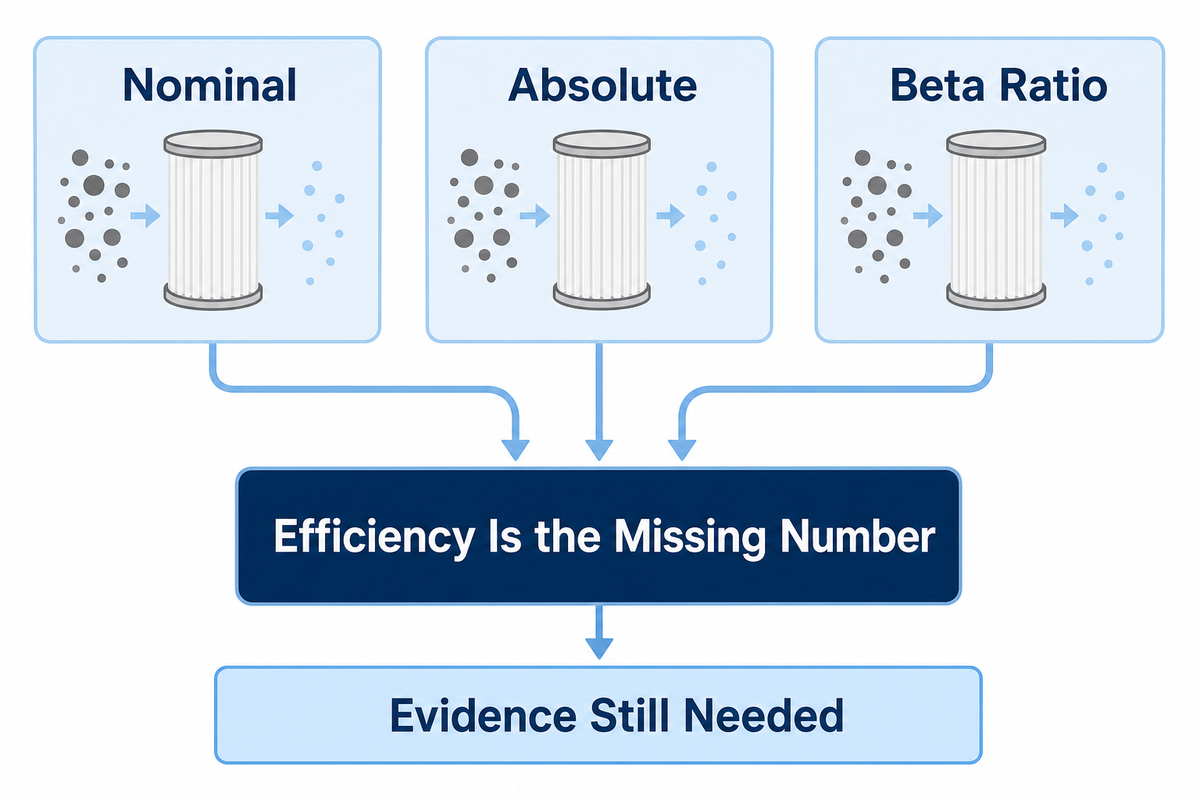

Rating-Language Crosswalk

Use β_x = upstream count ÷ downstream count. Efficiency = (1 − 1/β) × 100%. A β10 result equals 90%; β100 equals 99%; β200 equals 99.5%; and β1000 equals 99.9%. If a valid test counts 20,000 particles upstream and 100 downstream at the stated size, β = 20,000 ÷ 100 = 200, so calculated efficiency is 99.5%.

The weak test isn’t repaired by a worked example. Low upstream challenge or a downstream counter that can’t detect the relevant concentration can make the provable result look stronger than the measurement supports.

An absolute filter claim still needs its percentage and method. The rating means little across suppliers until the same particle convention, assembly boundary, and operating window are used.

Is a smaller micron rating always better?

Smaller micron ratings are better only when the downstream protection target requires finer particulate control and the system can accept the resulting resistance, loading rate, and changeout burden. A finer cartridge that plugs early or adds excessive pressure loss can reduce useful flow without solving the actual quality problem. For the separate mechanical pressure-rating question, see the ISO 2941:2009 collapse/burst verification method.

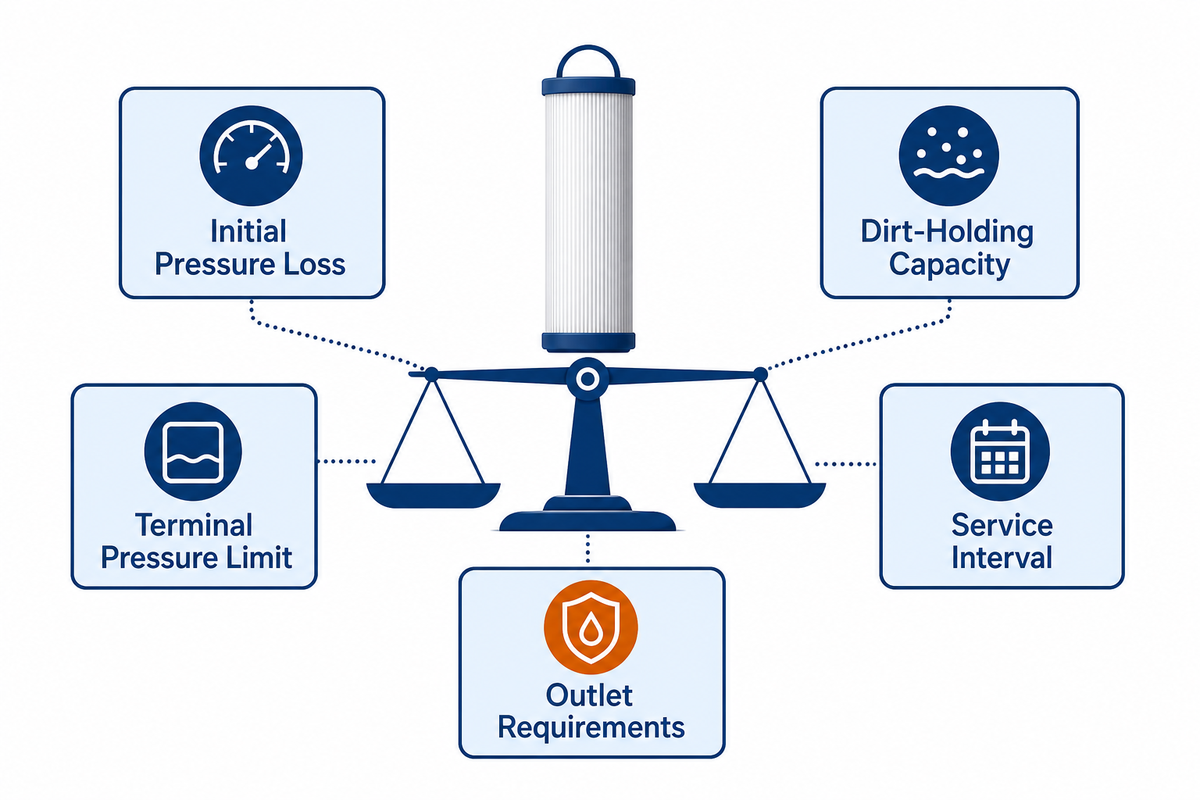

Smaller-Is-Better Failure Test

The Smaller-Is-Better Failure Test asks what becomes unacceptable when the rating is tightened. Look at initial pressure loss, terminal pressure limit, dirt-holding capacity, service interval and outlet requirements. The AAQR study on loaded fibrous filters shows that pressure-drop behavior changes with particle loading and media conditions; its aerosol results are evidence of sensitivity, not a liquid-cartridge limit.

To choose the right filter, identify the required water quality or process outlet prior to decreasing the micron size. As a filter fills, water flow or process flow can fall, even when the media retains particles.

Hypothetical example: a process team replaces a 20 micron prefilter with a 5 micron filter because the smaller number feels safer. Flow then falls before the planned batch ends while the final stage outlet result remains the same. The correct next step isn’t to choose a 1 micron filter. Compare the contaminant distribution, clean pressure drop, terminal limit, and downstream acceptance result under the same flow and fluid conditions. Following a coarse stage with a validated fine filter may better control loading, but the sequence still needs testing.

How to compare 1, 5, 10, 20, 50 and 100 micron cartridges

Consider micron bands as screening options, not contaminant guarantees. A 1 micron filter is finer than a 5-micron filter on the same rating basis, and 50 micron is finer than 100 micron, but the label can’t define efficiency, capacity, chemistry, pressure loss, or service life. An official example of a stated test basis for hydraulic fluid power filter elements is the ISO 16889:2022 multi-pass method.

Rating-Band Decision Table

The Rating-Band Decision Table turns common micron ratings into evidence requests rather than promises.

Household water supplies create a different decision frame from industrial duty. Guidance on a micron water filter may address well water, municipal water, a water softener, or drinking water in one filtration system. Industrial buyers should not import those recommendations without a water test, particle distribution, and defined water treatment duty.

Micron ratings work only when the rating basis and service match. Specifically, to remove from your water a measured sediment load, identify the particles you expect to remove from water and the allowable pressure loss. The rating for your water filter then follows the evidence rather than a generic chart.

A 0.5 micron stage can occur in water filtration, but a finer number doesn’t make it the right micron for every feed. Water systems with different loads can require different staging, and micron filtration ratings still require efficiency and test conditions.

The micron rating for your water should reflect the measured feed and the required quality of the water at the outlet. City water with low visible solids and well water with a heavy sediment load can demand different sediment filter decisions.

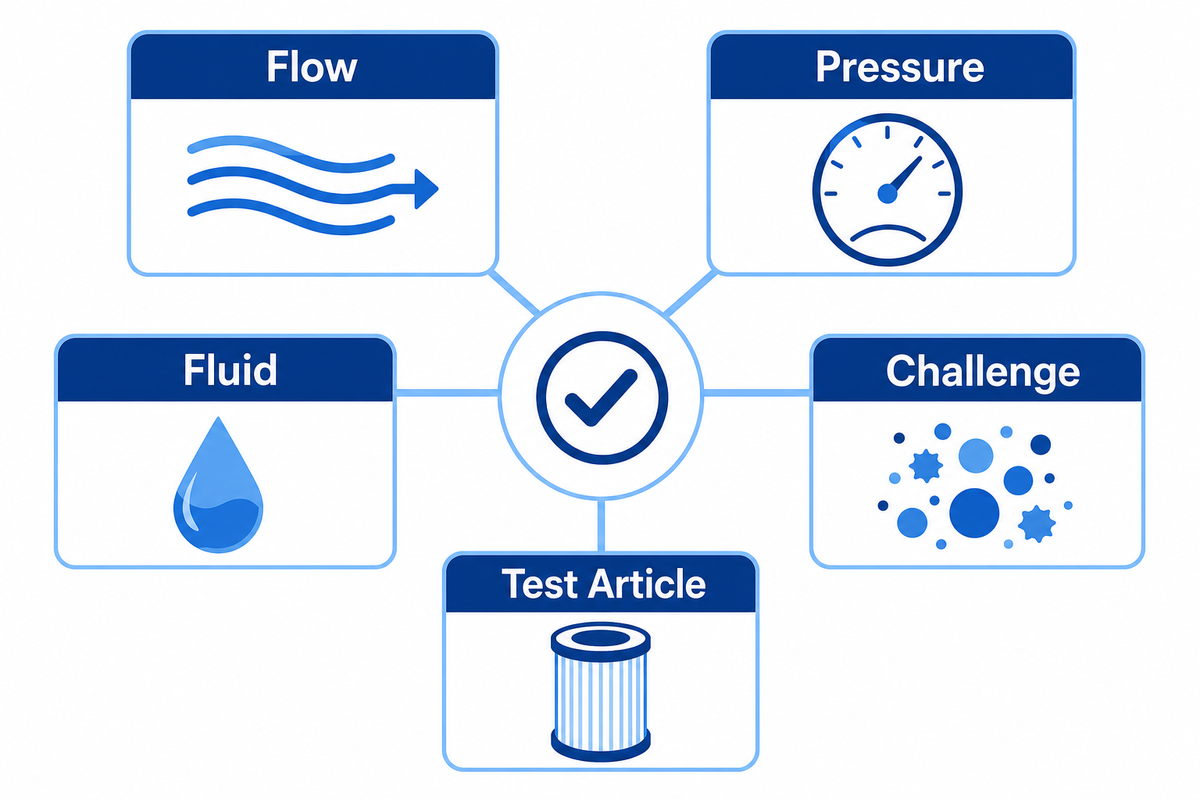

Match five conditions before comparing two cartridge datasheets

A valid cartridge datasheet comparison matches five condition groups: flow; initial and terminal differential pressure; viscosity and temperature; challenge distribution, concentration, and detection capability; and the complete tested component, media, method, seal or bypass boundary, and loading stage for reliable procurement decisions.

Matched-Condition Comparison Card

“ISO 2941:2009 specifies a method for verifying the collapse/burst pressure rating of a hydraulic fluid power filter element.”

Collapse or burst resistance addresses a mechanical survival question. It doesn’t define filter particle-removal efficiency. Treating a pressure rating as proof of filtration performance compares different evidence types.

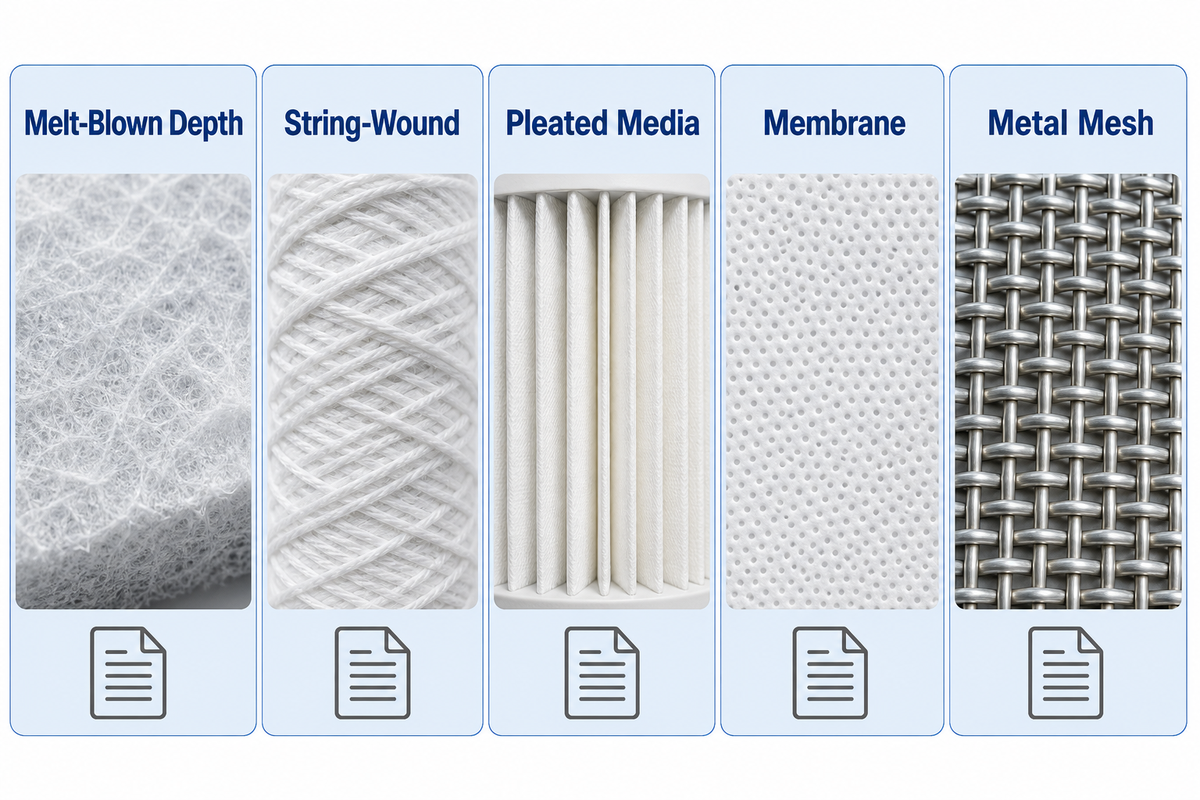

How media construction changes a shared micron number

Media construction changes pore distribution, loading path, pressure response, and the evidence needed to interpret a micron number. Thus, interpretation of a micron number also varies. Melt-blown depth media, string-wound cartridges, carbon blocks, pleats, membranes, bags, meshes, sintered structures and ceramics shouldn’t be considered as equivalent filter types.

Media Construction Evidence Matrix

The type of filter determines which construction variables and acceptance evidence need to be controlled.

The carbon filter may integrate both particulate and adsorption functions, but the carbon block filter requires separate evidence for each. Particulate rating means the filter captures a stated fraction under a test; it doesn’t measure adsorption capacity.

ASTM E3469-26 gives a narrow pharmaceutical example: chemical compatibility, active-ingredient or preservative binding, and particle shedding may need study before process-specific bacterial-retention testing. That scope is not a rule for every cartridge, but it shows why adsorption and compatibility cannot be inferred from a micron level. Review the ASTM E3469-26 scope and significance.

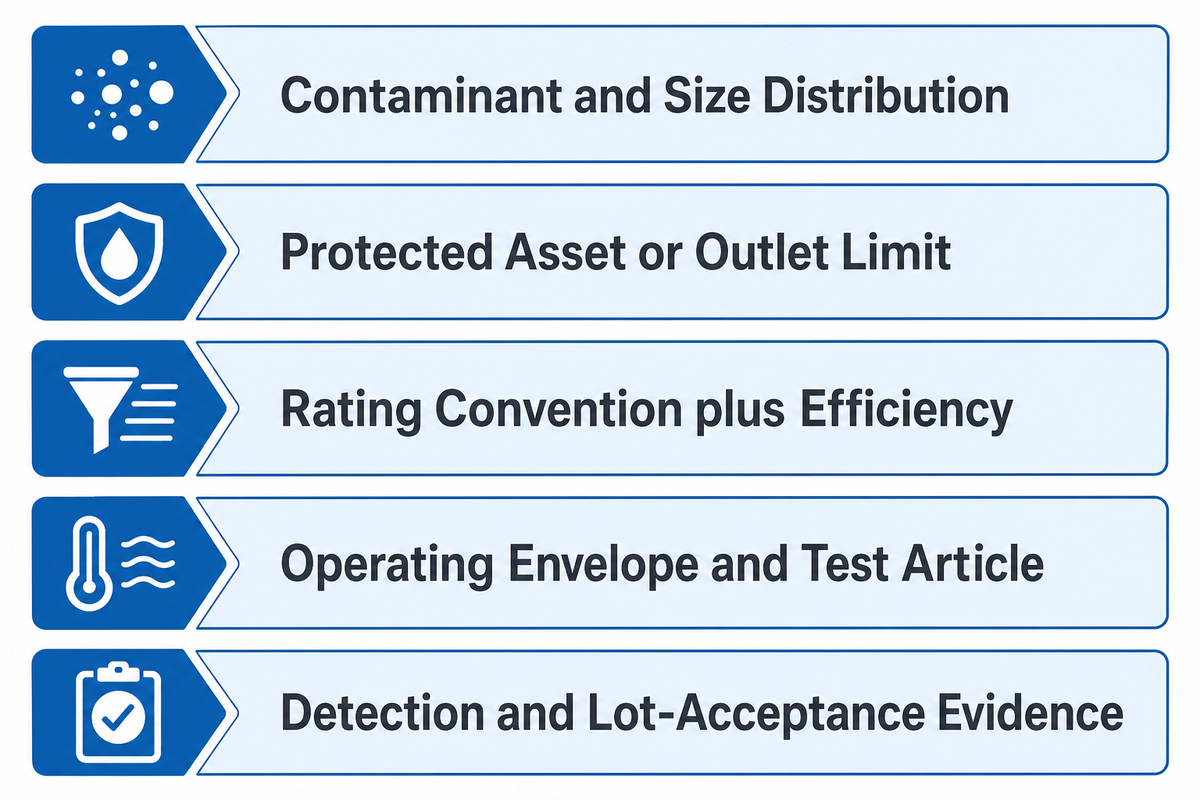

Use the Five-Field Micron Decision Card

The Five-Field Micron Decision Card records the contaminant distribution, protected asset or outlet requirement, rating convention and efficiency, operating envelope and installed configuration, and verification and lot evidence. It’s an editorial procurement method, not a standard or UDTECH proprietary technology. For a narrow pharmaceutical sterilizing-filtration validation example, see ASTM E3469-26.

Five-Field Micron Decision Card

An industrial prefilter duty may accept a nominal coarse cartridge when its job is to reduce load before a separately verified fine stage. A final product-contact stage can require an absolute or validated result, complete housing and seal definition, compatible materials, and a documented detection limit. The same 5 micron language can’t resolve both duties. Evidence required is determined by the protected outlet and acceptance decision owner.

If a team installed a filter without a baseline, the card reconstructs what was omitted: feed, target, rating basis, operating envelope, and acceptance evidence. That record is more helpful than changing cartridges until one appears to work.

How manufacturers control micron-rating consistency across lots

Manufacturers control consistency by freezing approved materials and process windows, measuring cartridge dimensions, sampling lots under matched conditions, and retaining traceable acceptance results. Equipment run-off shows that a machine can hold defined controls; finished-cartridge testing shows whether the product meets the buyer’s retention and operating requirements. For one formal hydraulic fluid power filter-element performance-test basis, see ISO 16889:2022.

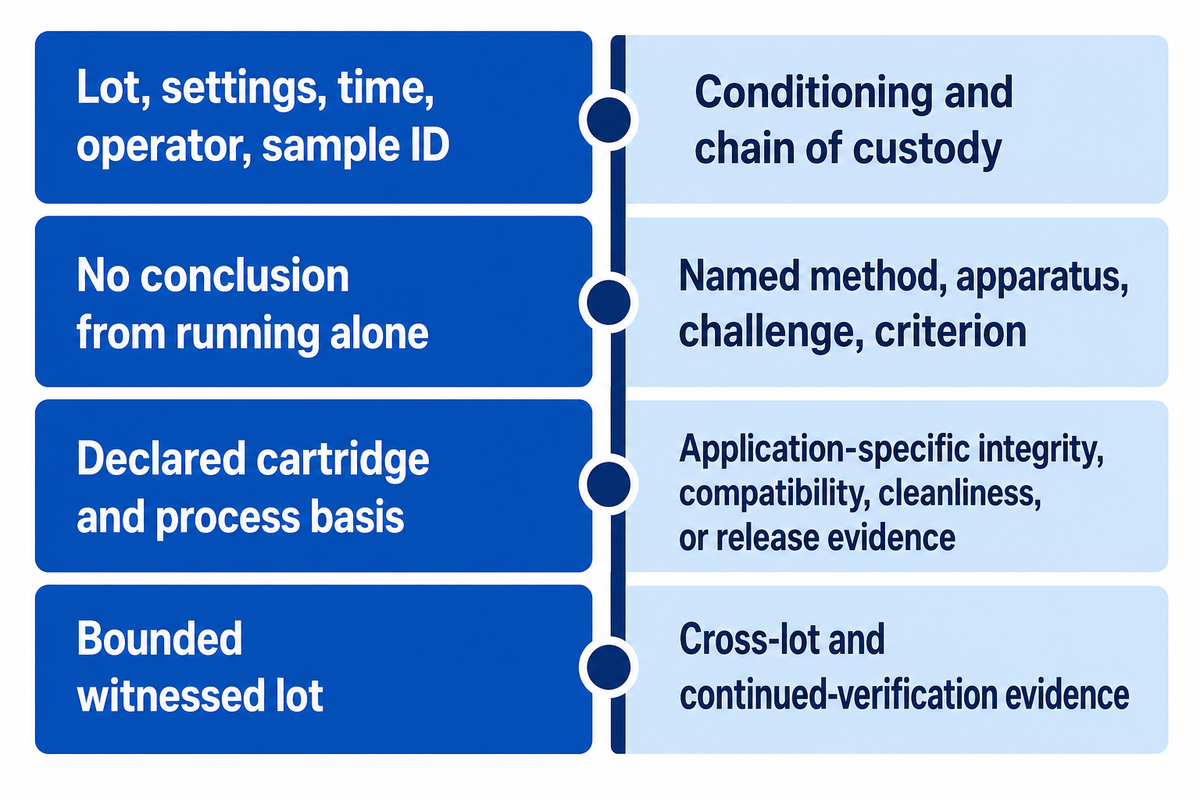

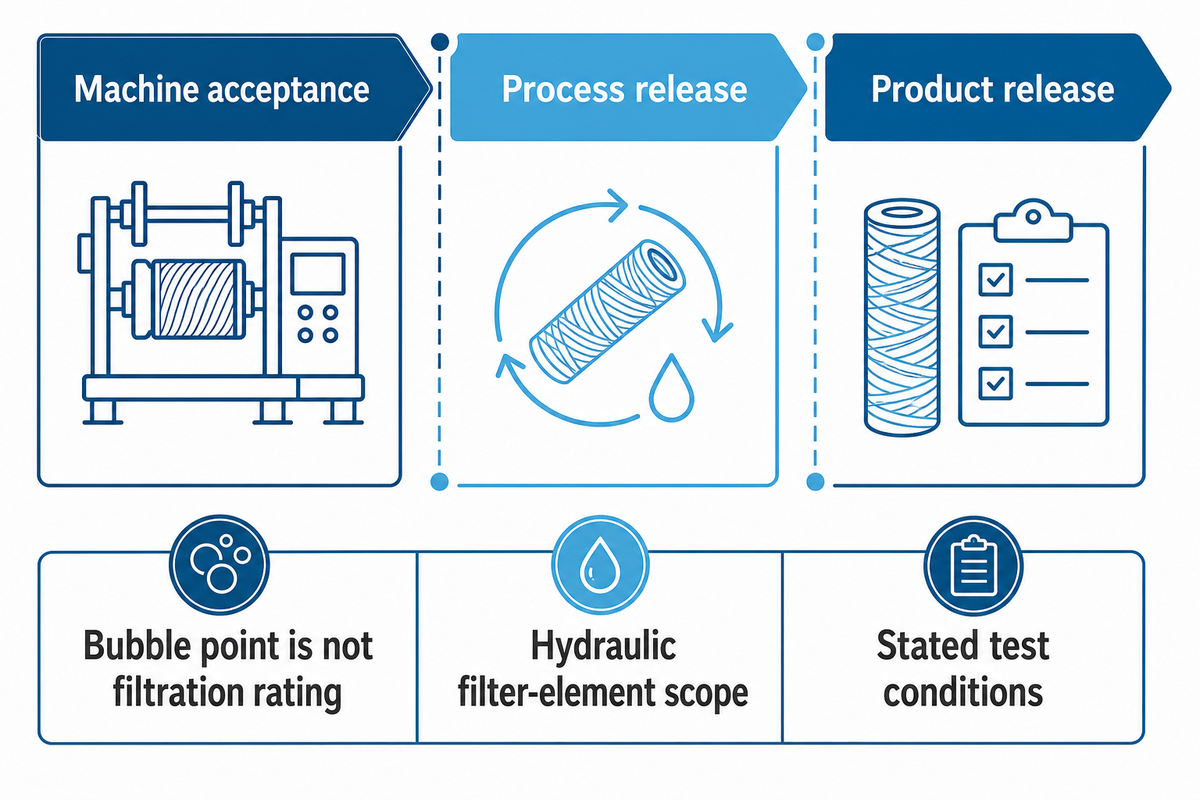

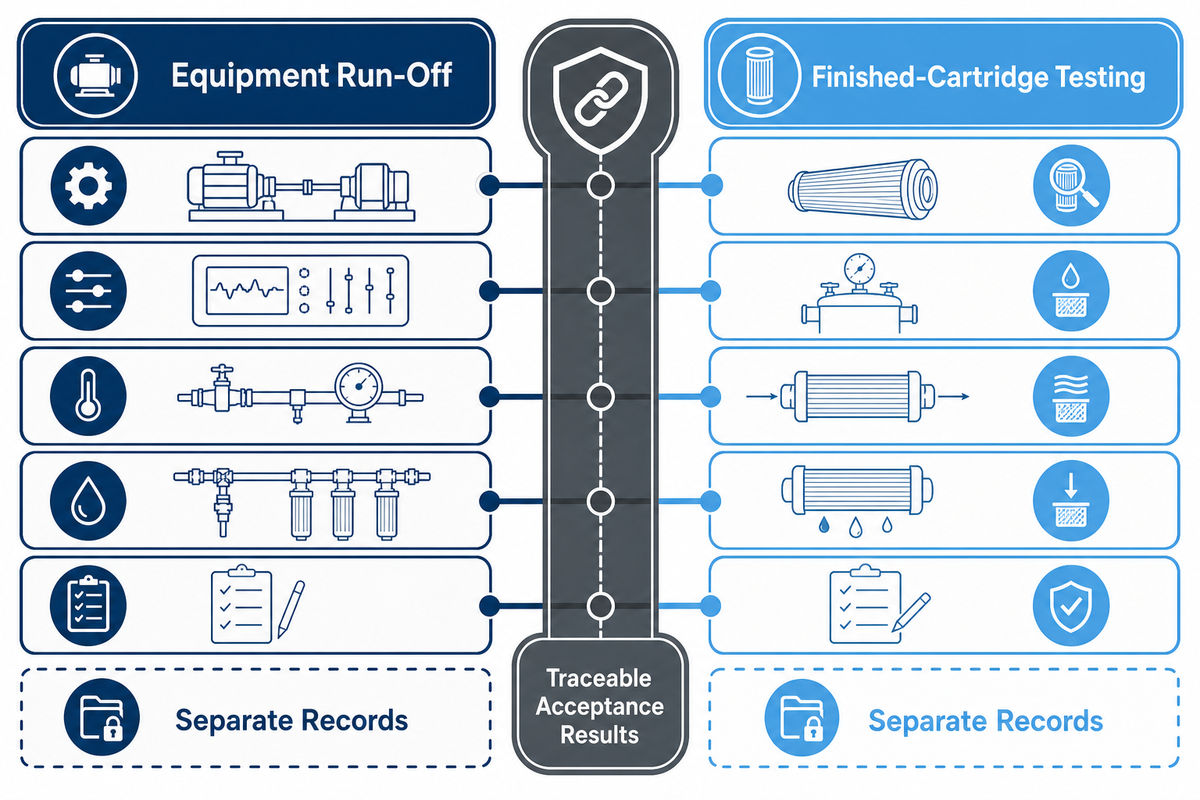

Machine-to-Cartridge Evidence Split

The acceptance evidence record separates cartridge performance from machine stability. For melt-blown media, control resin identity, melt-flow behavior, die and air settings, collector distance, mandrel conditions, and traverse. For wound media, freeze yarn, tension, traverse pattern, layer count, core, and dimensions.

According to UDTECH, its production operates in a 6,000 m² standardized workshop with R&D, manufacturing, laboratory and testing equipment, full-process quality control, and trial production before shipment. These are first-party statements by UDTECH. These statements don’t replace the buyer’s finished-cartridge retention protocol or lot-release evidence.

What to write in a filter cartridge micron specification

Filter cartridge specifications should state particle size and measurement convention, efficiency or beta ratio, nominal or absolute definition, test method and challenge, fluid and operating range, initial and terminal differential pressure, geometry, housing, seals, materials, lot sampling, documentation, failure rules, and retest authority. Where relevant to hydraulic fluid power filter elements, the ISO 16889:2022 multi-pass method is one named method for evaluating filtration performance.

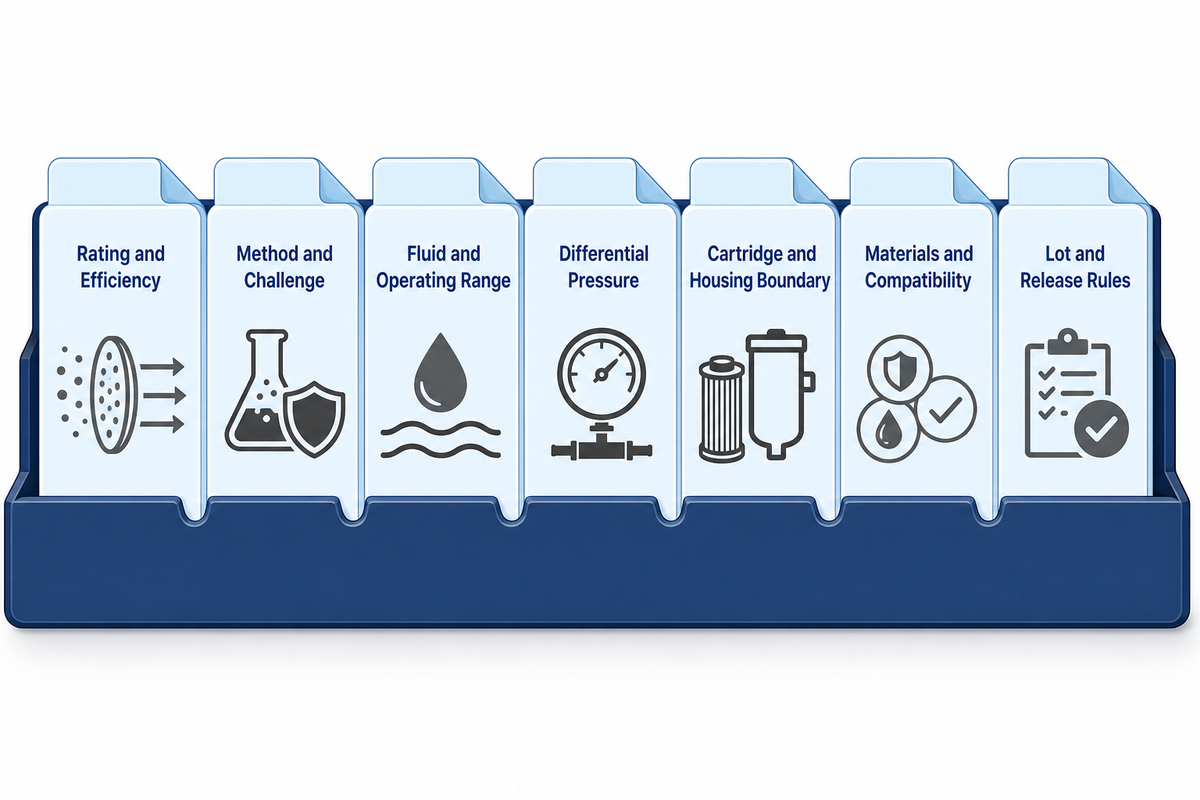

Micron Evidence Pack

When not to buy from a micron label alone

Don’t approve a cartridge if the supplier leaves nominal or absolute undefined, fails to pair the stated size with a beta or efficiency value, or withholds the tested flow, fluid, pressure, and component boundary. Stop the purchase review if a critical claim relies on an undetectable downstream concentration, an untested seal arrangement, or only a clean-element result when terminal-life behavior matters.

A 2026 pharmaceutical filtration practice also illustrates that compatibility, binding and shedding may be outside the retention data. Buyers in other industries should translate that principle into their own materials, product-contact, cleaning, and regulatory requirements rather than copying its test protocol.

The rating matters because it controls which evidence belongs in the purchase file. Micron rating matters only within the named efficiency, method, fluid, configuration, and life stage.

From micron requirement to a production-line RFQ

A production-line RFQ should begin after the finished-cartridge requirement is frozen. Interpret the required construction, materials and dimensions, process window, output basis, sampling plan, performance tests, traceability and acceptance documents into machine requirements without requiring the equipment vendor to make an assumption about the filtration duty. For a narrow pharmaceutical sterilizing-filtration validation example, see ASTM E3469-26.

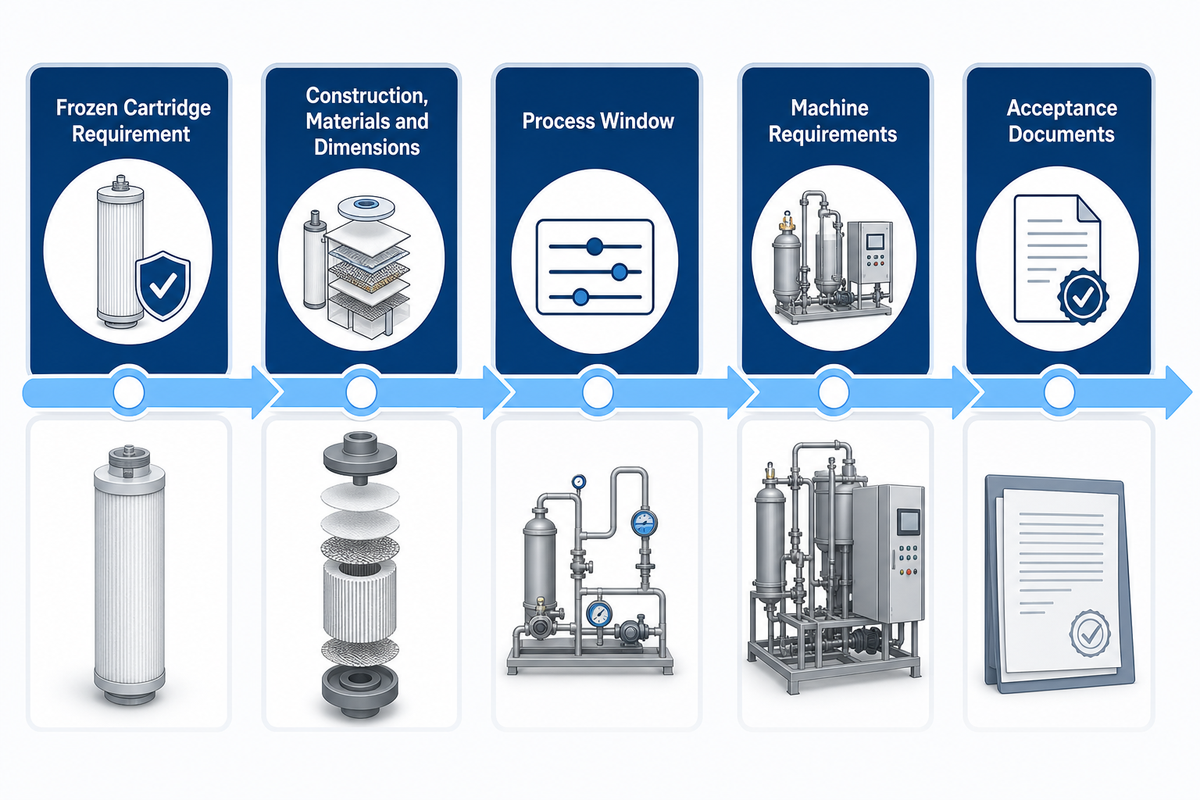

Production-Line RFQ Handoff

The Production-Line RFQ Handoff converts a validated cartridge brief into equipment inputs without transferring product-performance responsibility. Review the filter cartridge production line after the Micron Evidence Pack is complete. Related planning routes include the PP melt-blown filter cartridge production line options and the production-line acceptance test guide.

Hypothetical example: a cartridge manufacturer wants two nominal product grades from one line. Before discussing output, the RFQ owner freezes resin and dimensions, rating definitions, test methods, lot sampling, acceptable clean and terminal pressure behavior, and recipe-change control. Only then can the equipment discussion cover die or winding controls, mandrel range, traverse, automation, inspection points, and documentation. Absent such a product brief, a quoted capacity cannot show that acceptable cartridges will be produced.

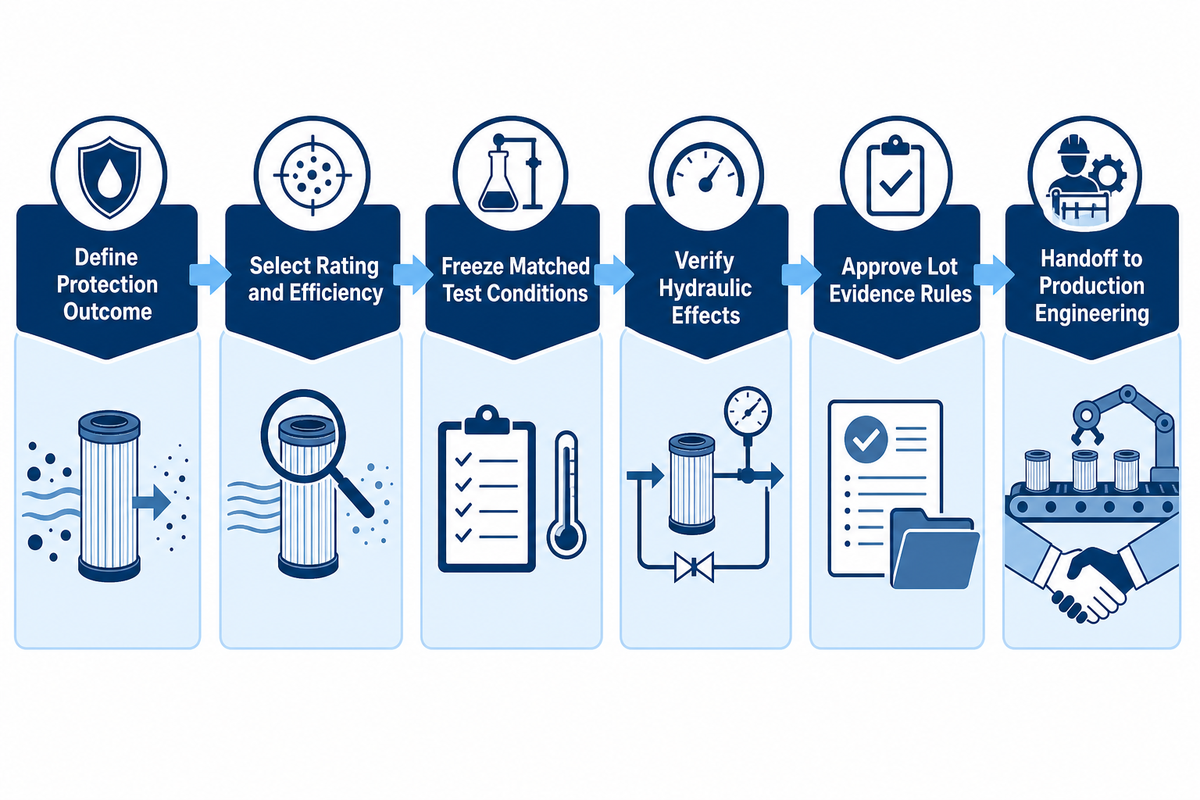

Decision framework: choose evidence before choosing a number

Reliable decision sequences define the protection outcome, choose a measurable rating convention, freeze comparable test conditions, assess hydraulic effects, require lot evidence, and hand the approved cartridge requirement to production engineering. The sequence ensures that a convenient catalogue number doesn’t become an unsupported performance promise. The ISO 16889:2022 scope for hydraulic fluid power filter elements illustrates why method and conditions belong in that sequence.

1. Define the particle-control or protection outcome.
2. Select the rating convention and required efficiency.
3. Freeze the particle measurement and matched test conditions.
4. Verify flow, clean pressure loss, terminal pressure, and expected loading.
5. Approve lot sampling, traceability, failure, and retest rules.
6. Hand the frozen cartridge specification to production engineering.

Frequently asked questions

This article is a procurement and specification guide, not a process validation protocol, regulatory opinion, or product-performance guarantee. The responsible engineering and quality teams must approve application-specific materials, test methods, acceptance limits, and release decisions.

Filter cartridge pressure drop is the upstream-minus-downstream static-pressure difference between defined tap locations at a stated flow and fluid condition. The value may include cartridge, housing, ports, fittings, and adjacent piping unless the measurement boundary is named. Only compare values when flow, fluid or viscosity, temperature, housing, cartridge shape, tap locations and clean or loaded condition are the same.

A pressure reading can look precise and still be worthless for a purchase decision. A curve without conditions can’t tell you whether one cartridge is less restrictive, whether housing caused the loss, or whether a loaded element was compared to a clean element.

The method can be applied to general industrial liquid service but an engineer would still define application, chemical compatibility, and operating environment. Gas service and other equipment would need a test basis.

The practical sequence is simple: define the boundary, save both gauge readings, match the test basis, separate measured subtraction from prediction, keep retention and hydraulics distinct, set a site rule, and preserve traceable evidence. The details below turn this into an RFQ and operating record.

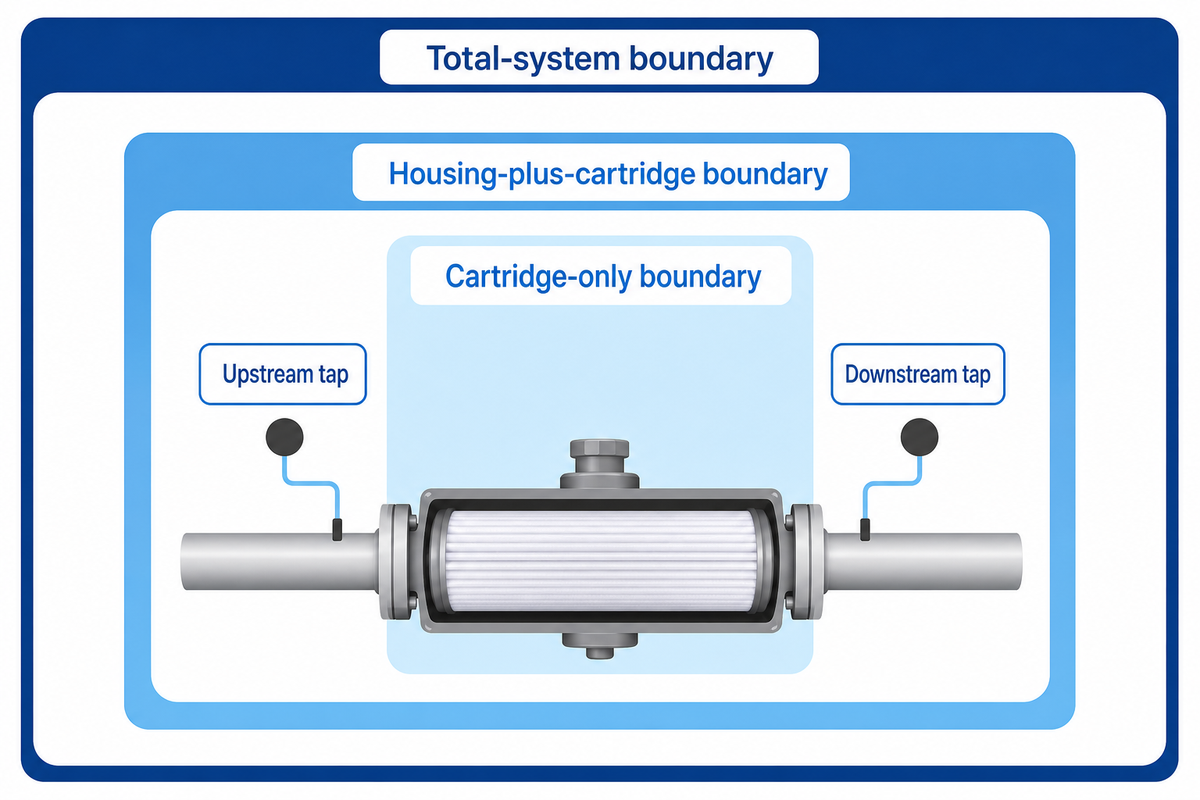

What Does Filter Cartridge Pressure Drop Measure?

Filter cartridge pressure drop shows the difference between two pressure taps, not an unnamed property of the cartridge. A cartridge-only boundary, housing-plus-cartridge boundary, and a broader system boundary can lead to different values for the same flow. Record the hardware for every case before forming a judgement.

Identify the upstream tap by its physical location, not just its label as ‘inlet.’ Identify the downstream tap in the same way, and record the other items (ports, valves, etc.) between the taps. This record is the Pressure-Drop Boundary Ledger.

Write ‘differential pressure across the filter’ only after the word ‘filter’ has a physical boundary. Otherwise, the phrase may silently combine several components and prevent a later reviewer from reproducing the measurement.

An empty-housing test can help separate hardware loss, but subtraction is defensible only when cartridge removal does not materially change the relevant flow path and both runs share the same conditions. A buyer may claim hardware loss is small; even so, the boundary must be disclosed because a single assembly value can’t prove a cartridge-only result.

What is pressure drop in a cartridge filter?

Filter cartridge pressure drop is the difference between static pressure measured at defined upstream and downstream taps while flow and fluid conditions are recorded. The result describes everything in between the taps. For the wider system boundary, see the industrial filtration process guide. Without the boundary, flow, temperature, housing, and clean or loaded state, the value cannot support a fair cartridge comparison.

Reference capsule: ISO 3968 frames differential-pressure evaluation around stated assembly parts and operating variables. See the ISO 3968 lifecycle record. A reported 0.20 bar value should therefore carry its tap boundary and test condition; the standard’s controlled hydraulic scope does not convert that example into a universal cartridge limit.

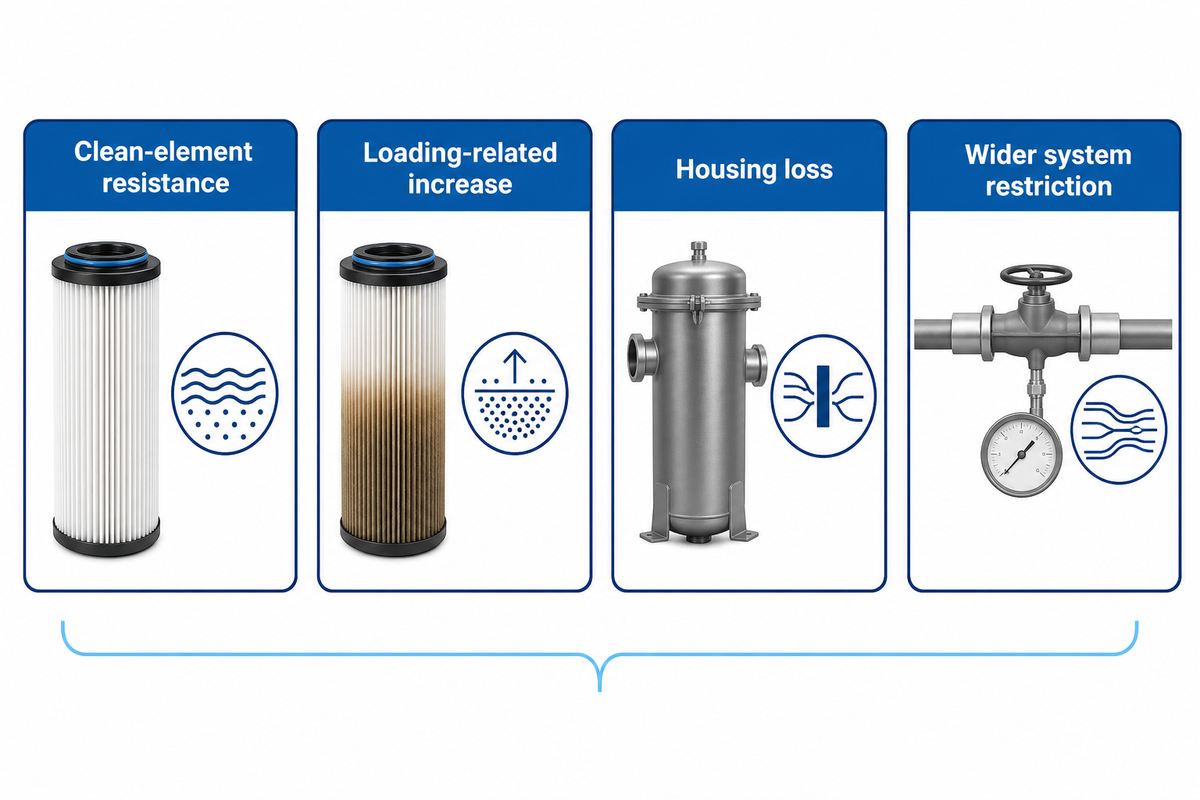

Separate Clean, Loaded, and Total-System Pressure Drop

Clean-element resistance, loading-related increase, housing loss, and wider system restriction are distinct quantities. Keep upstream and downstream pressure, differential pressure, flow, temperature, and cartridge state for each sample. A differential may represent added resistance, but it won’t indicate the location of that added resistance.

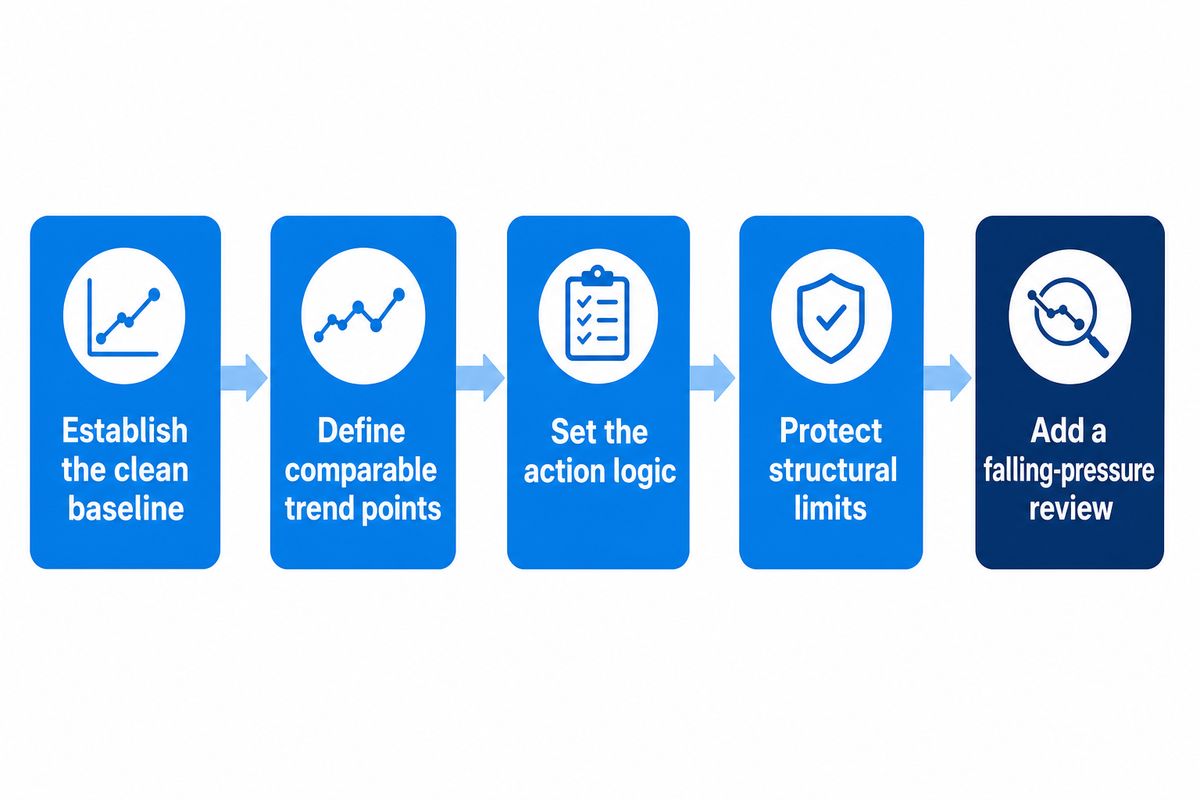

Establish a clean baseline after installation and stable operation. Trend subsequent readings against that baseline and consider processed-volume or time context. If flow or viscosity changes, flag the point rather than connecting the points with a smooth line.

Contaminant loading can raise resistance, yet one trend cannot predict filter life or service life without a defined terminal criterion. A cleaner cartridge may indicate lower loss, but the maintenance record must explain what changed.

Absolute pressure should be kept on both sides of a differential because the same differential can hide different inlet and outlet conditions. Measurement-scope reference: ISO 3968. Outlet-quality evidence would provide another independent signal if the consequence of filtration mattered.

A Water Technology example describes 90 gpm service and at least five 30-inch cartridges for the stated comparison; the useful lesson is not to reuse that capacity elsewhere, but to keep flow, cartridge size, count, and hardware configuration attached to every loss comparison.

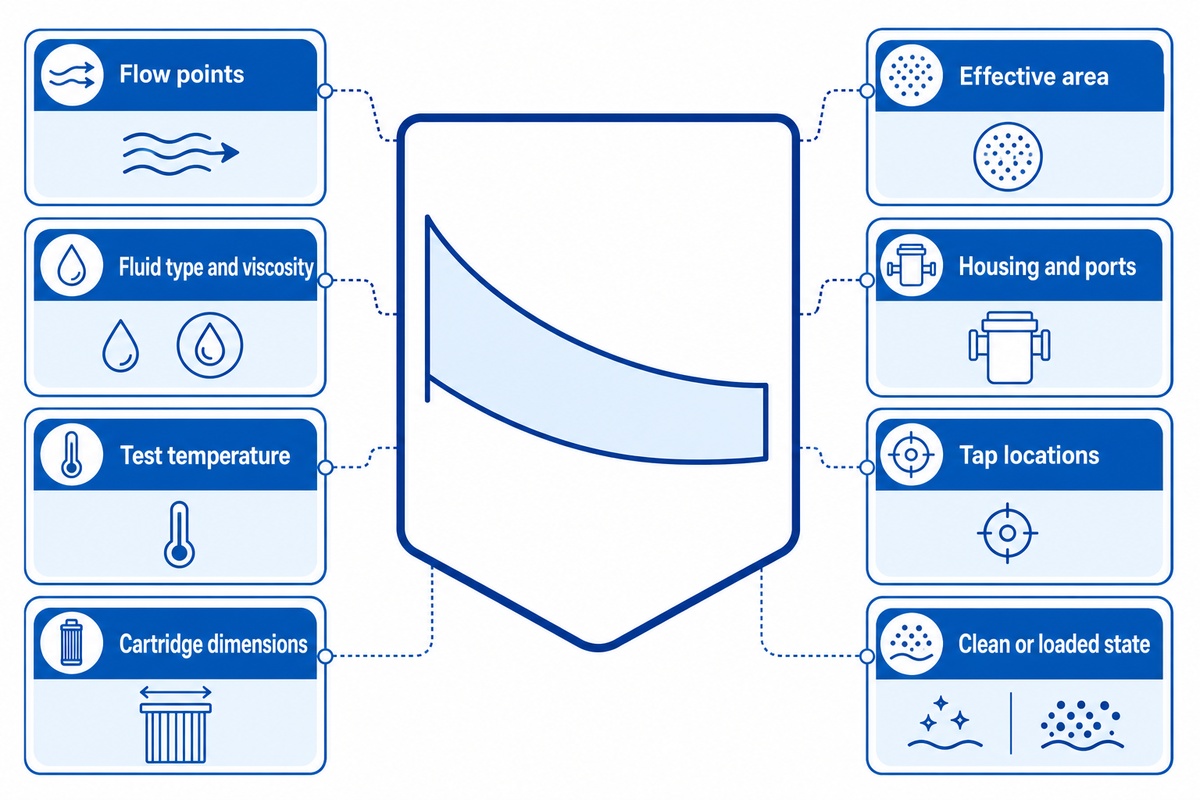

Use the Same-Basis Pressure-Drop Envelope

Two pressure-drop curves are comparable only when their basis matches, or a documented normalization method is valid. Align flow points, fluid types and viscosities, test temperatures, cartridge dimensions, effective areas, housings, ports, tap locations, conditioning states, and clean/loaded status. Rankings should be rejected when critical field data are missing.

The Same-Basis Curve Envelope gives each field one of three dispositions: match, normalize with a validated basis, or reject. Normalizing with the same nominal flow isn’t sufficient if one curve uses water at one temperature and the other doesn’t state viscosity, or if cartridge length and housing ports are different.

Some suppliers group related products as series filters. The series filter cartridges within one catalog may still have different geometry or media. Thus, a series cartridge name can’t be substituted for matched flow rates and construction fields.

Even when external conditions are equal, it can’t be assumed that pleats, spacers and/or other internal paths are fixed. Keep any normalization within its validated pressure and flow range. Prefer measured points where structural or loading behavior changes.

Can two filter pressure-drop curves be compared directly?

Only when measurement boundaries, flow points, fluid properties, temperature, cartridge geometry, housing and ports, tap locations, conditioning and loading state all match. Check measured points before fitted lines. A validated model may normalize differences, but keep extrapolation outside that range out of the ranking. In the absence of a critical field, check the test record or reject the comparison.

Reference capsule: A defensible overlay might compare measured points at 10, 20 and 30 L/min only after every basis field is checked. Peer-reviewed literature documents behavior that’s condition-dependent and model deviation, therefore a smooth normalized curve shouldn’t outrank corresponding measured points outside its validated range. Model-validation context: UWM porous-media research.

How to Calculate Pressure Drop Without Inventing a Universal Curve

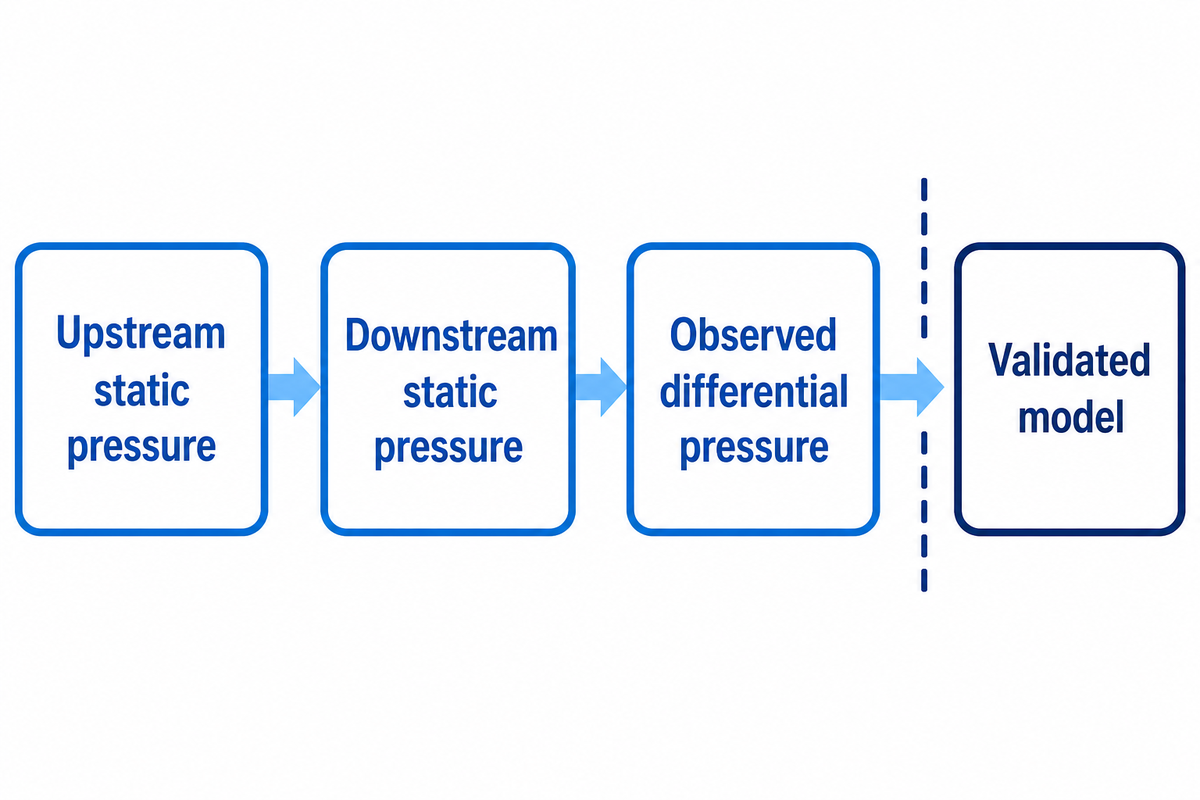

Pressure readings describe observed behavior. Calculate observed differential pressure as ΔP = upstream static pressure minus downstream static pressure, using readings from defined taps and consistent units. This calculation indicates the measured boundary. It does not predict a new cartridge curve, size a housing, or establish an acceptable operating limit.

A different question may be asked and answered using a model. The model should be validated using the geometry, permeability and fluid properties of the media and may use flow regime correlations. A model may be useful, but its equipment type, calibration data, and validation range must stay beside the output.

A claimed pressure-drop reduction should belong to the model or measured configuration that produced it. Maintain the original input record so a revised model can’t erase the basis of the comparison.

How to calculate pressure drop through a filter?

Measure pressure at stated upstream and downstream taps, subtract the downstream reading from the upstream reading, and keep the units the same. Save the two raw measurements rather than the result. Report flow, temperature, fluid type or viscosity, cartridge and housing ID, loading state, and measurement instrument accuracy. If the measurement will be compared to a curve, make sure the curve is under the same conditions and boundary. The subtraction is an observed loss, not a universal cartridge predictor.

Reference capsule: The hypothetical 3.20 bar minus 2.75 bar example yields 0.45 bar by subtraction. ISO 3968 and university porous-media research support the broader discipline: calculation boundaries, flow, viscosity, geometry, calibration, and validation matter before an observed differential becomes a comparative or predictive result. Sources: ISO 3968 and UWM porous-media research.

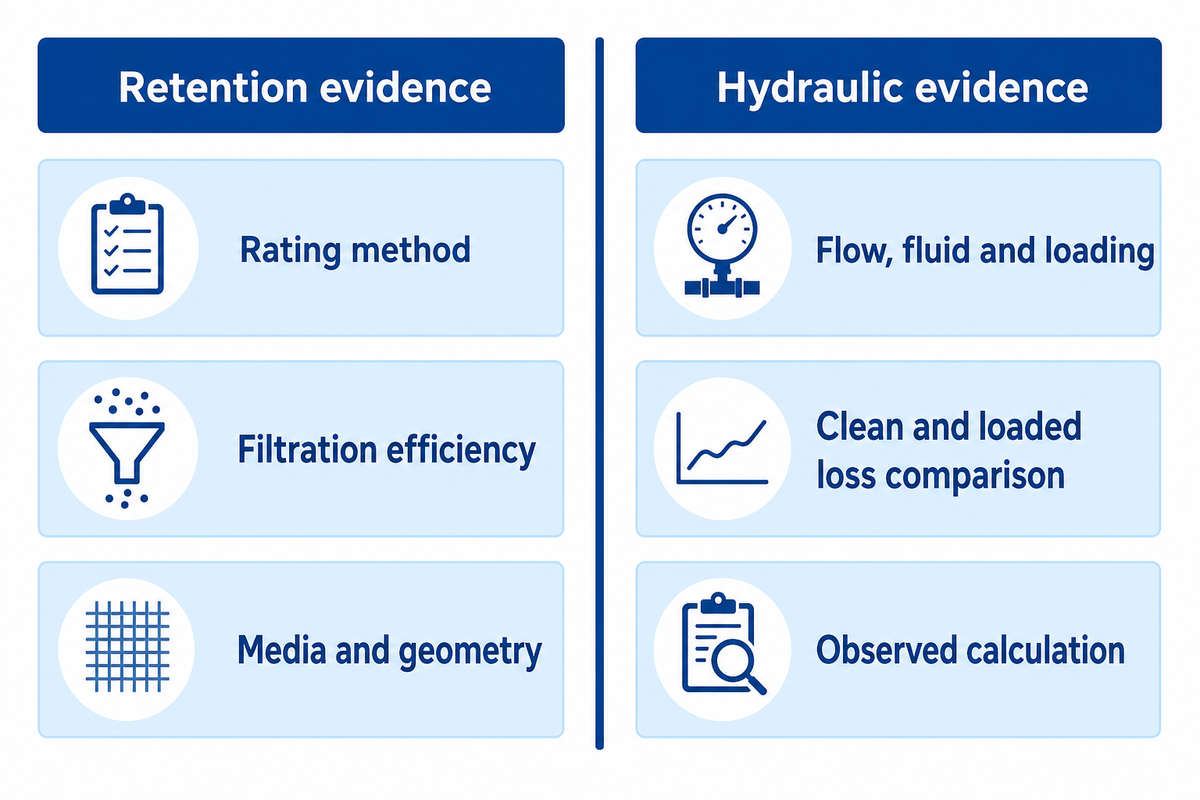

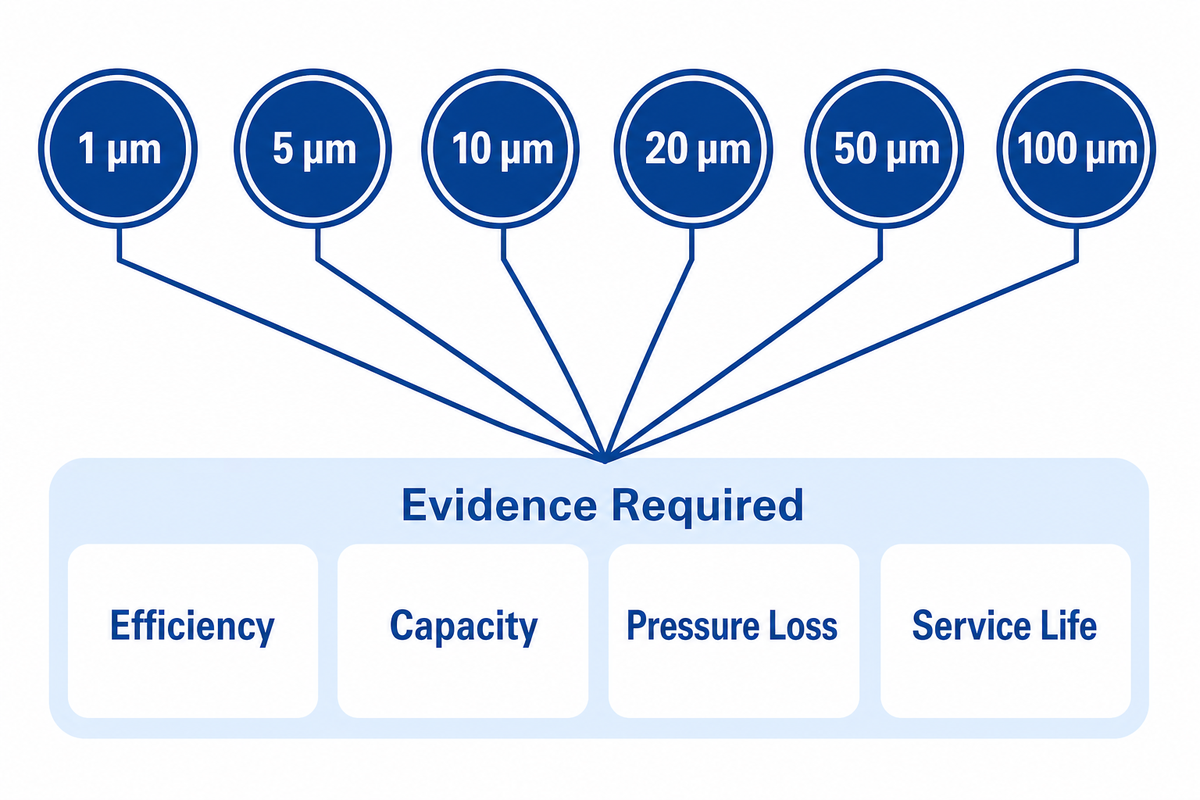

Why Micron Rating Alone Cannot Predict Pressure Drop

A micron rating claims a retention under a certain defined method; it doesn’t uniquely define hydraulic resistance. Pressure drop responds to the type and structure of the effective media, permeability, thickness, fiber or pore structure, pleat geometry, cartridge length, fluid properties, flow, and loading. Request retention and hydraulic data be given as separate records.

A lower micron label can coincide with lower pressure loss when another design offers more area or different permeability. That doesn’t mean smaller ratings reduce loss; it means that the rating number can’t carry the hydraulic comparison by itself. Rating labels from different test methods can’t be interchanged either.

For depth filtration, a polypropylene filter may use polypropylene media with a changing structure through its depth. The gradient-density melt-blown cartridge guide separates that construction claim from hydraulic proof. Depth filters, pleated filter media, and other constructions can distribute flow differently, while fibre architecture and rigid support can alter the available path. Keep visible geometry separate with the melt-blown cartridge surface-finish guide.

State filtration ratings and filtration efficiency under their test methods. The level of particle retention isn’t the same record as hydraulic loss, and removal efficiency or particle removal claims can’t replace a pressure-drop curve.

Will a 5 micron filter reduce water pressure?

Any filter adds resistance, but the field effect can’t be inferred from “5 micron” alone. Flow, effective area, media structure, cartridge length, housing ports, water temperature, and accumulated loading all matter. Compare supplier curves or measurements only when those conditions and the rating method are stated on the same basis.

Reference capsule: The 5 µm label supplies a retention scale, not a pressure-drop curve. ISO 11170 separates hydraulic, mechanical, and separation characteristics, while measured research shows resistance depends on media and operating conditions. Standard record: ISO 11170. A buyer should therefore request two evidence tracks instead of converting microns into PSI.

Set a Changeout Rule from a Baseline, Not a Borrowed PSI Number

An acceptable changeout point is a site-approved operating rule, not a universal PSI copied from another system. Tie the rule to a clean baseline, comparable flow, and temperature, outlet quality or process consequence, service constraints, and a named decision owner. Keep structural pressure limits as a separate ceiling.

1. Establish the clean baseline — save both pressures and the full operating condition after stable installation.
2. Define comparable trend points — normalize only with an approved method and mark unlike conditions.
3. Set the action logic — combine the approved differential with outlet quality, exposure, and process consequence.
4. Protect structural limits — record cartridge and housing differential limits independently of the changeout trigger.
5. Add a falling-pressure review — investigate bypass, seal, damage, flow, and sensing causes before declaring improvement.

A clean baseline doesn’t necessarily prove mechanical capacity. A cartridge structural limit, housing limit, pump capability, and approved operating trigger may come from different authorities, and must not be collapsed into one number. If one of the limits is missing, the RFQ is incomplete.

Monitoring frequency must be based on process risk and change rate. Each responsible component still needs its own limit, owner, and evidence source.

What is an acceptable pressure drop?

There’s no absolute value. The valid range depends on the system’s capacity, limits on cartridge and housing, a clean baseline, process consequence, outlet quality requirements, and approved operating method. Confirm the condition and both raw readings before applying the rule.

Reference capsule: A site may approve action at 0.80 bar above a condition-matched clean baseline, but that hypothetical trigger is not a mechanical rating. ISO 11170’s actual-service qualification boundary supports the distinction: operating criteria and structural capability need their own evidence and owners. Standard record: ISO 11170.

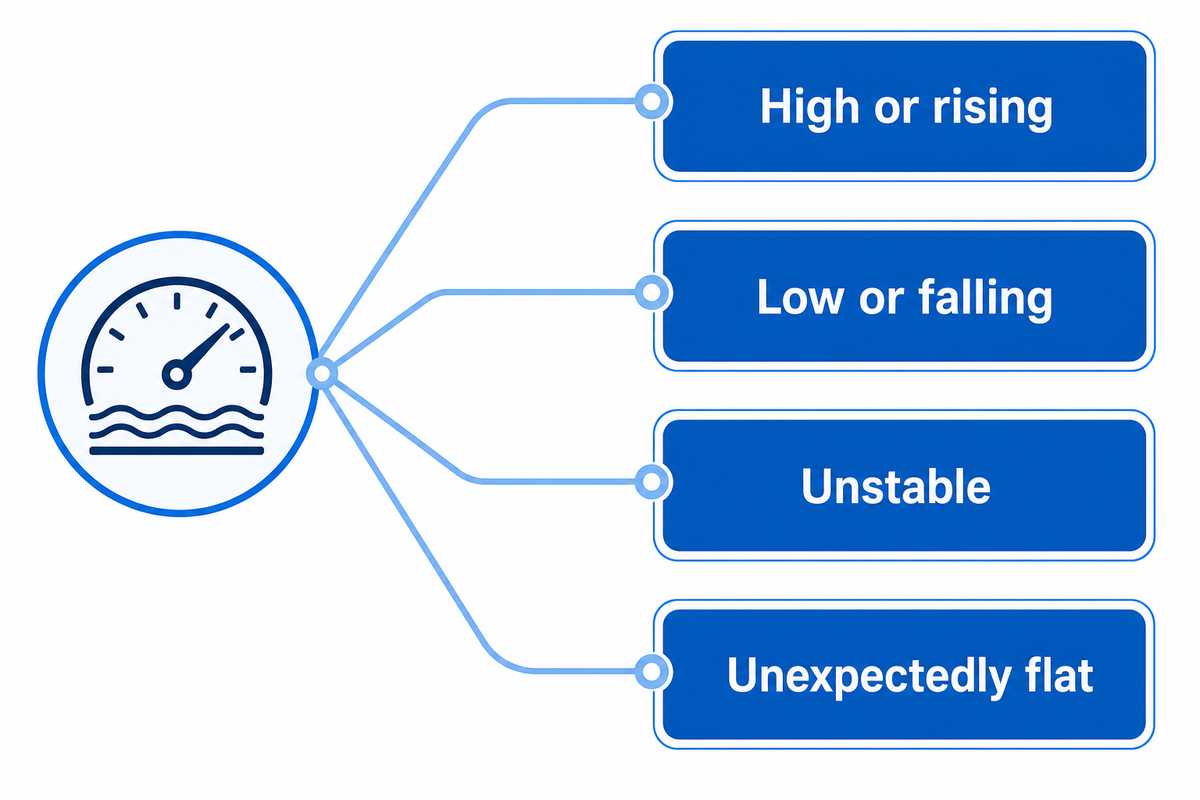

Diagnose Pressure-Drop Problems Before Replacing the Cartridge

High, low, unstable, or unexpectedly unchanged differential pressure needs a branch diagnosis before cartridge replacement. Consider flow and fluid condition, element loading or damage, seals and bypasses, and wider system restrictions. Consider maintenance history, outlet quality, and other pressure indicators.

Start with the sensing chain if a reading is physically implausible. Measurement-boundary reference: ISO 3968. If needed, examine the cartridge and seals. Low pressure drop isn’t evidence of healthy filtration.

A number of production or maintenance changes can move a signal. Consider temperature, fluid batch, cleaning, installation, and downstream restrictions. The goal is to determine the reason for an out-of-limits reading rather than to make a definite determination from one gauge.

An uneven distribution of fluid through the housing can make interpretation difficult after a change in the configuration. Consider a testable event, change in the operating condition, installation error or contamination as a branch diagnosis rather than a certain case.

Reference capsule: A 0.00 bar indication can mean no flow, an open equalizing path, reversed connections, blocked sensing lines, or a real low-loss condition. Mid-West Instrument’s scoped troubleshooting guidance supports the instrument branch; outlet-quality and inspection evidence must still test the bypass and element branches.

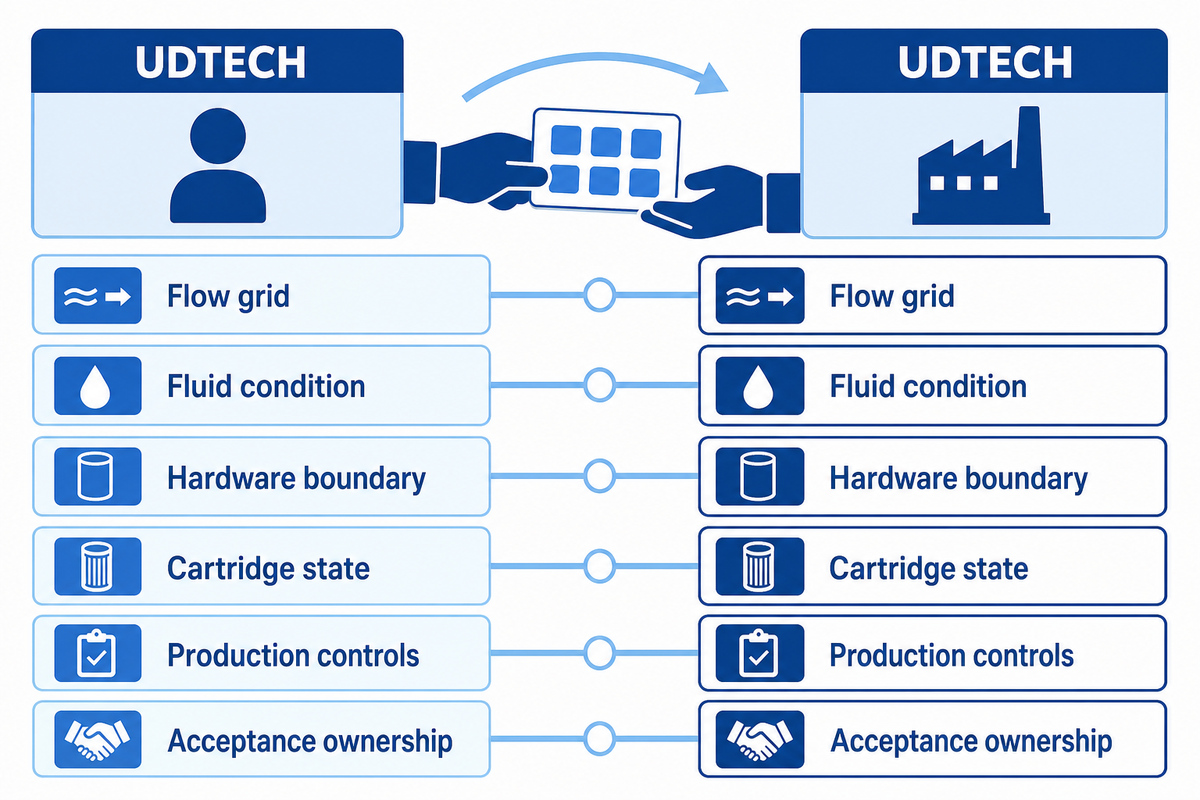

Pressure-Drop Data to Put in an RFQ

An RFQ separating cartridge hydraulic evidence from machine-process evidence, is useful. The first column describes how cartridge will be tested and accepted. The second column lists production inputs, inspection, calibration, samples and changes. An unlabeled PSI value can’t serve as an acceptance specification for either column.

Suzhou UDTECH Technology Co., Ltd. describes its scope as PP melt-blown, CTO activated-carbon, and wire-wound filter production equipment. A first-party description of a commercial scope and a first-party description of hydraulic scope differ. The filter cartridge production line solutions hub keeps the broader equipment routes separate. Freeze the cartridge evidence first, and then route equipment configuration and quotation questions to the filter cartridge production line page.

Ask who owns each acceptance item. The cartridge buyer may own the service condition and curve criteria, while the machine supplier documents controllable settings, inspection, calibration, sample identity, and change records. A machine FAT and cartridge service qualification are hand-offs, not substitutes, for each other.

Add an evidence matrix showing who will manufacture the sample, approve the method, witness the test, and close deviations. A food and beverage or drinking water project may require other evidence, in addition to pressure drop.

Reference capsule: An RFQ could request measured points at 10, 20, and 30 L/min, provided those points fit the intended duty. The numbers remain buyer-defined examples. Their value comes from attaching fluid, temperature, hardware, taps, sample identity, method, and acceptance owner. Hydraulic-test scope: ISO 3968.

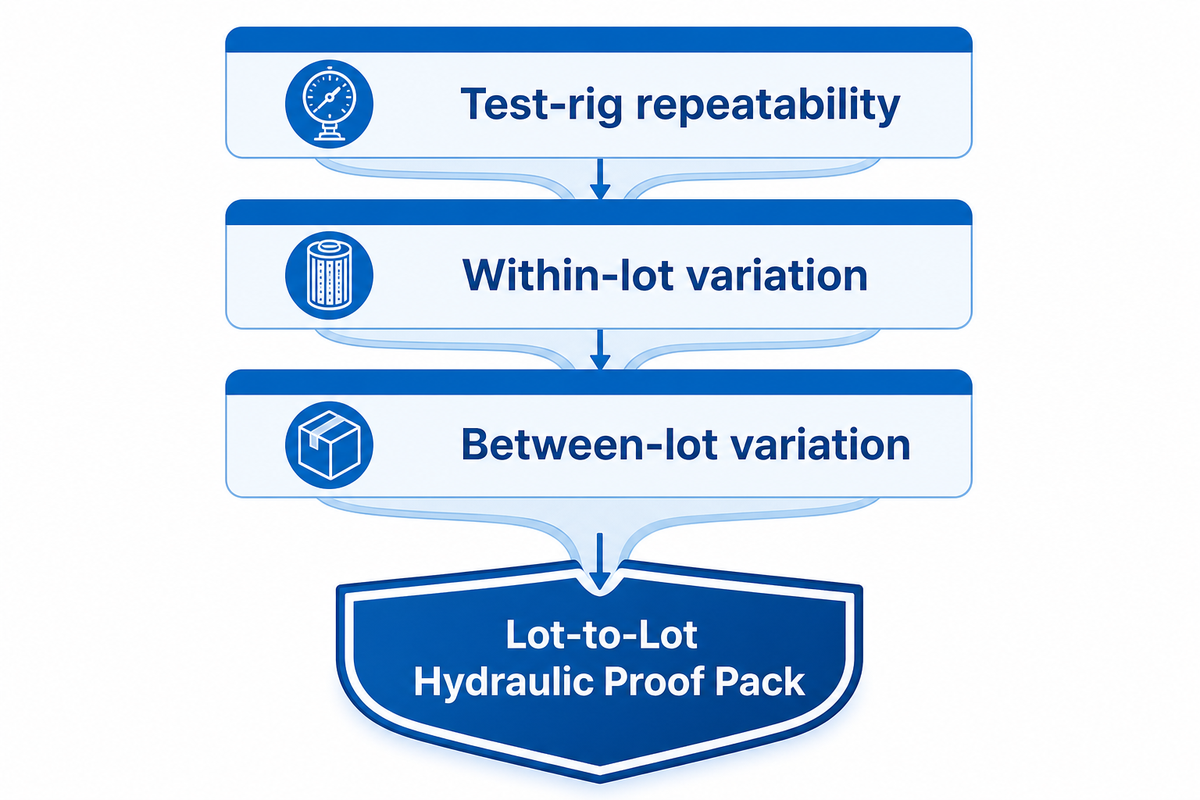

How to Prove Lot-to-Lot Repeatability

Lot repeatability means more than consistent readings on the same favored cartridge. Other sources of variation such as test-rig repeatability, variation among samples within the lot and variation among different lots should be considered. Every pressure-drop test result should be linked to the status of the instrument, sample identity, raw material lot, production conditions, deviations and sampling plan approved by the buyer.

The Lot-to-Lot Hydraulic Proof Pack should contain documentation about the method revision, diagram of the rig, raw paired readings, conditions, calibration status, sample and lot IDs, overlaid plots, production records, deviations and disposition. Leave raw data points so a reviewer can distinguish process drift from an intentional plotting or normalization choice.

Don’t implement a universal three-lot or fixed sample rule. The buyer’s process risk, governing method, expected variation, and consequence of failure should determine the design. If a supplier provides you with one golden curve, find out which population it represents, and how the sample was taken.

Reference capsule: A difference of 0.03 bar might not be significant. Interpret it in the context of test-rig variation, within- and between-lot variation, the measurement uncertainty of the instrument, and the approved acceptance criteria. It’s better to apply repeatability methodology, which has already been peer-reviewed, to separate these various components, rather than impose a completely arbitrary percentage. Method source: peer-reviewed repeatability methodology.

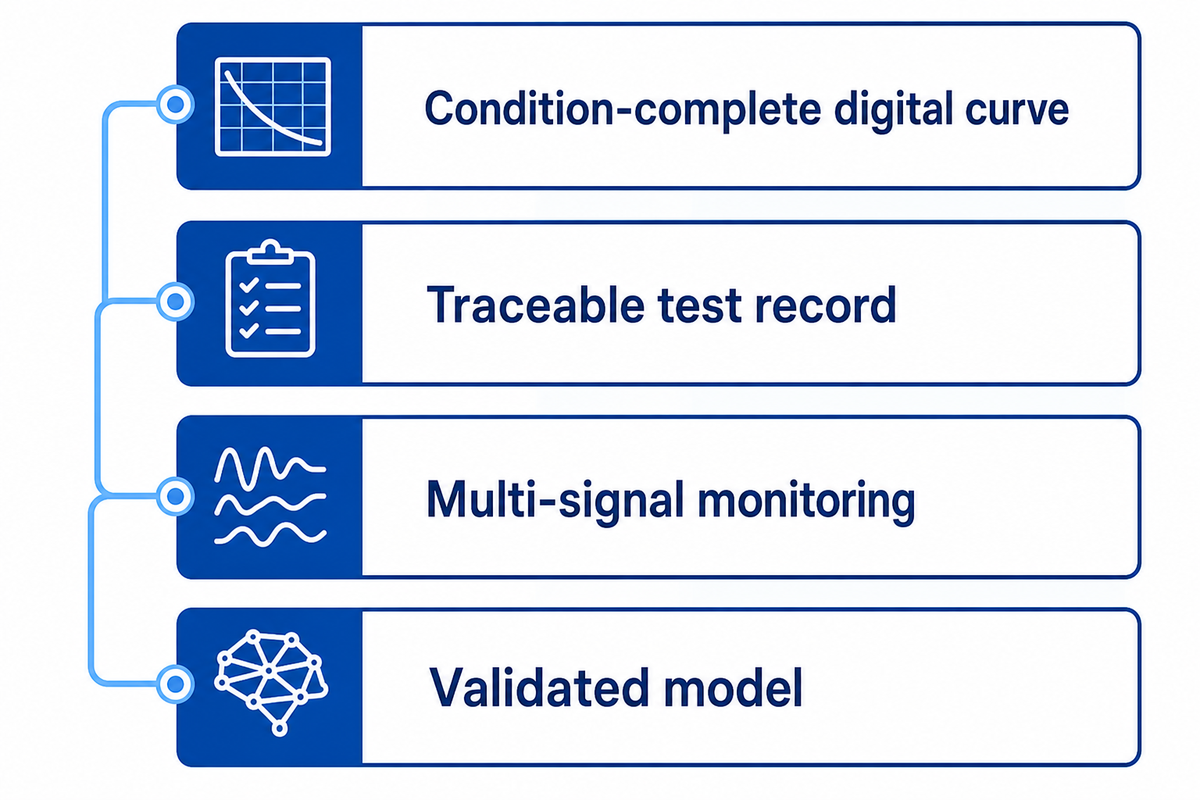

What Should Change in Pressure-Drop Procurement?

Pressure-drop procurement should favor condition-complete curves, traceable records, validated models, and multiple operating signals where they reduce uncertainty. This is a recommended evidence practice, not proof that the cartridge market has already adopted it. When evaluating a new claim by a supplier, examine the evidence it adds to a decision.

Continuous pressure and temperature monitoring across filters is disclosed in a patent filed in 1995. Current adjacent research explores integrating other process variables, including differential pressure, flow, turbidity, particle load, or equipment state, but these examples do not establish cartridge-market adoption.

Calculation interest isn’t an adoption metric. Don’t rely on search demand to prove a change in buyers. A research prototype, AI answer, patent, or forecast still needs service scope, dated validation, and a consequence tied to the intended duty.

Reference capsule: The 1995 filing is a useful corrective to “new sensor” language, while 2025 adjacent studies show scoped multi-signal modeling. Current adjacent example: 2025 IEEE record. Neither date supplies a cartridge-market adoption rate. The defensible change is to request a validated range and traceable records, and not to promise novelty.

Frequently Asked Questions

References & Sources

Updated October 2026 · Written by Cherry · Reviewed for process, safety, and evidence boundaries

Commercial boundary: This article is an operating and quality guide. For assistance with machine models, sizes, configurations, output, prices, lead times, or quotations, visit the string wound filter cartridge machine solution page. Placing buying questions on the solution page will keep this guide from becoming a competing product page.

What Can a String Wound Filter Cartridge Machine Control?

A continuous strand is wrapped around a perforated core while a guide moves axially along the core, an architecture described in historical wound-filter patent literature. The guide moves axially along the core, while rotation creates circumferential progress for each pass. The relationship of rotation and traverse determines where one pass crosses the next. The wall builds out from the core according to strand delivery and tension.

The machine has a limited job: it can perform motion, hold a configured relationship between axes, detect interruptions, and stop on a programmed condition. Depending on the design, it could store recipes, have alarms for broken strands, and control various layers. These functions relate to the machine and aren’t equivalent to a finished-cartridge performance claim.

A manufacturer of machines may term the output a PP string wound filter cartridge when polypropylene yarn is wound on the specified core. That term indicates one material route used in the liquid-filtration industry; it doesn’t replace the application-specific drawing, process record or performance test.

This three-layer boundary defines the parameters of a useful trial. An attractive photo or a repeated screenshot of a product isn’t sufficient evidence. The evidence must be relayed from a known input to a known output.

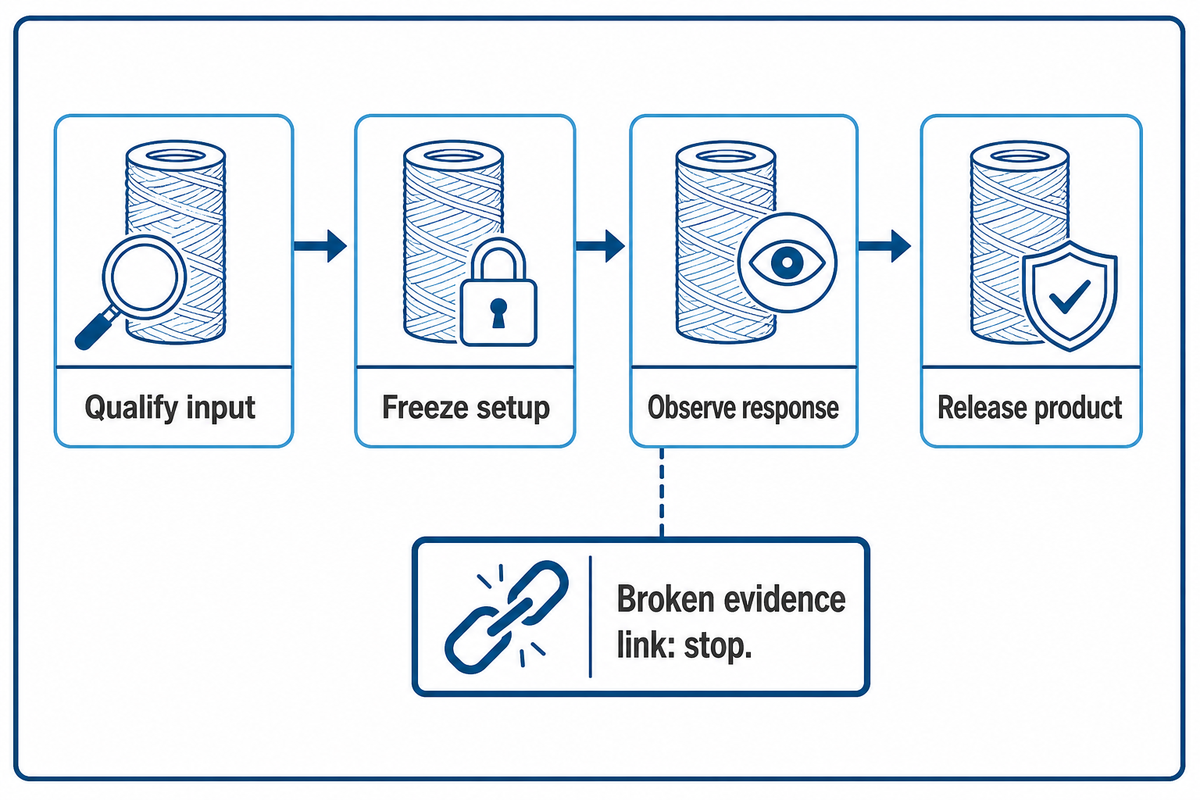

Follow the Wound-Filter Control Loop from Input to Release

The Wound-Filter Control Loop is a four-step method for keeping production evidence linked. Each step is made up of a decision, an owner, and a retained record.

The loop is intentionally more strict than “set, run, inspect”. Without the Lot Identity at Step 1, it isn’t possible to assign a good result at Step 4 to a known input. If an operator makes an undocumented correction at Step 3, the approved result doesn’t prove the frozen revision at Step 2. The practical rule is simple: Breaking the evidence link means the process stops until the reason for the break is resolved.

For the wider relationship between winding, melt-blown, and carbon-block routes, see the filter cartridge making machines guide. This article sticks to the wound route.

Freeze Inputs and Measurement Before the First Article

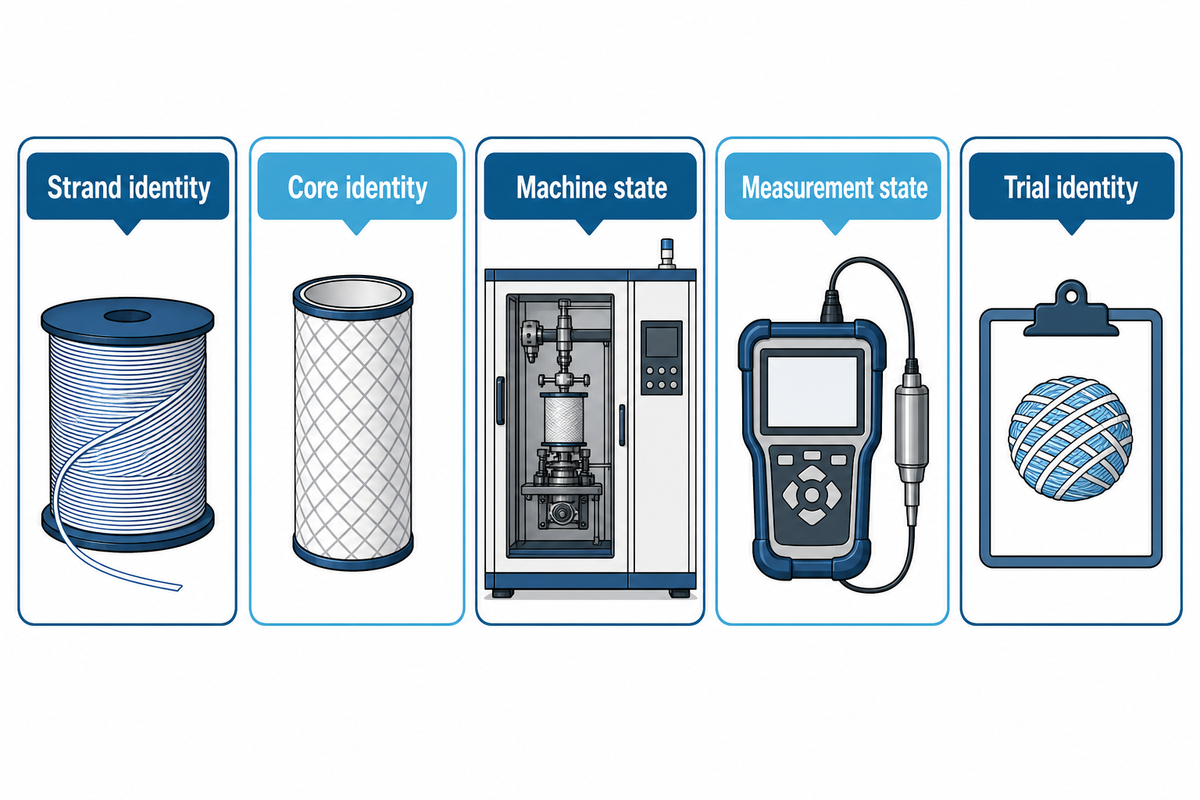

A first article is only comparable when the factory understands what was input and how it was measured. Because published winding results vary with coil angle, wind direction, porosity, surface area, and strand content, freeze the input and measurement system before touching a process setting; the open-access winding study reports those variables inside its stated materials and test conditions.

• Strand identity: Strand identity includes the condition affecting delivery, package lot code, supplier code, construction, material, and anything that may impact delivery.
• Core identity: material, drawing revision, length, diameter, perforation pattern, straightness, surface condition and lot.
• Machine state: Machine and station ID, tooling, guides, tension devices, recipe revision, and maintenance.
• Measurement state: includes instrument ID, resolution, verification state, measurement location, conditioning and operator method.
• Trial identity: Work Order, Start Time, Operator, Planned Sample Positions, Controlled Change, and Stop Rule.

The meaning of “freeze” is that the team agrees on which characteristics of the product are important, the way they’ll be checked, and the limits (or boundaries) that will trigger containment. An example of a bad measurement is: “A dimension taken at an undefined location with an unidentified tool can’t support a later comparison.”

Make one planned change at a time where possible. If changes are made to tension, traverse, speed, and material together, the next sample may look better, but the team cannot tell which change mattered. However, the team has learned very little, and little knowledge can be transferred to the next material lot. This may make isolating future deviations difficult.

Read the Diamond Pattern as a Process Signal, Not a Micron Certificate

The repeating diamond shape comes from crossing over as the strand moves in one direction and then reverses. A consistent pattern is useful. It can show whether placement is repeating and whether a change in pattern occurred. It doesn’t reflect the removal of particles.

Historical patent literature helps explain the mechanism. US 4,253,228 discusses how yarn dynamics, guide travel, traverse length, reversal behavior, and speed affect location and tension during wound-filter formation. US 4,660,779 describes changed rotation-to-traverse relationships between layers. These expired disclosures show technical approaches that have existed for decades; they don’t establish a setting for a modern production line.

US 6,942,106 is more direct about the cartridge variables in its disclosed design. It identifies the quantity wound, winding tension, lateral displacement between passes, filament diameter, and loop structure as factors in retained particle size. That list is valuable because it prevents a common mistake: treating pattern geometry as the only control.

An open access peer reviewed study on leading and lagging winds in wound filters found differences in pressure drop and nominal micron results due to changes in coil angles, wind directions, porosities, surface areas, and strand contents. The results apply to the materials and conditions of the study; they show that the variables interact and aren’t a recipe to follow.

Decision statement: A repeating diamond pattern could indicate a repeating strand placement. It doesn’t show a filter rating.

Control Traverse, Tension, and Build-Up Without Copying Setpoints

There are no universal constants for tension, spindle speed, traverse relationship and coil angle for all strands and a core. The correct window depends on the behavior of the material being used, the geometry and design of the core, the type of build desired, the behavior and response of the equipment and the finished cartridge evidence plan.

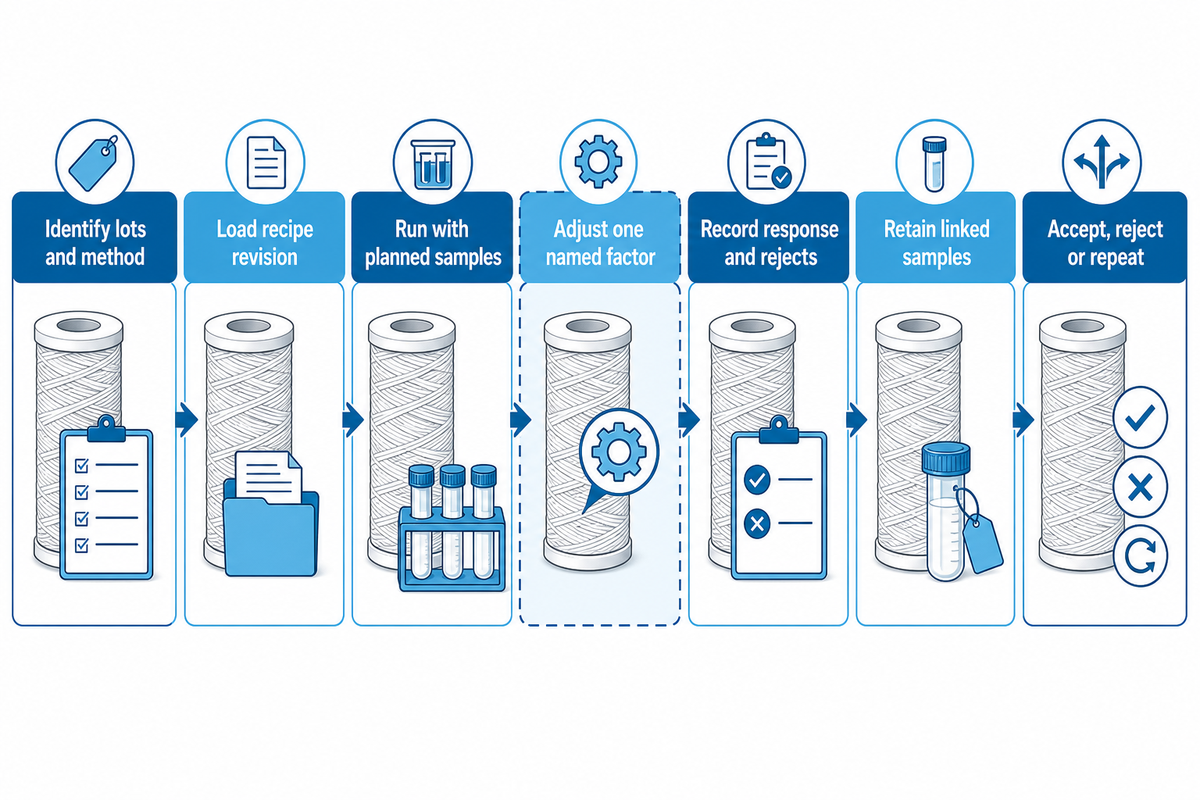

Use a controlled trial:

1. Identify the strand and core lots and confirm the pre-run measurement method.
2. Load a named recipe revision and note the initial state of the machine.
3. Run a defined quantity or time with planned samples at the beginning, middle and end.
4. If a change is required, adjust one named factor within the allowed trial window.
5. Note the observed response, dimensions, mass, or other approved construction checks, stops and rejects.
6. Retain labeled samples and associate them with the corresponding finished cartridge test.
7. Accept, reject or repeat the revision with a rationale.

If the main question is which process route or piece of equipment best relates to the product brief, use the filter cartridge equipment selection guide. A process trial begins after that route decision.

Diagnose Defects with the 9-Signal Winding Fault Matrix

A symptom isn’t a root cause. The 9-Signal Winding Fault Matrix turns each observed signal into an evidence request before a choice of correction is made.

Safety limits the diagnostic route. OSHA 1910.212 covers hazards that include ingoing nip points and rotating elements. OSHA 1910.147 addresses servicing where unexpected startup or stored-energy release could cause injury. These are US requirements; a compliance certificate is not a universal acceptance. Assess the law, risk and authorized procedures at the location.

Record measurements with units and method context rather than bare values. A record should say “63 mm,” not “63”; “248 g,” not “248”; and, where applicable, “6 N,” “480 rpm,” “30 s,” or “23 °C” instead of an unlabelled number. These examples are meant to illustrate notation only. The numbers should not be considered process setting or universal acceptance limits.

Approve First Articles and Changeovers with an Evidence Pack

A first article determines whether a named product, material set, or setup revision produces acceptable samples when used in conjunction with an appropriate measurement plan. A first article doesn’t determine whether the entire process will be stable.

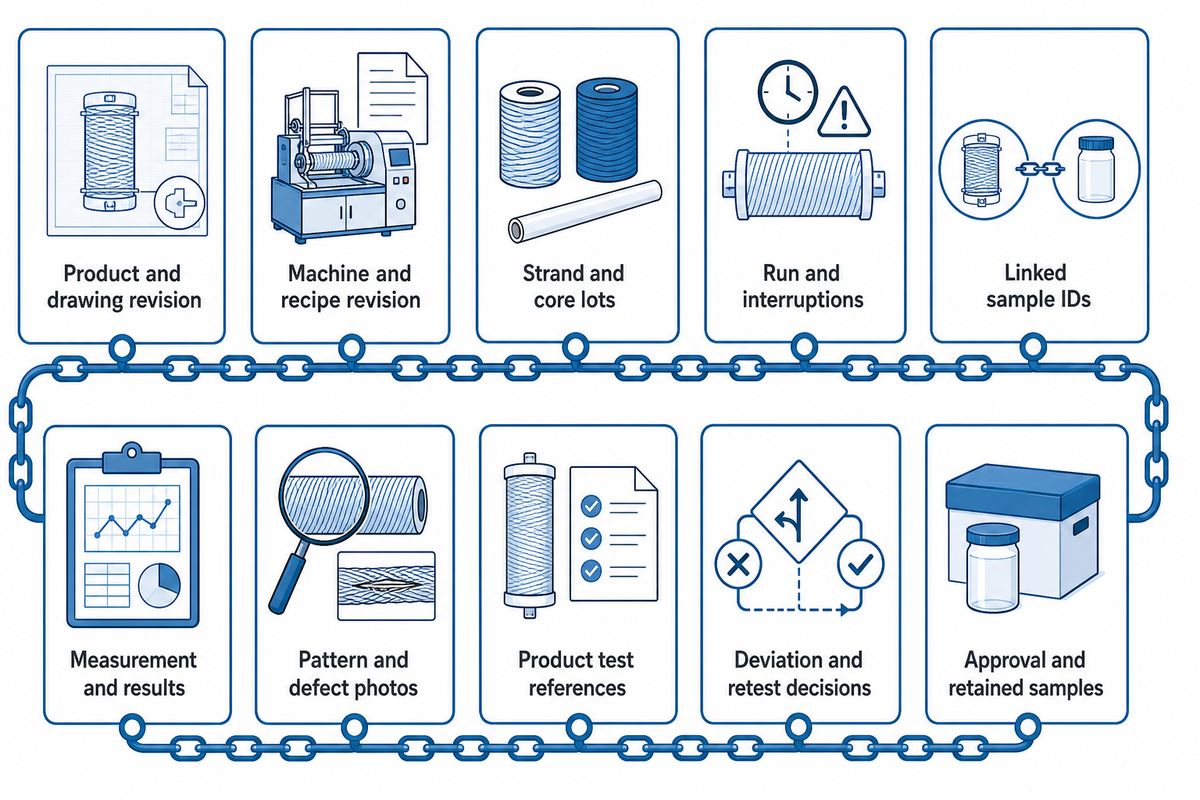

The First-Article Evidence Pack should contain:

• product code, drawing, and revision;
• machine, tooling, guide, and recipe revision;
• strand and core supplier codes and lots;
• Operator, start and stop times, planned run duration or quantity, and interruptions;
• Sample IDs associated with start, middle, end, restart, and adjusted conditions;
• measurement equipment, method, location, conditioning, limits, and results;
• pattern observations and identified defect photographs where useful;
• finished-cartridge test report references;
• deviation, containment, rework, and retest decisions;
• approvals and retained-sample location.

Determine what requires a first article. Typical triggers include a new material or core lot when risk requires it, a supplier or construction change, a recipe revision, a tooling or guide change, relevant maintenance, a long shutdown, relocation, and a product drawing revision. The actual list resides in the plant’s control plan.

Changeover evidence should also be in production planning. The filter cartridge production planning guide explains how product mix, changeover, line utilization, and accepted output connect at line level.

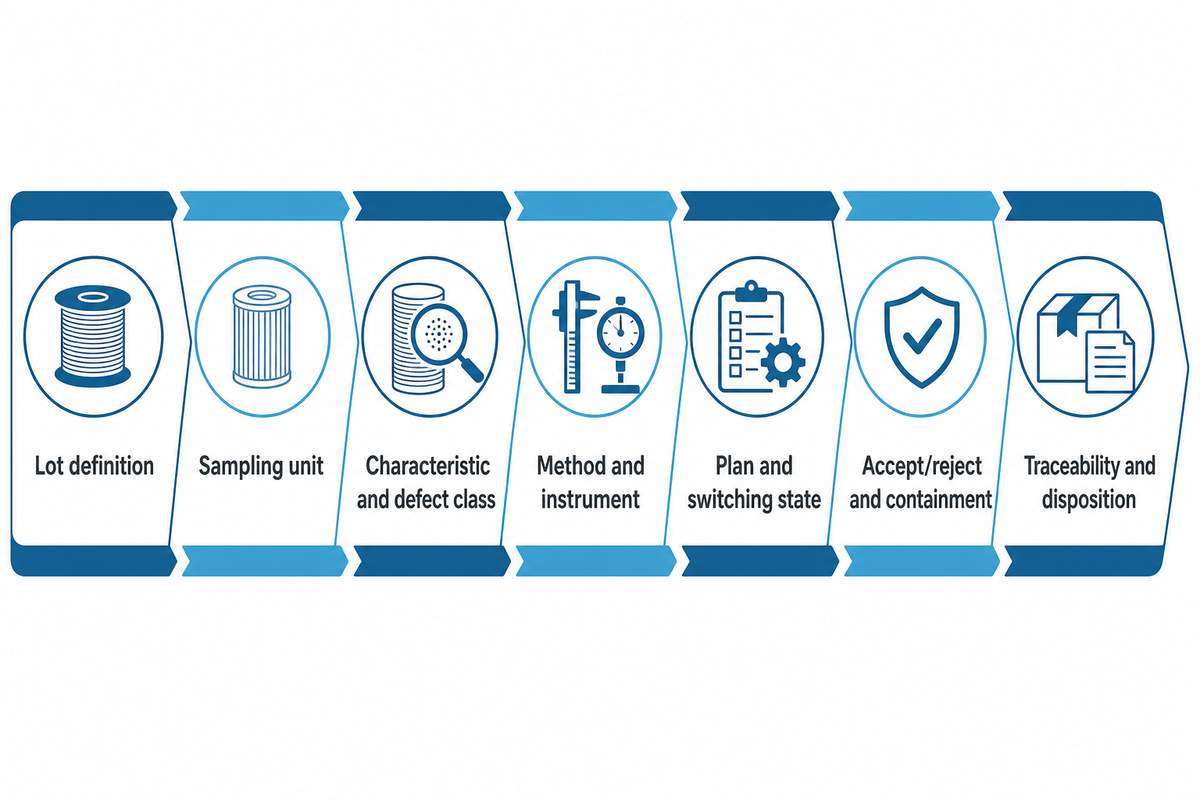

Build Sampling and Lot-Release Rules Before Production Starts

Sampling shouldn’t be “check a few pieces.” Sampling should include a definition of the lot, sampling unit, characteristic, inspection method, sample selection, acceptance and rejection rules, and sampling containment and switching rules, and define who will make the decision based on sampling results.

ISO 2859-1:2026 is the current third edition for AQL-indexed lot-by-lot inspection by attributes. The official summary describes single, double, and multiple sampling schemes as well as switching and skip-lot provisions. That scope is useful, but the standard does not choose one universal AQL, inspection level, or sample size for every wound cartridge. Those choices depend on the contract, characteristic risk, process history, and applicable requirements.

It’s improper to combine conditions that are naturally dissimilar into a single lot to simplify documentation. Segregation may be required due to a material change, unapproved adjustment, or a break in traceability. On the other hand, it’s improper to create a new lot after observing poor results in an effort to dilute a failure. Lot rules must be established prior to inspection.

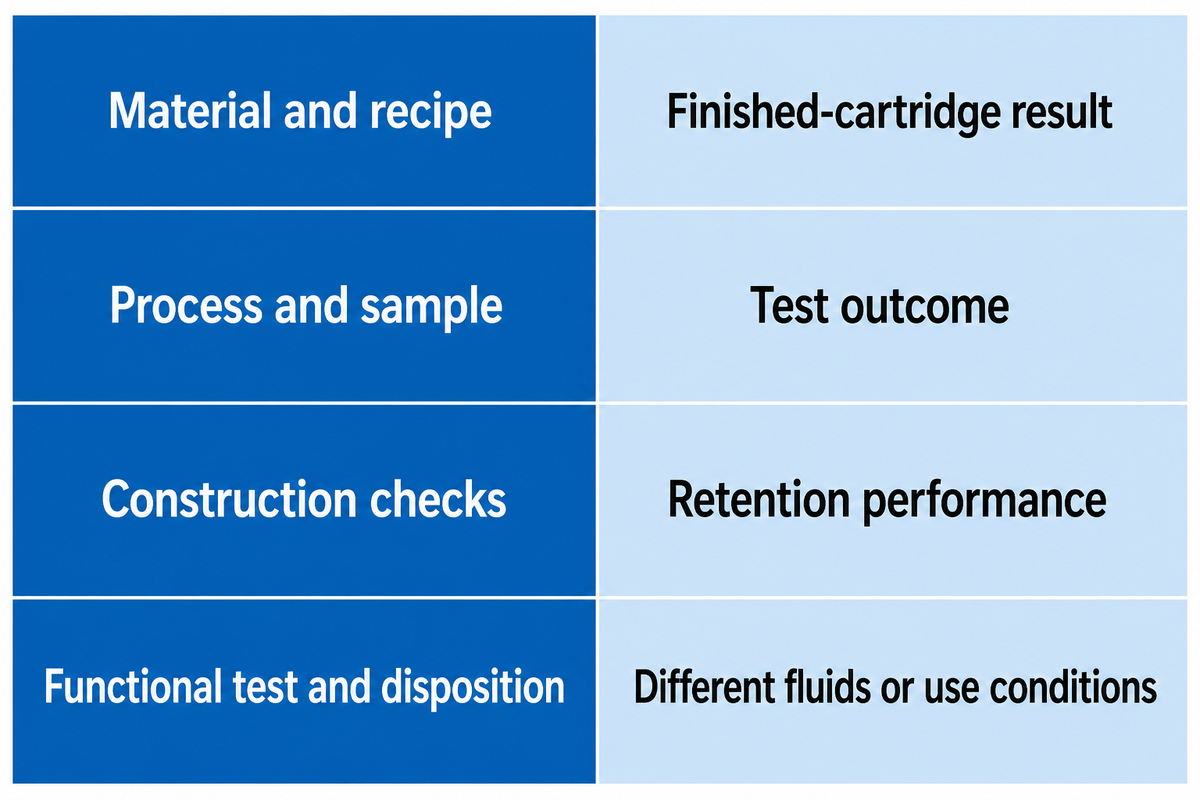

Separate Machine Acceptance from Finished-Cartridge Performance

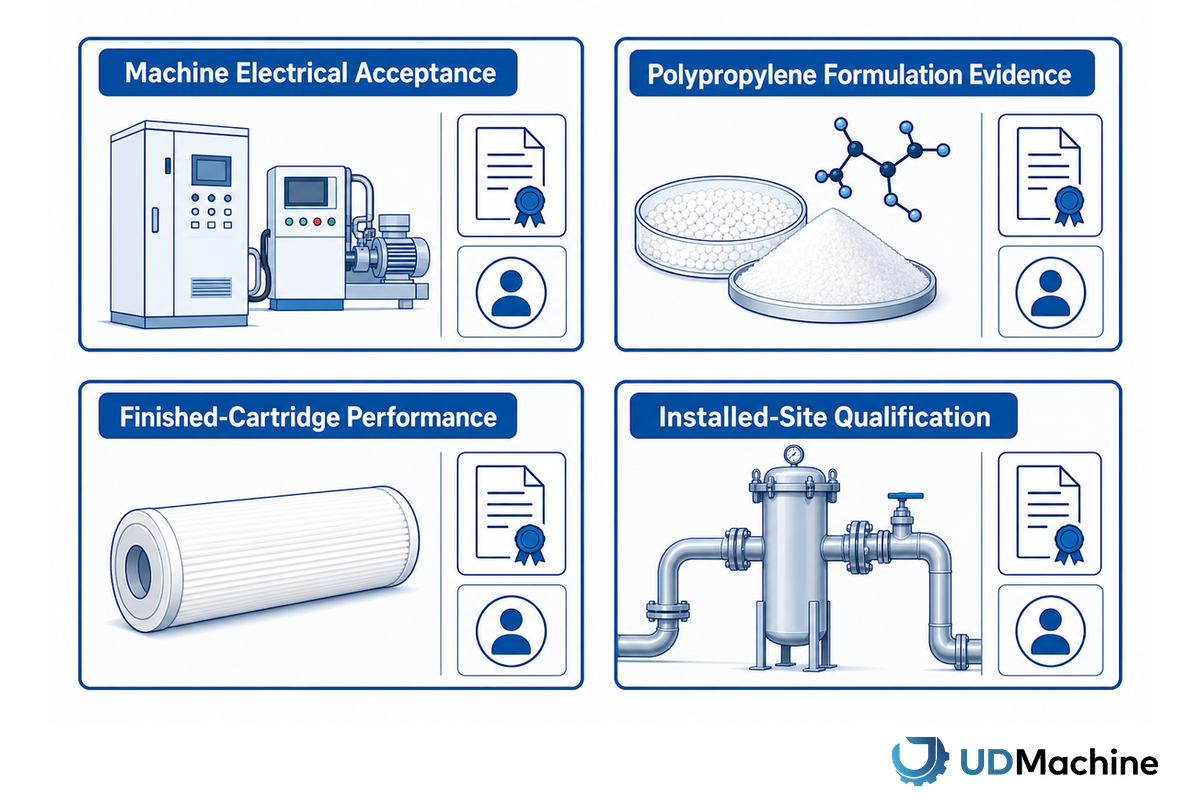

The Lot-Release Boundary Map retains evidence at the layer of creation.

Test-method names also need scope control. ISO 2942:2018 covers fabrication integrity and first bubble point for hydraulic fluid-power filter elements. Its official abstract says first bubble point is not a functional characteristic and cannot estimate filtration rating, efficiency, or retention capacity. ISO 16889:2022 is a multi-pass method for hydraulic fluid-power elements under specified contaminant, flow, and test conditions. Neither title should be used as a blanket certificate for every water-treatment cartridge.

The finished assembly may include downstream activities such as cutting, end treatment, bonding, gasketing, and/or packaging. The filter cartridge assembly process guide covers that.

What Is Changing in Winding Control in 2025–2026?

Electronic gearing, servo coordination, programmable multilayer patterns, recipe storage and event handling are becoming more commonplace in supplier web pages. Older patents cover changing rotation-to-traverse relationships and using different patterns between layers.

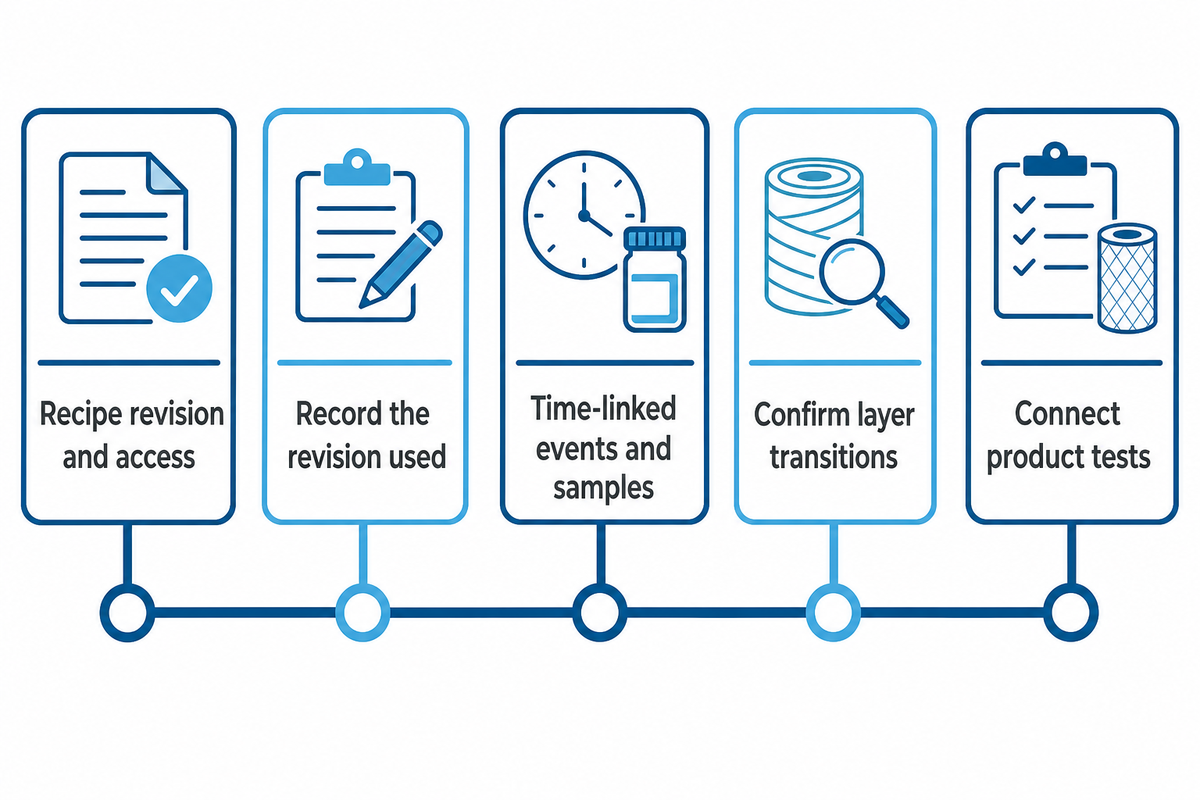

Improvements shouldn’t be judged by the labels “automation,” “smart,” or “precision.” The improvement is controlled execution, documentation, and record keeping.

• a recipe has a revision and access rule;
• the machine records which revision was used;
• alarms, stops, and adjustments are time-linked to sample positions;
• a transition layer can be confirmed rather than inferred from a final photo;
• the result is connected to finished-cartridge tests.

Demonstrate evidence for “smart,” “automatic” or “precision” claims. Evidence should include the buyer’s identified material and core, an agreed product definition and run, repeat measurements, labelled samples, and event records. Event records should include stops, adjustments, rejects, sample positions, and written dispositions for deviations. An HMI screenshot, nominal speed, recipe count, or polished sample can’t replace that packet.

For more detail, the filter cartridge production line reference breaks down production of wound, melt blown, and carbon-block filter cartridges. A melt blown filter cartridge is made from a polymer resin and extruded in a fibre-forming process. It isn’t made on a wound-cartridge machine by changing the process settings.

Frequently Asked Questions

How do you know a string wound filter cartridge machine setup is stable?

Repeating a stable process should produce consistent results, i.e. dimensions, build condition, finished-cartridge test results, and a defined run of a frozen recipe. Record process observations, adjustments, stops, rejects, sample positions, and IDs. Stability is demonstrated by an evidence trail across time. One attractive sample or screen value doesn’t show stability.

Does the winding pattern prove the cartridge micron rating?

No. The observed pattern indicates how the strand is being laid, but material construction, amount, tension, layer build, porosity, test method, and finished-cartridge geometry also affect retention. The pattern is only one factor; link observations to labelled samples and finished-cartridge results before assigning a micron rating.

What belongs in a first-article approval for a wound cartridge?

In addition to observations, document the product revision, drawing revision, machine revision, recipe revision, core lots, material lots, operator, date and time, measuring equipment, sample IDs, dimensions, patterns observed, performance test, deviations, disposition, approvers, and retained samples. State how many subsequent samples were checked before releasing production for normal operation.

What commonly causes uneven winding?

Non-uniform winding may be related to variation in tension, material delivery, core alignment or condition, traverse timing, spindle behavior, or slippage, or an unknown change may have occurred. Make a working hypothesis from those possible causes. Make sure to capture the exact status of the signal and machine, check inputs if safe to do so, and make changes one at a time in a controlled run.

Can one setup run every material and core combination?

No—the material construction, core geometry, required build, and performance target can change the process window. Approve each defined product family with a controlled changeover.

Release Evidence, Not Just a Good-Looking Pattern

Contain the lot when traceability is broken. Repeat first-article approval when a relevant machine state changes, a material or core changes, or the recipe changes. Release normal production when the named input, frozen setup, run evidence, samples, and finished product connect.

Suzhou UDTECH Technology Co., Ltd. describes its equipment and pre-shipment testing on the company page. For a project discussion, bring the product family, material and core identities, drawing revision, target evidence, changeover list, and proposed acceptance run to the commercial machine page.

Discuss Your Requirements For String Wound Cartridges

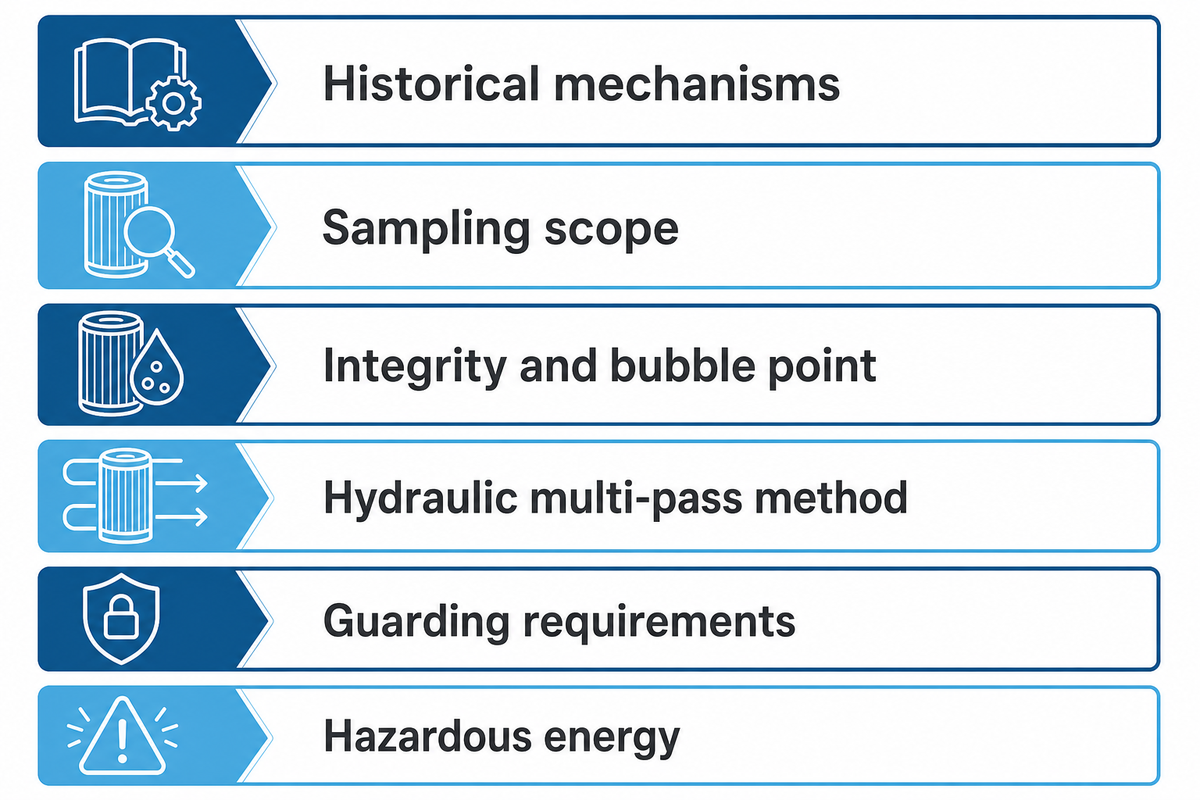

References and Sources

• US 4,253,228, apparatus and system for forming wound filters
• US 4,660,779, multilayer precision-wound filter cartridge
• US 6,942,106, wound polypropylene yarn filter cartridge
• Cleaner Engineering and Technology, Influence of leading and lagging wind
• ISO 2859-1:2026, sampling procedures for inspection by attributes
• ISO 2942:2018, filter-element fabrication integrity and first bubble point
• ISO 16889:2022, hydraulic filter-element multi-pass method
• OSHA 1910.212, general machine-guarding requirements
• OSHA 1910.147, control of hazardous energy

An industrial filtration process is a controlled sequence for identifying what is in a liquid or gas, selecting barriers that can separate it, arranging those barriers in the right order, and proving that the outlet meets a defined requirement. The process starts with the stream and the acceptance evidence—not with a cartridge, micron number, or equipment catalogue.

That sequence applies across many industrial settings, but the hardware and evidence change sharply between water, chemicals, compressed gas, dust collection, food, and sterile service. This guide keeps those boundaries visible and then shows when a defined cartridge requirement is ready to move into production-equipment planning.

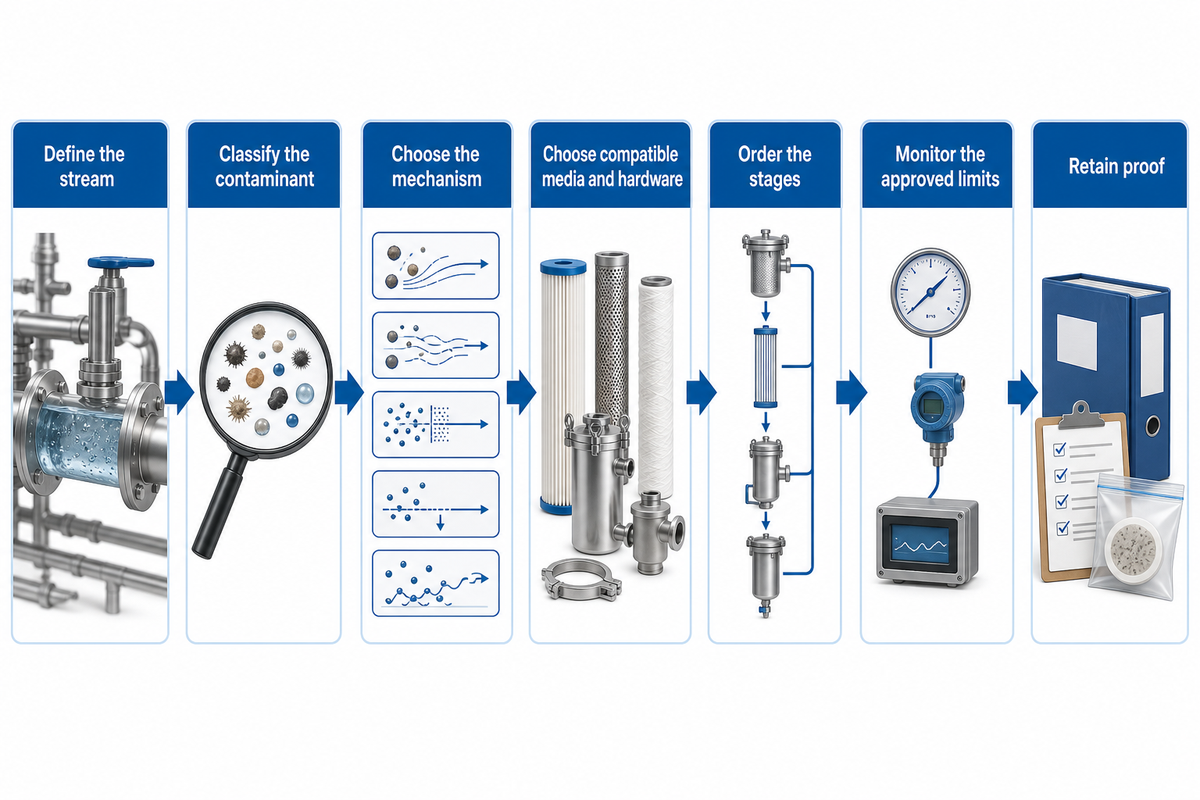

1. Map the industrial filtration process before selecting equipment

The US EPA’s Industrial Wastewater Treatment Technology Database treats treatment technologies as individual operations that can be arranged in series. That is the useful starting point: filtration is a system decision, even when one filter element becomes the visible purchase.

Write a one-line duty statement before comparing filters: “Reduce or remove [contaminant] from [stream] under [operating range] so the outlet meets [named requirement], verified by [method].” If any bracket is blank, equipment selection is premature.

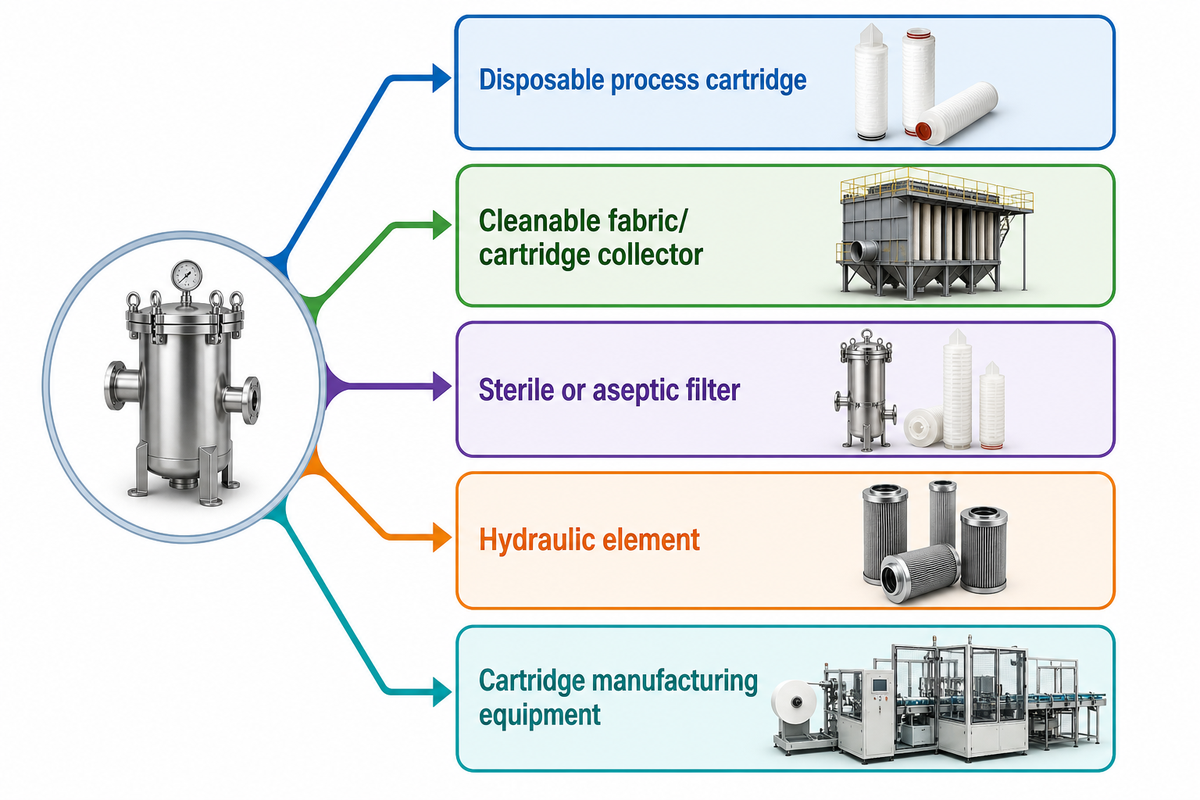

2. Separate liquid, gas, and collection duties

Liquid and gas systems both use staged protection and observe resistance to flow, but their carrier phase changes contaminant behavior, drainage, coalescence, re-entrainment, cleaning, and safety. Compressed-air coalescers, liquid depth cartridges, and pulse-cleaned dust collectors are not interchangeable simply because all contain filter media.

EPA notes that pulse-jet fabric-filter collectors usually remain online during cleaning and may be monitored through outlet particulate, leak detection, opacity, pressure differential, temperatures, gas flow, cleaning operation, and fan current. The DOE compressed-air sourcebook likewise treats pressure loss as an energy and system-performance issue, not a stand-alone proof of outlet quality.

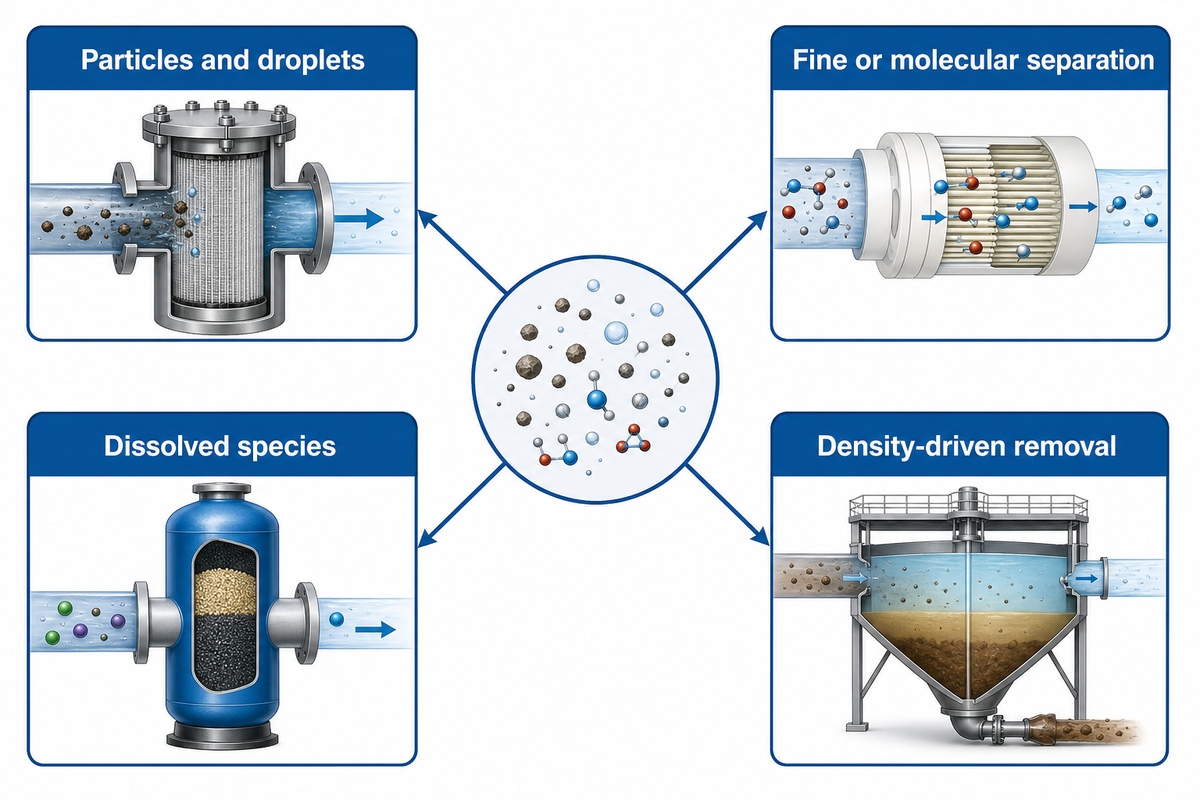

3. Match the separation mechanism to the contaminant state

Industrial filtration types are best grouped by what they separate. Mechanical barriers retain particles or droplets; membranes separate by size and transport behavior; adsorption and ion exchange address selected dissolved species; gravity and centrifugal methods exploit density differences.

What are the different types of industrial filtration?

There is no single correct count because lists mix mechanisms, equipment shapes, media, and industries. One practical classification is mechanical barrier filtration, membrane separation, adsorption or ion exchange, and gravity or centrifugal separation; a treatment train may use several at once.

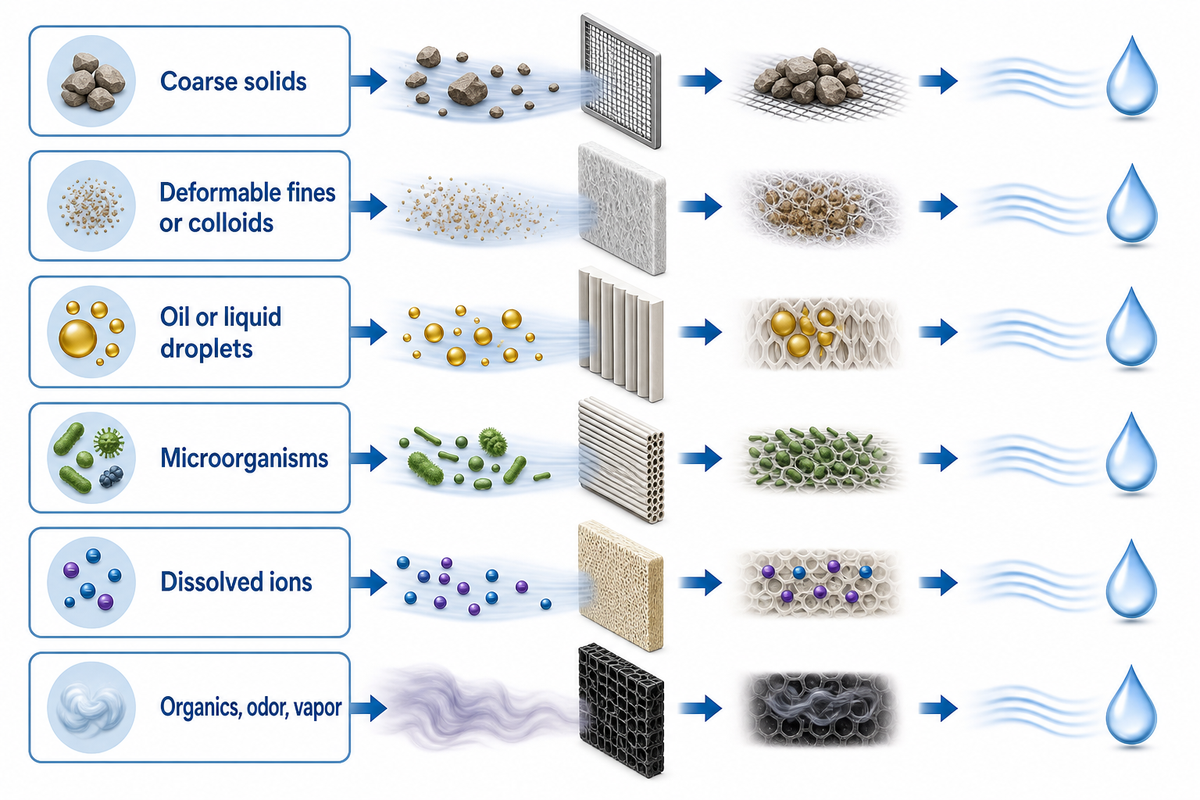

4. Use the Contaminant-to-Stage Decision Grid

The first barrier should remove the load it can handle economically while protecting the next stage. The polishing stage then addresses what remains, and its verification method must correspond to the actual outlet requirement.

Compatibility is part of selection, not a later material check. Record fluid composition, cleaning chemicals, temperature, pressure, viscosity, flow, expected loading, seals, housing materials, media chemistry, and allowable extractables before approving the filter family.

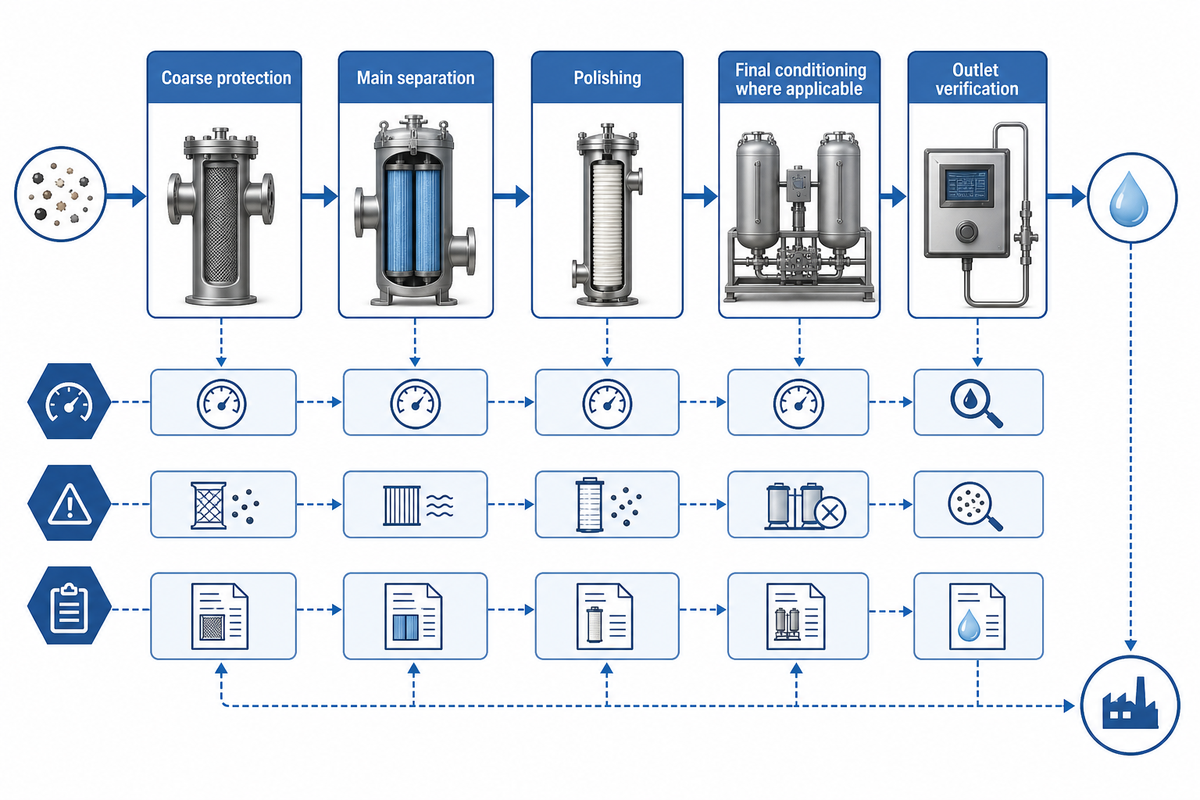

5. Build a staged treatment train

A common sequence is coarse protection, main separation, and polishing, followed by outlet verification. The point is not to maximize the number of stages; it is to keep the costliest or most sensitive stage from receiving a load it was not designed to handle.

Every arrow needs a reason: load removed, downstream risk reduced, pressure added, waste created, and measurement retained. An extra stage that has no defined contaminant or outlet contribution may only add pressure loss, maintenance, and spent media.

What is the most effective water filtration method?

There is no most-effective method independent of the feed and required outlet. Sedimentation or screening can remove large solids; depth media can handle selected particulate loads; membranes can separate finer particles or dissolved species within their stated range; activated carbon targets selected organics; ion exchange targets selected ions; and disinfection addresses microbial risk rather than suspended solids.

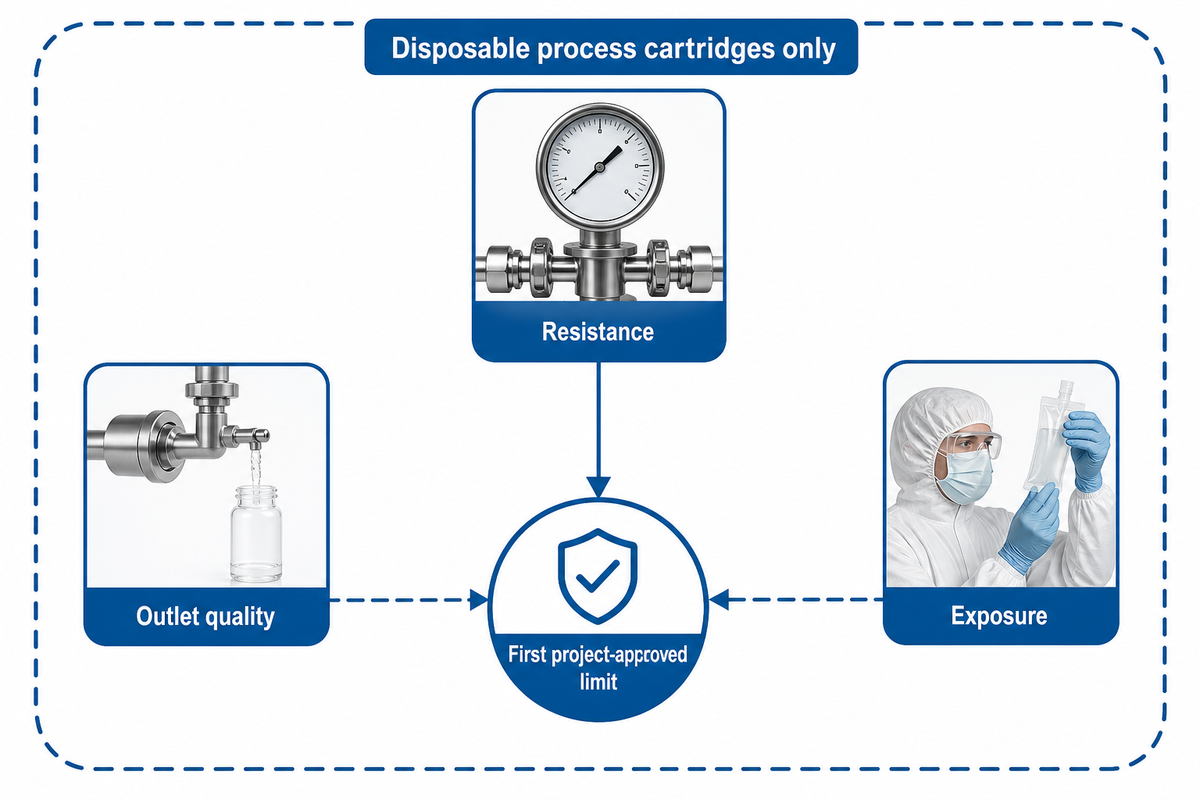

6. Monitor disposable cartridges with three approved signals

Within that narrow scope, act when the first project-approved limit is reached for pressure loss, outlet-quality deterioration, or validated time, throughput, or service exposure. The approved limit must come from the system design, product specification, validation plan, manufacturer or process authority, or applicable standard.

A peer-reviewed depth-filtration study illustrates why the signals should not be collapsed: flux, pressure, maximum throughput, and impurity breakthrough behaved as related but distinct observations under its specific conditions. Its numerical endpoint is not a universal cartridge limit.

7. Diagnose the failure pattern before replacing the system

Premature plugging, channeling or media migration, seal bypass, chemical or temperature incompatibility, and wrong stage order require different checks. A 2024 clogging review reports that pore size, particle size, and feed density can change how clogging develops, so a smaller pore is not a complete diagnosis.

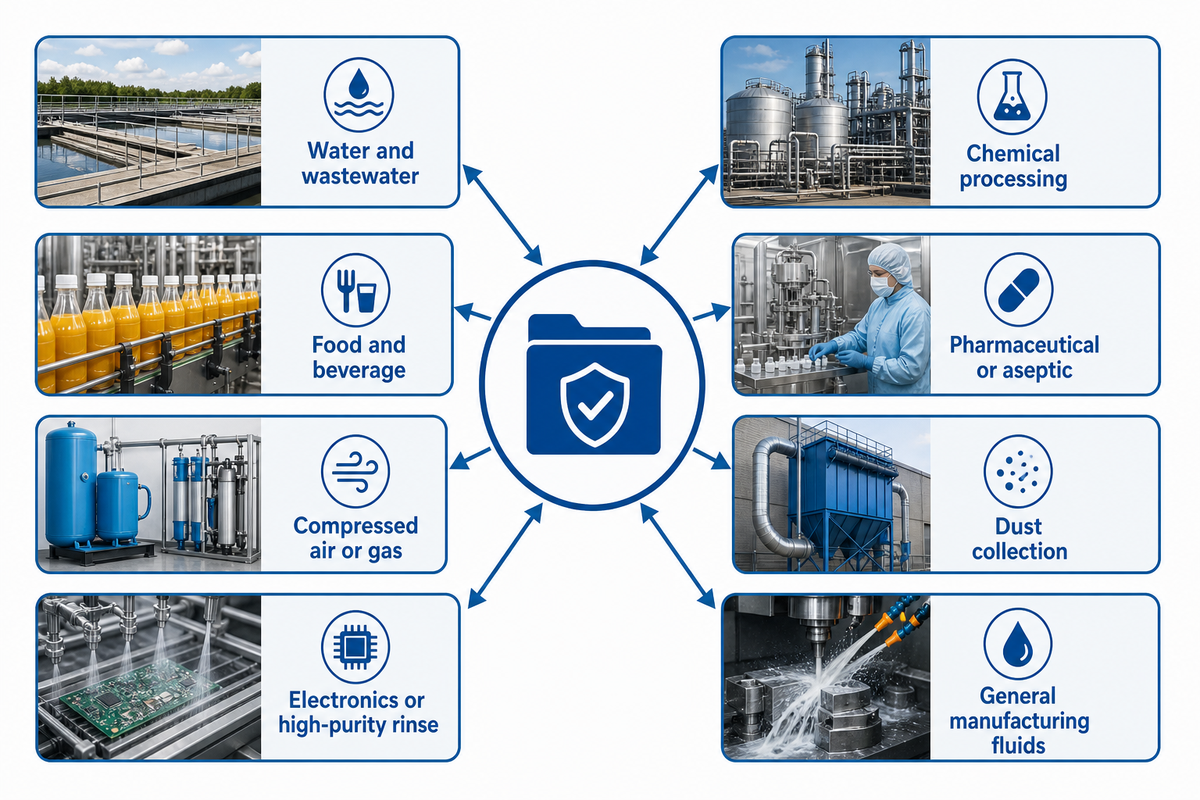

Match the evidence package to the application

The outlet can look clear and still fail a chemical, microbial, compressed-air, or regulated-use requirement. Application evidence must therefore follow the contaminant, intended use, and governing quality system.

For aseptic processing, FDA inspection guidance says filter replacement intervals and integrity-test procedures should follow the manufacturer or process authority, and loss of integrity is a process deviation. For hydraulic elements, ISO 16889:2022 has a specific multi-pass test scope; it should not be presented as a universal standard for every industrial filter.

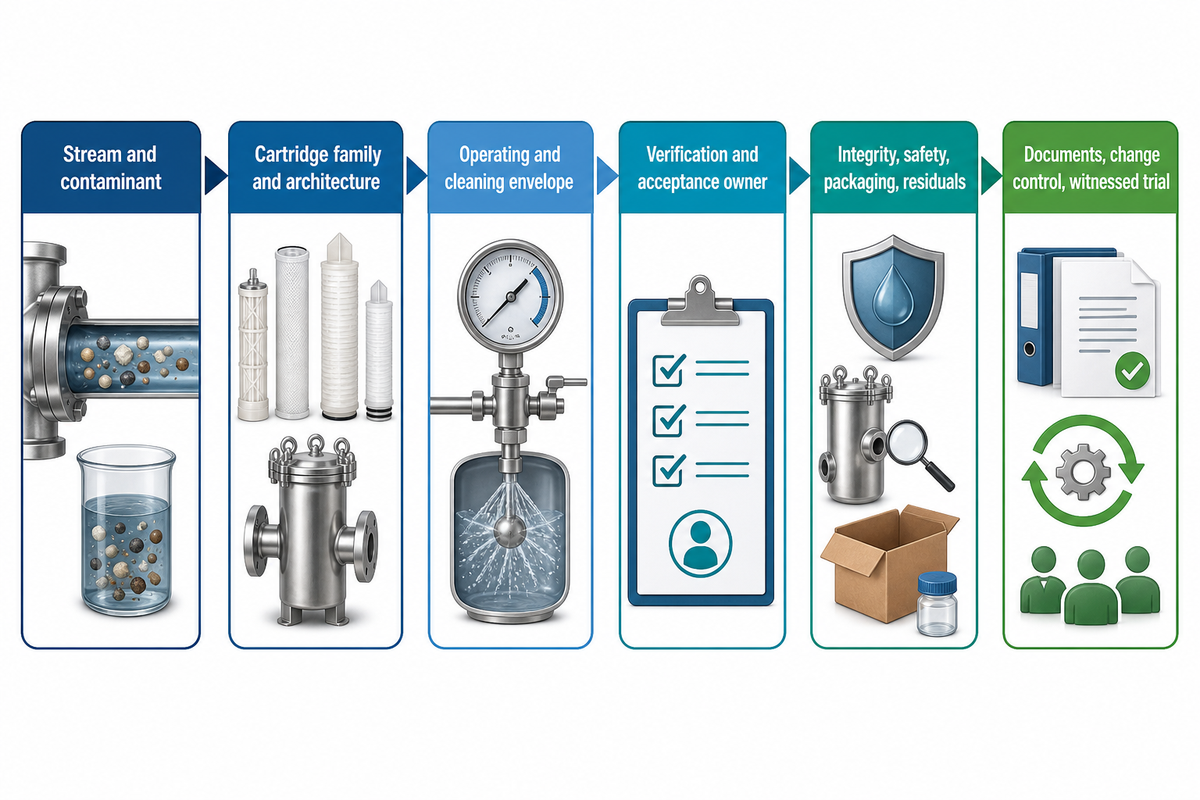

Turn process requirements into a Process-to-Production Handoff Brief

Using a cartridge and manufacturing that cartridge are different scopes. Move into production-line planning only after the cartridge family, material, geometry, operating envelope, verification method, traceability, residual route, and acceptance owner are defined.

Once that brief is approved, route line configuration to the exact filter cartridge production line page or compare broader filter cartridge production line solutions. The PP depth-cartridge project can then review the PP melt-blown filter cartridge production line in the context of the defined product—not as a substitute for process design.

For media-architecture context, see the guide to gradient-density melt-blown filter cartridges. Before ordering, use the production-line scope readiness checker, then bind the project to witnessed evidence through a PP melt-blown production-line acceptance test.

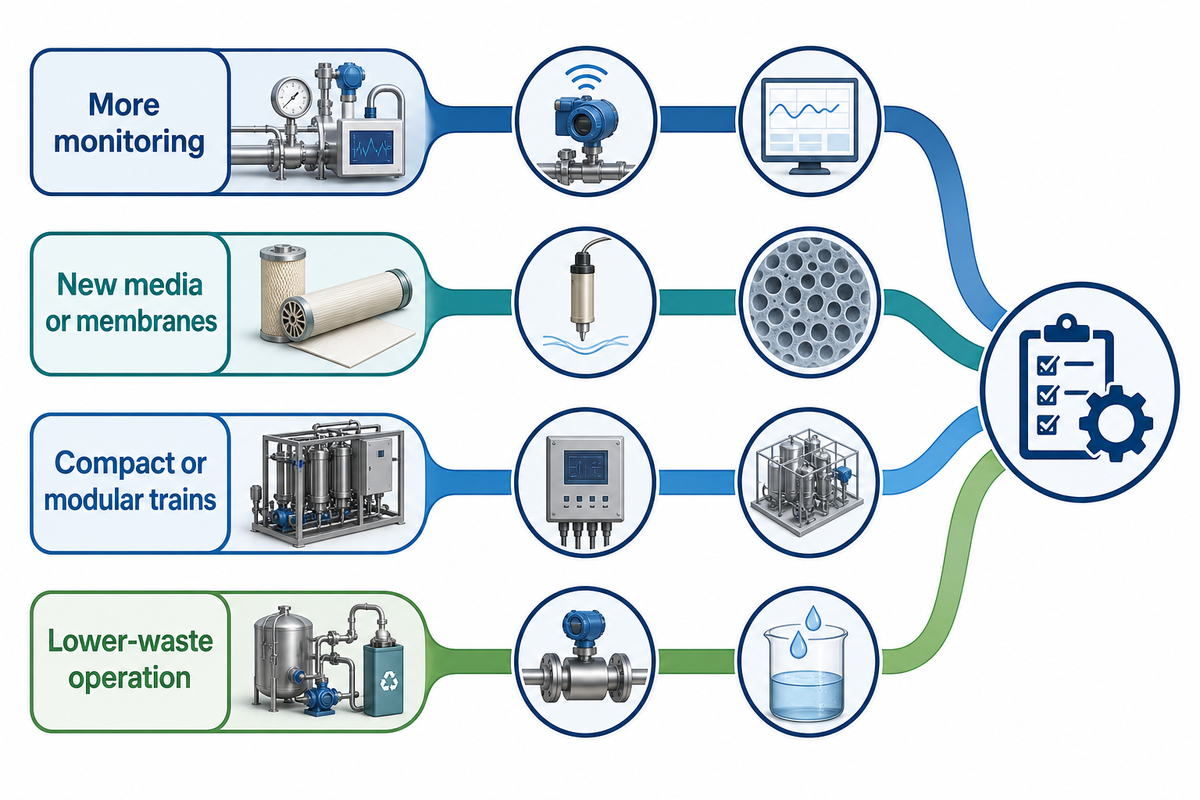

What current filtration trends change a buyer’s decision?

A trend matters only when it improves evidence quality or lowers a defined operating burden under the actual stream. Smart monitoring, new media, compact modular trains, and lower-waste operation are useful screening questions—not proof of compatibility, reliability, or lifecycle cost.

Treat market forecasts as background, and keep technology examples narrowly attributed. A promising membrane or monitoring platform can justify a trial, but only representative testing and an approved acceptance basis can justify a process change.

Frequently asked questions

References & Sources and scope notes

This article provides process-planning guidance, not a project design, validation protocol, regulatory opinion, disposal classification, or product-performance guarantee. Application-specific engineering, safety, quality, laboratory, environmental, and process-authority decisions remain with the responsible organization.

Reviewed for Suzhou UDTECH Technology Co., Ltd. by XCX.

A melt blown filter cartridge surface finish describes the visible outer form of a polypropylene cartridge. Features such as a smooth, grooved, or textured surface may be defined by this term. This definition, however, won’t describe other characteristics such as morphology, micron rating, or wettability.

Updated September 2026

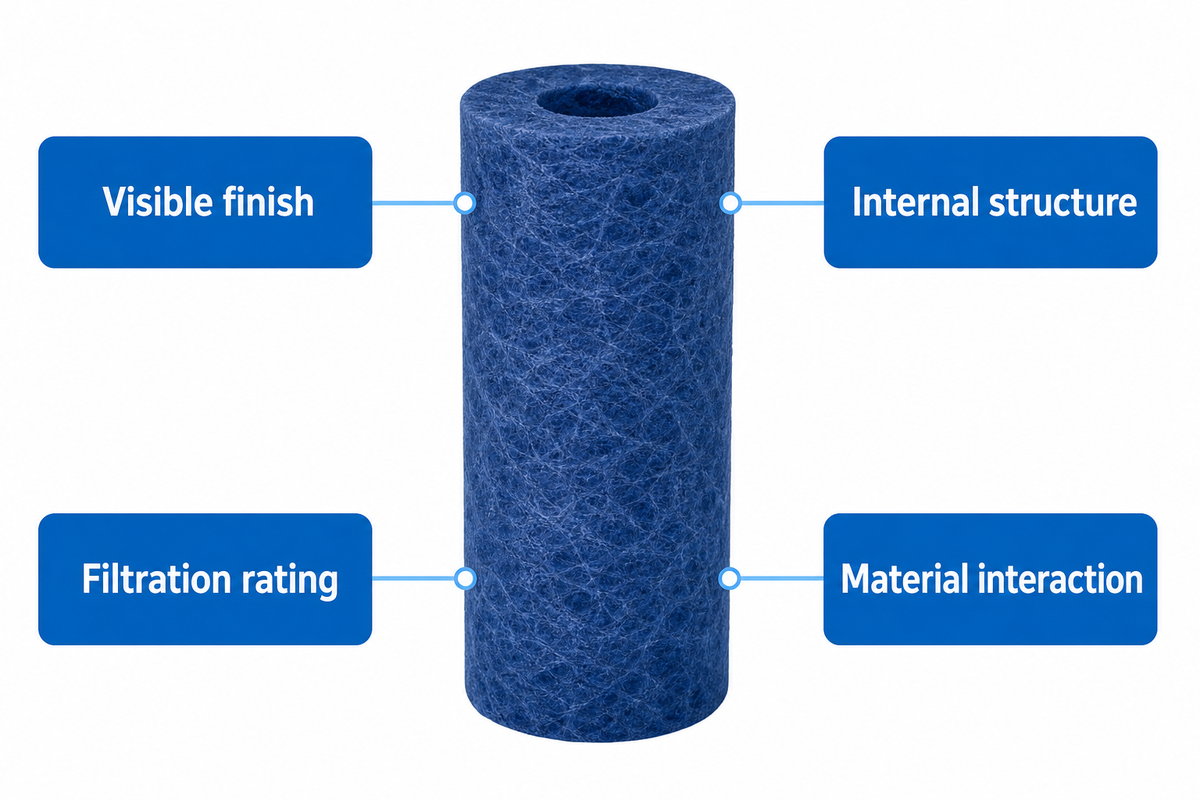

What surface finish means on a melt-blown filter cartridge

References to surface finish in this guide describe visible features of a cartridge at cartridge scale and therefore don’t define microscopic morphology, gradient structure, fine fiber formation, or graded pore structure. Features such as pore structure and wettability, however, require separate microscopic or material evidence.

The specification must include an observation scale. The name “grooved exterior” can be depicted in a drawing. “Water-wettable media” and “1 µm absolute” require evidence of the material or performance.

“may be safely used as articles or components of articles intended for use in contact with food”

The rule in question relates to qualifying certain olefin polymers, and doesn’t describe the finish of a cartridge. Other evidence may describe the finish of a cartridge; e.g. the intended use of a product.

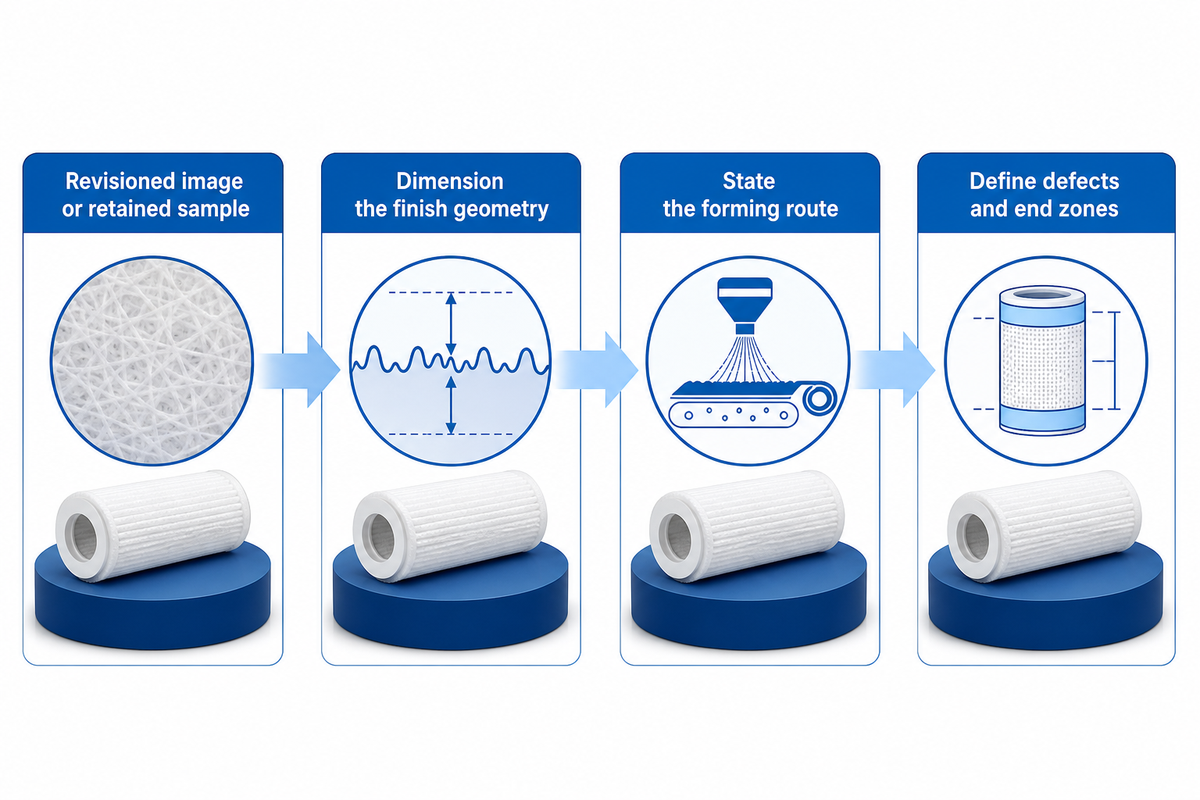

Smooth, grooved, patterned, and textured forms: build a controlled vocabulary

A term such as “smooth” may describe the finish of a product, but may also remain undefined, and therefore, will require evidence to support its meaning.

What are the functions of surface treatment for melt blown filter cartridges?

Surface modifications may enable definition of a product’s external features and/or provide a handling feature, while leaving filtration performance and high mechanical strength as separate test requirements. Beneficial effects of a surface treatment, however, remain speculative until a comparison is made to a common reference.

Why do some improved PP melt blown filter cartridges have slots?

Patterns specified in the grooves allow the definition of exposed surfaces and loading patterns. Different arrangements of tool and cutter heads in machining centers have also been disclosed. Proof of the “improved” designation is lacking because the finish may depend on the forming process, dimensions, and debris control, while performance requires a separate filtration test.

Patent EP1633456A1 discusses several groove patterns plus glaze, tear, shred, and burr concerns.

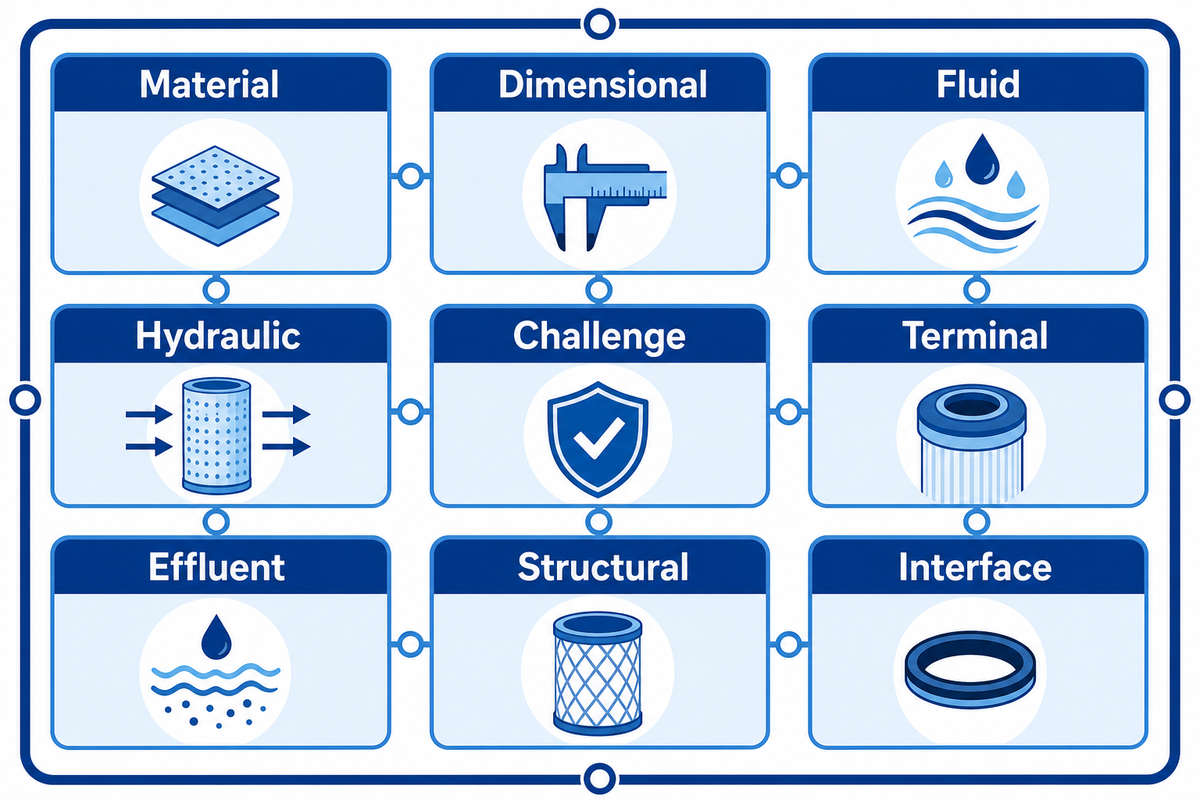

What a surface form can change, and what appearance cannot prove

Finishing may result in changes to the contact geometry or first point of intersection with the cartridge. The loading result may be assessed through released contaminants, dirt capacity, filtration performance, and differential pressure; appearance alone can’t establish surface clogging, a low pressure drop, or a low initial pressure drop.

The strongest research evidence comes from liquid depth-filtration work. In such cases, the development of pressure drop and filter life during deposit loading defines the research boundary. The peer-reviewed loading study didn’t identify an external groove, and therefore supports observing loading rather than ranking finishes.

The 10-inch supplier’s chart, which used water at ambient conditions, applies only to that case study.

How surface forming changes the production-line scope

Within melt blown technology, finishing may occur during the forming process, in a downstream forming station, or during post forming; the selected route should record polypropylene construction and spun polypropylene inputs. Quotations for melt blown polypropylene filter cartridges may not imply that all grooves serve the same purpose.

The PP melt-blown machine overview explains the basic process steps. The production-line solutions hub routes adjacent process responsibilities.

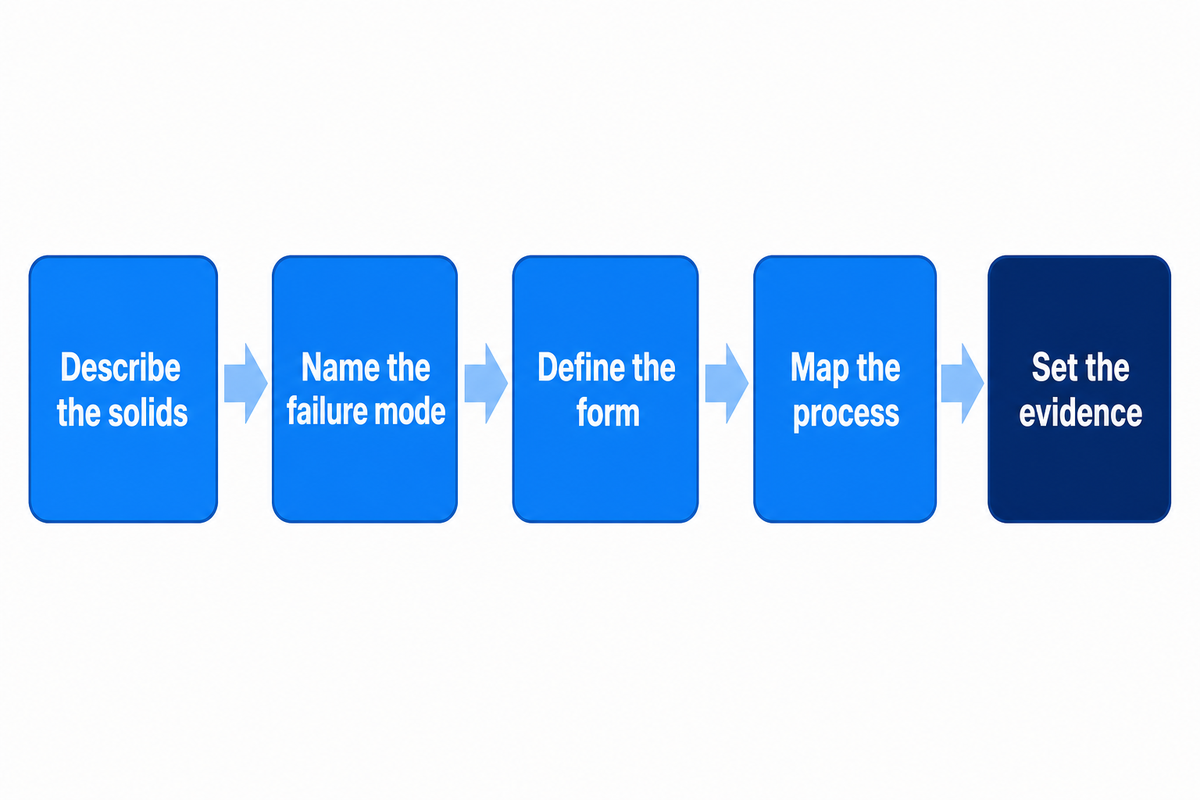

The Surface-to-Evidence Fit Check: a five-step decision framework

To assess the suitability of a special finish, ask five questions about solids, failure mode, form, process, and evidence. The EPRI pilot evaluation shows why influent, flow, pressure, effluent, sampling intervals, and stopping criteria belong on the same trial record. What’s the name and/or process description of the step in the operation that leads to the component being finished? What evidence shows that the special finish is needed? After answering these questions, decide whether to retain the component in its plain state or conduct a special-finish trial. Conduct the special-finish trial only after the supporting evidence is available.

1. Describe the solids — record particle distribution, concentration, deformability, and whether loading is surface-dominant or depth-dominant.
2. Name the failure mode — distinguish premature blinding, rising differential pressure, bypass, structural failure, shedding, or an unsupported life claim.
3. Define the form — bind the proposed finish to dimensions, a sample, affected length, and end exclusions.
4. Map the process — identify base-process settings, in-line forming, or post-forming work and their inspection points.
5. Set the evidence — choose the common-basis trial, structural check, material qualification, and release record needed for the decision.

When not to buy a special surface form

Special finishes should be deferred when the supplier can’t define the geometry, the trial changes more than one variable, the finishing route is absent from the quotation, or the buyer lacks a terminal criterion. A plain, controlled form is a better baseline than an unsupported high dirt-holding capacity label.

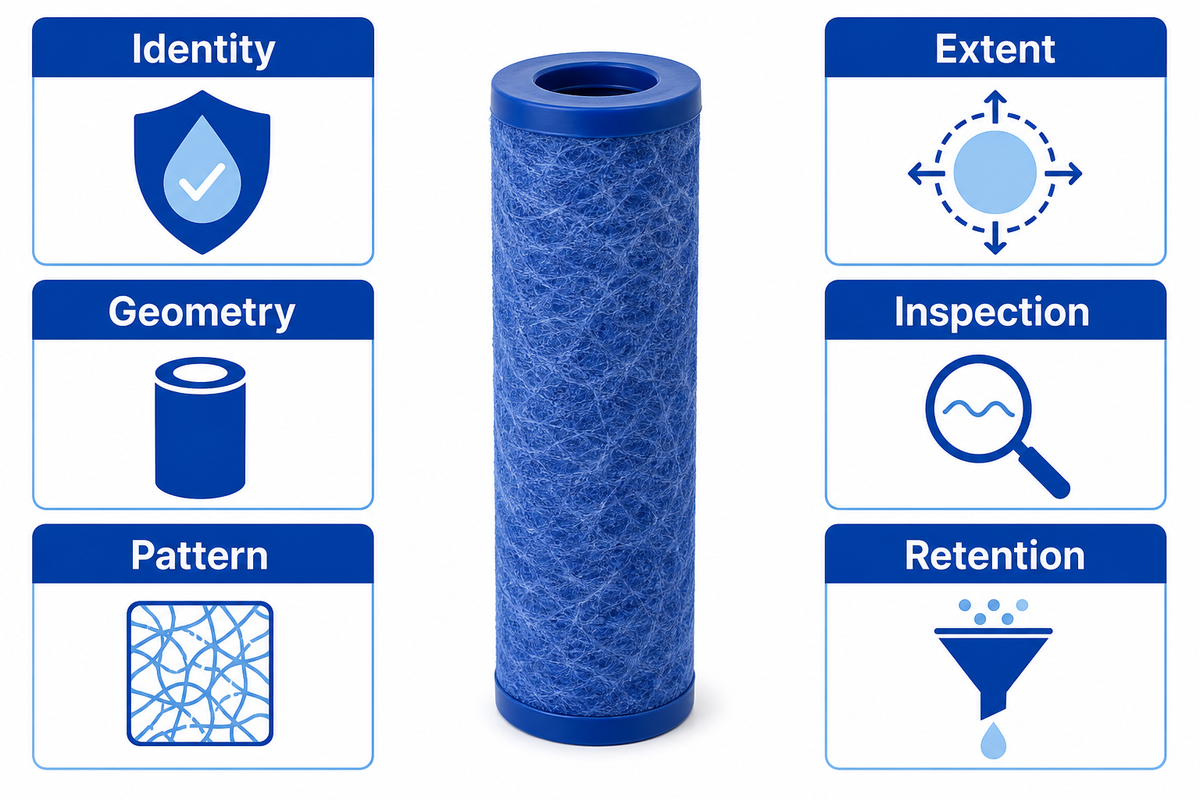

Turn an approved sample into a controlled specification

A specially finished component can’t settle a product specification dispute unless its identity, geometry, pattern, extent, inspection, and retention controls are recorded. Patent EP1633456A1 distinguishes groove patterns and surface-forming defects, supporting geometry and defect-limit controls in a retained sample.

Use project values, not generic defaults. An illustrative form might show 0.5 mm groove depth, 5 mm pitch, 250 mm affected length, 20 °C trial fluid, 10 L/min flow, a 50 kPa terminal criterion, and a 1 micron or 50 micron sediment filter target within a 1–100 micron range; every value must be replaced by the buyer’s approved basis.

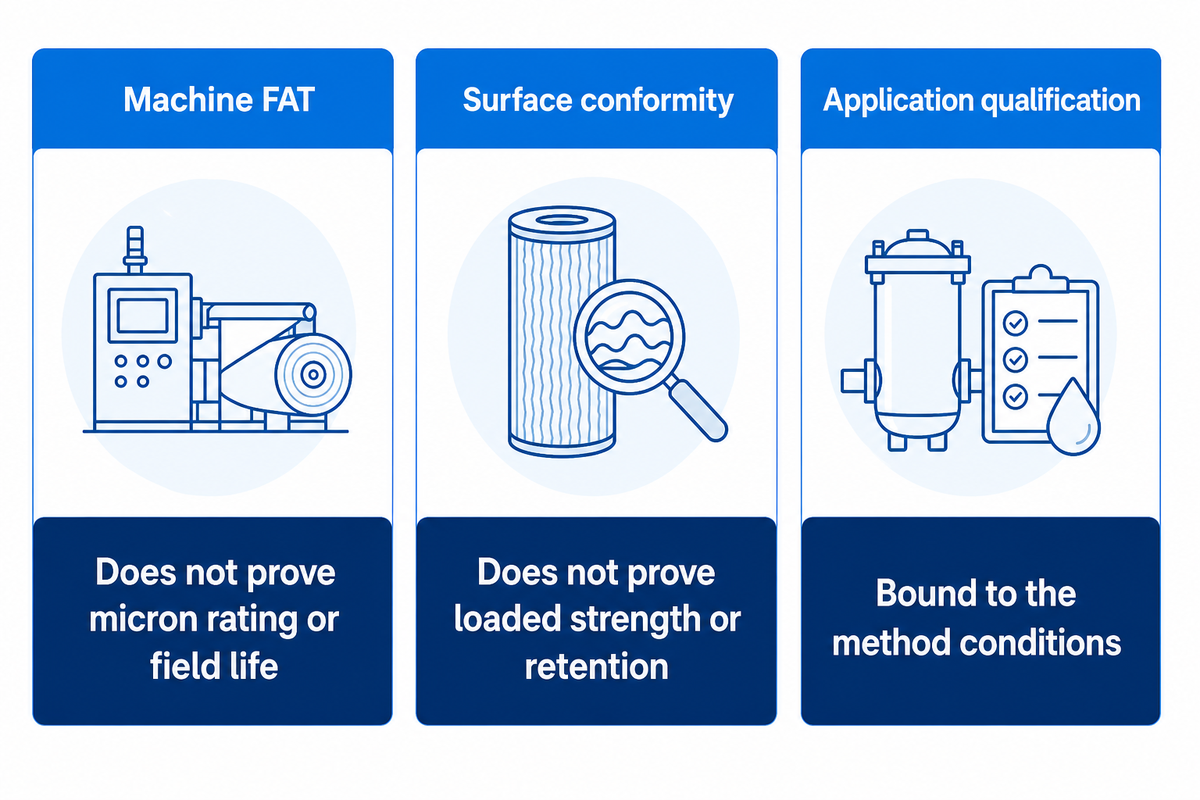

Inspection and acceptance: visual, dimensional, structural, and functional evidence

Acceptance asks four questions: did the machine create the agreed form, does the cartridge match the sample or drawing, does the loaded element retain its required strength, and does the finished cartridge satisfy the buyer’s filtration requirement? All four questions must be answered before the test can be accepted.

The EPRI pilot test recorded influent conditions, particle counts, flow, pressure or headloss, sampling intervals, effluent data, and stopping criteria. A “same micron” condition doesn’t imply that all other conditions are also the same.

Membrane or hydraulic fluid tests won’t be adequate to assess a cartridge if their conditions don’t match the process-liquid cartridge.

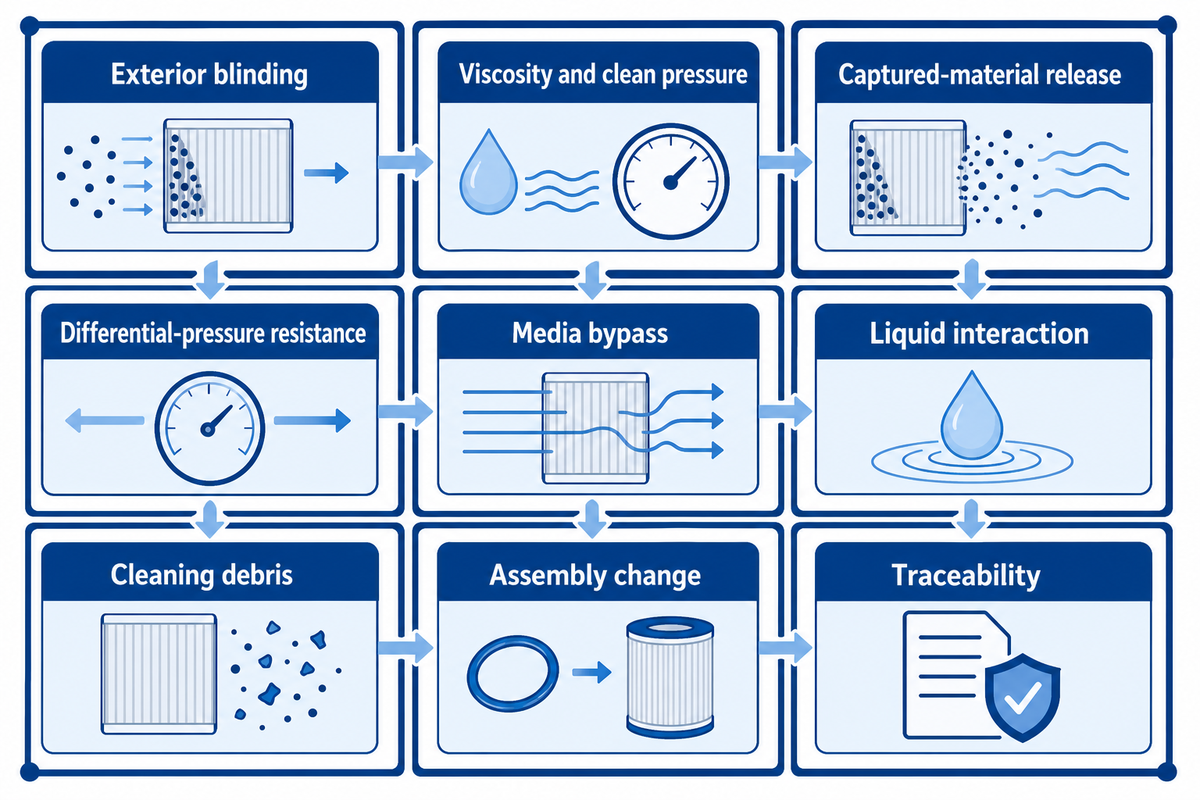

Match finish decisions to application risks, not industry labels

Labels such as food service, chemical processing, water filtration, reverse osmosis pre-filtration, or industrial water treatment provide little information for determining an appropriate finish. Consider fluid identity, temperature, viscosity, suspended solids, whether the cartridge must remove large particles, loading history, mechanical strength, the interface, cleaning, adsorption and desorption, and chemical compatibility requirements.

The Water Technology article pairs micron grade with verified efficiency data and differential-pressure monitoring. It doesn’t rank exterior finishes or prove that larger particles require a special surface.

What are the key differences between melt blown filters and string wound filters?

Melt-blown and string-wound cartridges use different media-forming routes, so a surface option on a melt-blown cartridge doesn’t turn it into a wound construction. Compare the process, media structure, particle-retention evidence, end condition, and application requirements; broad labels such as melt blown depth filter cartridges, melt blown polypropylene cartridges, polypropylene filter cartridge, and string wound filter cartridge don’t define a finish specification.

RFQ checklist for a PP melt-blown cartridge surface requirement

The RFQ should define the cartridge, finish samples, production flow, trial runs, and acceptance ownership. Provide these items with your request for a PP melt-blown filter cartridge production line to allow us to write the definition of finish at the correct production step.

Input the information in the table provided in the quote request, and edit the information according to the evidence provided by the customer.

Compare downstream scope with the filter cartridge assembly process. Confirm ownership for cutting, end treatment, cleaning, inspection, and retained samples.

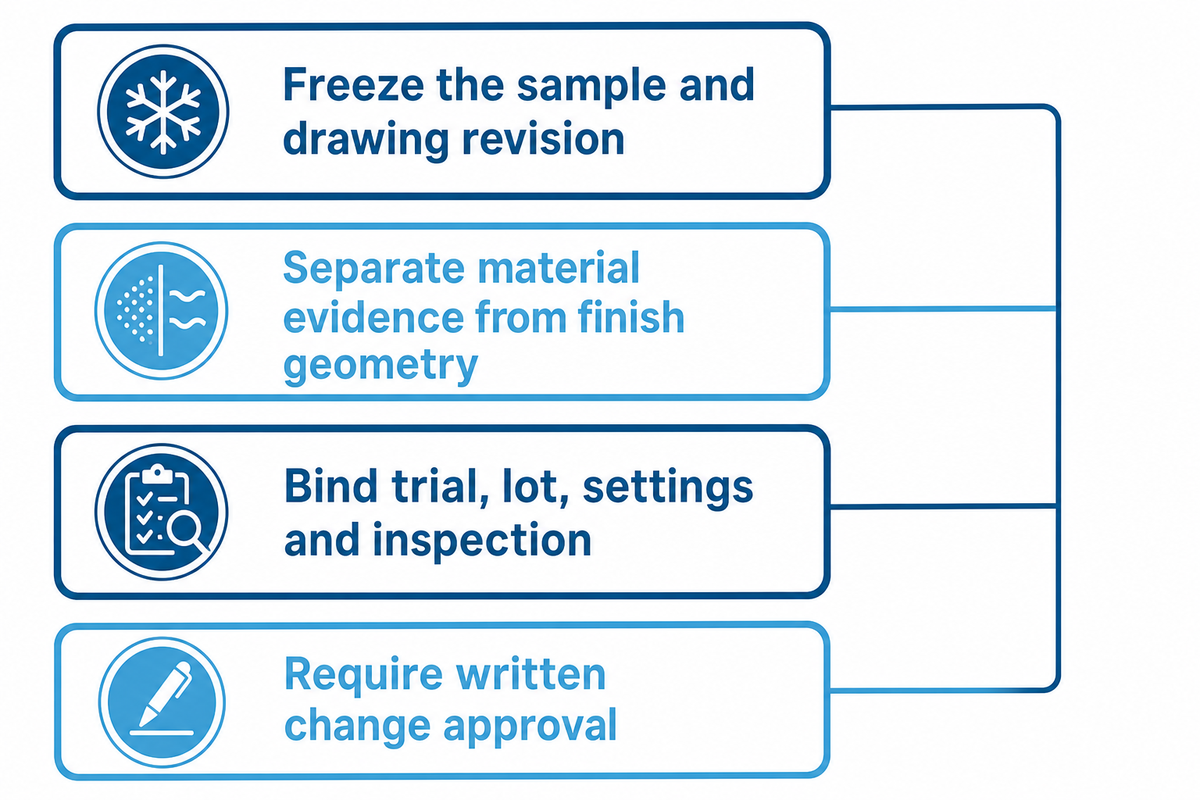

What 2025–2026 evidence changes, and what it does not prove

Current food-contact updates strengthen the case for controlled materials, manufacturing processes, and traceability records for the production revision and lot record. However, those updates don’t prove new market demand for cartridge finishes, annual growth for grooves, or a performance advantage.

The European Commission food-contact legislation page lists a 2025 amendment addressing quality control and manufacturing topics and a 2026 amendment concerning substance authorizations or conditions of use. Those dates matter to document control, not finish selection.

Suzhou UDTECH Technology Co., Ltd. reports a 6,000-square-meter standardized workshop, integrated R&D, production, domestic sales, global export, and technical after-sales service, with equipment exports to more than 55 countries. This information provides a potential business opportunity and commercial relationship, rather than filtration efficiency or other performance evidence.

Frequently asked questions

Which surface finishes are used on PP melt-blown filter cartridges?

Why do some PP melt-blown filter cartridges have grooves or slots?

Does a grooved surface automatically give a longer service life?

What should an approved surface sample record?

How is surface finish different from micron rating, gradient density, and filter-media choice?

Turn the finish label into an acceptance record

Send the approved sample, drawing, process route, trial basis, and evidence ownership with your project brief. UDTECH can then review the requested surface-forming scope against the proposed polypropylene (PP) melt-blown line configuration.

Discuss your cartridge specification

This guide separates visible finish specification from production-line configuration and application qualification. It doesn’t replace a buyer’s material, structural, filtration, compatibility, or regulatory review.

A PP melt blown filter cartridge production line is a manufacturing system that turns a documented polypropylene input into a tubular liquid depth-filter element. Process controls and other acceptance criteria (e.g. tests and inspections) must be performed in order to determine if a cartridge is released. Production or operation of a cartridge doesn’t necessarily establish that the cartridge is released. In the absence of that critical link, an unrelated third-party report or a study of flat air media can’t validate a finished lot of liquid-filter cartridges.

Updated September 2026. Published by XCX for Suzhou UDTECH Technology Co., Ltd.

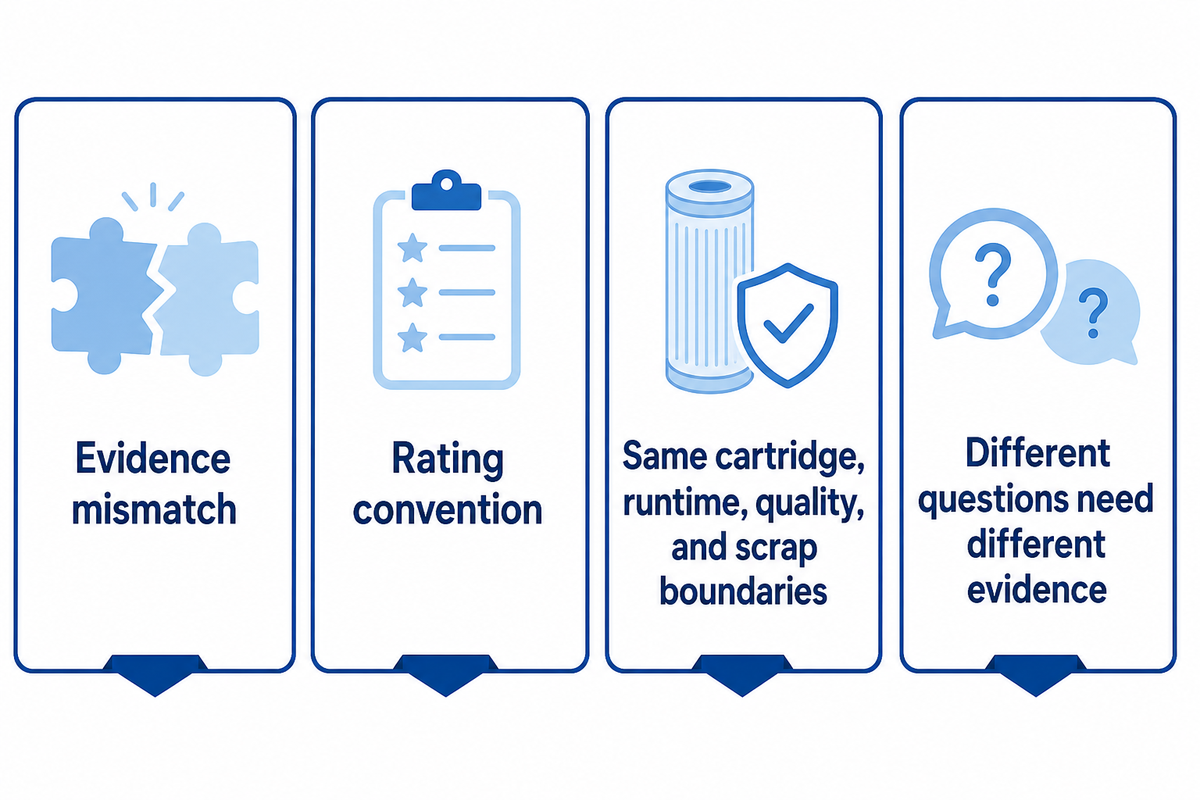

TL;DR

• The least obvious risk is evidence mismatch: research on flat electret air media doesn’t validate a cylindrical liquid filter cartridge.
• A micron number needs a rating convention, challenge method, flow condition, product geometry, and efficiency or retention result.
• Capacity comparisons become useful only after both suppliers use the same cartridge, runtime, quality, and scrap boundaries.
• FAT, a material process trial, finished-product testing, and site commissioning answer different questions.

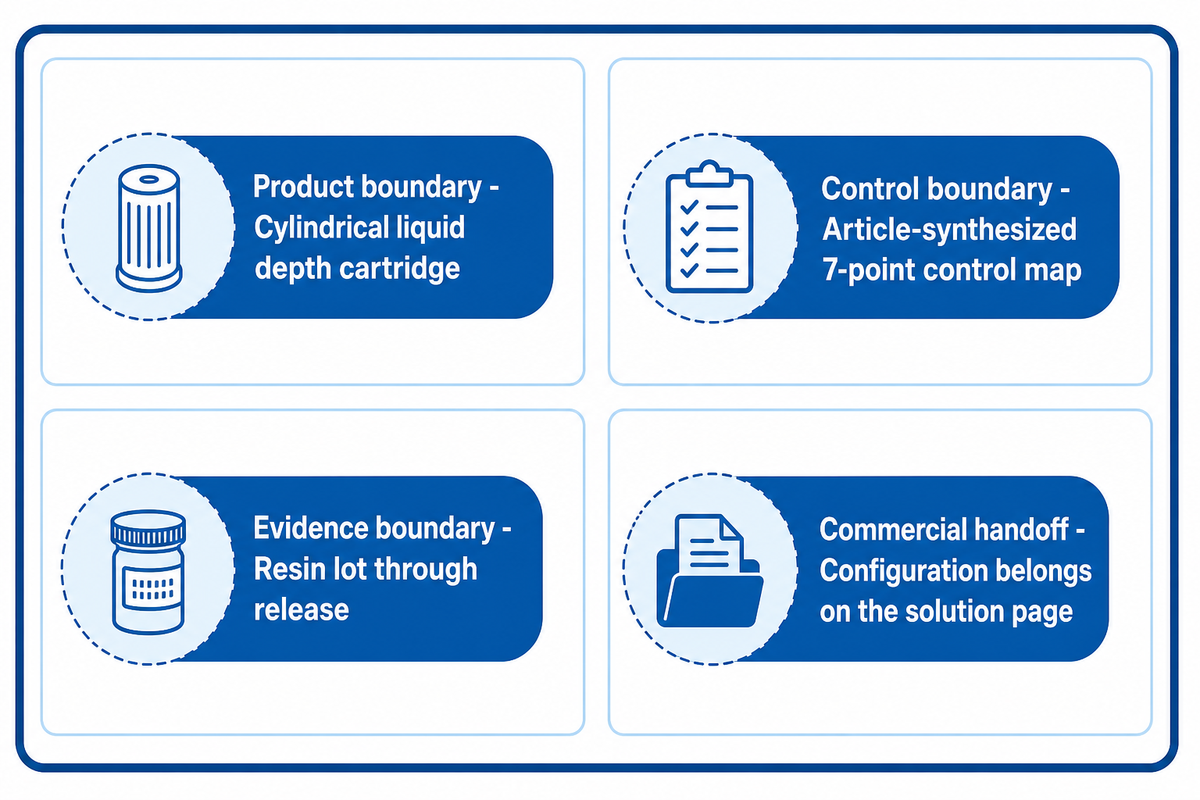

Quick audit scope

Product boundary
Cylindrical liquid depth cartridge

Control boundary
Article-synthesized 7-point control map

Evidence boundary
Resin lot through release

Commercial handoff
Configuration belongs on the solution page

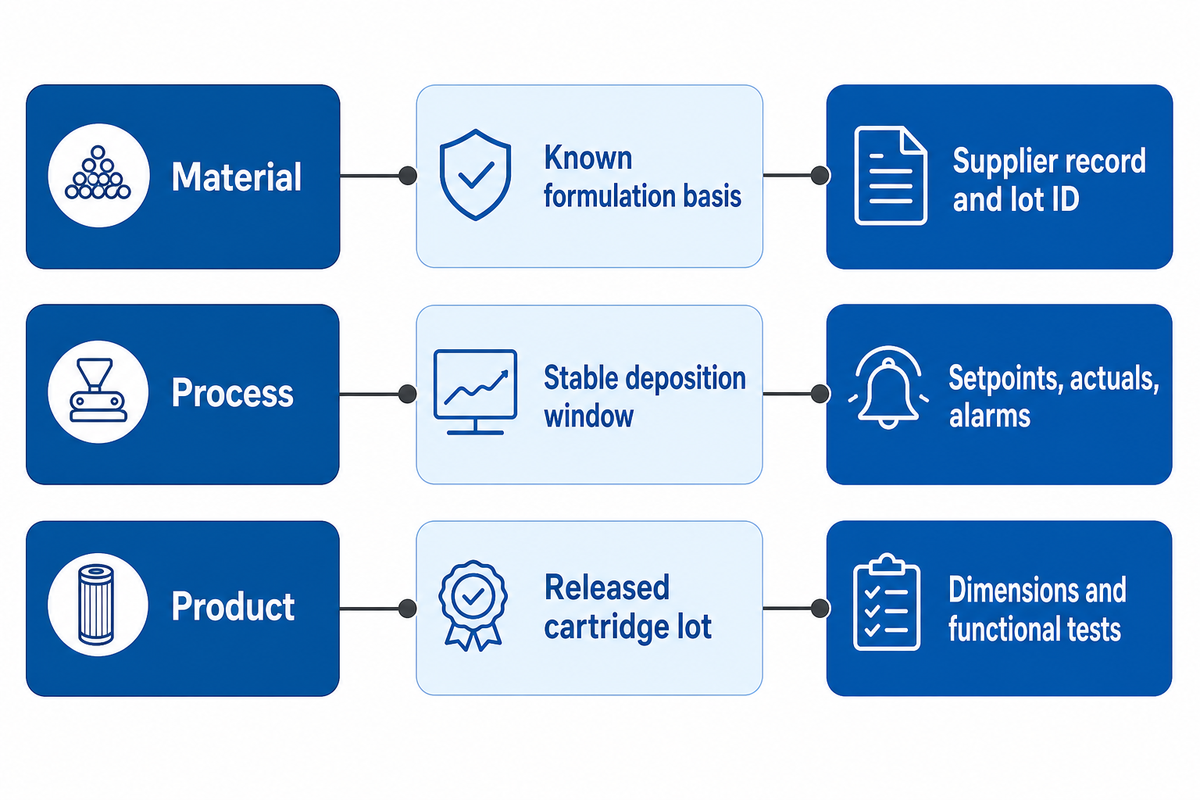

What a PP melt blown filter cartridge production line does

A PP melt blown filter cartridge production line turns a documented polypropylene input into a tubular liquid depth-filter element. The process sequence melts and meters the polymer, attenuates it into fibers, deposits those fibers on a rotating collector, cools the tubular structure, and cuts it to length. A defined test program assesses whether sampled cartridges meet the agreed filtration requirements.

A production line operating continuously for a long duration doesn’t confirm that cartridges produced during that operation are acceptable to the buyers. The bounds of continuous operation must be established by the buyers.

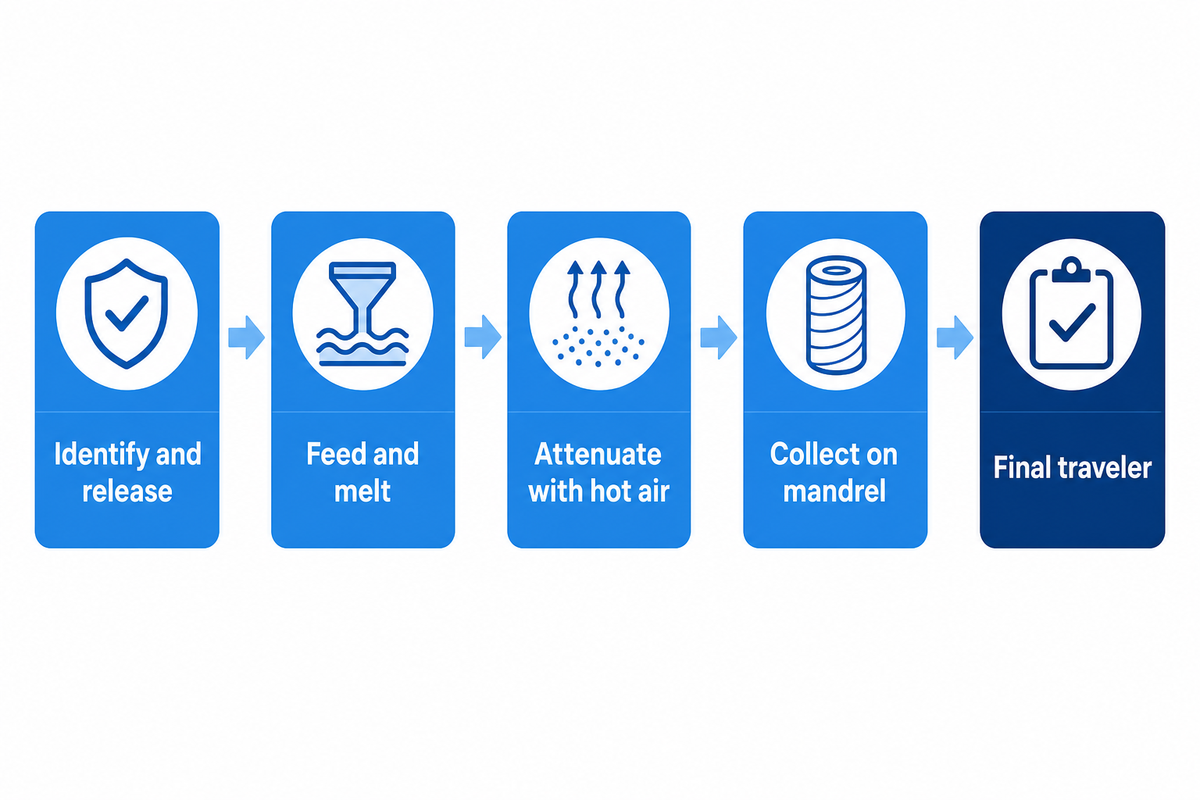

From PP resin to a finished cartridge

Filter cartridges are made through a manufacturing process that feeds and melts PP material, meters it through the die, uses high-speed hot air to attenuate the melt into filter media, then cools and cuts the tube; where specified, finishing can include a thermal bonding process. Records must keep every step tied to the same resin lot and recipe.

The continuous cartridge apparatus study focuses on the mechanical movement of the apparatus and describes structural outputs. It does not create a formula that other melt blown filter machines can use. The 2023 apparatus study mentions a collector distance of 30 cm, a rotation speed of 40 RPM, a linear speed of 10 mm/s in the forward direction and 80 mm/s in the return direction, a forward interval of 40 s and a return interval of 5 s, a cycle time of 47 s, alternation of 23.5 s, a distance band of 20-25 cm and 25-30 cm, and a collector speed band of 1500-1800 RPM and 1700-1900 RPM. These observations are specific to the study and not settings provided by UDTECH.

Buyer objection: A video can’t demonstrate the identity of the materials used, show process trends, or identify the output that was rejected or the test criteria. The evidence needed to show these should be contained in the supporting documents.

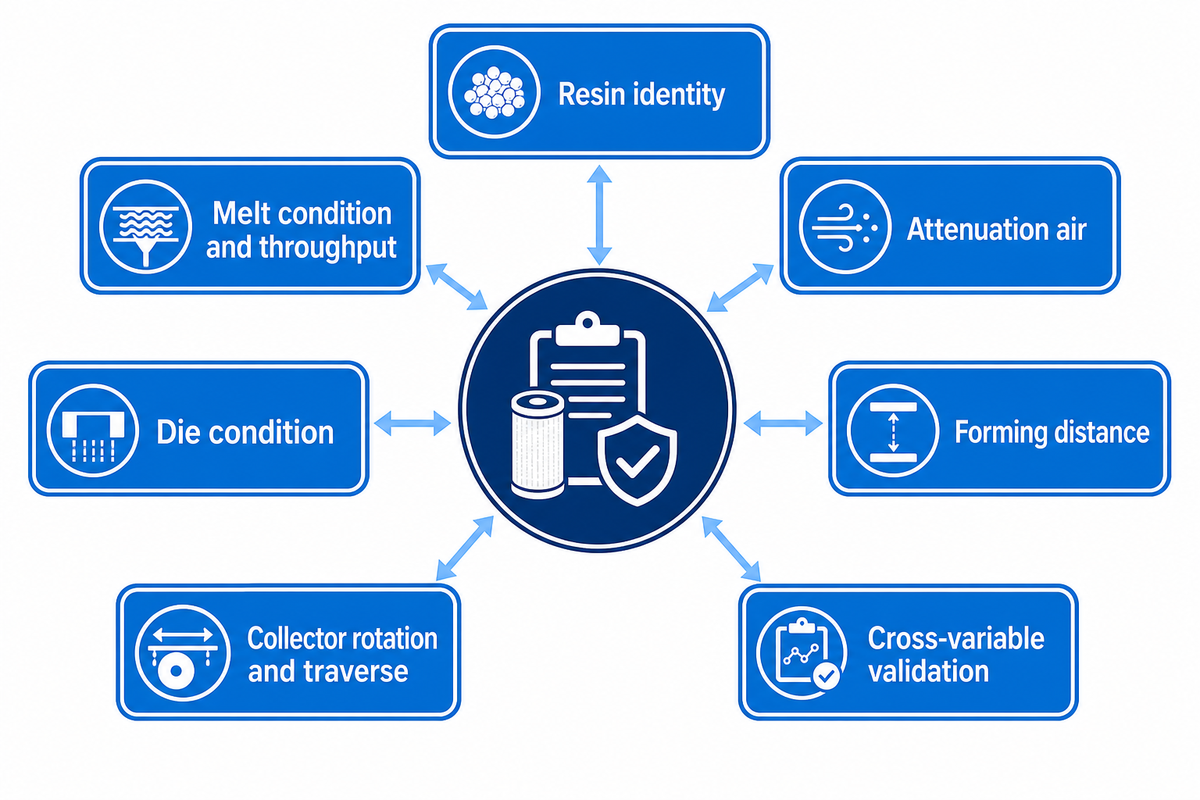

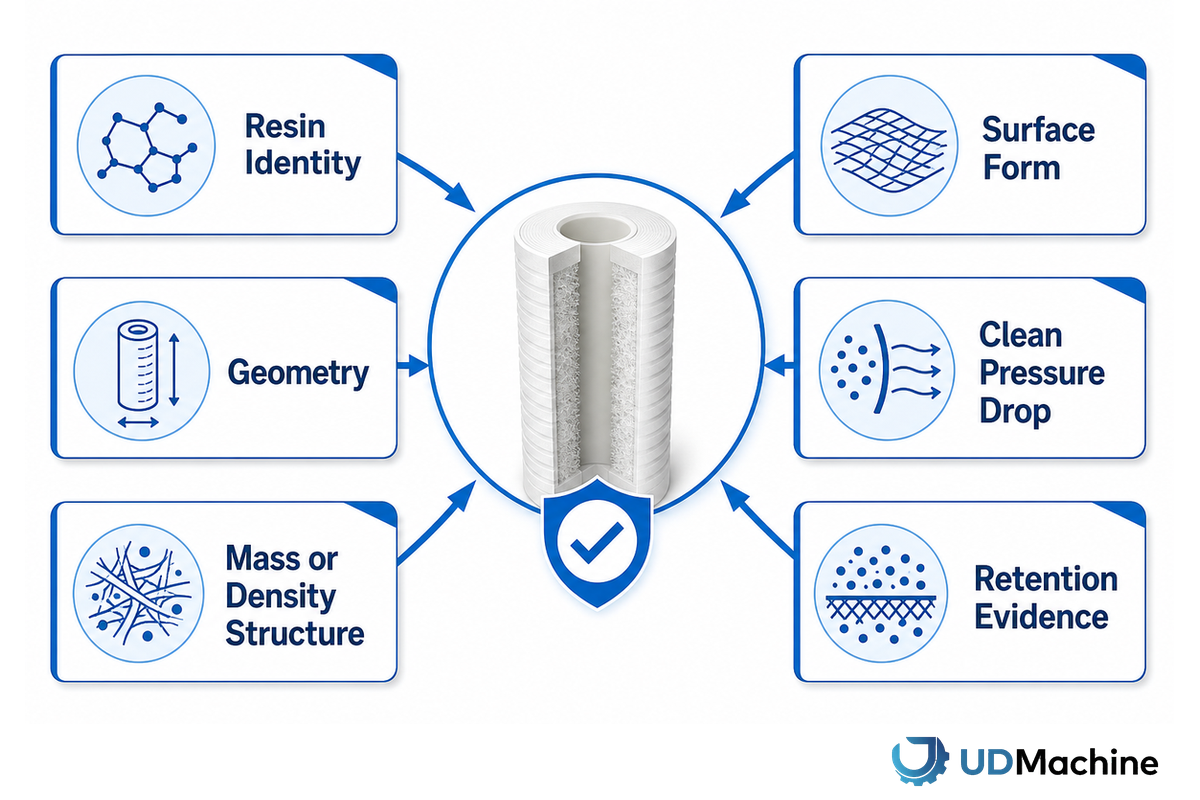

7-Control-Point Line Audit

This article synthesizes interacting process variables to create the Seven-Control-Point Line Audit. Each group in the synthesis defines the evidence needed to show the interaction of a process control variable and result of a sampled cartridge. The last table in the article also shows diagnostic lines.

The interacting controls in the synthesis are: the state of the resin; the state of the melt; attenuating air; the state of the die; forming distance; rotation and traverse of the collector; and cross validation of controls. Buyers should align their records to a time line to show interaction of the controls and show deviation of the controls to results of sampled cartridges.

U.S. patent record US4925601A cites strategies that modify airflow and forming distance in order to adjust bulk and permeability of filter-type materials. It’s also noted that values for a given resin and product can’t be extrapolated to other products.

PLC programs can be saved and repeated, however saved programs don’t guarantee control over the process.

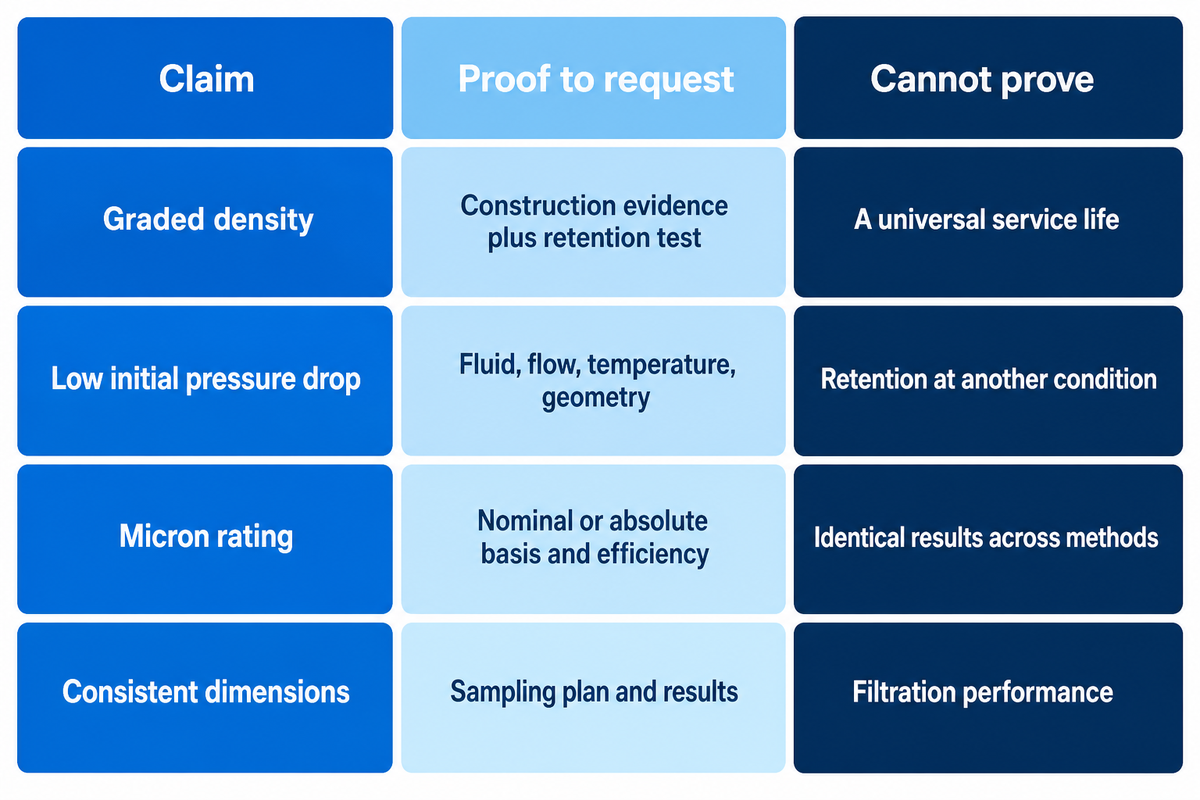

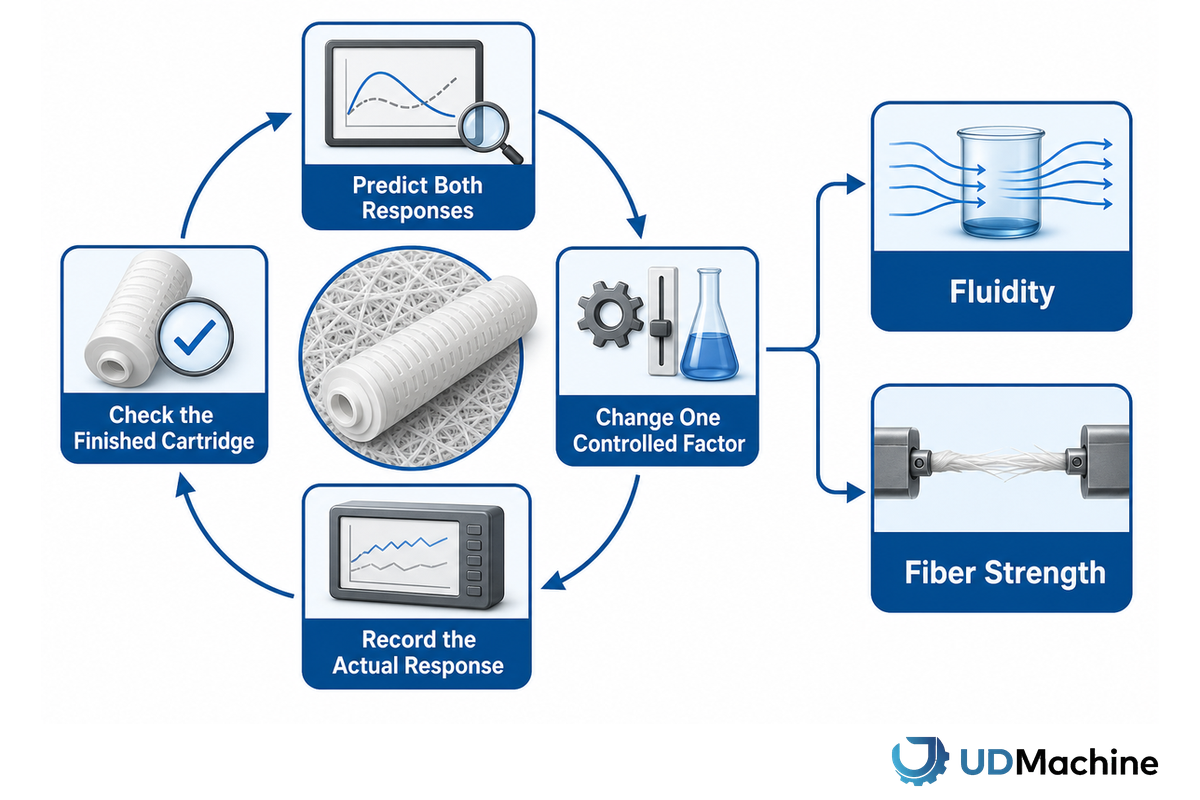

How line settings become filtration behavior

Density and void structure affect initial differential pressure, loading, and the contaminants retained. What a filter cartridge offers must match stated filtration needs, because various industries may involve larger particles, different fluids, and different filtration processes. Graded density can shape the retention medium, but the test method and conditions must be disclosed; appearance, weight, and labels alone do not establish retention efficiency.

What does micron rating mean for a melt-blown cartridge?

Micron rating is size-based, but becomes decision-ready only when the supplier discloses the achieved capture percentage, challenge method, flow condition, and test conditions. Advertised melt blown filter features don’t prove a defined retention result. A technical filter-rating discussion offers an example where the same size-based rating may represent different efficiencies.

Two samples labeled “5 micron” require method, efficiency, challenge material, flow, geometry, and lot identity before a supplier can define them as equivalent. A cartridge filter used in various industries may face different fluids and larger particles, so filtration processes and test methods are not interchangeable; what a filter cartridge offers must be stated as a method-bound result.

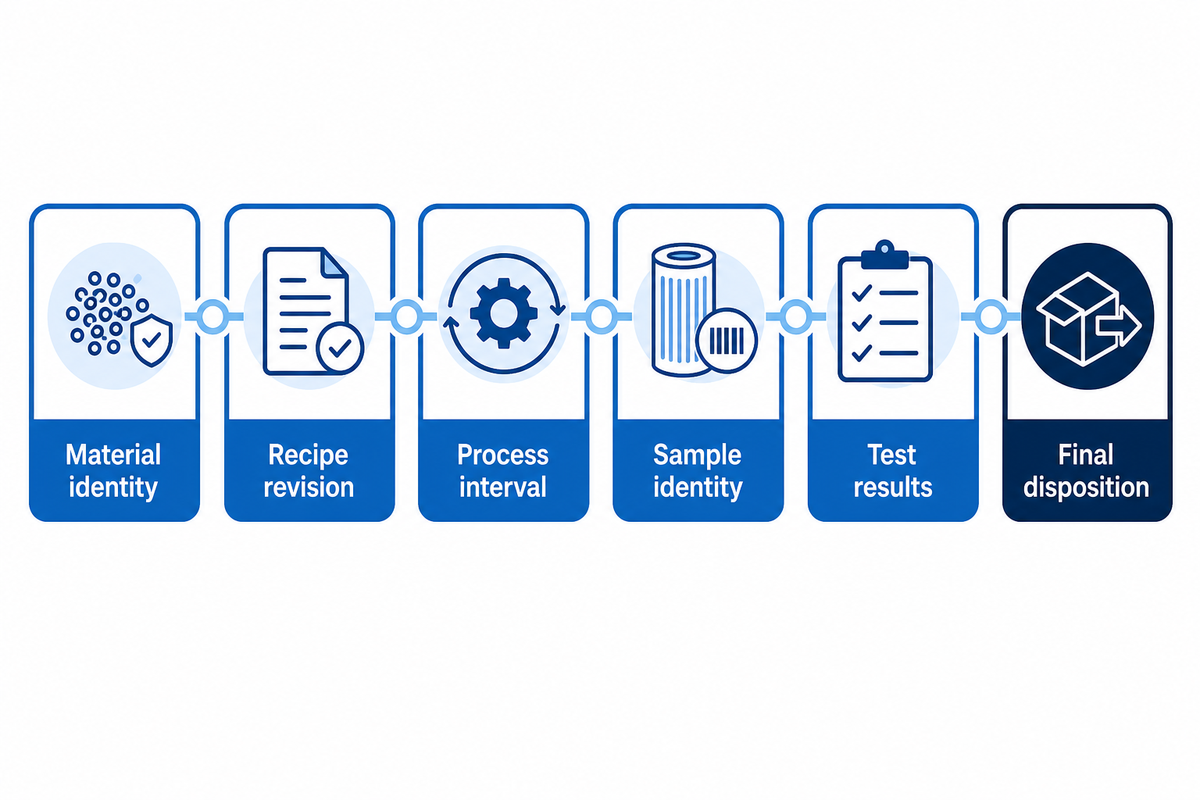

Resin-to-Release Evidence Chain

Resin-to-Release Evidence Chains link a material lot to its recipe, samples, test results, and the lot’s final disposition. Users of the Chain may identify samples pertaining to the process under review, but should test whether each sample belongs to the claimed process interval before relying on the final lot-release decision.

The Evidence Chains highlight omissions in the sampling and testing functions of quality control, and allow the investigator to identify sampling and testing pull points where linkage in the Chain hasn’t been established. The Chains should be developed based on the requirements of the product and the test method rather than based on the judgment of the investigator.

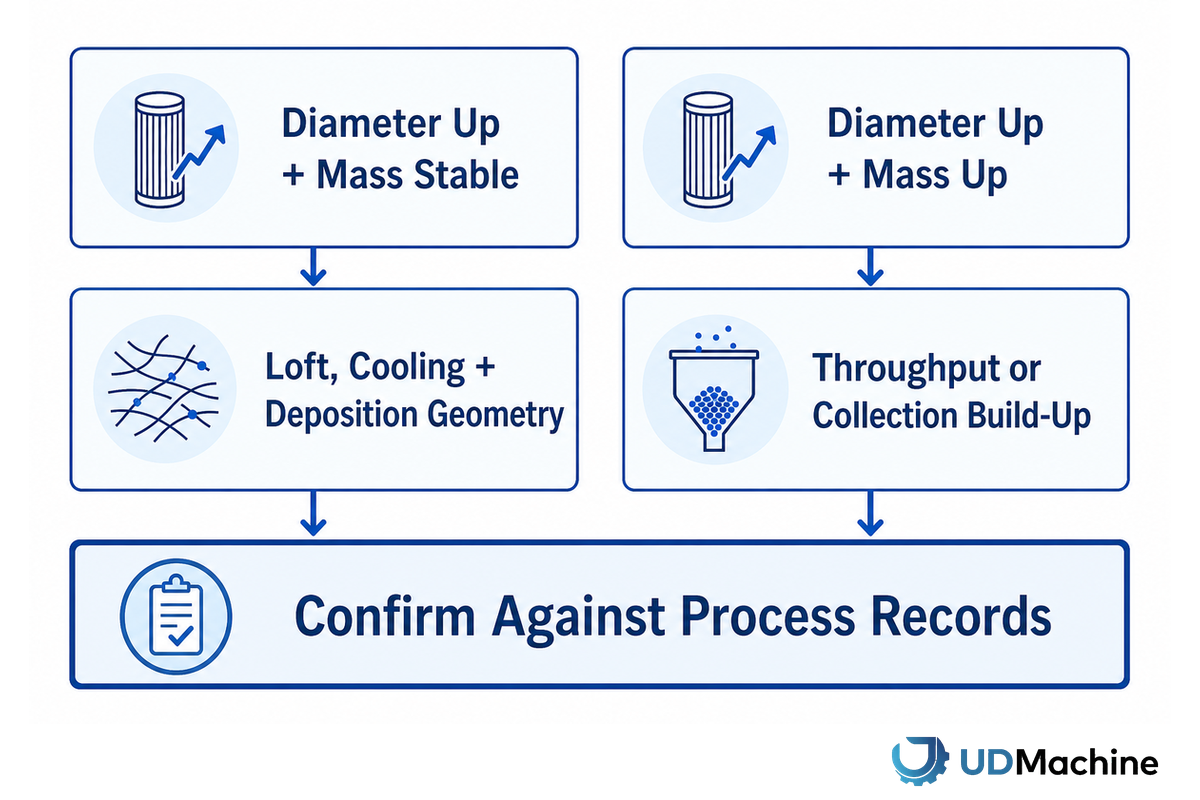

Process instability can lead to shifts in differential pressures. Using the Evidence Chain, the reviewer can determine the lots affected and samples to be retrieved.

In supporting a contractual obligation, a supplier may protect its process set points, and thereby its confidential process, while establishing and maintaining control of the process and the output in a manner that’s Traceable to the Contract.

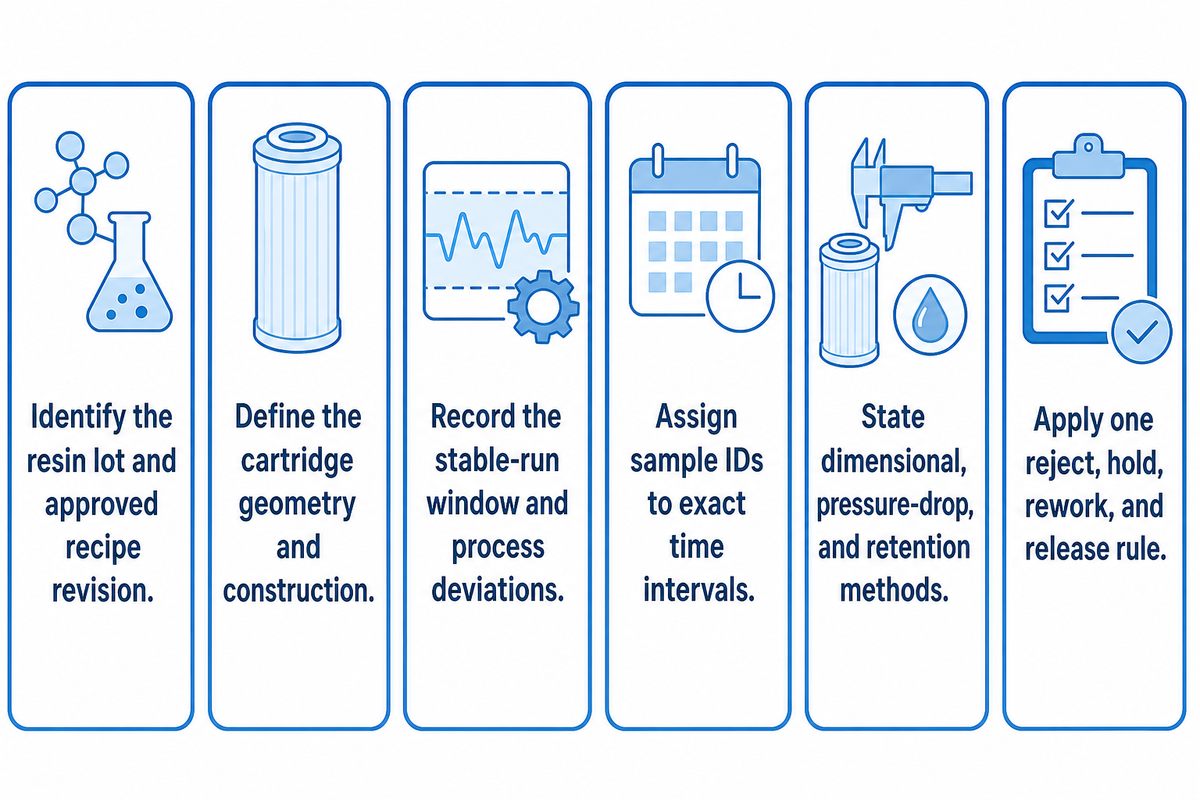

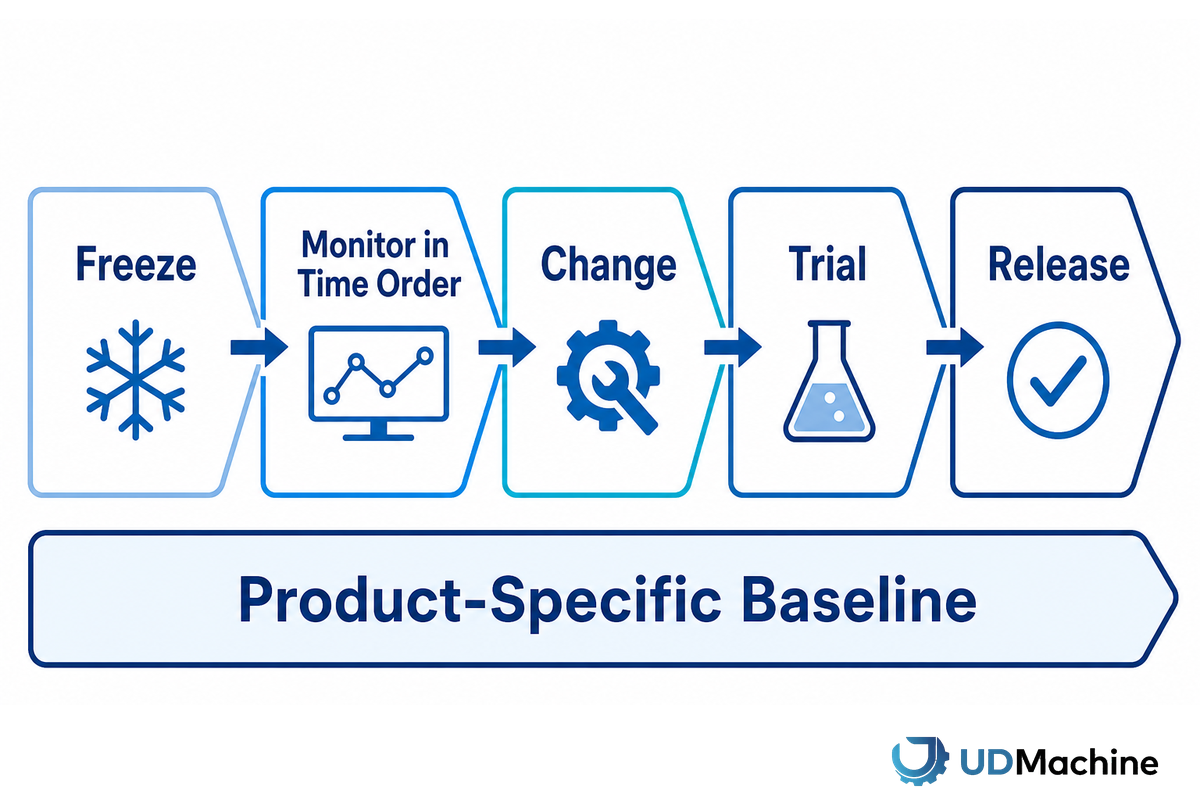

How to normalize production evidence without comparing machine offers

Production evidence is only comparable when records are produced under the same control of materials, product dimensions, sampling scheme, test method and disposition rule. This section won’t address comparisons for line capacity, utilities, models and prices. These will be addressed in the solution. Rejecting a client’s gross output claim will help protect the integrity of the statistic by preventing it from being mistaken for proof of repeatable cartridge quality.

Illustrative 11-field evidence worksheet

The examples that follow are illustrative audit entries and don’t represent UDTECH limit setting values, specifications, or permissives.

One trial record demonstrates traceability by including the resin lot, stable interval, sampled cartridges, test method, and disposition. The other record shows only gross pieces collected over a 24-hour period. Although the latter record may show a larger headline number, it can’t demonstrate consistent cartridge quality.

Cost-effective claims warrant case-by-case justification and a defined total cost of ownership (TCO).

Why machine demonstration is not finished-cartridge proof

Machine demonstrations can show visible operation, but finished-cartridge quality needs its own evidence chain. Buyers should connect the process record to construction checks, functional tests, and a traceable disposition. This keeps a successful motion sequence from being misreported as proof of filtration performance.

Records of process trials must show information including the resin lot, the basis for the product, stable run definition, sample location, sample retention, measurement systems, test methods, and responsibilities, and disposition. FAT and commissioning records, process utility system settings, and commercial acceptance remain separate project documents on the solution-page side of the boundary.

Deferred testing is controlled by the remaining open items, the owner of those items, prerequisites, testing on a pass basis, the due condition of those items, and any corrections.

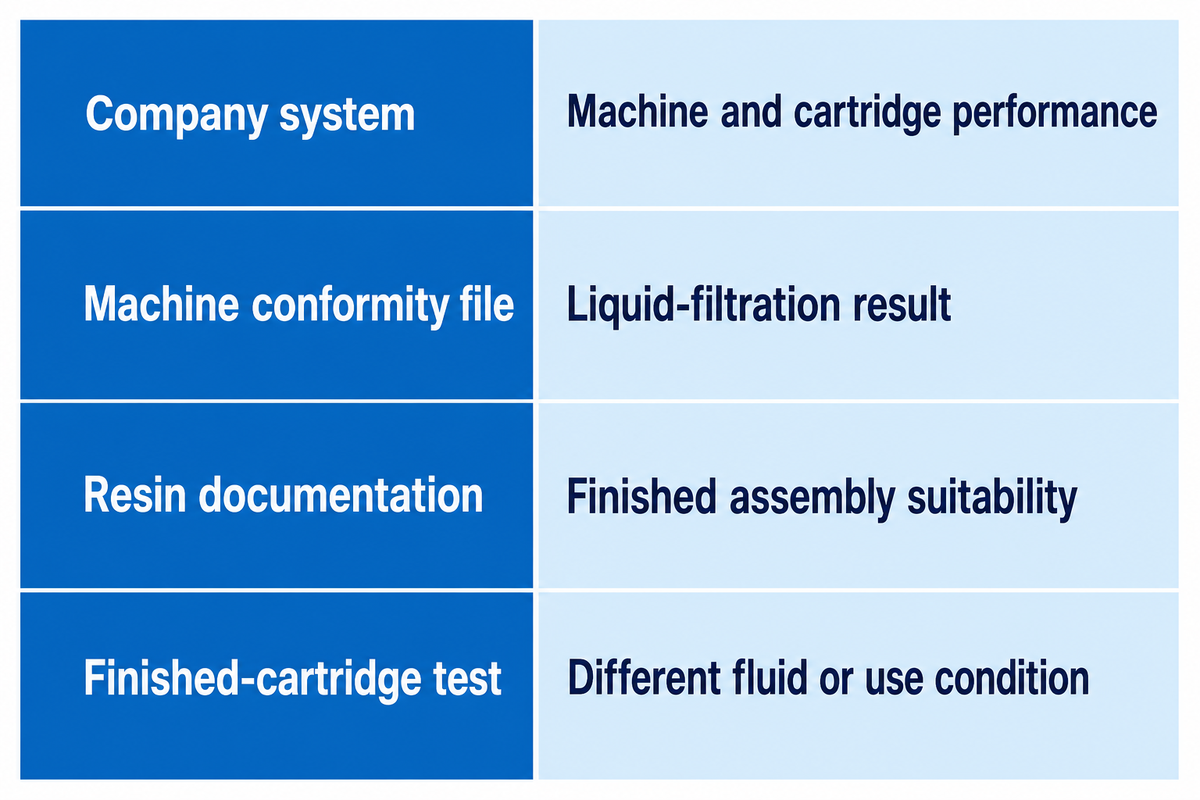

Material, safety, and compliance boundaries buyers should verify

Company management system certificates, machinery conformity documents, resin status and finished application approval allude to different things. Company management system certificates can’t be relied upon to verify machine conformity, material suitability or cartridge performance. Similarly, each of the aforementioned documents can’t be relied upon to verify performance outside the scope of the document.

“A manufacturer declares that the product meets all the legal requirements for CE marking.”

The Commission page states that CE marking doesn’t signify that a product has been officially deemed safe by the EU or other authorities. Accordingly, this article doesn’t publish an unverified “EU CE certification” claim for UDTECH or use CE as proof of cartridge quality.

Regarding food contact in the United States, conditions are established in 21 CFR 177.1520 for specific olefin polymers. 21 CFR 174.5 sets conditions on purity, GMP, limits, and compliance with other regulations. For food and beverage filtration, resin identity alone doesn’t establish finished-cartridge compliance; water-treatment suitability and other applications require their own application-specific evidence.

Worker protection requires a separate review. In the U.S., OSHA 1910.212 addresses guarding against hazards at points of operation and from ingoing nip points, rotating parts, flying chips, and sparks. A broader project hazard review should separately consider hot surfaces, electrical work, startup, cleaning, maintenance, exhaust, and destination-market requirements with qualified safety specialists.

When not to buy on a certificate headline

Literature such as brochures shouldn’t be relied upon as information verifying that a device has been approved. Nor will component records be allowed to substantiate a complete device assembly or a cartridge. The reviewer should verify the named product, legal entity, document status, and destination-market scope.

Buyer objection: Being able to reference a legal document isn’t enough; the named legal entity must be the same as the subject of the certification, the equipment, and the jurisdiction under consideration. If applicable laws of the jurisdiction govern the buyer’s decision, the referenced document must apply to the actual legal entity, equipment, and destination-market scope under review; the buyer should retain a qualified professional practicing in that jurisdiction when legal conformity is material.

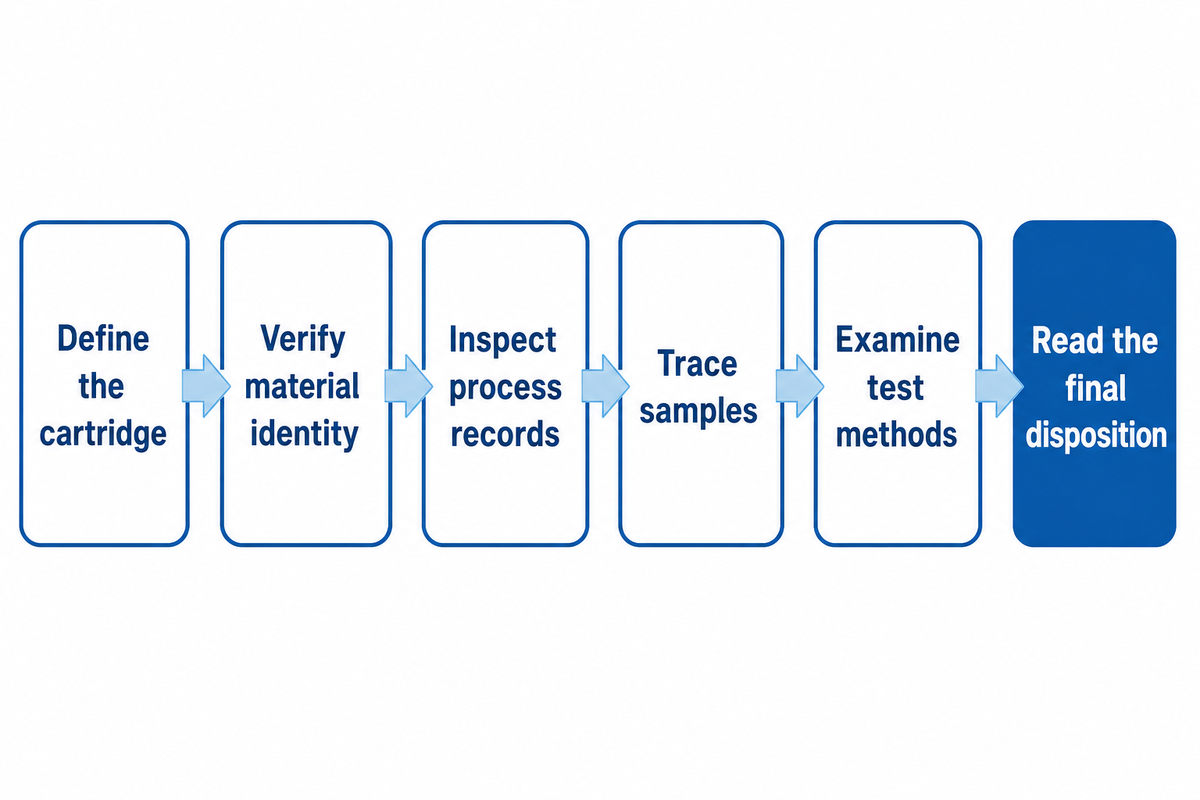

How to evaluate process and quality evidence

Process and quality evidence should be reviewed in a fixed order: define the cartridge, verify material identity, inspect process records, trace samples, examine test methods, and read the final disposition. This keeps the guide informational while configuration, utilities, output guarantees, witnessed acceptance, and quotation choices remain on the commercial solution page.

A string wound filter cartridge uses a process different from melt blowing, and therefore a different process audit would be required. Labels such as sediment filter, polypropylene filter, spun cartridge, and PP spun filter cartridge are common. These terms do not provide sufficient information to identify the cartridge construction method. Consequently, it’s difficult to compare the evidence given by prospective buyers unless the actual construction method of the cartridges is confirmed.

Search labels such as meltblown filter cartridge, melt blown filter cartridge making, or blown filter cartridge making machine may appear across filtration applications, but each cartridge offers value only when the filtration need and test basis are defined. When the evidence brief has been completed, commercial configuration and quotation questions should be moved to the solution page rather than repeated in this guide.

Buyer objection: The most favorable price should not be the sole basis of award; other considerations should include responsibilities, obligations, site work, spares, and evidence.

Frequently asked questions

How are PP melt blown filter cartridges made on a production line?

Which production-line controls have the biggest effect on cartridge quality?

How should buyers compare production evidence from two trials?

Is a fully automatic line proof of consistent micron performance?

What evidence should link a process trial to the finished cartridge?

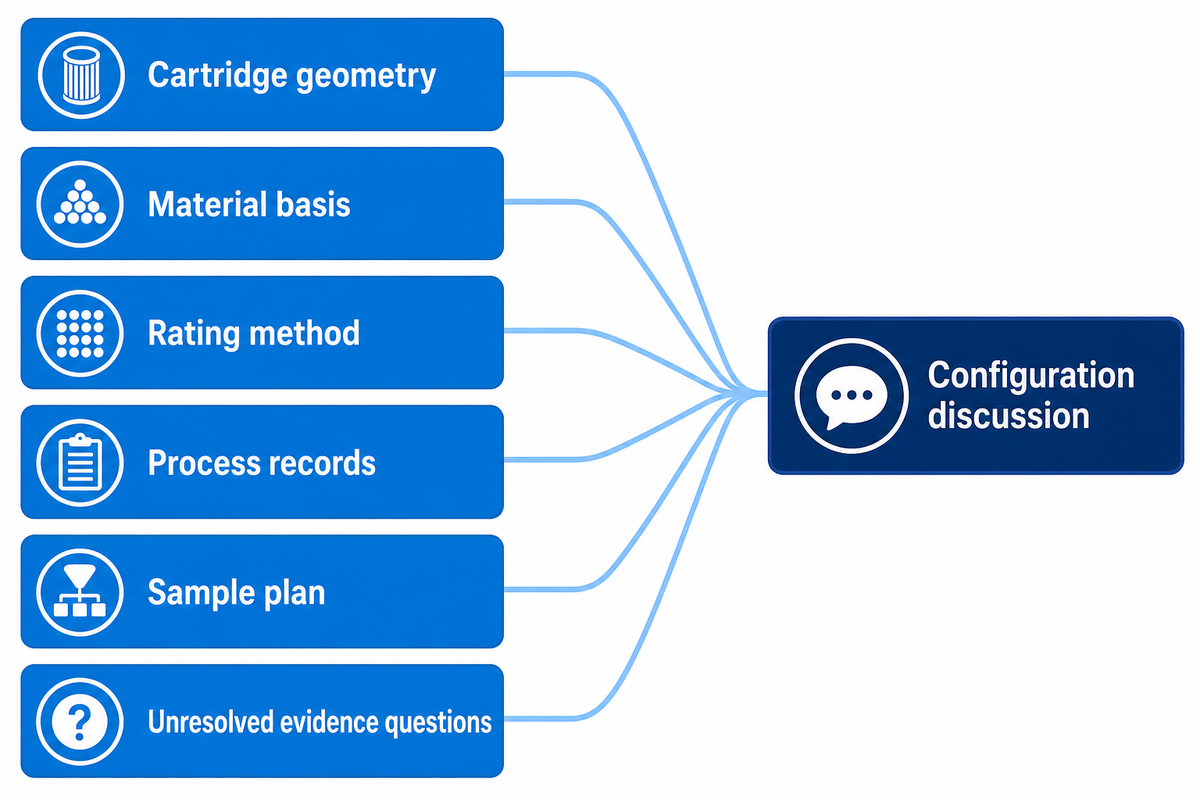

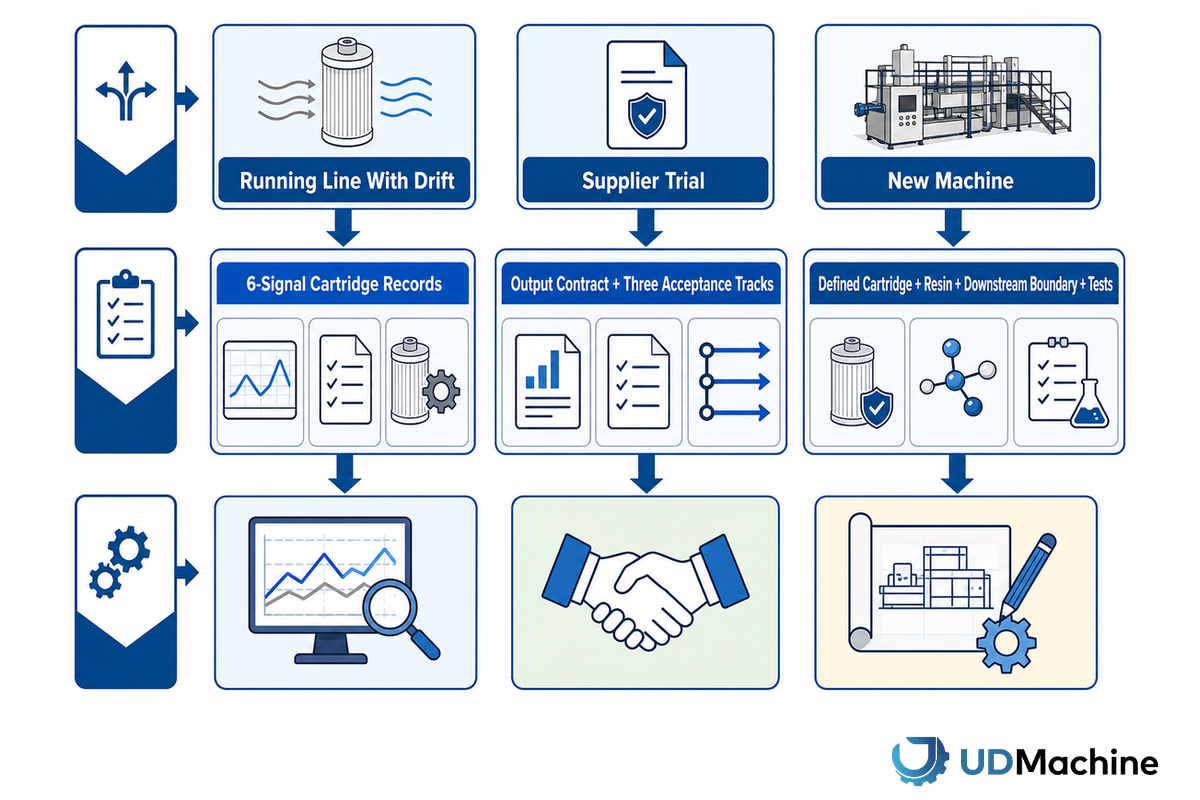

Turn the evidence audit into a project brief

Bring your cartridge geometry, material basis, rating method, process records, sample plan, and unresolved evidence questions. Submit that brief for a configuration discussion without replacing missing proof with generic claims, and keep each promised result tied to a document, sample, or test condition.

Discuss your process-quality requirements

A PP melt blown filter cartridge production line acceptance test is a witnessed evaluation that must demonstrate equipment performance against a frozen purchase basis, not merely that the equipment can run. Acceptance evidence should be traceable to a defensible FAT basis rather than a bare run demonstration. A FAT must connect each requirement to a witnessed step, measured result, identified sample, deviation decision, and authorized sign-off.

Structure and processes described above are generic. This means that specific attributes including, for example, average speed or rate, yield, or acceptance level aren’t defined and must be agreed to by the buyer and seller.

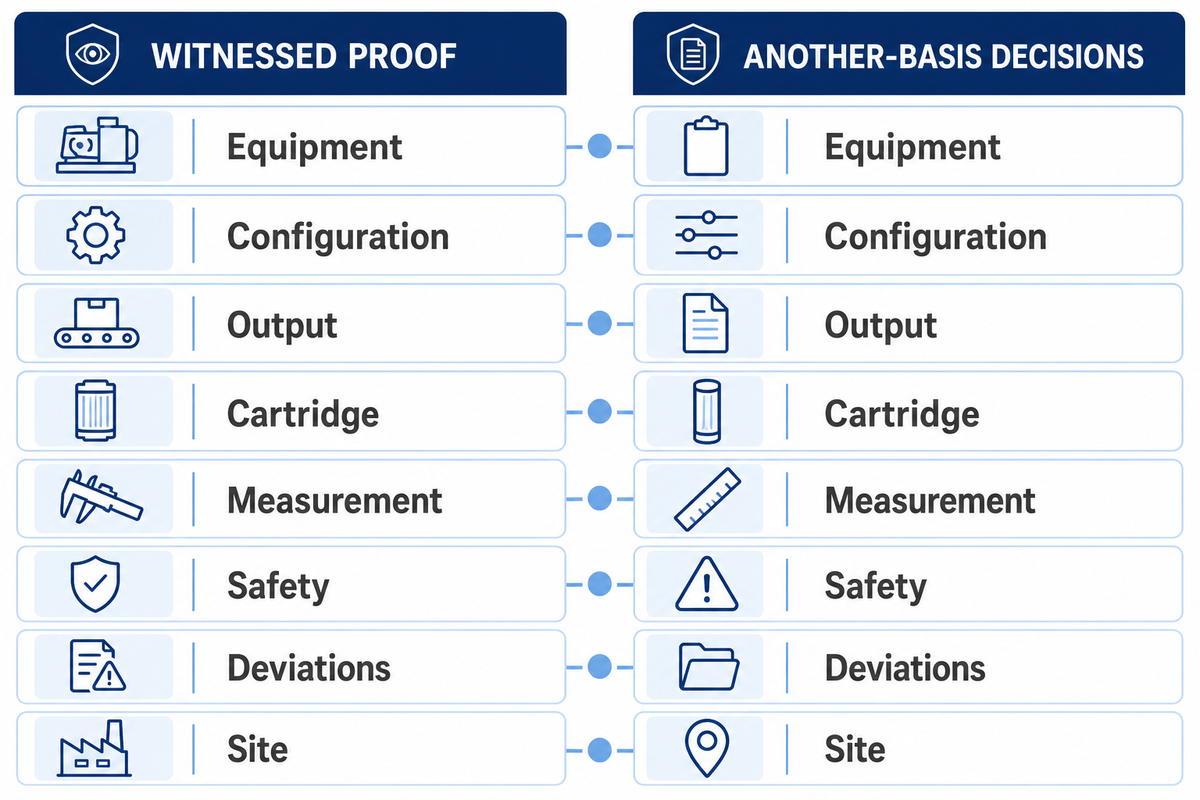

What does a production-line acceptance test actually prove?

A Production-Line FAT can demonstrate that the witnessed equipment and agreed cartridge met contractual checks under recorded factory conditions during the defined run. A Production-Line FAT doesn’t warrant every future resin lot, operator, utility, micron claim, filtration-efficiency result, service-life result, or regulated-use approval.

It’s acceptable to state that the observed configuration met listed criteria during the defined run. Equipment shouldn’t be considered acceptable for all future production.

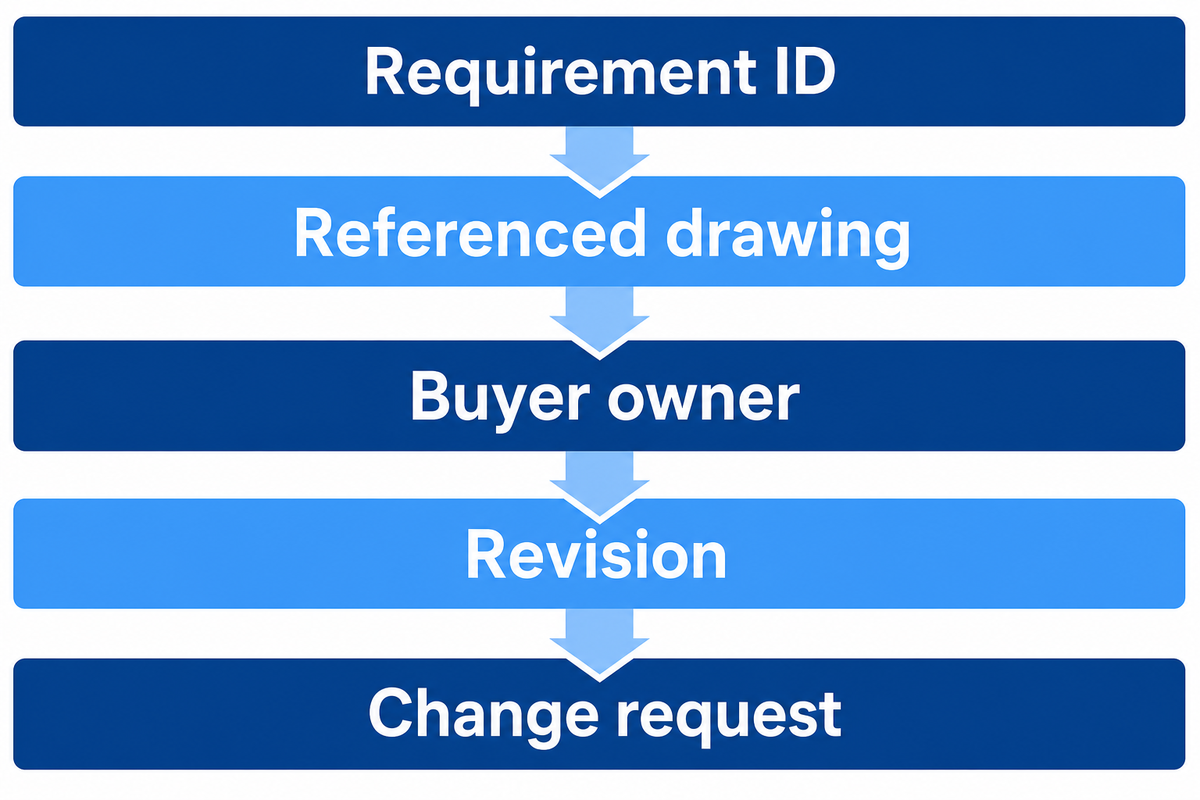

Freeze ten acceptance inputs before the FAT date

Prior to the FAT date, all acceptance inputs must be final, including product geometry, filtration designation, defined accepted output, PP material, electrical and utility bases, surfaces, cuts, floor conditions, interfaces, witnessed-run basis, and the document package.

If conflicting documents indicate different controlling terms, review the purchase order, technical agreement, drawing, supplier proposal, and meeting notes, then resolve which document controls prior to starting the equipment.

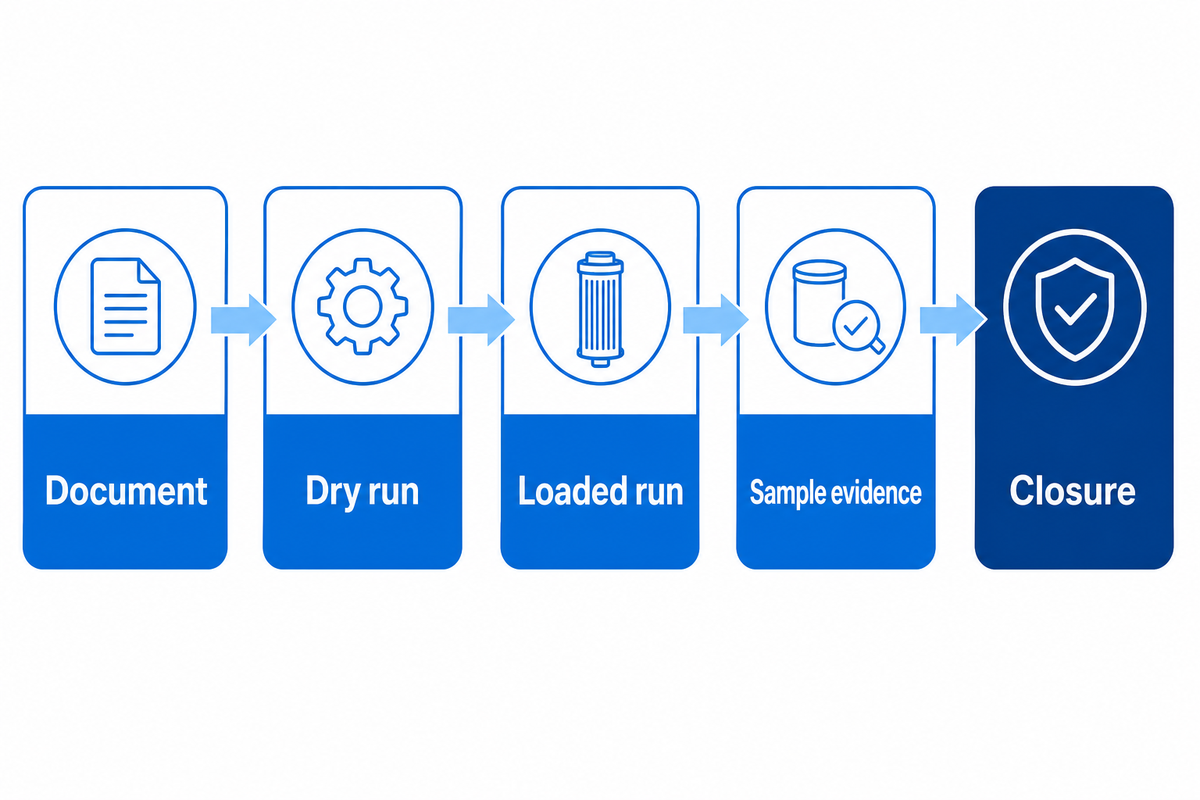

The Five-Gate Witness Sequence: a buyer-created decision aid

The Five-Gate Witness Sequence is a means of organizing data. This allows a client to resolve outstanding issues related to earlier results. This 5-Gate Witness Framework is a buyer-created decision aid, not an ISO, FDA, OSHA, or industry-association standard, and the signed contract remains the authority for the actual project. This document will not supersede contracts or other similar legal agreements. This document is intended to be used as a decision aid by the client.

When using this document, evidence should be provided to demonstrate compliance with the pass criteria at each gate. This helps to ensure that problems don’t go undocumented.

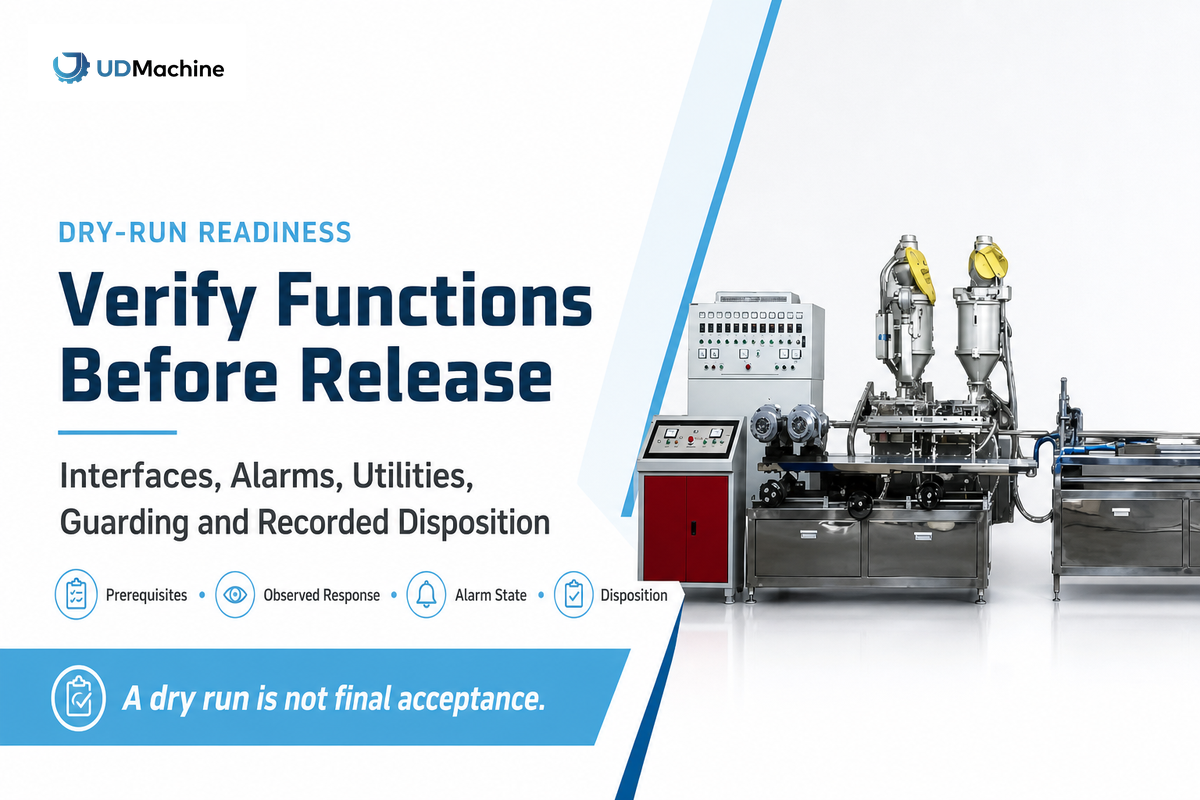

Verify dry-run readiness without overclaiming compliance

Prior to the release of production product, a dry run should be performed to determine if the equipment and the process will function as designed and if interfaces function as required. A dry run shouldn’t be construed as an acceptance or a release for service of the equipment.

“One or more methods of machine guarding shall be provided.” OSHA 1910.212, United States scope

There are a number of gaps in the process, including guarding, electrical, installation, and site responsibilities, that should be addressed prior to shipment. For example, prior to shipping a product, guarding evidence should demonstrate the destination and hazard basis, and the applicable tests should be performed and documented. Gaps may also exist when personnel lack the required training to operate equipment, but training does not replace the applicable risk, electrical, installation, and site-responsibility reviews.

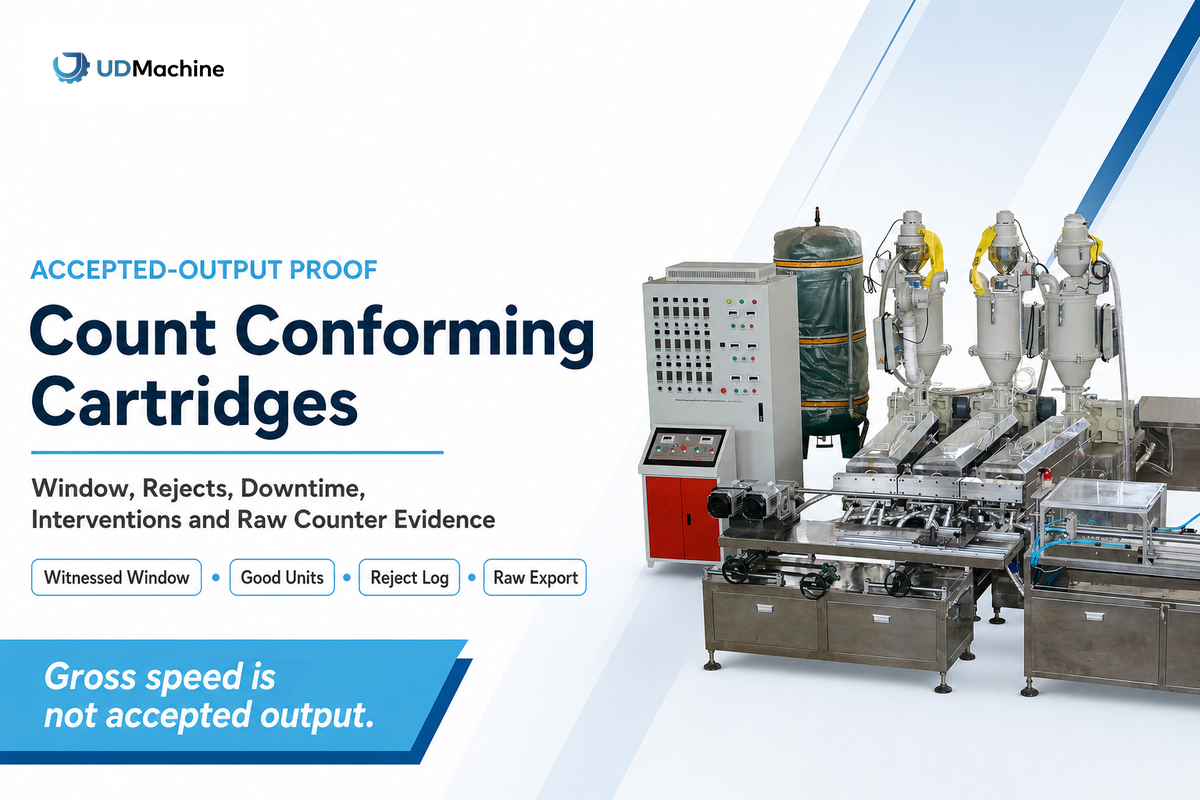

Run the agreed cartridge and measure accepted output

The product run should be evaluated against the stated requirements and retain the cartridge, PP lot, settings, witnessed window, operator, output, reject, downtime, and intervention records. Conforming product is considered accepted product, and nonconforming product is considered rejected product. There are a number of reasons why product may be rejected, for example, the product may be out of adjustment, and product is being produced too rapidly, and excess pieces may be produced. Routine interventions shouldn’t be excessive.

Stable state evidence should be provided to demonstrate that the process is controlled without hiding agreed recovery or transient behavior outside stable state conditions. Stress testing shouldn’t be performed unless it has been reviewed and documented to be in conformance with the requirements of the contract.

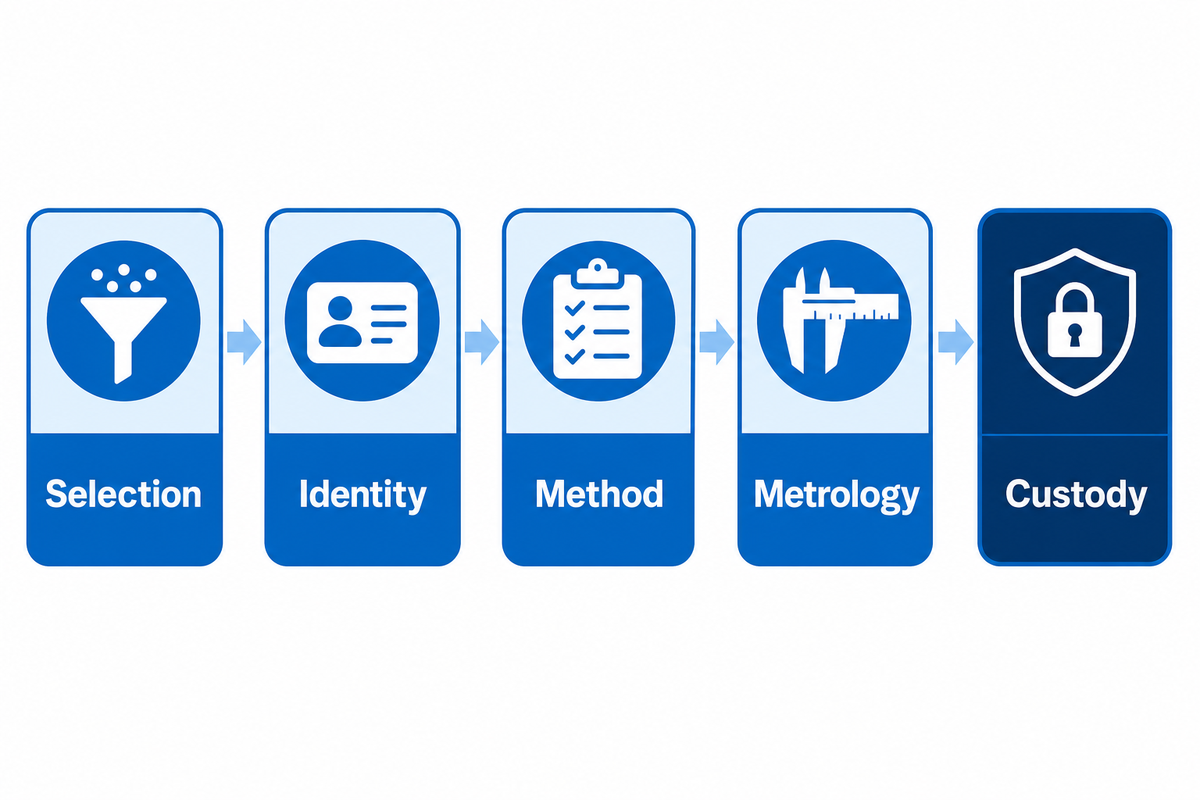

Build an auditable cartridge sample and inspection plan

An auditable sample plan identifies the rationale for selection and binding of the sample ID to the measurement record. It explains why and where each sample is taken. Decisions about risk, run length, product variations, measurement burden, and contract requirements should determine the sample distribution instead of relying on an invented universal AQL.

A calibration certificate will be included with the measurement plan and report, if necessary. However, other factors may also limit the measurement result.

Keep machine FAT distinct from filtration-performance qualification

There are numerous types of documented process and product information that may support a broader qualification program, while machine FAT and cartridge-performance qualification remain distinct decisions. However, these samples of information may not prove, support or qualify the process and its output to meet the requirements for micron rating, efficiency, pressure drop or service life.

The production process for PP filtration media involves heating the polymer melt, extruding it, and drawing melt-blown fibers around a core. The process results in a meltblown filter cartridge whose gradient density, fiber diameter, pore size, porosity, surface area, structure and filtration performance can vary with raw material and production conditions; in melt blowing, the PP polymer melt is extruded into melt blown polypropylene fibers, but a PP melt-blown filter cartridge sold as a liquid filter still needs defined evidence for water purification, high-efficiency filtration, larger particles, higher filtration efficiency, or any claimed advantages of PP.

There are various intended uses of PP, and these include liquid and gas purification, and other separation processes. Product filtration performance may vary with intended use, porosity, and density; a depth filter used for pre-filtration before a reverse osmosis membrane faces a different contaminant, solvent, or high flow duty from other liquid filtration, water treatment, and filtration applications.

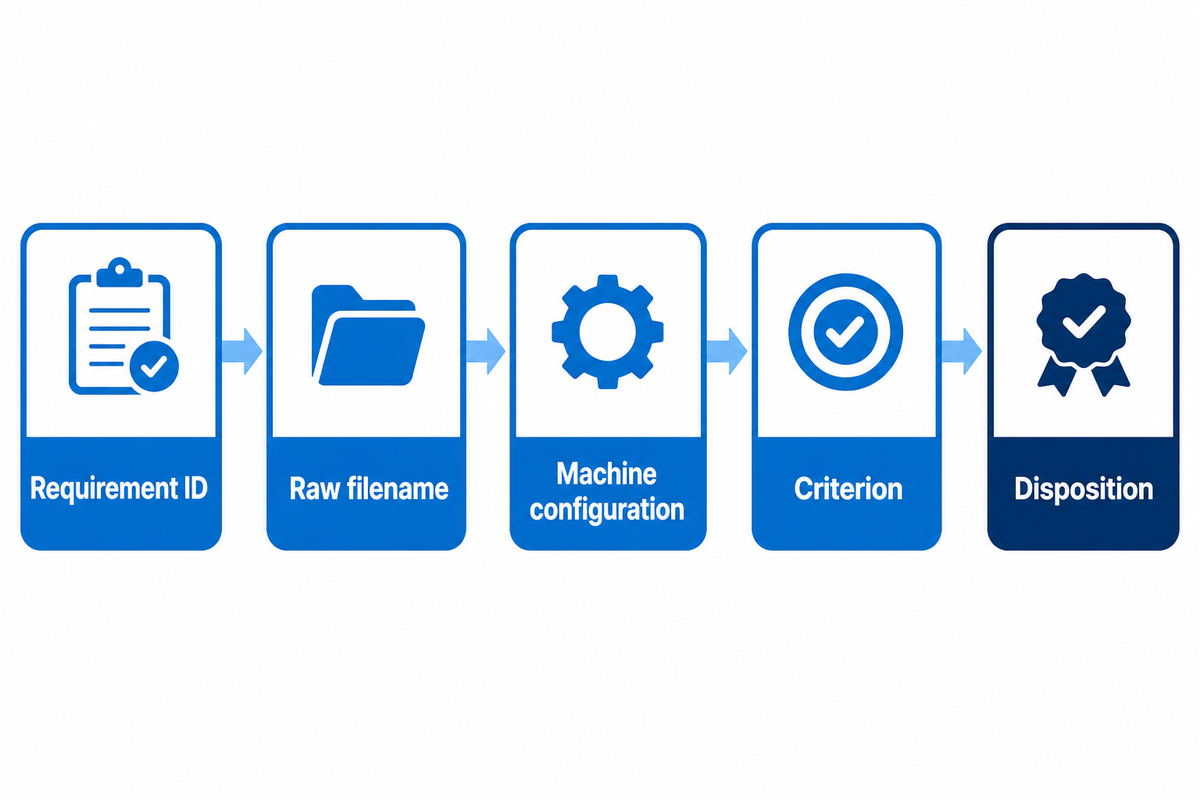

Build a record pack that another reviewer can audit

Auditable record packs let reviewers move, without memorization, from an acceptance input to related test steps, raw records, acceptance criteria, witness answers, results, and dispositions. The record packs preserve the integrity of the records, including the revision history, sample identification, instrument evidence, exceptions, approvals, and trial-lot record.

Time-stamped photos and videos should also be included to document test steps and sample records. These should also be included along with signed decisions.

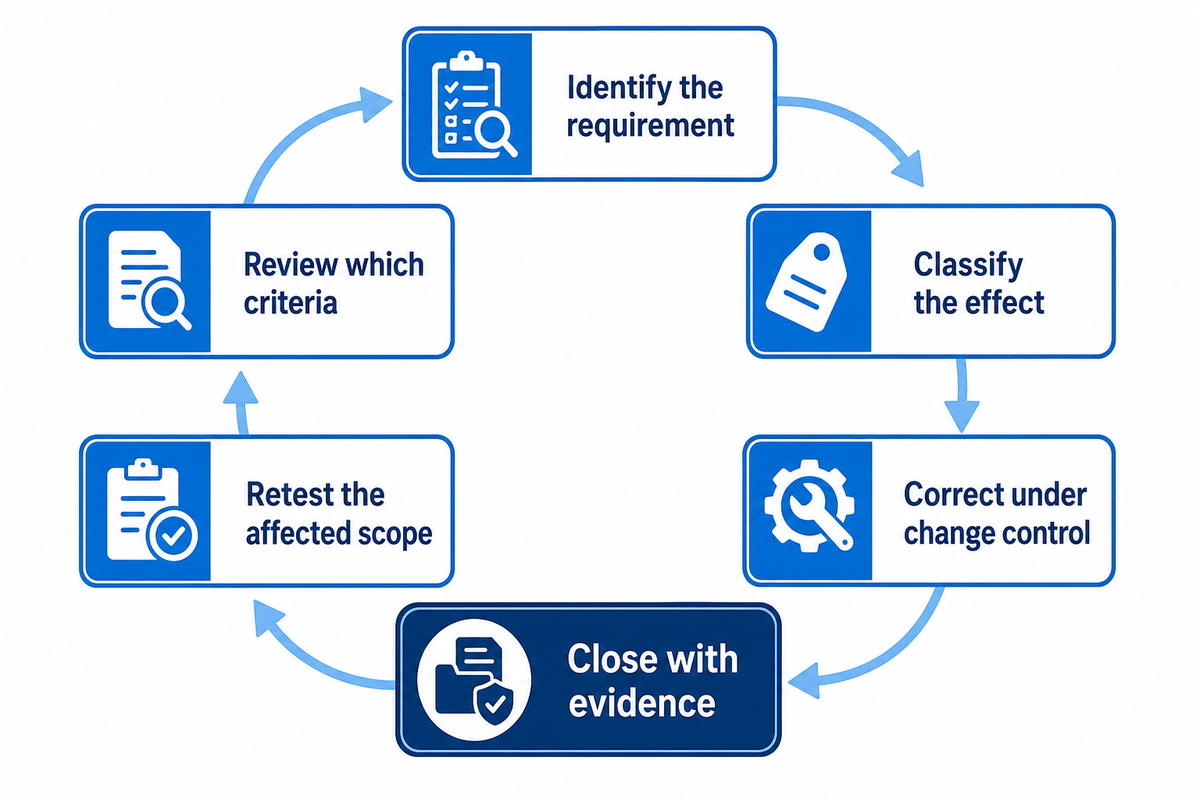

Close failures with an impact-based Deviation-to-Signoff Loop

Deviations should be identified, classified, and closed through the appropriate review, and, if needed, a determination should be made to retest. The evidence should be provided along with the decision.

A corrected filename typo may require controlled document replacement without requiring a machine re-run. Changes to a sensor or control parameter would also impact previous results and would therefore also warrant a repeat run. The impact review would convey the differences.

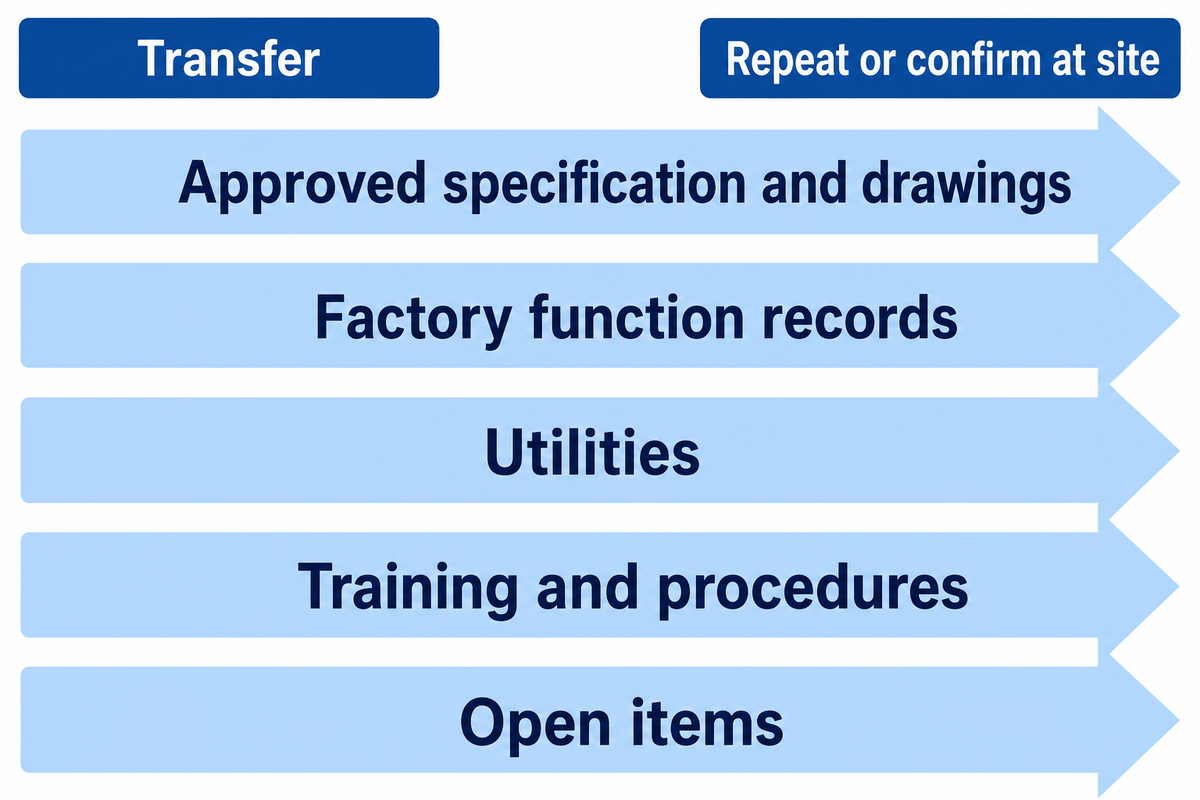

Transfer evidence from FAT to SAT and commissioning

Evidence collected as part of a FAT should be clearly labeled as transfer, repeat, or open and sent to the customer site. Factory observations and documents may remain valid, but their transfer, repeat, and open status must be defined before site use. Other evidence should be verified during Site Acceptance Testing (SAT) or Commissioning.

Evidence may need to be repeated due to shipping and/or installation. Label the results as accepted or reference only.

Put the acceptance package into the RFQ and purchase order

It’s ideal to perform a FAT before the equipment is procured, because much of the evidence can still be defined in supplier-selection and purchase-order documents. Products, services, and the means to achieve requirements should be tied to shipping, installation, connection, and software-restoration evidence.

Populate the RFQ with the information below, complete each “contract-defined” field with the approved project alternative, and use the broader filter cartridge production line solutions page to compare related equipment families. Discussions and clarifications regarding quotations are available in the melt-blown filter cartridge production line document.

Frequently asked questions

The following responses cover information typically deferred until test day: what constitutes FAT, how long the test should run, whether FAT proves filtration, how accepted output is counted, and what happens during SAT. The project documents will be the final determination.

References and scope notes

References & Sources: the sources below support FAT responsibility, process-variable traceability, United States guarding and electrical boundaries, statement-of-work planning, and scope-limited counter-evidence. The 1997 FDA device inspection guide is a historical impact-review example, not current QMSR compliance guidance or a machinery FAT rule.

This information was reviewed and provided by the Suzhou UDTECH Technology Co., Ltd. The article isn’t a project-specific acceptance certificate, laboratory report, or legal opinion, and it doesn’t mean UDTECH accepts project requirements outside a signed agreement. This provides guidance for procurement and planning purposes only.
